Would this work for my FX Impact MK1?

[Arnie]

I saw this Huma regulator on AOA. Would this work for my impact? Will it require the Belleville washers? https://www.airgunsofarizona.com/regulators/huma-regulator-for-fx-impact-.177-.22-.25-and-.30/



[Theman406]

No, like this



[biohazardman]

You would also need to know if your Gen1 has the short reg piston with 11 x 8mm diameter belleville washers or is actually a Gen2 like mine with the longer 8mm piston and 16 x 8mm diameter washers. Before you start changing things around.

FX Impact Versions

Generation 1 (before May 2017) Impacts had the short (14mm) piston and small (8mm) housing

Generation 2 (between May 2017 and Serial Number 183534) Impacts (and early Impact X's) had the long (16mm) piston and small (8mm) housing

Generation 3 Impact X's (after Serial Number 183534) have the long (16mm) piston and large (10mm) housing (These are called AMP regulators)

FX Impact Mk2 - New gauges, new sideshot magazine & a larger air plenum



[Arnie]

You would also need to know if your Gen1 has the short reg piston with 11 x 8mm diameter belleville washers or is actually a Gen2 like mine with the longer 8mm piston and 16 x 8mm diameter washers. Before you start changing things around.

FX Impact Versions

Generation 1 (before May 2017) Impacts had the short (14mm) piston and small (8mm) housing

Generation 2 (between May 2017 and Serial Number 183534) Impacts (and early Impact X's) had the long (16mm) piston and small (8mm) housing

Generation 3 Impact X's (after Serial Number 183534) have the long (16mm) piston and large (10mm) housing (These are called AMP regulators)

FX Impact Mk2 - New gauges, new sideshot magazine & a larger air plenum

Thanks for this. Yeah mine is a Gen 1. Where can I buy a Huma regulator?



[Keyman62421]

Trenier, spaw



[biohazardman]

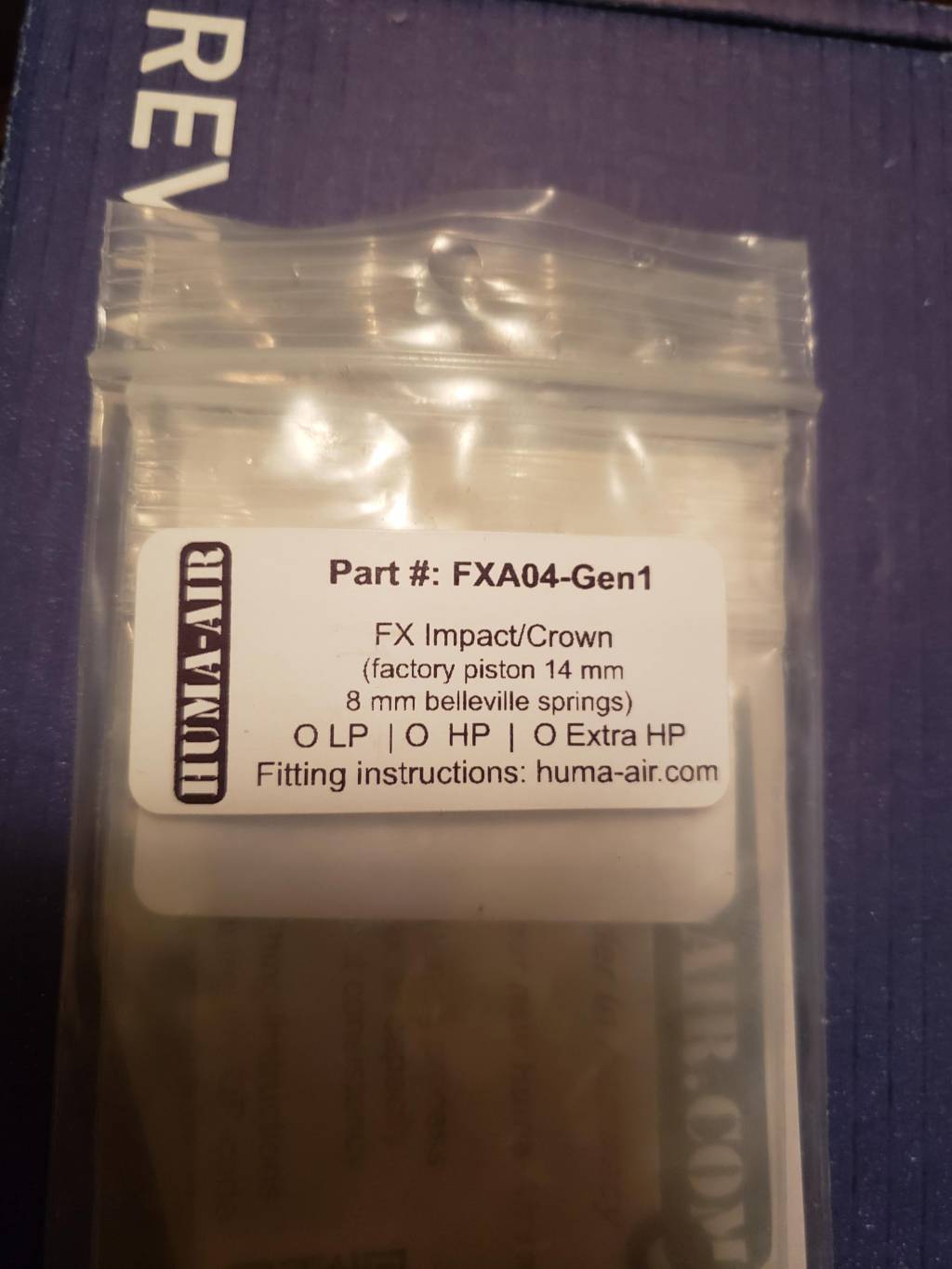

I bought mine from Huma. Only replaced mine cuz it was faster than going through FX to that the part I needed. They really screwed that one up. They did better with the rest of my transactions with them though.

From Huma

https://www.huma-air.com/FX-Impact-and-FX-Crown-Tuning-Regulator-Gen-1

From Trenier

https://www.trenieroutdoors.com/fx-airguns-impact-80-150-bar-huma-regulator/

From Spaw. But at a later date cuz they are out of stock now.

https://www.trenieroutdoors.com/fx-airguns-impact-80-150-bar-huma-regulator/
