I need help, please. I just received my new TXED012 last week and found that the wiring for the two plugs on the back panel were disconnected. The terminal ends or clips are too big for the tabs and they fall off when I try to connect them. I have tried to contact Tuxing service ,but have gotten a brief (we'll get back to you on this) last week. All I need is something that tells me what color wires go on what tabs. Any help would be much appreciated.
Wiring for a TXED012 compressor
- Thread starter Dallas1
- Start date
Can you provide pics of the wiring and if possible show where they go to. It's all fairly straight forward like home electrical. If its like my big tuxing with a mag switch and breaker it gets more confusing looking. Also what voltage? I hope we can talk you thru this. Best of luck
Upvote 0

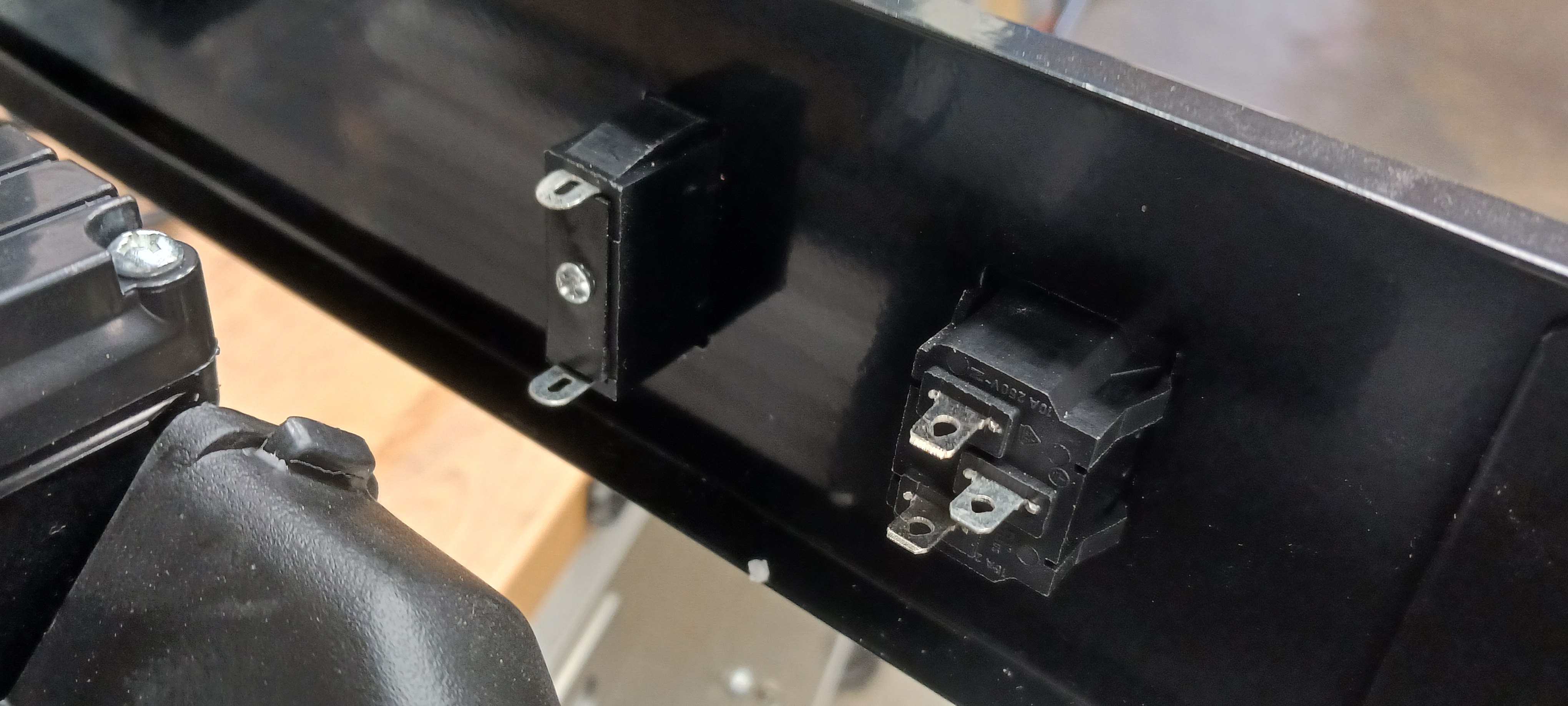

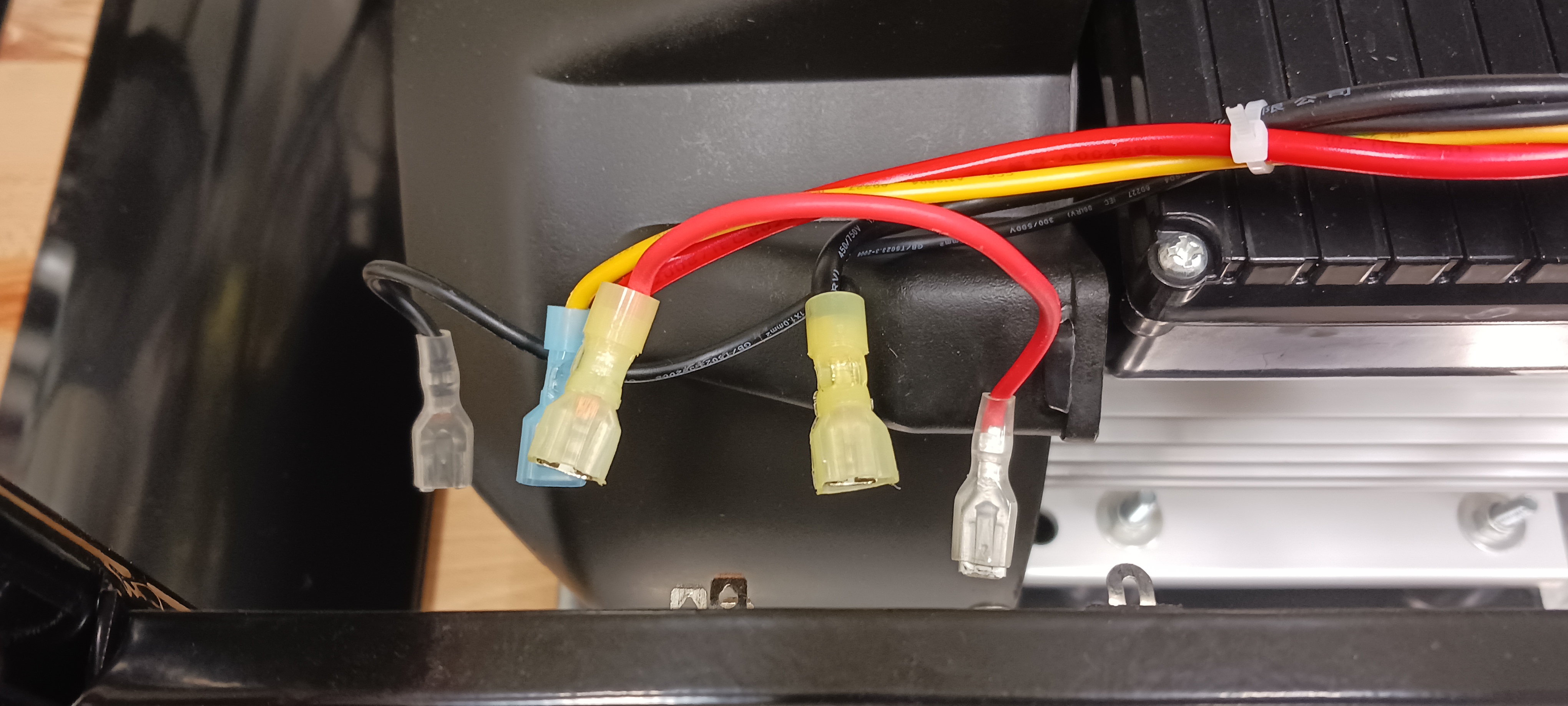

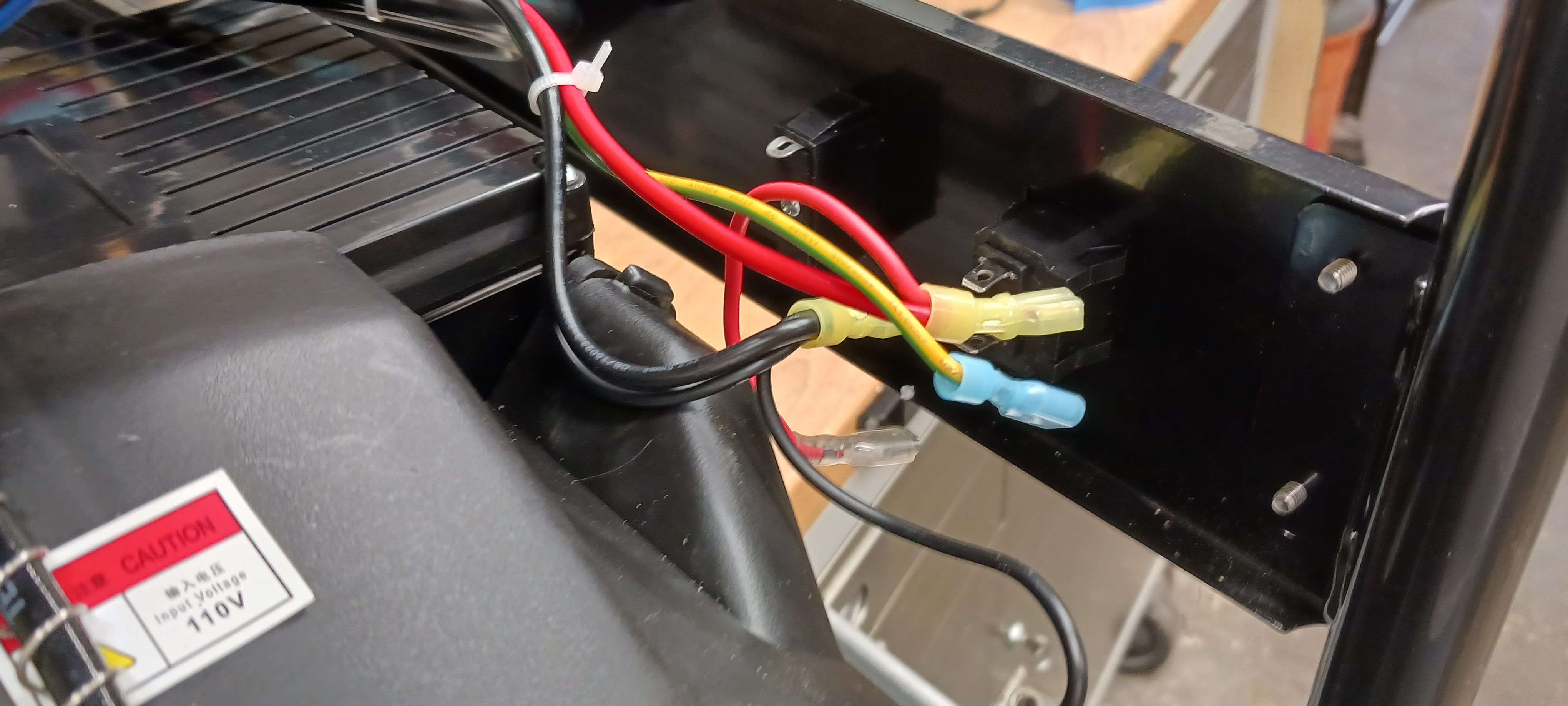

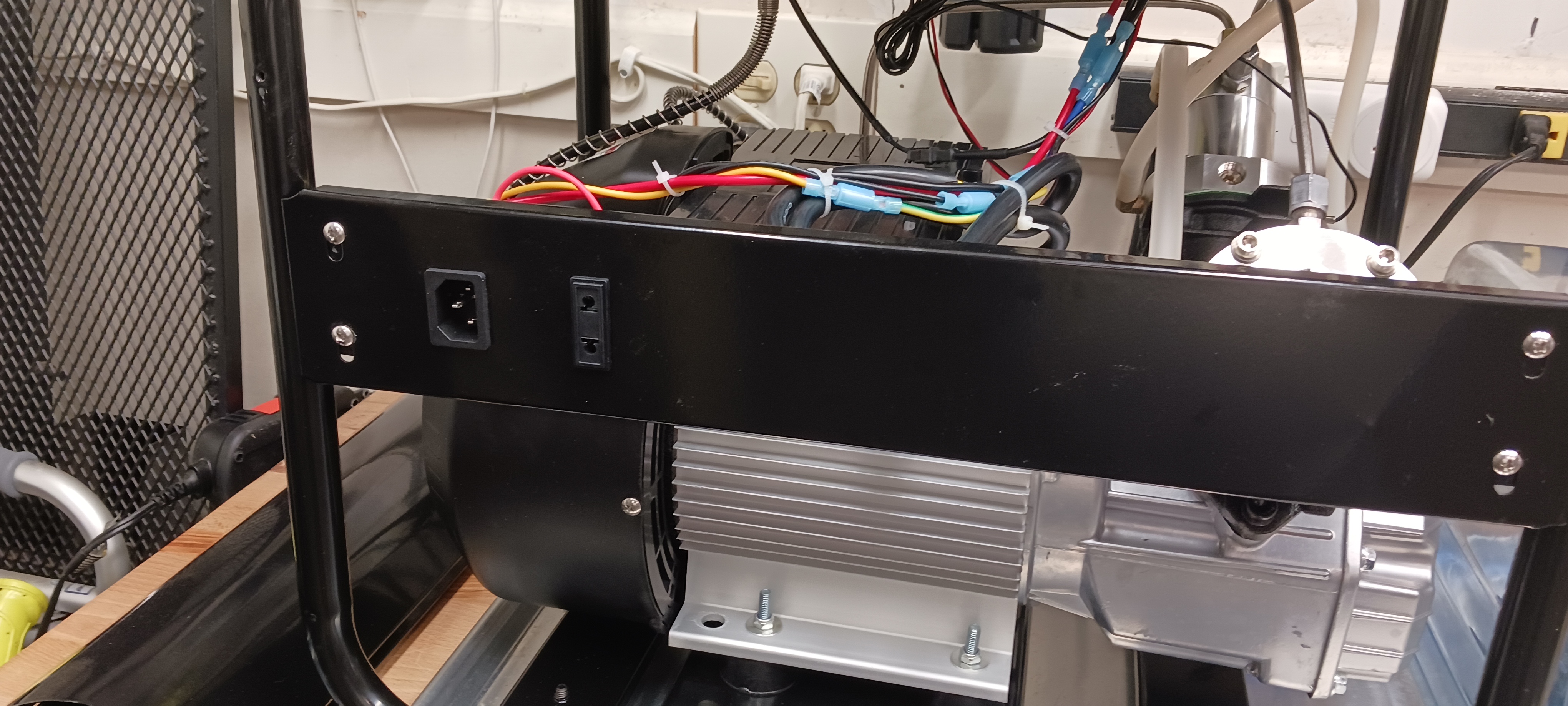

Thank you for responding so quickly. I have attached 4 pictures, the front of the panel showing the main power input plug and the plug used for the pump. I sent a picture of the back of the panel, showing that the main power plug has three tabs and the pump plug with two tabs. The other two pictures are of the wires. There are two black wires, two red wires and one yellow/green stripped wire
Upvote 0
The plug on right, it’s red on top terminal, yellow green on middle terminal, and black on bottom terminal. The plug on left , top terminal red, bottom terminal black. If you get pliers and compress the terminals a bit, they should fit right tight.
Upvote 0
mine came in exactly like that and that’s what I did. No problem.
