What moderators fits om Fx wildcat mk2? End cap on the wildcat have a male m20x1 thread.
wildcat moderator
- Thread starter Tobbe77
- Start date
Yup, Donnyfl will fix you right up and he has very fast shipping too.
FX Impact/Wildcat 1/2 x 20 UNF Adapter Matte finish with thread protector #A2
FX Impact/Wildcat 1/2 x 20 UNF Adapter Matte finish with thread protector #A2
Upvote 0
Or go with the Koi and you don't need an adapter. He offers it with 20mm threads. Great Mod, love mine. Buddy has one too and loves it.
Upvote 0
I’ve got the DonnyFL Tanto on mine and all you hear is the hammer strike on the valve, then the ting of lead on steel. Super mod and it looks great on the WC.
Upvote 0
Correct!! Same with the Tanto, they can attach directly to the shroud with the proper end cap. I use them on my WC25 MKII.
If you want to use the larger 1.6" or 2" diameter ones like the Sumo or Ronin, you'll need the adapter.
FULL DISCLOSURE
Due to variances in manufacture/build between one FX Wildcat and the next, the 1.2" diameter of the KOI and Tanto might rub the fill port dust cover like on my rifle. There are some WC owners who fit the KOI directly to the shroud with no clearance issues at all.
I had to mod my fill port cover so I could run the KOI directly off the shroud without interference. The advantage of running directly off the shroud is it saves weight and shortens overall length.

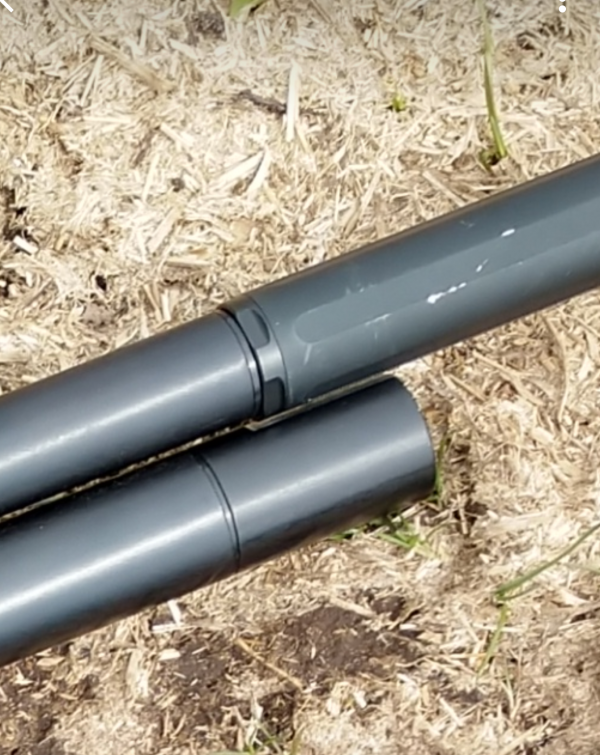

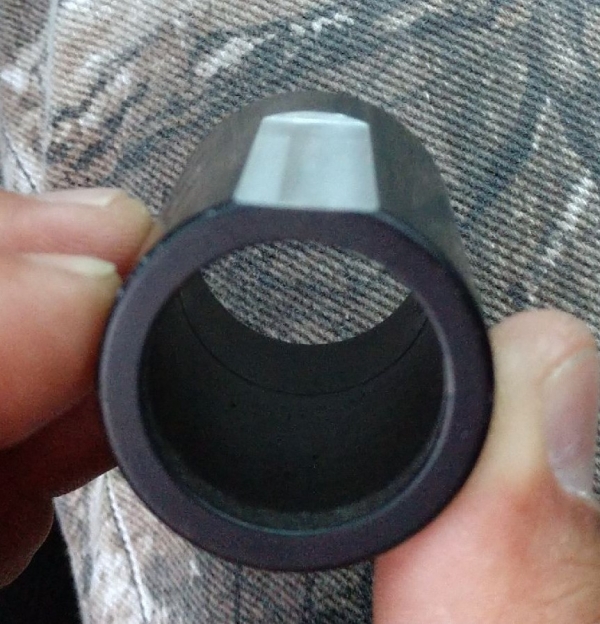

Here's a pic of my fill port cover. I took it to a local machine shop and they milled a flat spot as you see here. Now the only time it touches is when I am filling the cylinder.
View attachment MTUyOTAwNDI0OF81MjgyMzA1MDViMjJjMGQ4MzU1ZTczLjU4MzY5MzQzX0lNR18yMDE4MDYxNF8xNTEwMjZfMDF+Mi5qcGc=

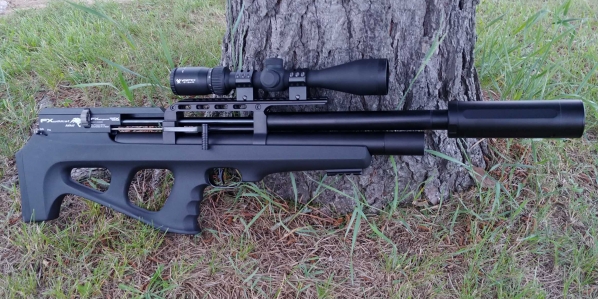

Here is how it looks in place:
Attachments
Upvote 0
Haven't seen any rub with either MarkII in .22 or the Compact when using the Koi. Don't know about other DonnyFL models directly attached to shroud.
Upvote 0
There is only a chance of rubbing if the end of the barrel is rearward of the air cylinder. A compact should never have those clearance issues.
Upvote 0
G
Guest
Guest
Shipped UPS Express Saver to your door...
https://www.krale-schietsport.nl/en/silencer-huggett-belita-compact-fx.html
https://www.krale-schietsport.nl/en/silencer-huggett-belita-compact-1-2-unf.html
https://www.krale-schietsport.nl/en/silencer-huggett-belita-compact-fx.html
https://www.krale-schietsport.nl/en/silencer-huggett-belita-compact-1-2-unf.html
Upvote 0
Hmmmm….my Wildcat does not have a .5" thread, it has a finer, male thread. I had ordered through Krale and the order showed that it was for a Wildcat, problem was that apparently the Wildcats there have female threads, so when I received mine, no workie. I contacted Krale and they made it right, but I had to buy another adapter at $30 more to get it here.
Be careful when ordering this from Krale to make certain that the thread is correct.
Be careful when ordering this from Krale to make certain that the thread is correct.
Upvote 0
G
Guest
Guest
The confusion arises from the fact that the 22 caliber Wildcat and the 25 caliber Wildcat are different where the moderator attaches they require different adapters... it makes no sense to me why one would be set up one way and the other completely different... but that's a question for FX I suppose.
Upvote 0

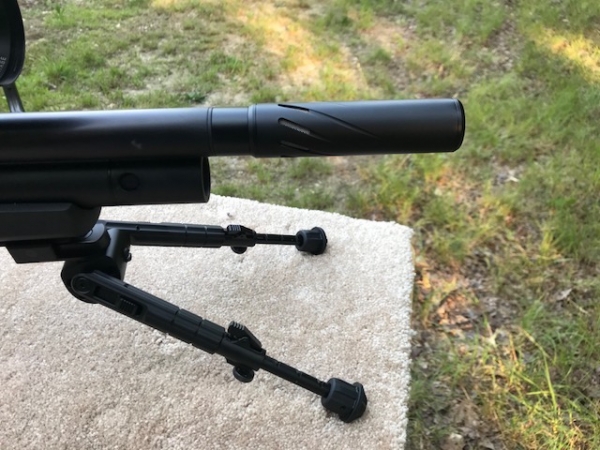

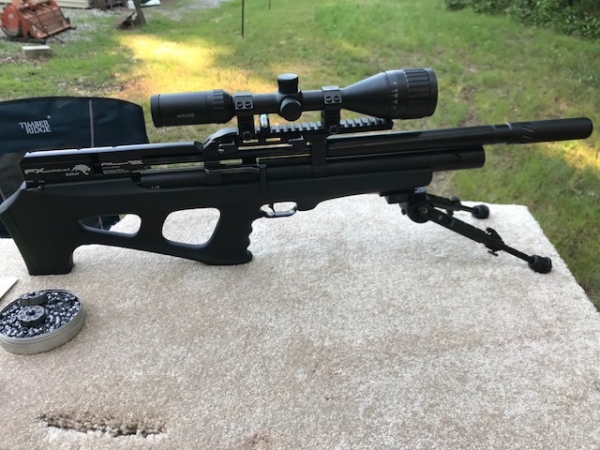

I put a Huggett on mine. In my opinion, it works better than the FX sections. I had to get the adapter from DonnyFL. If I hadn't already had the Huggett I would have gone with the Sumo.
Upvote 0
Hello guys! Need help. I have an fx wildcat mk1 .22 with the longer shroud. Do i need shroud adapter to fix Tanto moderator or will the Tanto with an M20 rear cap do the job?
Upvote 0
Just put a Hugget Atom on my mk1 .25 Wildcat. At 2.5” i love the short length, it still keeps the gun very truck friendly for when I’m at the farm. My dad borrowed my truck yesterday and used the gun to shoot at a pigeon, after not knowing the holdover and missing twice, he laid it down and called me to tell me my gun was out of air lol. It’s really THAT quiet! After proving to him it was fine, he couldn’t believe how much quieter the gun is now! I can’t really speak for donnyFL as i haven’t tried one, but that hugget is MEAN!
Upvote 0
