Tuning Wildcat MK3 - low power

[inverted]

Hi!

I have a problem on a new Wildcat MK3

Can't get any reasonable power out of it.

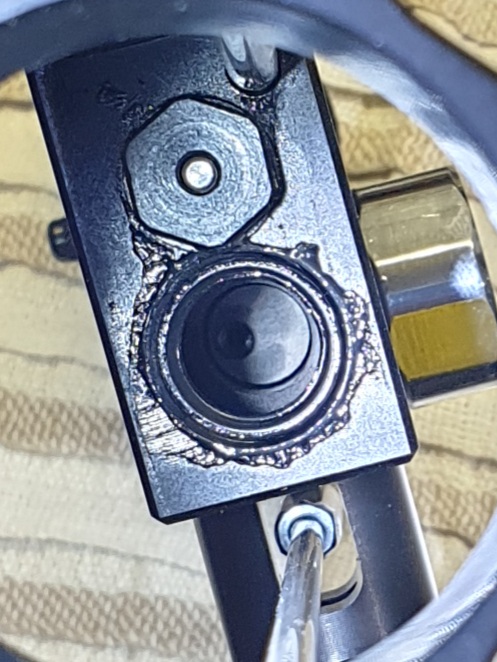

This is a picture of port where cylinder is screwed on the breech block

Is it normal for this to be so small of an opening?

Thanks!



[inverted]

If it's indeed to small for a full power Wildcat, can this be removed or bored out? It doesn't seem to be a part of a breech but it looks like it's a separate part



[GRITCH]

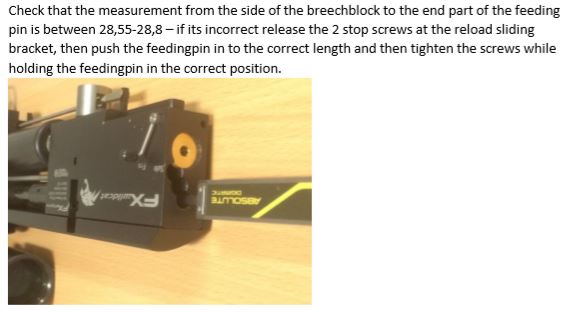

Check the Probe Depth. It should be 28.55 to 28.8mm from the rear of the block. Here is an image I had saved (source unknown) as a guide



[inverted]

Unfortunately it's not the pellet probe.

Checked that already, its in a right spot.

Problem is that I get just a small amount of air out of the valve. It's like too weak hammer spring but hammer spring adjuster is maxed out to the point where I can't cock the rifle on power setting 7 and then screwed back in so I can cock the rifle.



Thanks anyway!



[GRITCH]

Is your FX Wildcat MKIII a FAC air rifle model or is it a restricted to 12 ft lbs of power ?

What FPS is the gun shooting at now ?

What is the regulator pressure ?

Have you checked the barrel alignment with transfer port

Have you checked the barrel O-Rings ?
(The breach O-Ring can be easily dislodged or damaged when the barrel is cleaned)

When you checked the Probe Depth measurement did you use a Vernier Caliper when the gun was fully reassembled ?
(This should be done every time you unclamp the cylinder)



X Wildcat MKIII High Power Tuning - FX Airguns

Ernest Rowe from FX Airguns takes you through the steps on how to tune your FX Wildcat MKIII for High Power! The gun used in the video is a .30 cal FX Wildcat MKIII.

https://www.youtube.com/watch?v=J-xWCqGO88M

-------



[inverted]

Wildcat is going back to the seller

It's restricted by sellers country law but that info was not stated anywhere on the sellers website.

We don't have restrictions where I live so I've made a mistake of not doublechecking in the first place. Lesson learned!

This particular Wildcat has some other issues which are not part of this topic, all in all, it was never tested for functionality before shipping.

And this is FX Official dealer. Really disappointing.



Thank you all for pitching in and help!
