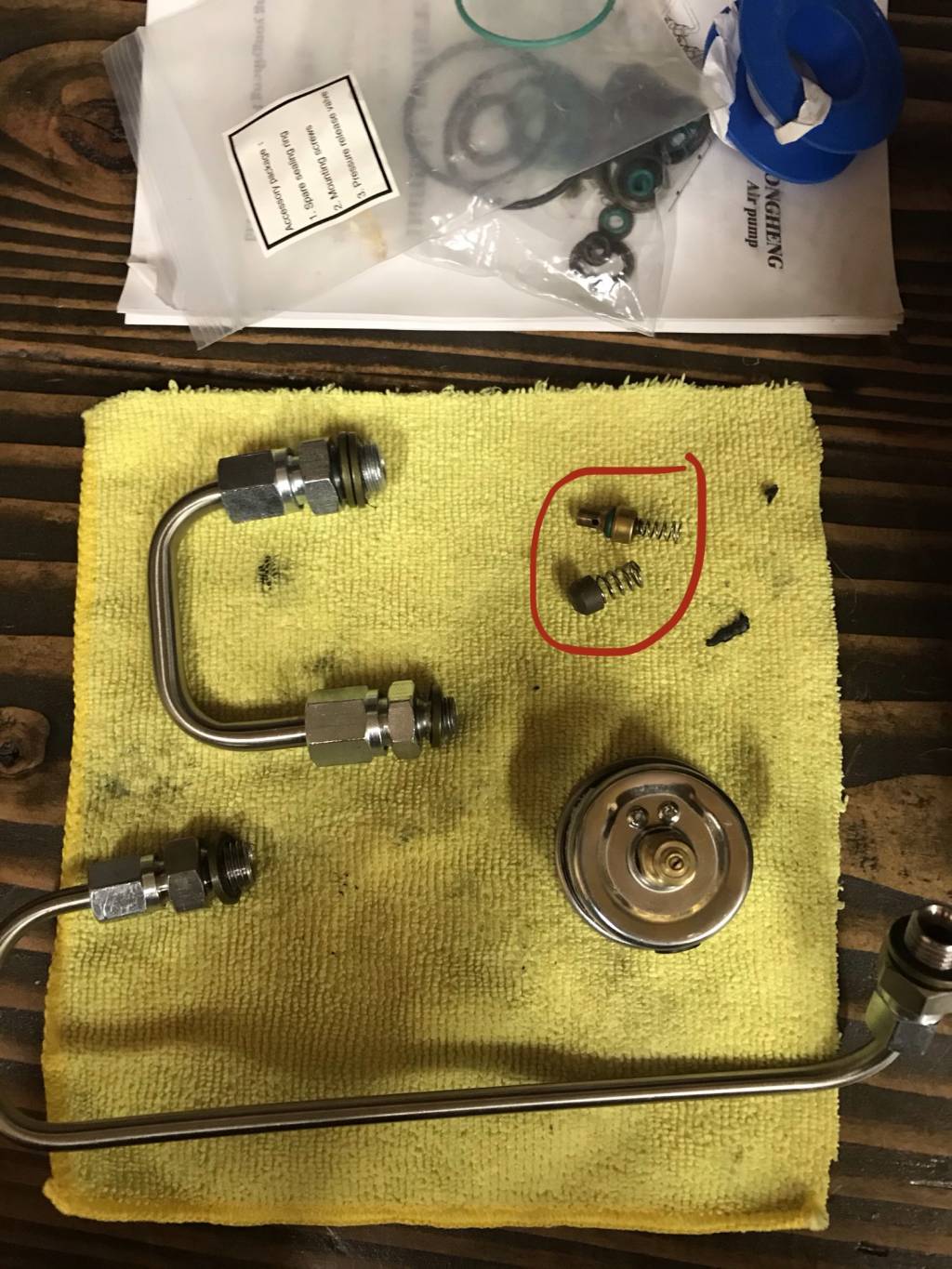

Hi all, i tore apart my compressor to fix an oil leak into the coolant, which seems that ive done correctly, but i havent completely put it together yet, and i left it in pieces for a while now, and i totally forgot where these 2 little seals/delrin things go! Any help would be greatly appreciated!
Where do these 2 things go in my Yong Heng Compressor?
- Thread starter PlinkForFun
- Start date
OMG! I'm sorry but i have no answer, just don't use it till you figure out or contact factory for schematic diagram. I have a chinese brand pump Tu Xing i bought long ago but never use it because not long after Air Venturi came out with Nomad II pump so i got that instead and been using it. So now i have a brand new Tu Xing pump sit in garage unused with original box. I'm thinking to sell though.
Upvote 0
They are check valves. The top one goes in the stainless fitting on the bottom of the high pressure block. The one with the gauge on it. The bottom one goes in the bottom line on the side of the head/piston assembly.
Upvote 0
Yeah i have a YH manual with the schematics, but their for the auto stop version and i cant seem to find the schematics for the simple version one.
Upvote 0
Check the post again for the edit That is the top line on the low pressure side is actually the bottom line on the right side of the piston/cylinder assembly.
Upvote 0
