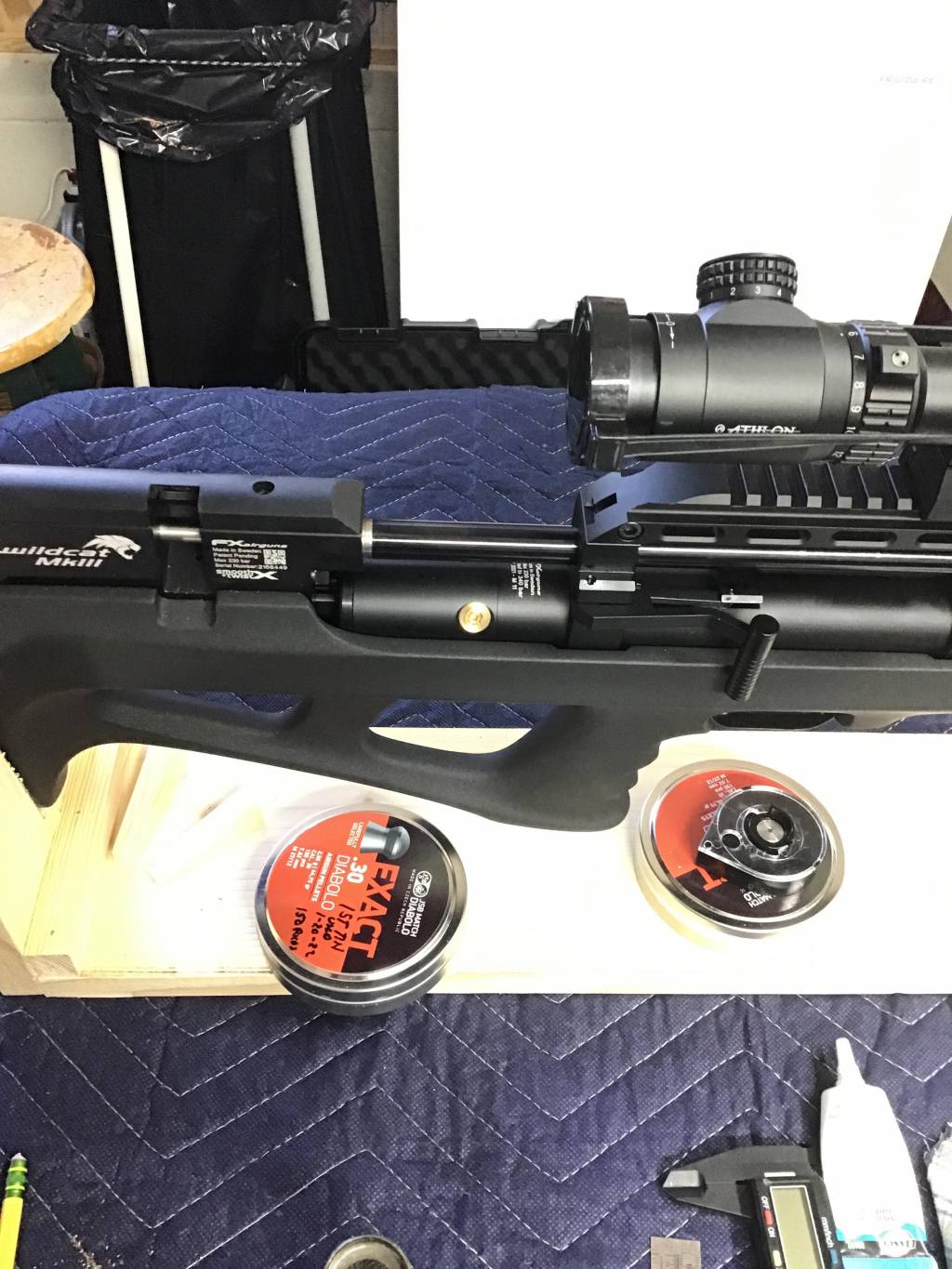

What does this allen screw do?
- Thread starter Grumpus
- Start date
thanks
grumpus
Contact FX service they will be able to inform you what it is for and weather or not if you should screw it in or out
Dennis B
Dennis B
Upvote 0
It’s your regulator adjustment. Turn counter clockwise to raise pressure, clockwise to lower. It should be referenced in your manual, along with instructions on how to adjust properly without damaging it.
my advice is, if you don’t know what it is, you should probably leave it alone!
my advice is, if you don’t know what it is, you should probably leave it alone!
Upvote 0
Grumpus,
This brass regulator adjustment screw is supposed to be pointing straight down and only accessible with stock removal.
This brass regulator adjustment screw is supposed to be pointing straight down and only accessible with stock removal.
Upvote 0
I am not familiar with that FX model, but it could be that the regulator may not be oriented the direction as designed and shown in the manual because assembly with the regulator pointed out makes for easier tuning. Alternatively, threads are not always machined exactly the same and thus may not line up the same on everything at final assembly.
Upvote 0
Grumpus,
This brass regulator adjustment screw is supposed to be pointing straight down and only accessible with stock removal.
Not true at all. These are oriented usually to the side so they can be adjusted on the fly. Not always, but the tube can be oriented to make it that way.
Upvote 0
Made in UK,

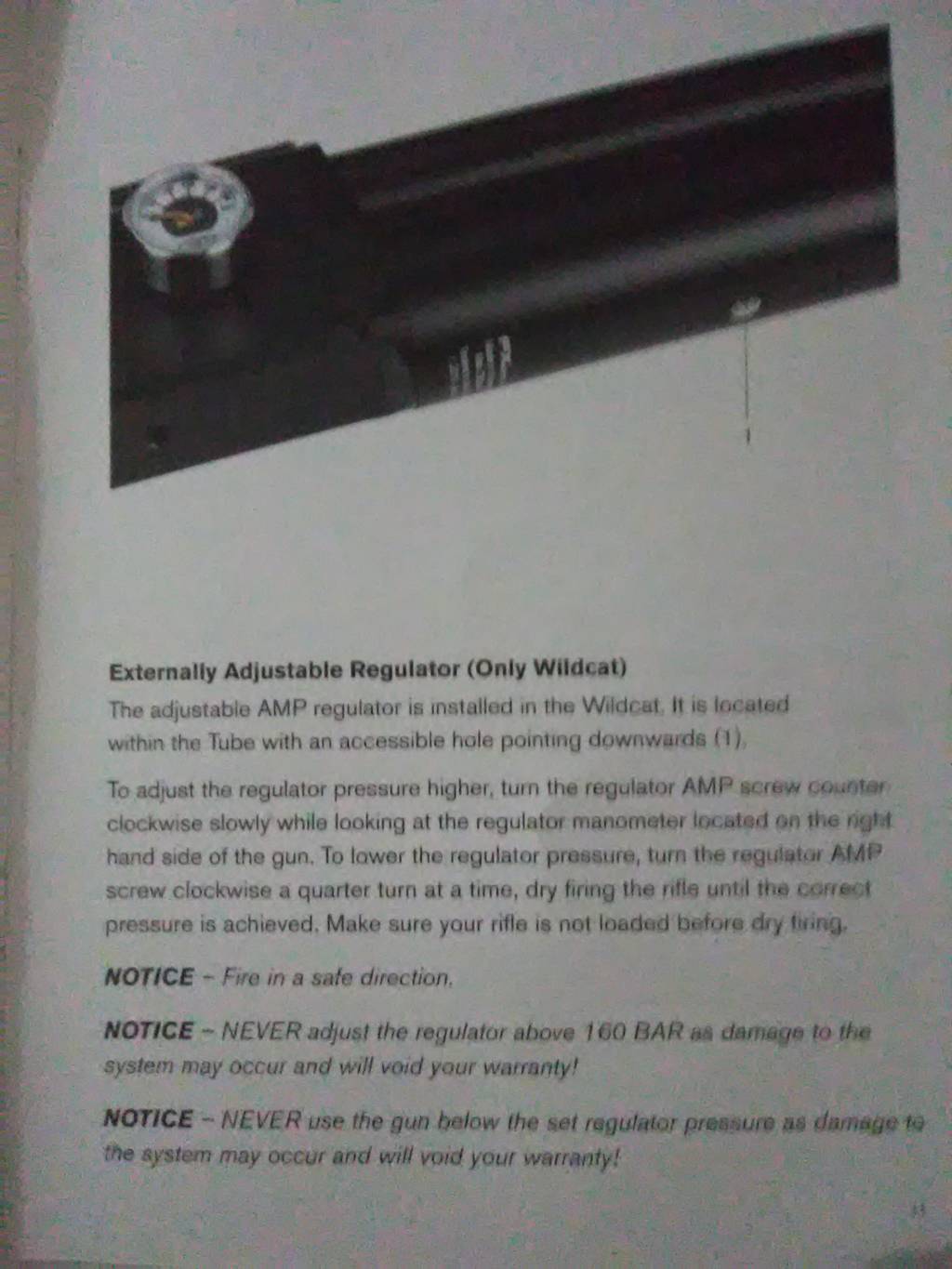

My MK3 Wildcat .30 Sniper was an early version and the manual pictured reflects this. It is possible later versions have changed. WM
My MK3 Wildcat .30 Sniper was an early version and the manual pictured reflects this. It is possible later versions have changed. WM
Upvote 0
Yes, most of the newer stuff, mavericks included, the reg screw is accessible without stock removal. Similarly it was accessible on my wildcat mk2 with amp reg, and that was before the mk3 was available!
Upvote 0
My Wildcat Mk III is also pointing...up. As it should to be accessible for adjustment.
Actually "up" is partially incorrect. It's at about a 15 or so degree angle from vertical.
Mike
Actually "up" is partially incorrect. It's at about a 15 or so degree angle from vertical.
Mike
Upvote 0
Ok thanks for the response, Manual indicated adjustment was under stock. Ill ck it out.
grump
grump
