Update on not Happy

[cahil_2]

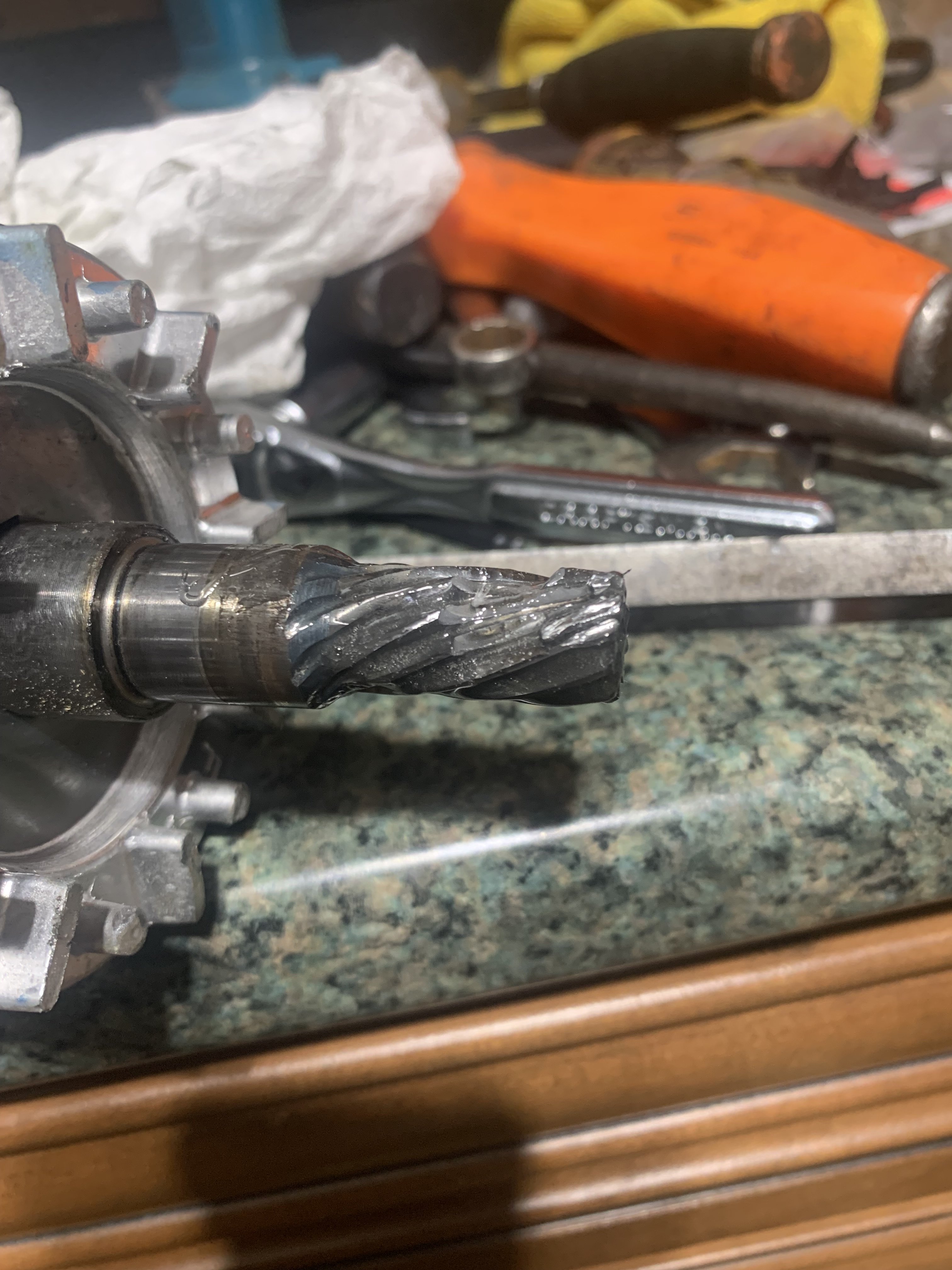

I got my Omega Super Charger tore apart. Something broke in the gear box and took out the input shaft. They are supposed to be sending me a complete new gear box base assembly. Now I wait and hope I remember how to reassemble it.

View attachment 592388
View attachment 592388



[BlackICE]

I got my Omega Super Charger tore apart. Something broke in the gear box and took out the input shaft. They are supposed to be sending me a complete new gear box base assembly. Now I wait and hope I remember how to reassemble it.

View attachment 592387

View attachment 592388
View attachment 592388

Was that supposed to be straight's splines or helical?



[Ezana4CE]

Was that supposed to be straight's splines or helical?

That must be some crappy metal if one has to ask how the splines were initially cut. I wonder what caused this? I’m curious as to what happened and what grade of steel was used in the gearbox.

@cahil_2 Did you happen to record your disassembly process? I hope it’s a relatively easy fix for you once you get the parts.



[BlackICE]

That's Chinesium steel. The quality varies each batch. Sometimes your lucky and sometimes not.
