My Umarex Trevox!
**Keep losing where I posted stuff...well more like need to condense my posts(for my sake at least)
Right now she is setup with an NcStar pistol scope, zerod for 15 yards(pistol target format?..anyway). Fixed magnification. So I figure I'd find my holds for closer than 15. Got enough space for aaaalmost 7yrd...so I just scooted forward and made it a sweet 5yrd short shot. Setup my target.
Fired....
Ooof low and left...
Adjust a bit on turrets...
Ready again and fire..
Hmm...ok left and right are good...aaaand I think I got .y holdover...
Ready.
Aim just over half way on bottom post of reticle.
Fire!
Not bad...not bad...
Then thought...
I'll leave it there and...
Sling a group!!

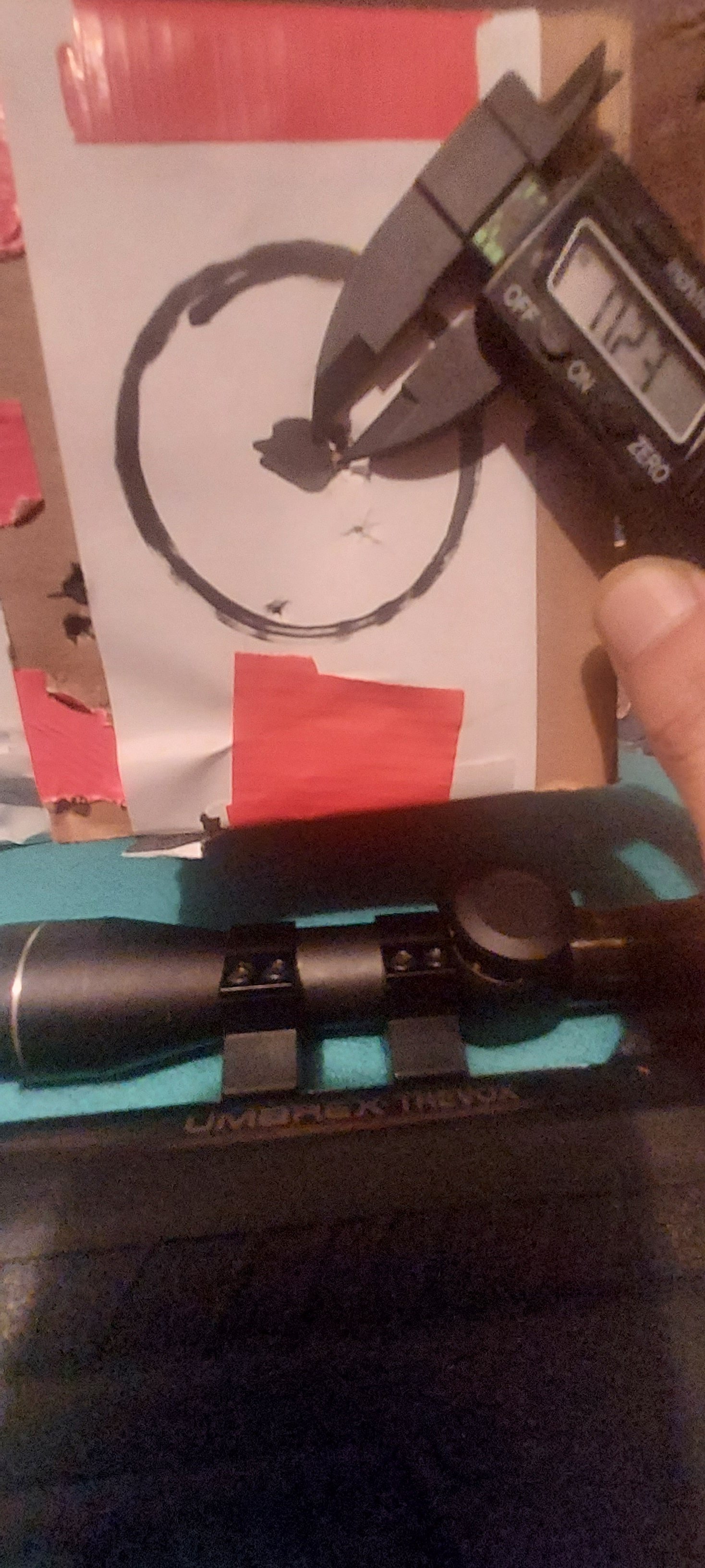

Wow!!

That's ten shots in that spot
Oh I fear for any tiny pest within 20yrd that gets in my way when I'm toting this thing around



[iAMzehTOASTY1]

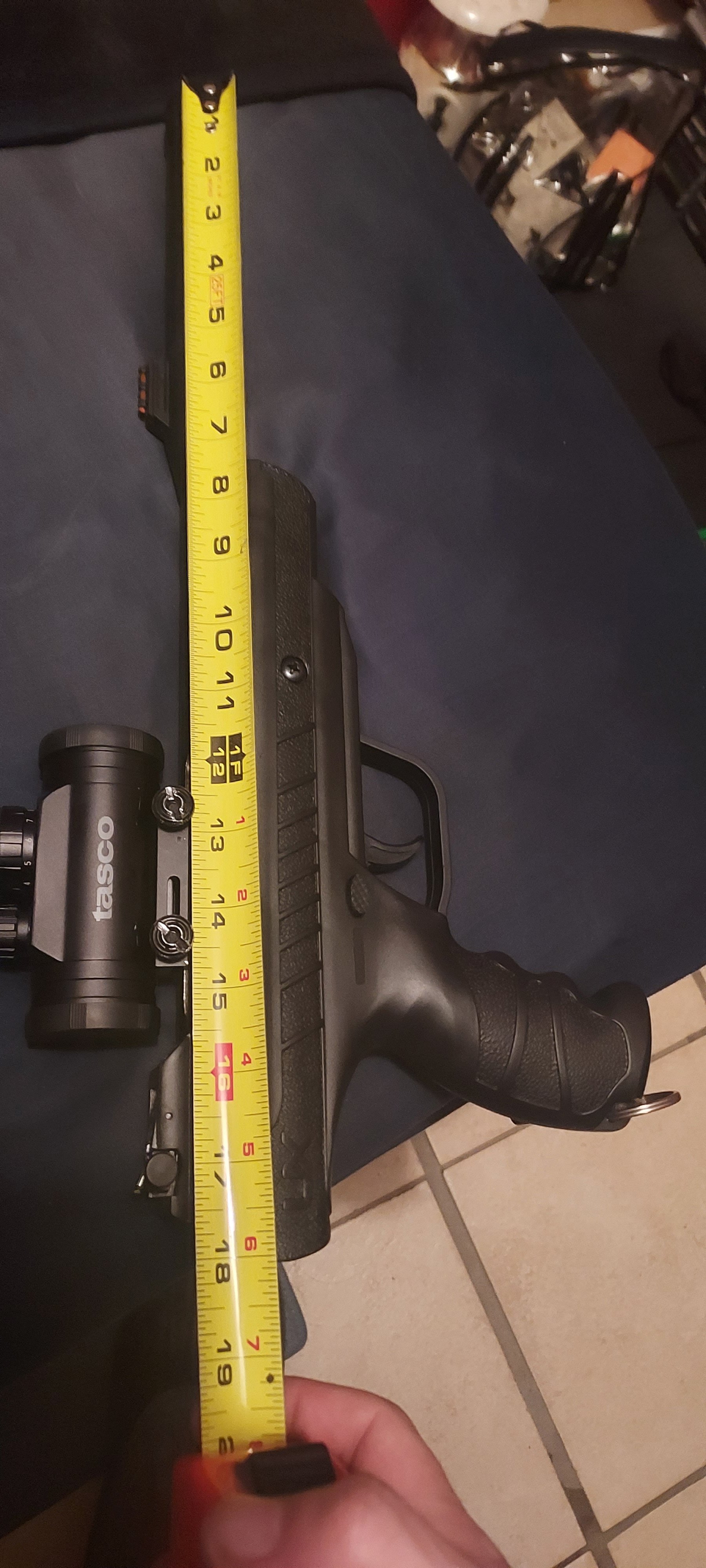

*Length measurement reference picture*



[markhooper]

*Length measurement reference picture*

View attachment 373556

about as long as the notos with the moderator removed hopefully someday I'll have time to get there..
good shooting
Mark



[marflow 777]

does it say where it is made
and yes, it is a big and heavy pistol, like the Hatsan and the Browning 800
trigger number look a little heavy on paper but it appears to shoot okay

and you can remove the Notos moderator



[markhooper]

does it say where it is made
and yes, it is a big and heavy pistol, like the Hatsan and the Browning 800
trigger number look a little heavy on paper but it appears to shoot okay

and you can remove the Notos moderator

the moderator is molded around the barrel with 2 snap ring holding it tight.. only way to remove it is bust it off or machine it and put threaded adapter on..
it's also what holds the inner tube of the plastic shroud.. the tube is threaded and one end just fits over the moderator end and the other end has a spacer but none of it is threaded together.. I believe from other posts that they used the same shroud tube as the pp750.. others have interchange parts between the notos and the pp750..
I'd share the links from the notos threads but I actually don't know how to find them again..
as far as where it's made I think I read China on the box..
so the quality so far seems good.. I have removed the shroud and barrel and I have removed the moderator baffles just trying to figure out the best design for the threaded adapter for the moderator.. so to remove it there's a screw on the top of the shroud over the action.. remove the screw and underneath it is a smaller set screw, I think around 4mm .. the set screw holds in the barrel and with it backed off you can slide the barrel out.. remember it's clocking because of the air transfer port.. then the shroud and shroud tube slide off. along with the rear tube spacer, not sure why they didn't use the threads in the shroud tube but they did dovetail the action and a matching dovetail in the shroud helps keep everything straight.. on the down side it has two o ring to seal between the action and barrel and one just fell apart like it was 20 years old, so I need to get o ring before I do the project.. the moderator has two drift pins holding the front on.. and a very good design for the baffles.. I plan on making it so I can screw the moderator back on but I can have it off for a actual pistol..
Mark



[HeyU]

LOL,,You could have a wicked good time.
