You can open the air block (the one w/ 4 screws where tank mounts) to 5 mm. This results in less pressure differential with valve and plenum during firing moment. Good for 10+ f/s.
Upvote 0
- The AGN App is ready! Search "Airgun Nation" in your App store. To compliment this new tech we've assigned the "Threads" Feed & "Dark" Mode. To revert back click HERE.
Tuning Umarex Notos has arrived.
- Thread starter pnwairgunner
- Start date
Hammer spring adjustment seems to do nothing on my Notos?
Back story...aka voiding the warranty, yeah wahtever.
So I installed a gauge block and immediately noticed a huge FPS gain. It continued to shoot great (with no POI change) so I never dialed back the FPS to the original 750ish.
Today I decided to try and dial it back in the hopes of having more shots on tap at the original FPS.
No matter which way I turn the screw it doesn't change the speed.
Manual says 1 whole turn should be 150-200fps difference. I did that and got no change?!
How many turns should there be total?
What am I missing?
TIA
Back story...aka voiding the warranty, yeah wahtever.
So I installed a gauge block and immediately noticed a huge FPS gain. It continued to shoot great (with no POI change) so I never dialed back the FPS to the original 750ish.
Today I decided to try and dial it back in the hopes of having more shots on tap at the original FPS.
No matter which way I turn the screw it doesn't change the speed.
Manual says 1 whole turn should be 150-200fps difference. I did that and got no change?!
How many turns should there be total?
What am I missing?
TIA
Upvote 0

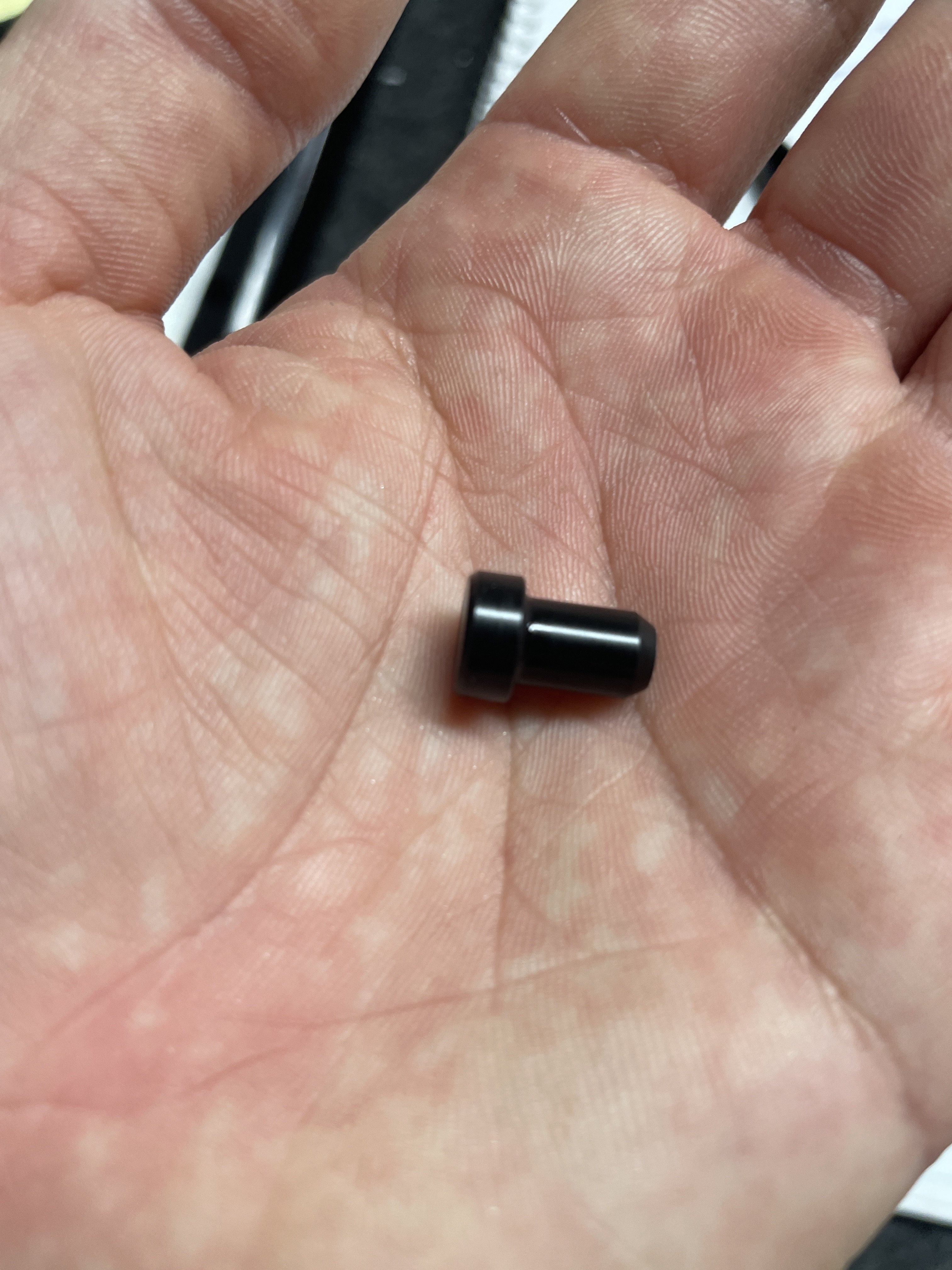

I’ve found that the spring is very soft. I turned mine in all the way to get max fps. I’ve also added a bushing for more compression
Upvote 0
With the hammer spring adjustment backed out all the way, it may drop speed by 20 F/S. The valve is fully open already at the lowest setting. You'll need softer spring to slow it down more. You can also increase reg pressure and it will slow down if you don't increase spring pressure, but since your after increasing shot count, this is not the way as now it will drop off the reg at higher pressure. Softer spring is the way to do it.
Upvote 0
Until I can find an appropriate spring, I can live with 850ish FPS I'm getting.
The squirrels won't like it either way.
The squirrels won't like it either way.
Upvote 0
This is the version I printed: https://www.gatewaytoairguns.org/GTA/index.php?topic=206735.msg156436122#msg156436122
You need 2 o'rings, read the thread.
The silencer insert works really well.
Upvote 0

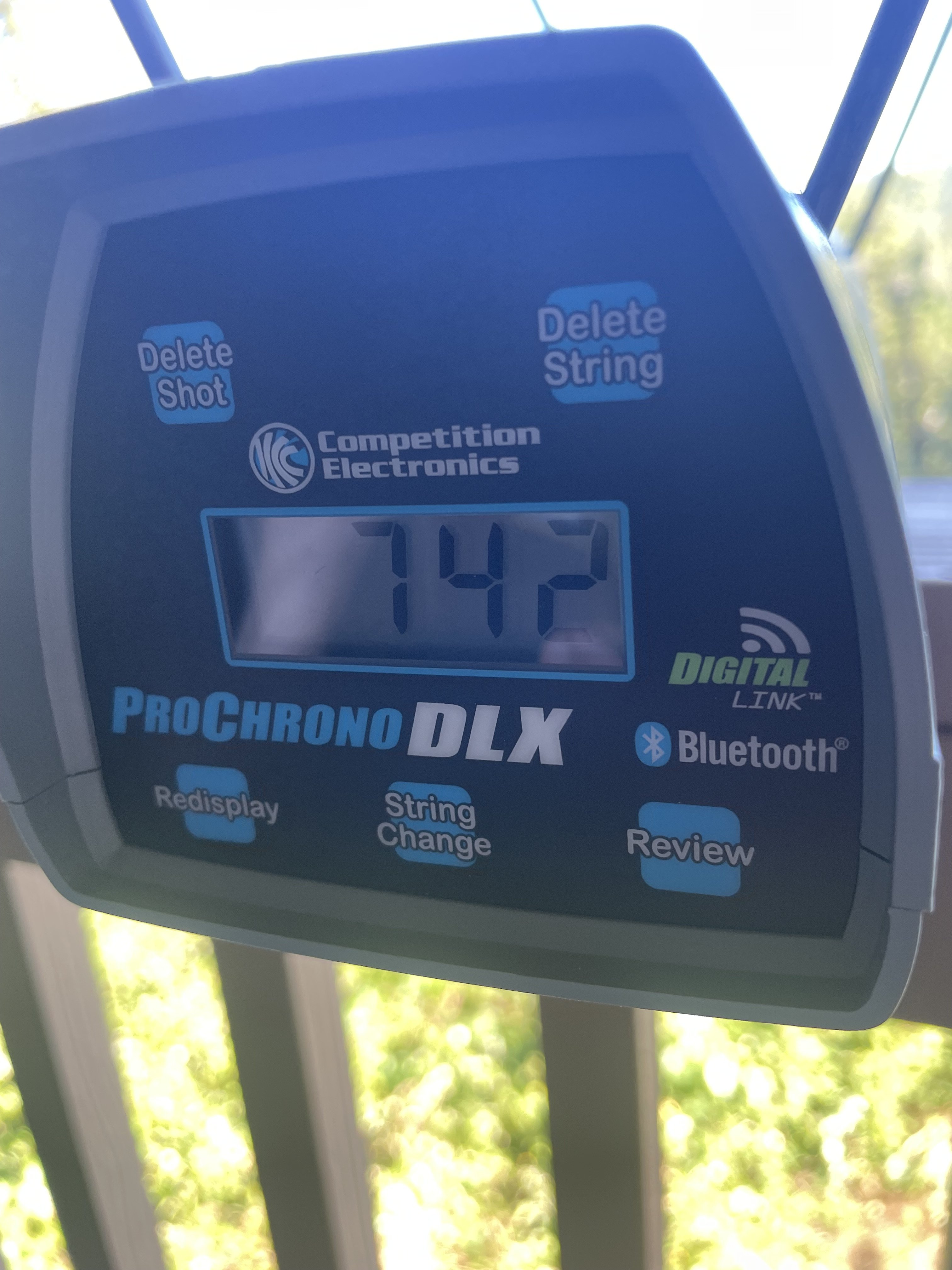

Did some testing today at 3500psi fill jsb 18gr-
30shots at min power 720fps avg
21shots at max power 730fps avg
15shots at max power w/4mm preload 750fps avg
18shots at min power w/4mm preload 740fps
30shots at min power 720fps avg
21shots at max power 730fps avg
15shots at max power w/4mm preload 750fps avg
18shots at min power w/4mm preload 740fps
Upvote 0
hi, i’m a new member on the forum and joined simply because this discussion is the reason i got the notos.. this thing is amazing! the notos is my first pcp airgun and i can’t seem to keep my hands off of it. as quiet as it already is, i’d like to get it quieterPut almost 75 Hades rounds through at 30 yards. Hand pumping it with my cheap four uncles
The Notos is awesome!
The 3D printed moderator is superb. If only it were that simple for other firearms.
Now want to soften up the trigger. Is it worth it to even bother with the adjustable screw or just take this thing apart as mentioned here many times?
am i allowed to request for a member to print an insert for me?Upvote 0
Go to GTA (Gateway to Airguns) forums and message miksatx. He has some made up, I just bought one from him yesterday. He may be on here but not sure if he goes by the same name.hi, i’m a new member on the forum and joined simply because this discussion is the reason i got the notos.. this thing is amazing! the notos is my first pcp airgun and i can’t seem to keep my hands off of it. as quiet as it already is, i’d like to get it quieter
Upvote 0

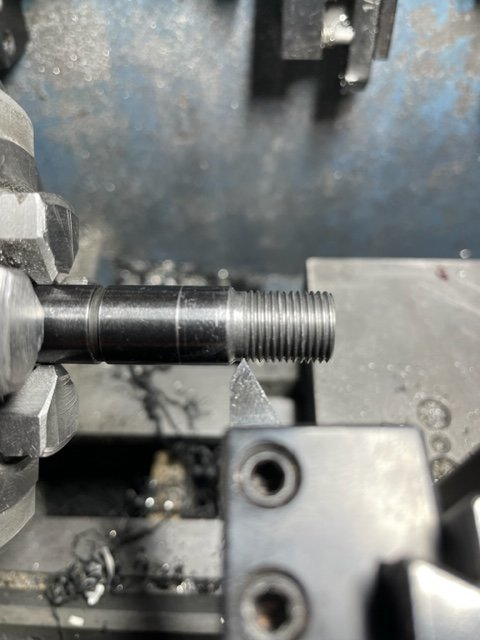

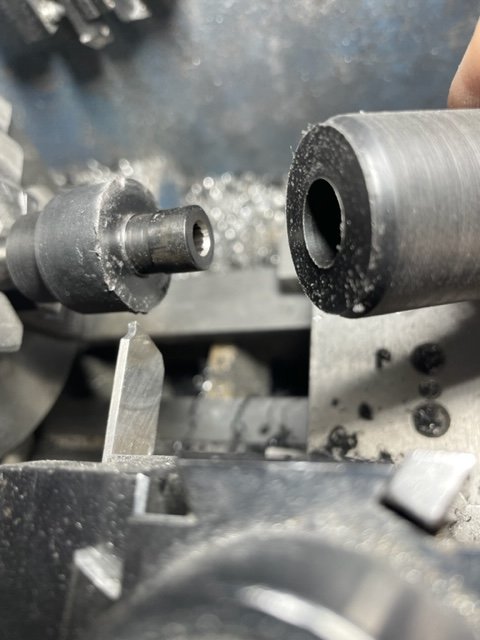

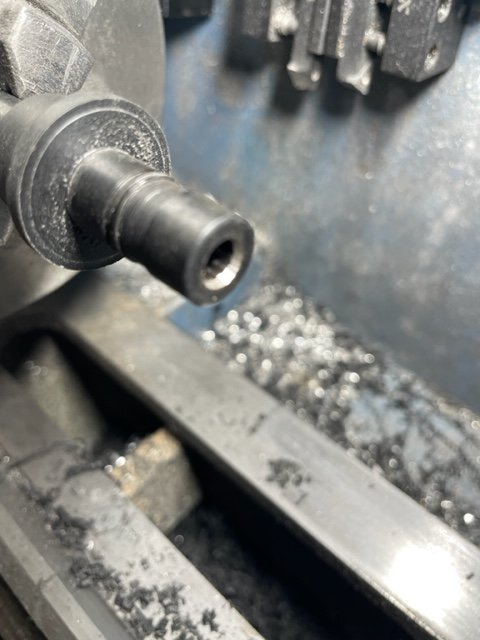

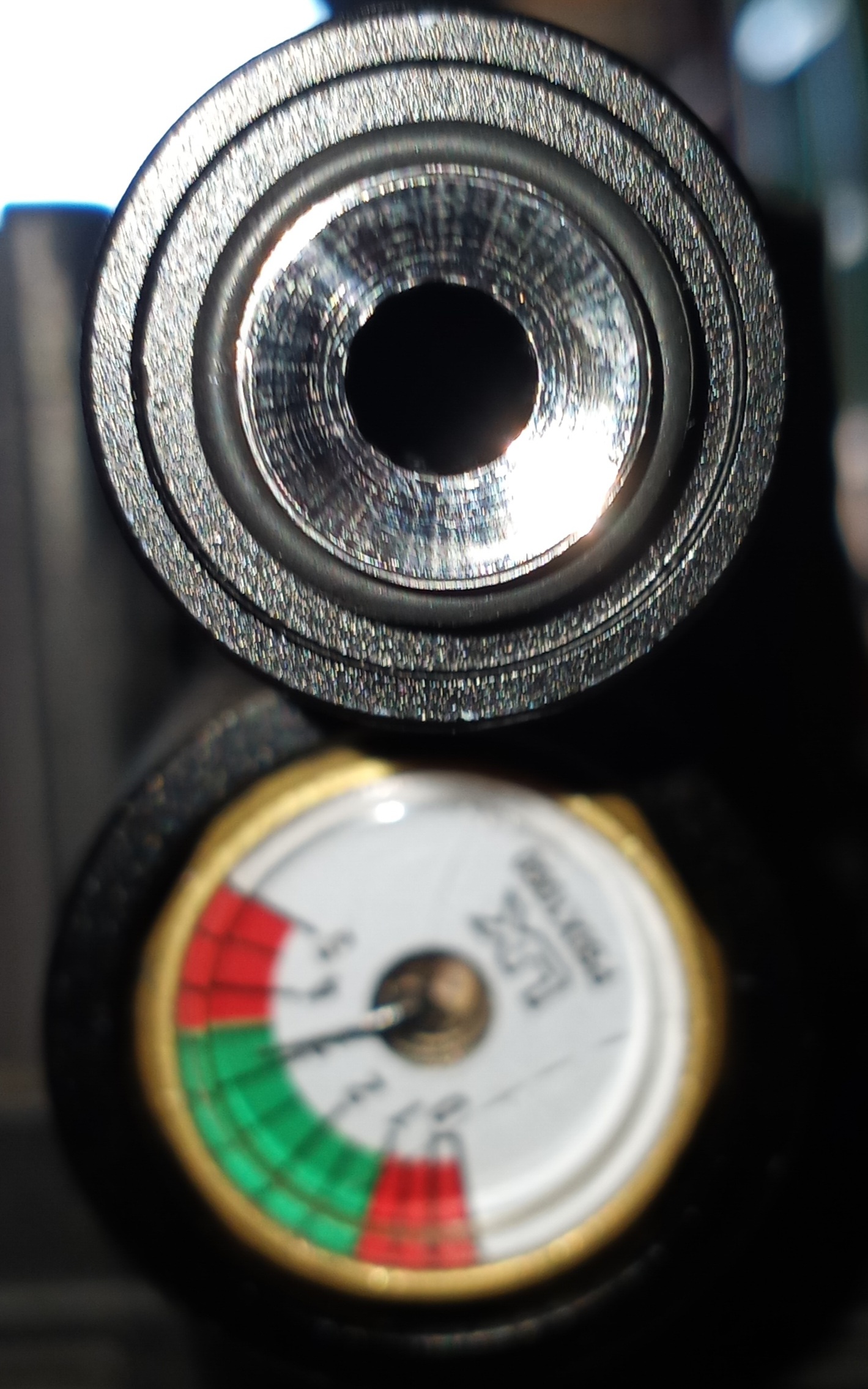

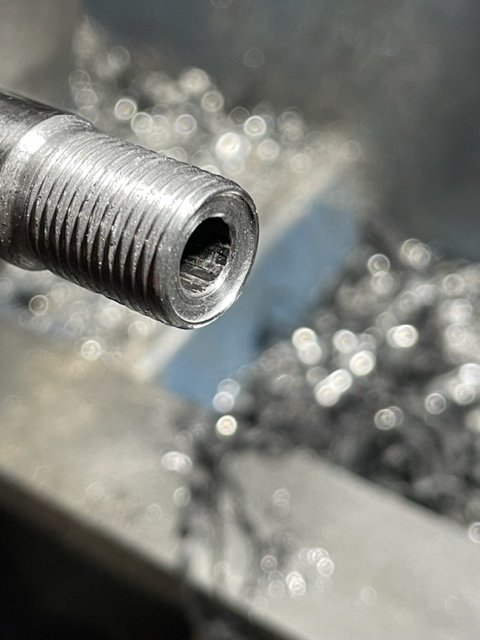

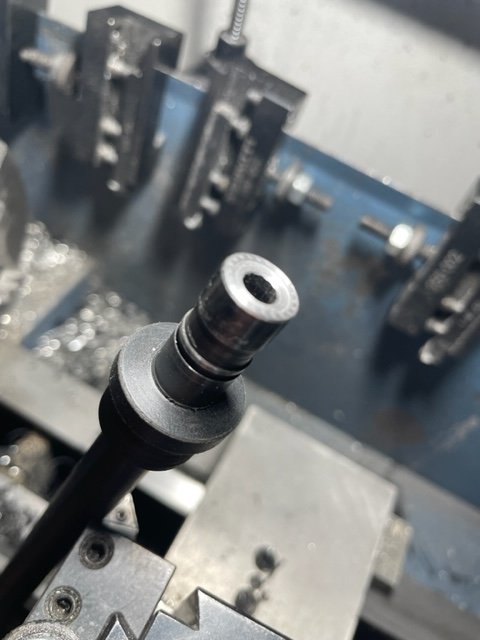

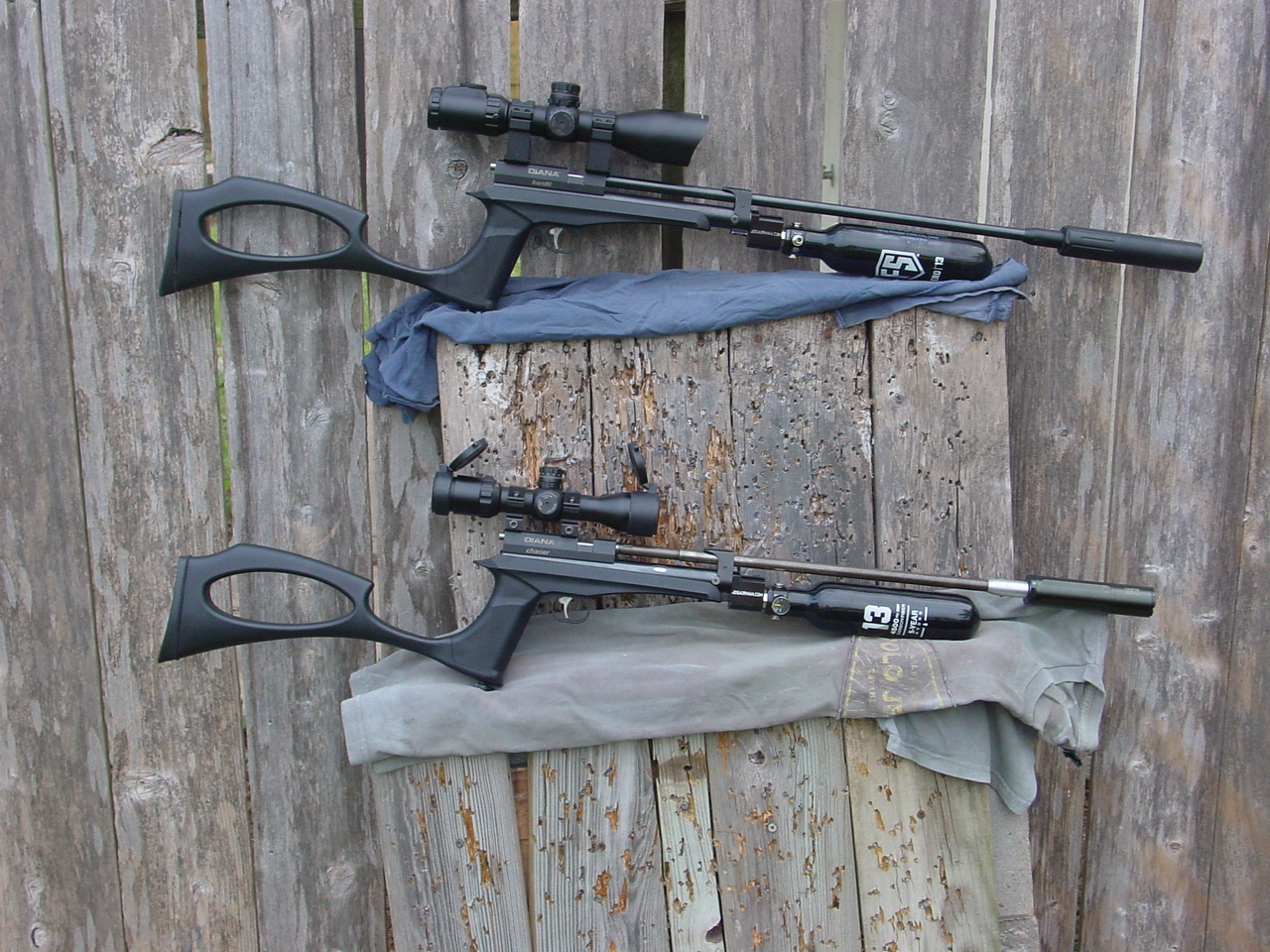

I went ahead Sunday morning to test my dual tank Notos and I was very disappointed with the accuracy. I couldn't get a decent group after trying 4 different pellet weight. I decided to cut the moderator and saw how bad the crown was, eccentric and chatter marks. I faced it off and put a light 30 degree chamfer. I'm also going to make an air stripper for a functional shroud. Since the barrel is 12mm, it's under size to thread for 1/2" unf, I turned it down to 11mm and thread it M11x1 mm. Tomorrow I will machine the air stripper/barrel tensioner end cap.
Upvote 0
I used the 1/2-20 UNF die and got good enough threads to lock on all my moderators but yes, my crown was a huge mess as well.
Upvote 0
hi
are you the same miksatx from GTA that everyone’s pointing to for the notos moderator insert?Upvote 0
Yeshi
Upvote 0
i’m a newbie here and it’s all thanks to that notos. would it be proper discussion etiquette for me to ask you to print a moderator insert for me?
