Tuning Trigger Replacemnt for FWB 124?
- Thread starter ohiochuck
- Start date
ARH, Jim Maccari makes them. There aren’t any currently listed on his site. You have to watch his site to see them listed when he does another run of triggers. He’s got a nice custom walnut stock currently for sale for an FWB 124/127
https://www.airrifleheadquarters.com/catalog/item/8000185/10469878.htm
https://www.airrifleheadquarters.com/catalog/item/8000185/10469878.htm
Upvote 0
Thanks for the reply
I picked up the FWB 124-127 HG- Himalayan Stunner in mid June- Nice.
Jim
I picked up the FWB 124-127 HG- Himalayan Stunner in mid June- Nice.
Jim
Upvote 0
This one is on ebay right now.
https://www.ebay.com/itm/Vintage-Beeman-FWB-Sport-124-D-Himalayan-Walnut-Stock-Serviced-Sling-Soft-Case/114886352561?pageci=56e00f59-d5db-4e7d-98ca-55ae1c133d48&redirect=mobile
If you find (and that's a BIG IF!) A trigger I'd be interested in your original if it's in good shape. The automatic safety on mine doesn't engage when I cock the rifle and I suspect the trigger tab that engages the safety slide may be worn or broke off. The gun shoots so nice that I'm not going to tear into it until I have parts. I have a new slide (ARH) and trigger spring right now.
https://www.ebay.com/itm/Vintage-Beeman-FWB-Sport-124-D-Himalayan-Walnut-Stock-Serviced-Sling-Soft-Case/114886352561?pageci=56e00f59-d5db-4e7d-98ca-55ae1c133d48&redirect=mobile
If you find (and that's a BIG IF!) A trigger I'd be interested in your original if it's in good shape. The automatic safety on mine doesn't engage when I cock the rifle and I suspect the trigger tab that engages the safety slide may be worn or broke off. The gun shoots so nice that I'm not going to tear into it until I have parts. I have a new slide (ARH) and trigger spring right now.
Upvote 0
Jim Maccari sent me an e-mail after asking if he might again offer the steel triggers for the FWB 124. He said “I may not do them again as all the tooling and fixtures are wore out and they were expensive to make and that is the situation.
Upvote 0
Bummer! I'm always searching the Internet for a trigger. I'll take the original plastic version if I can find one in good shape.
Upvote 0
That FWB 124 is in decent shape. I’m a sucker for JM’s stocks. The top of that receiver shows what happens when you don’t use the correct scope mounts on these guns.
Upvote 0
Your correct ! I noticed the scars on the receiver top as well. Plus, the 124's dovetail grooves are different than the RWS line of rifles. The only mount that I found to fit correctly was the BKL one piece with droop compensation. No stop screw and the mount hasn't moved at all.
Upvote 0
Yes, BKL's usually work well. Sportsmatch makes mounts specifically for the FWB and Webley rifles that have the "cross slots" on top of the receiver. The mounts have a bar on the bottom to "marry" with the cross slots. EAW also makes a mount specifically for the FWB guns but these mounts now cost more than a decent FWB sport. Here's a link to the sportsmatch mount:
https://www.pyramydair.com/product/sportsmatch-1-rings-medium-11mm-dovetail-fits-fwb-sport-webley-patriot?a=5263

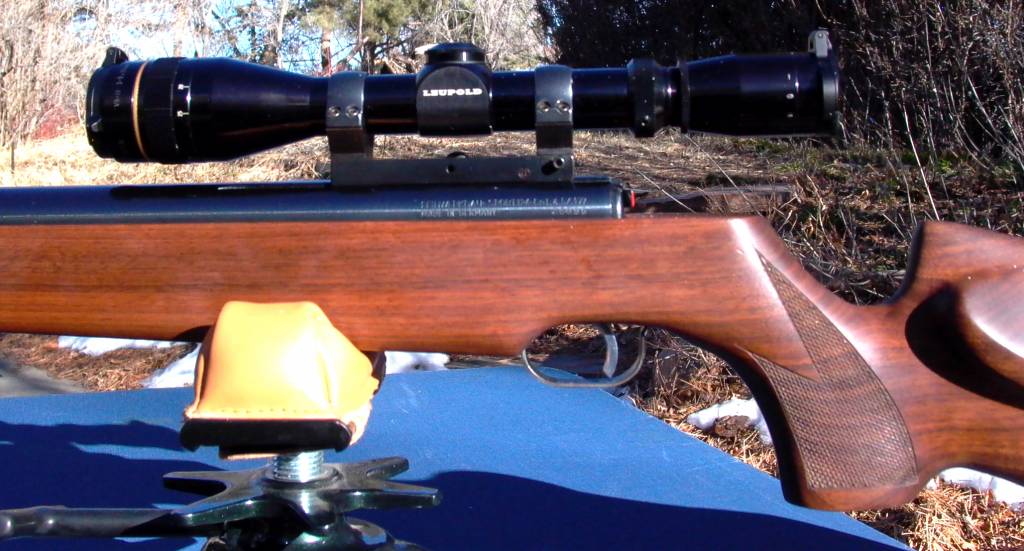

Here's a picture of one of my FWB 124's in a JM tyrolean stock that Paul Watts converted to .22 cal. It has an EAW scope mount:
Upvote 0
Yes, BKL's usually work well. Sportsmatch makes mounts specifically for the FWB and Webley rifles that have the "cross slots" on top of the receiver. The mounts have a bar on the bottom to "marry" with the cross slots. EAW also makes a mount specifically for the FWB guns but these mounts now cost more than a decent FWB sport. Here's a link to the sportsmatch mount:
https://www.pyramydair.com/product/sportsmatch-1-rings-medium-11mm-dovetail-fits-fwb-sport-webley-patriot?a=5263
Here's a picture of one of my FWB 124's in a JM tyrolean stock that Paul Watts converted to .22 cal. It has an EAW scope mount:
Do you have model numbers for the Sportsmatch or whatever you are using on your 124 ? Problem is I need droop compensation. Nice rifle ! Mine isn't a safe quuen but still nice. Early San Rafael Jnc probably made in late 1978. Shoots very smooth and power is good. Did some tests with weighed JSB 7.33 gr. pellets. Pellets weighted at 7.3 gr went 854 fps. Pellets weighed at 7.5 gr 848 fps. For a 43 year old rifle it's sweet.
Upvote 0
Yes, BKL's usually work well. Sportsmatch makes mounts specifically for the FWB and Webley rifles that have the "cross slots" on top of the receiver. The mounts have a bar on the bottom to "marry" with the cross slots. EAW also makes a mount specifically for the FWB guns but these mounts now cost more than a decent FWB sport. Here's a link to the sportsmatch mount:
https://www.pyramydair.com/product/sportsmatch-1-rings-medium-11mm-dovetail-fits-fwb-sport-webley-patriot?a=5263
Here's a picture of one of my FWB 124's in a JM tyrolean stock that Paul Watts converted to .22 cal. It has an EAW scope mount:
Do you have model numbers for the Sportsmatch or whatever you are using on your 124 ? Problem is I need droop compensation. Nice rifle ! Mine isn't a safe quuen but still nice. Early San Rafael Jnc probably made in late 1978. Shoots very smooth and power is good. Did some tests with weighed JSB 7.33 gr. Pellets weighted at 7.3 gr 854 fps. Pellets weighed at 7.5 gr 848 fps. For a 43 year old rifle it's sweet.
The gun shown has an EAW scope mount. That’s what I’m using on that FWB 124. Contact EAW and expect to pay $350-$450 for the mount. Sportsmatch mounts made specifically for the FWB rifles work well. Their one piece 1” mounts are part number HOP23C and their 2 piece 1” mounts are part number TO3C. Once upon a time you could buy direct from Sportsmatch so I suggest you start by contacting them since the link I provided to these rings on the PA site appear to be out of stock. I’d still call PA and AOA. Here’s a link to Sportsmatch:
https://www.sportsmatch-uk.com/1-diameter-body-tube-high-range-for-9-5mm-11-5mm-dovetails-up-to-56mm-lens-diameter-includes-easyfit-arrestor-pin
Upvote 0
Do the Sportsmatch rings have the cross pin designed for the FWB's shallow stop groves ? The BKL has six clamp screws and hasn't moved even without a stop pin. It was $60. The EAW mount is to pricey for me !
Upvote 0
The spirtsmatch have a 4 screw base clamp, have been using them for many years on hard recoiling springers and never had one move and I dont use the stop pins.
You may also try JG airguns in Indiana, for your trigger, he frequently has the little odd and end or hard to find parts. Might be worth a call.
You may also try JG airguns in Indiana, for your trigger, he frequently has the little odd and end or hard to find parts. Might be worth a call.
Upvote 0
I love the BKL mount so as long as scope movement isn't a issue I'm not going to replace it.
Upvote 0
Looks like his triggers are out of stock for now
https://www.trrobb.com/Feinwerkbau_Sport_Roughed_out_to_finish_diydel/p1449438_17042045.aspx
https://www.trrobb.com/Feinwerkbau_Sport_Roughed_out_to_finish_diydel/p1449438_17042045.aspx
Upvote 0
David Slade (Airgunwerks) replaced my broken trigger and a full tune. Just got the FWB 124 back. Will shoot it next week
Jim
Jim
Upvote 0
