This winter the fully functional prototype will be ready and I will be ready to start the first batch production.
Upvote 0
You, sir, have an incredible talent
I like it, too, that you presented it in silver and grey, which are my favorite colors
Upvote 0
Unfortunately not yet kick off the project, but I am still continue designed the Tequila shoot, it will be in 9 mm enough to get minimum 100 FPE
Upvote 0
Hello everybody

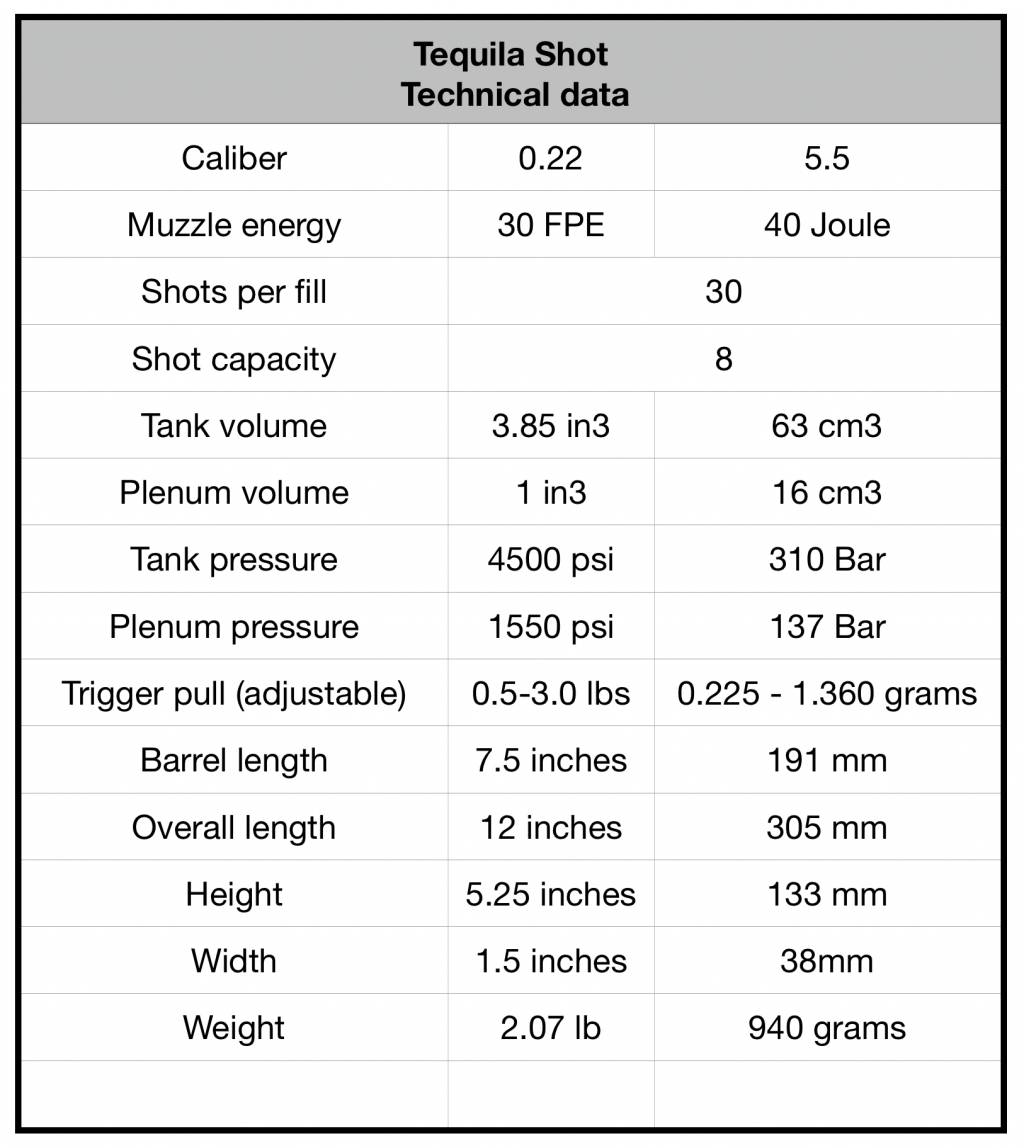

This month I will launch the second prototype, I did a lot of changes to the original design, but the new one is better. And this are the new specs for the Tequila shoot.

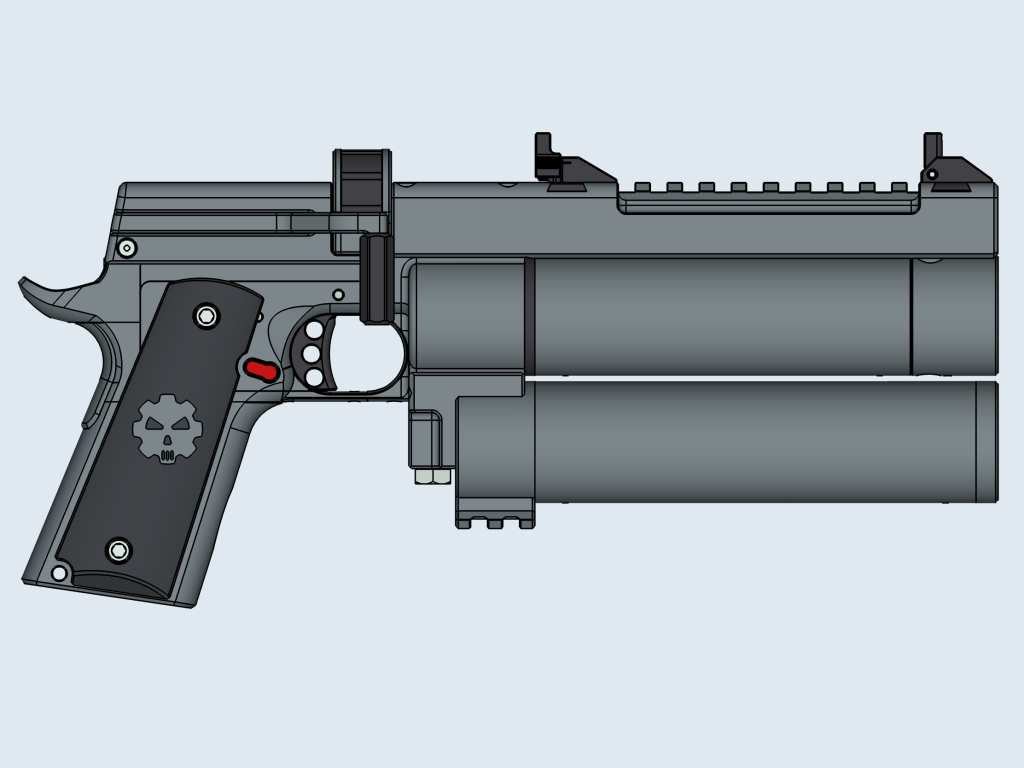

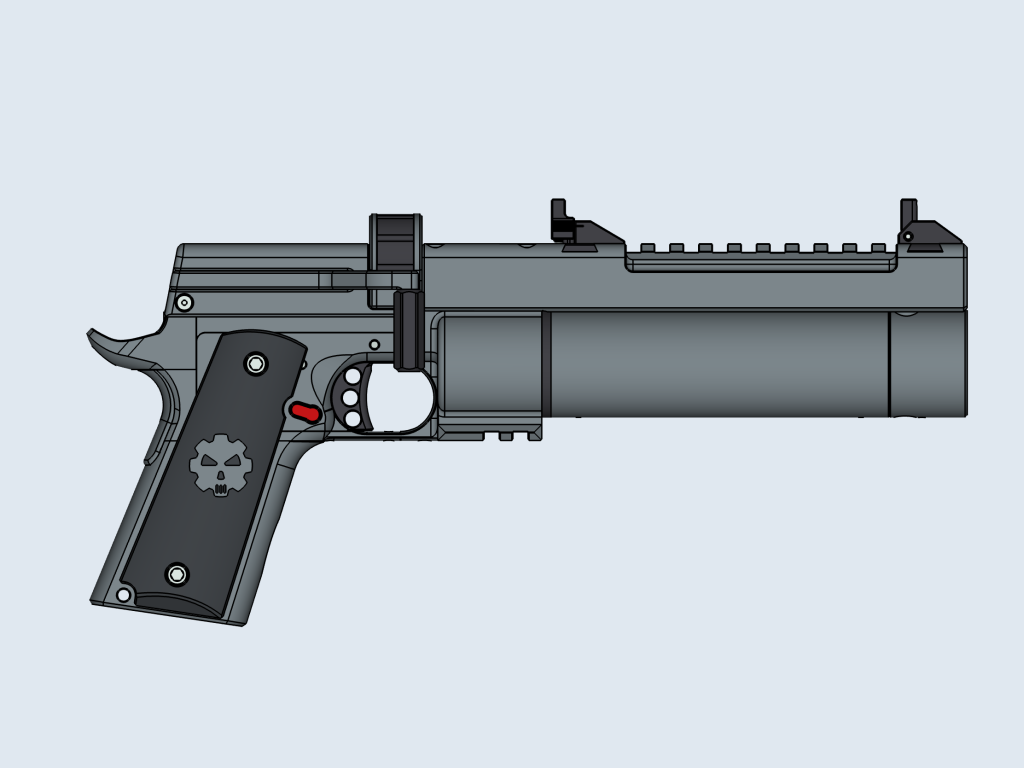

1. Handgun

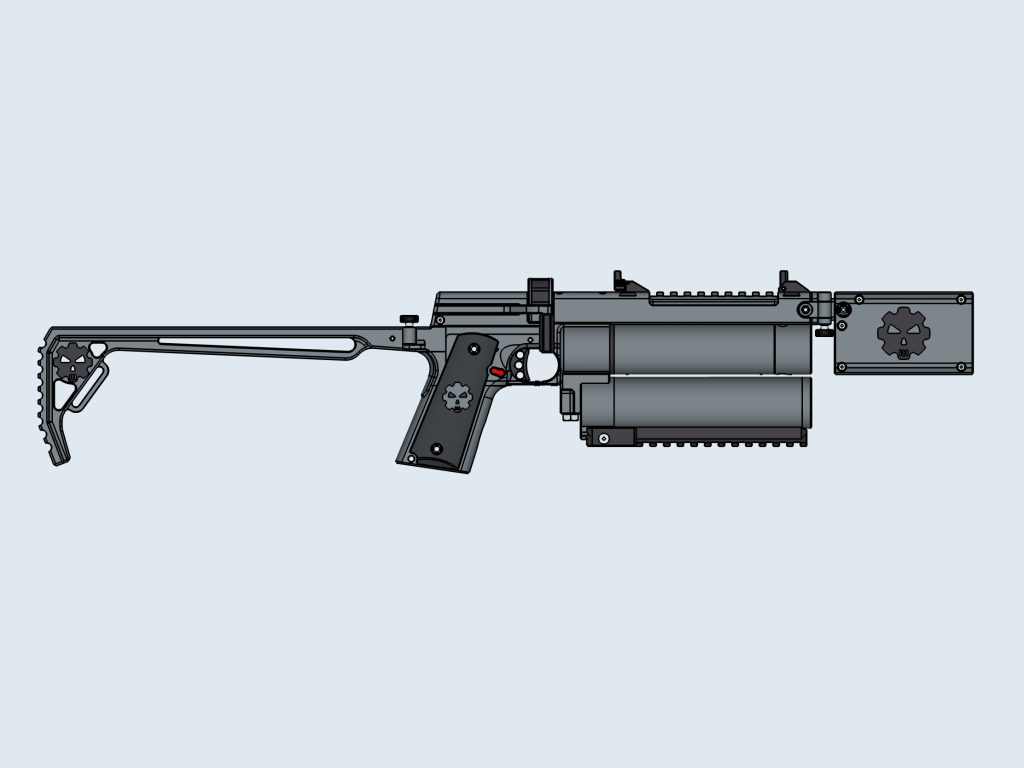

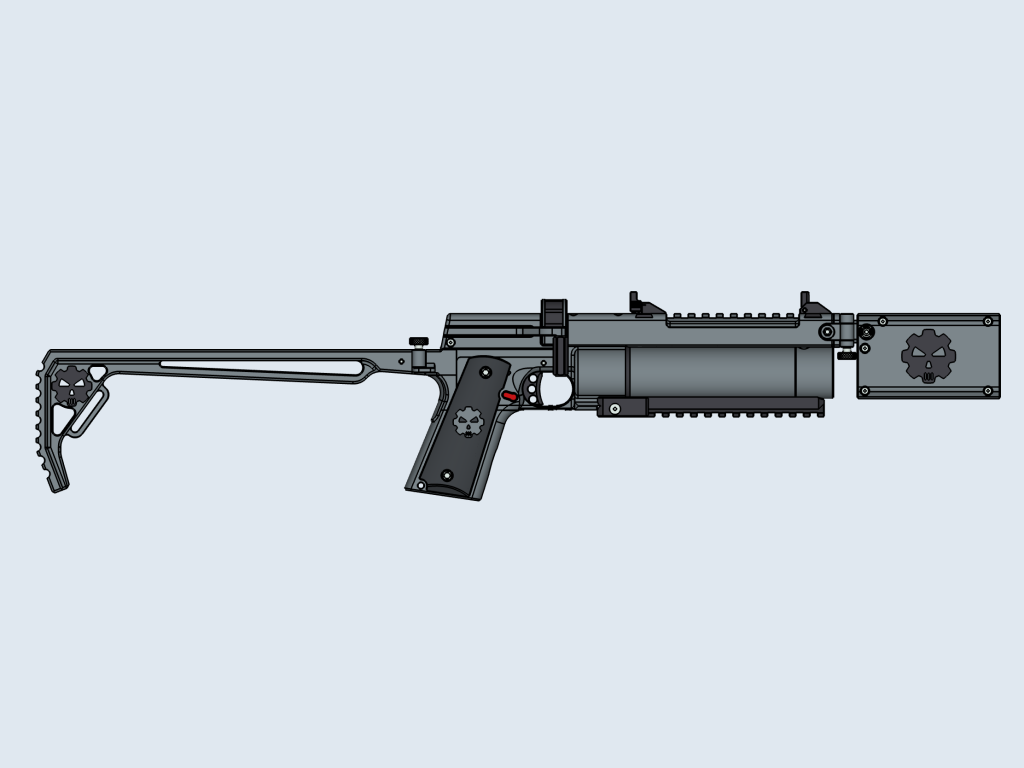

2. Accessories: Folding stock, folding suppressor and picatinny rail
3.- Add a extra air tank.
This modular design was made thinking in the customer. Only buy do you want, and have the option to get the other accessories in a future.
The body of the gun is 7075-T6 Alum, and the hard parts of 304 Stainless Steel, the hardware (springs, screws, dowel pins, etc) is only Stainless Steel.
This month I will launch the second prototype, I did a lot of changes to the original design, but the new one is better. And this are the new specs for the Tequila shoot.
1. Handgun
2. Accessories: Folding stock, folding suppressor and picatinny rail
3.- Add a extra air tank.
This modular design was made thinking in the customer. Only buy do you want, and have the option to get the other accessories in a future.
The body of the gun is 7075-T6 Alum, and the hard parts of 304 Stainless Steel, the hardware (springs, screws, dowel pins, etc) is only Stainless Steel.
Upvote 0

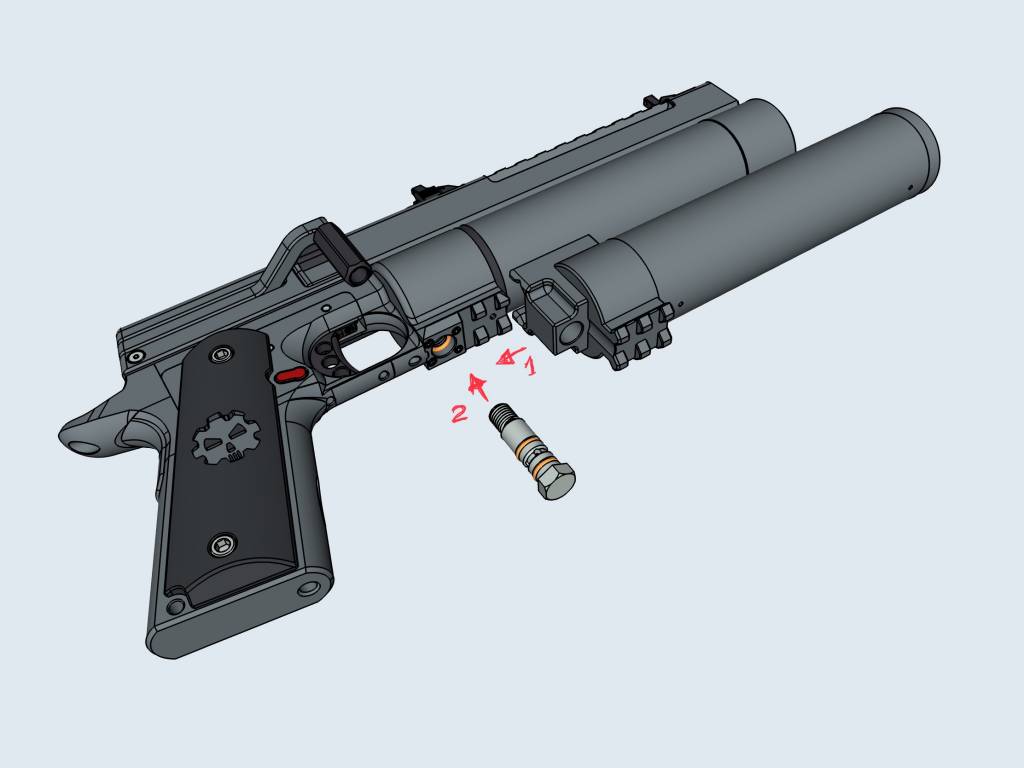

The user will just slide the tank on the picatinny rail (1) and then insert the screw into the hole and fix it (2).
Upvote 0
Hello everybody
This month I will launch the second prototype, I did a lot of changes to the original design, but the new one is better. And this are the new specs for the Tequila shoot.
1. Handgun
2. Accessories: Folding stock, folding suppressor and picatinny rail
3.- Add a extra air tank.
This modular design was made thinking in the customer. Only buy do you want, and have the option to get the other accessories in a future.
The body of the gun is 7075-T6 Alum, and the hard parts of 304 Stainless Steel, the hardware (springs, screws, dowel pins, etc) is only Stainless Steel.
Hello there!!!
The tequila looks amazing!!!!
How is the barrel assembly attached into place?
Upvote 0

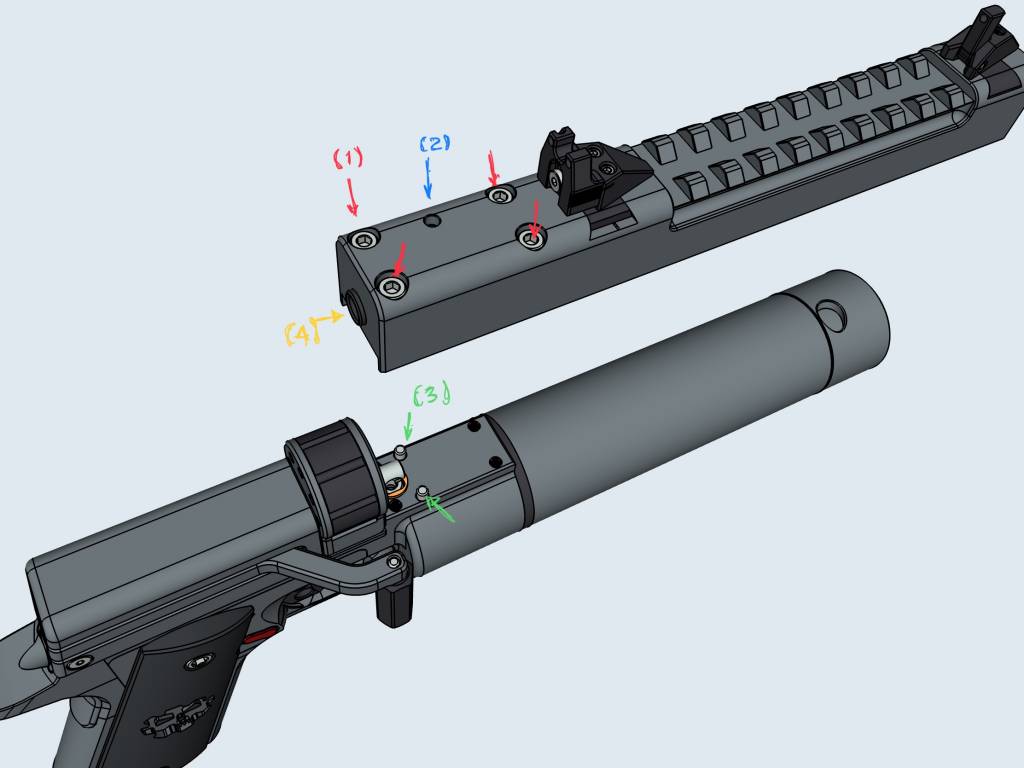

The barrel housing is attached to the main body using 4 6-32 screws (1). Has two dowel pins to align the housing barrel to the mail body (3).
The barrel is slug liner 0.223 (4) and is press fit into the housing barrel. To align the barrel liner to the hole air port used a spring pin (2).
The barrel is slug liner 0.223 (4) and is press fit into the housing barrel. To align the barrel liner to the hole air port used a spring pin (2).
Upvote 0
The barrel housing is attached to the main body using 4 6-32 screws (1). Has two dowel pins to align the housing barrel to the mail body (3).
The barrel is slug liner 0.223 (4) and is press fit into the housing barrel. To align the barrel liner to the hole air port used a spring pin (2).
Really awesome design!!! When will we see this new prototype in action?
Upvote 0
The barrel housing is attached to the main body using 4 6-32 screws (1). Has two dowel pins to align the housing barrel to the mail body (3).
The barrel is slug liner 0.223 (4) and is press fit into the housing barrel. To align the barrel liner to the hole air port used a spring pin (2).
Really awesome design!!! When will we see this new prototype in action?
I hope buy the parts in 1 or 2 weeks.
Upvote 0
The barrel housing is attached to the main body using 4 6-32 screws (1). Has two dowel pins to align the housing barrel to the mail body (3).
The barrel is slug liner 0.223 (4) and is press fit into the housing barrel. To align the barrel liner to the hole air port used a spring pin (2).
Really awesome design!!! When will we see this new prototype in action?
I hope buy the parts in 1 or 2 weeks.
One final thing that i forgot to ask about before; the mag still has the mayan numbers on it or has this feature been removed from the second prototype?
Upvote 0
I removed the Mayan numbers, but if them are necessary to identify the total of slug remainder I can add them

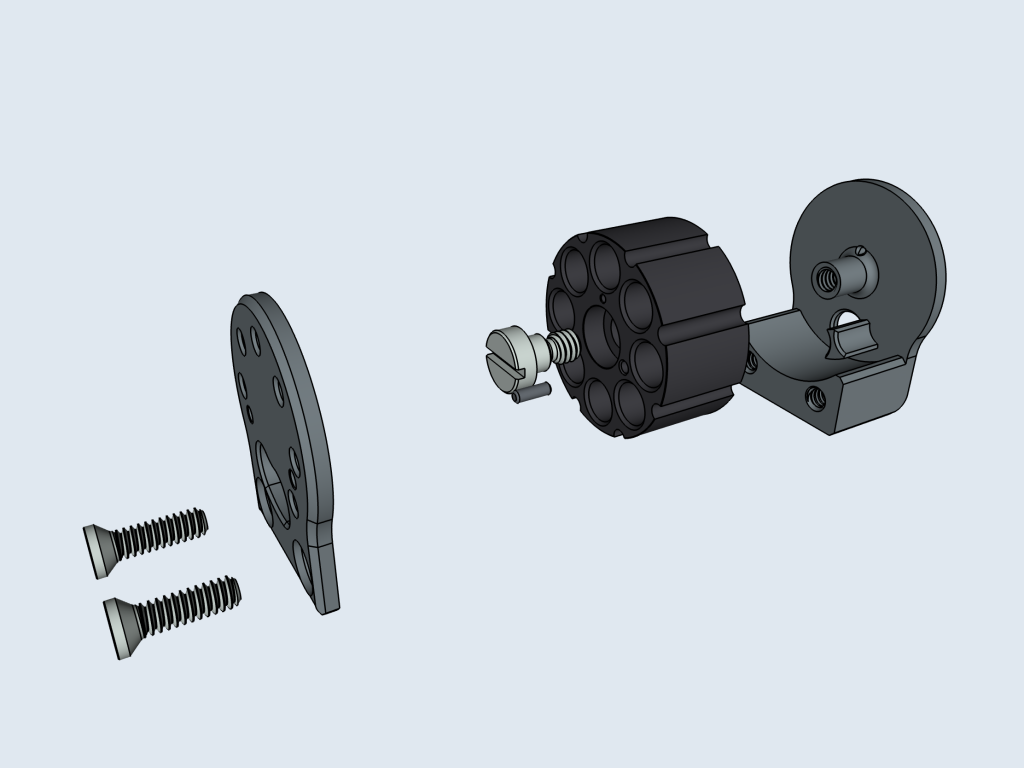

The magazine is made of 304 Stainless steel and use high grade screws and shoulder screw to have a robustly design.
The maximum slug length to be hold in the magazine is 0.500”.
I am open to answer all the questions about the Tequila.
The magazine is made of 304 Stainless steel and use high grade screws and shoulder screw to have a robustly design.
The maximum slug length to be hold in the magazine is 0.500”.
I am open to answer all the questions about the Tequila.
Upvote 0
G
Guest
Guest
Cant you rather design extra bottle that goes into added rear tube and connect it to main tube via line and check valve. Pistol with that second added tube is 100% front heavy and need that stock anyways so could as well have the second tank combined with it. If you have check valve there and make that rear tube bleedable you could probably fit it inside of mil spec tube that you can just screw off after bleeding. Just my opinion.
Upvote 0
I removed the Mayan numbers, but if them are necessary to identify the total of slug remainder I can add them
The magazine is made of 304 Stainless steel and use high grade screws and shoulder screw to have a robustly design.
The maximum slug length to be hold in the magazine is 0.500”.
I am open to answer all the questions about the Tequila.
It was a very nice touch!!! It helps notice how many shots are left and is also a feature that makes the tequila very unique!!!
Upvote 0
There is other two accessories:

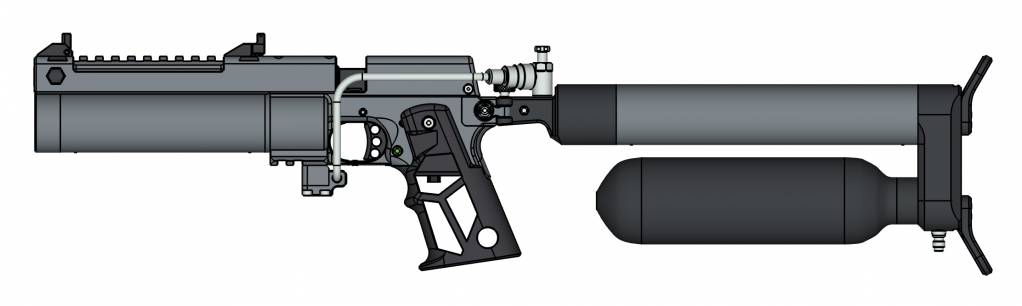

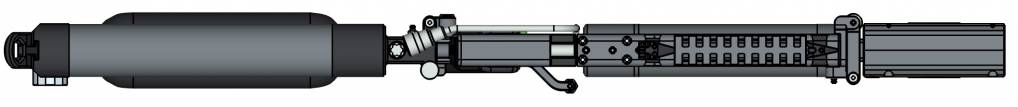

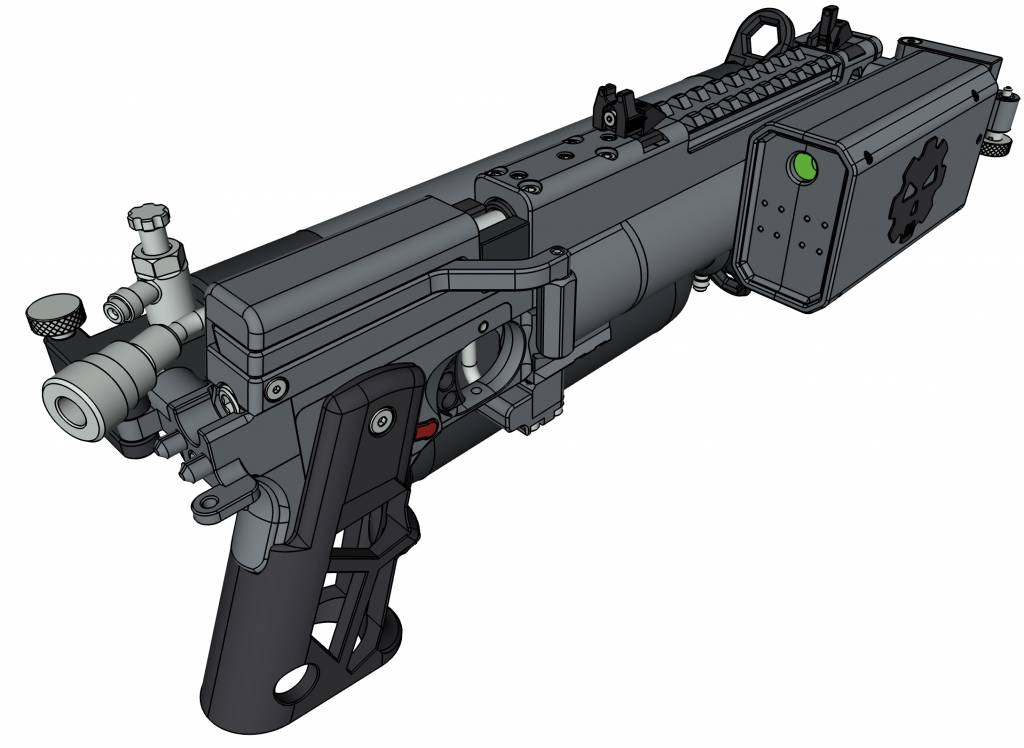

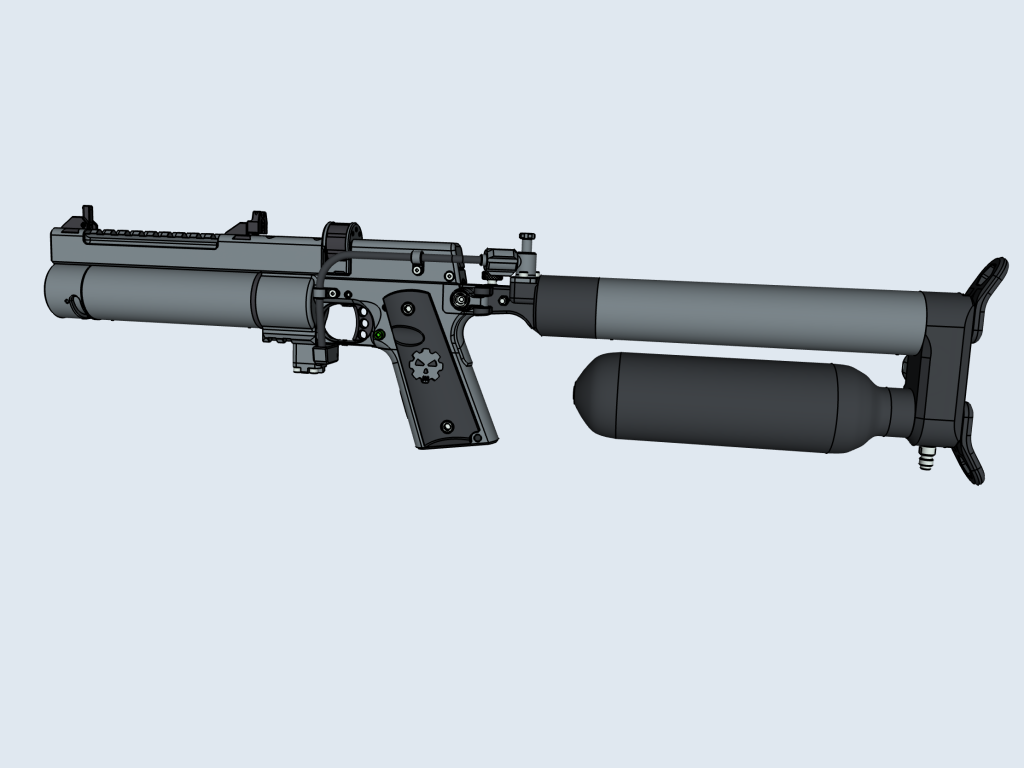

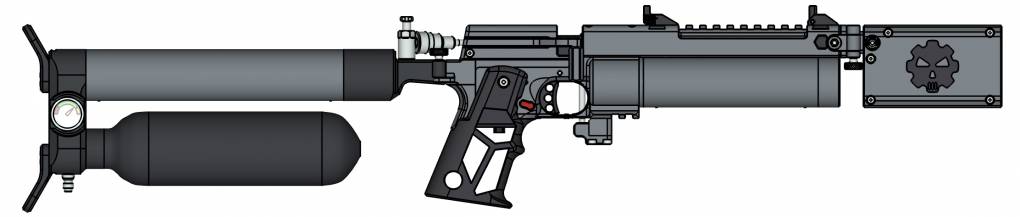

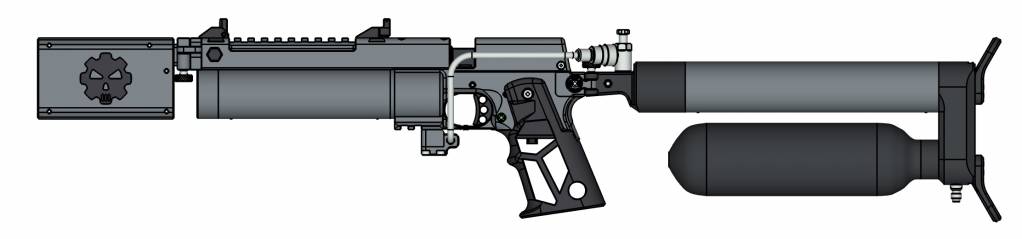

Pneumatic folding stock

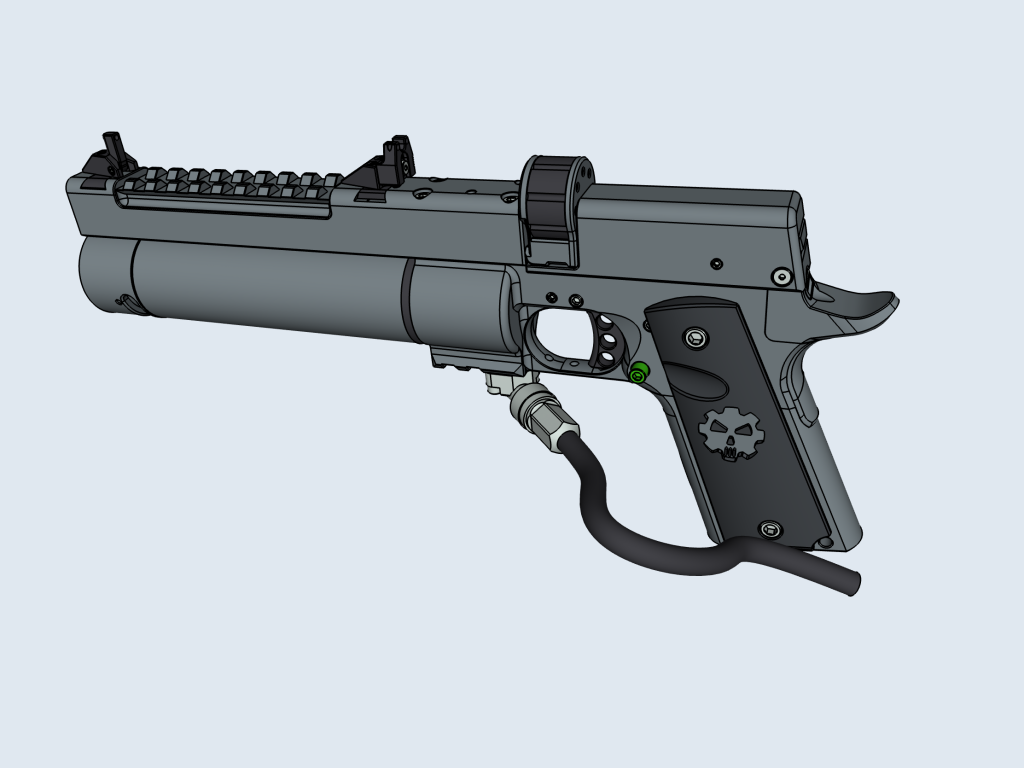

And a froster connector
This two options were designed thinking in more autonomy.
Pneumatic folding stock
And a froster connector
This two options were designed thinking in more autonomy.
Upvote 0
There is other two accessories:
Pneumatic folding stock
And a froster connector
This two options were designed thinking in more autonomy.
also could the rear sight be moved all the way to the rear block ? (behind the mag) as it would give a bigger sight radius to the pistol.
Upvote 0

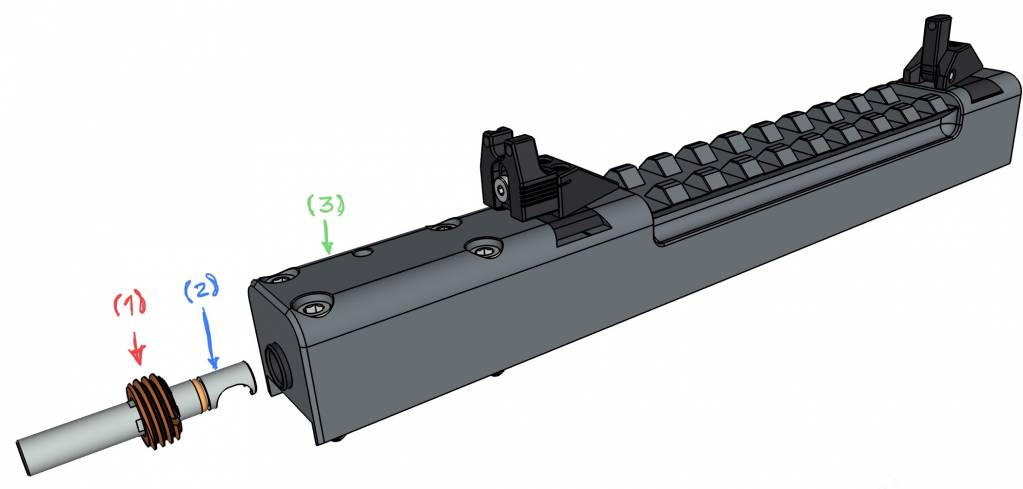

The proposed of have the front sight and rear sight in the Barrel Assy (3) is because this is a multi calibre gun. To change calibre the user only need change the following parts: thread bushing (1), push pin (2) and barrel assy (3). If the front and rear sight are in the same part the user only zero one time.
Upvote 0
Yes, I hope buy the first pieces the next week, and then build the prototype and share with you and the forum member the results and performance of the Tequila Gun.
This is the goal.
This is the goal.
