Tequila PCP Airgun

[Xolotl]

Hello everyone,

Finally I can shoot the Tequila Gun, I can get 19 energy pounds, using a 7 inches barrel and regulated to 1,700 psi. It is very noisy but the folding suppressor doing the job and quite it a lot.

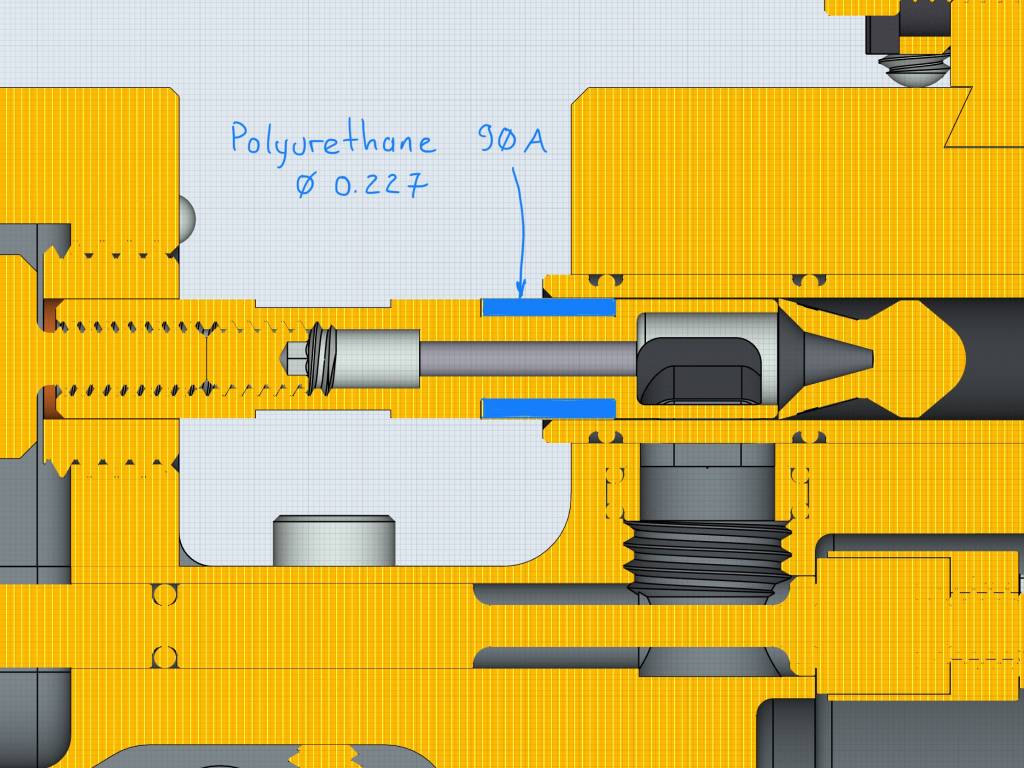

Unfortunately the gun has a leak in the pellet probe. But fortunately I redesigned it and I have the concept ready to be fabricated.

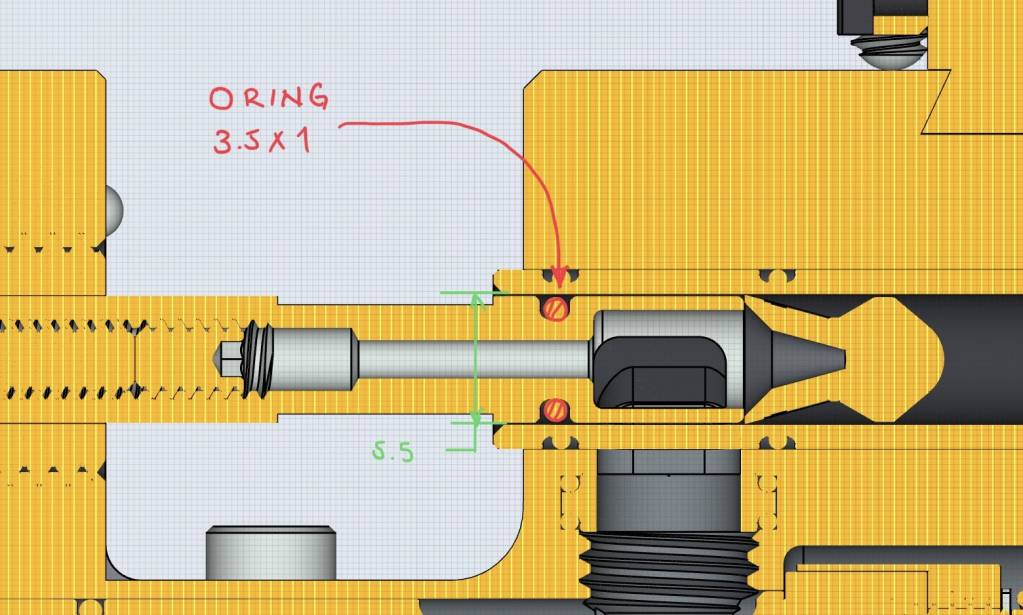

The attached pictures show the issue.

The leak is because the 5.5 oring is no sealing the barrel, but I redesigned it adding a bigger and harder seal. Tomorrow I hope start do them.

Regards



[wayne528]

Very Nice I looking forward to more designs forward



[Xolotl]

Hello everybody

The Tequila Gun finally is finished: https://www.instagram.com/tv/CXlzk4Xj_B9/?utm_medium=copy_link

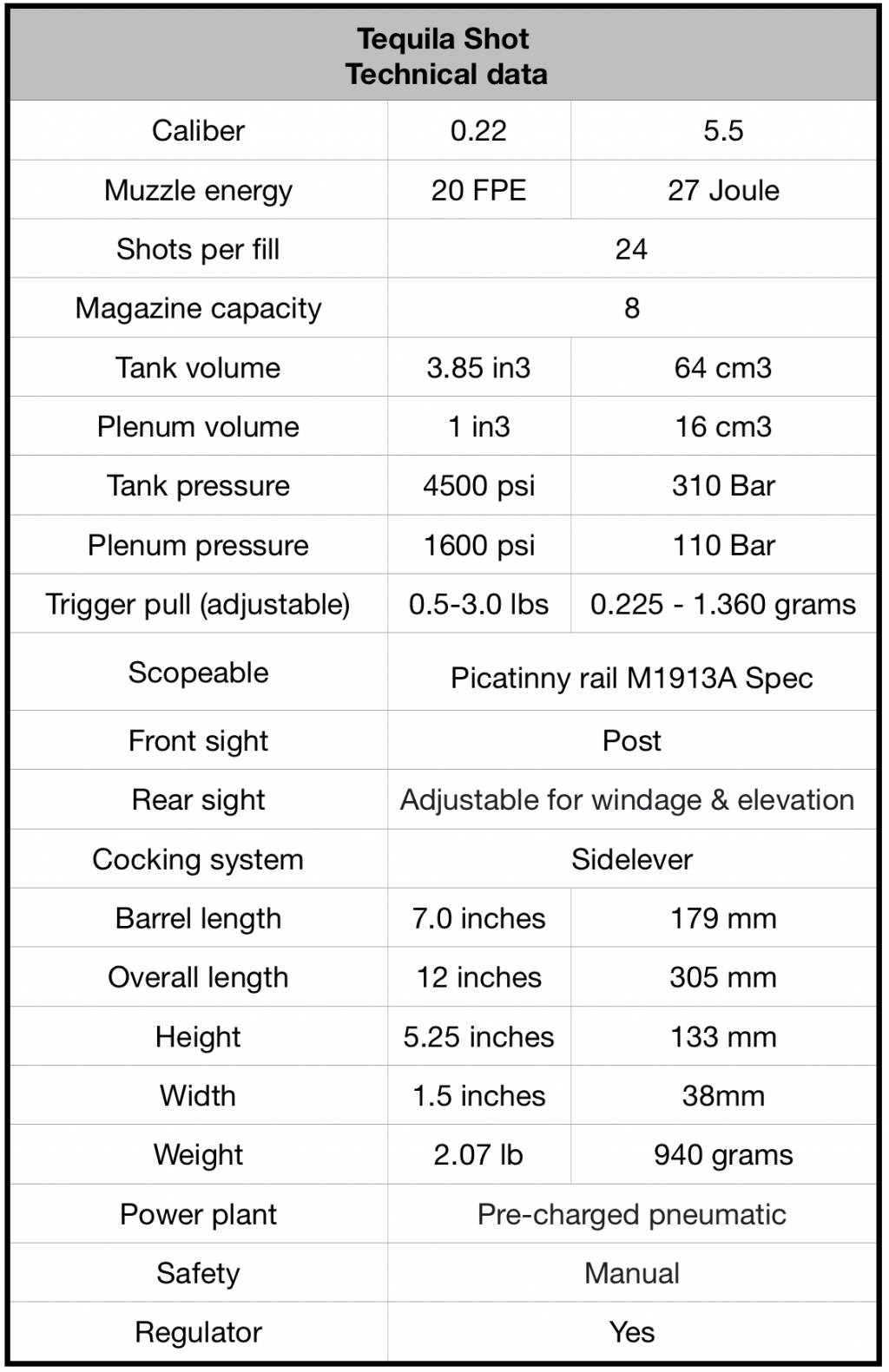

And these are the final specs.

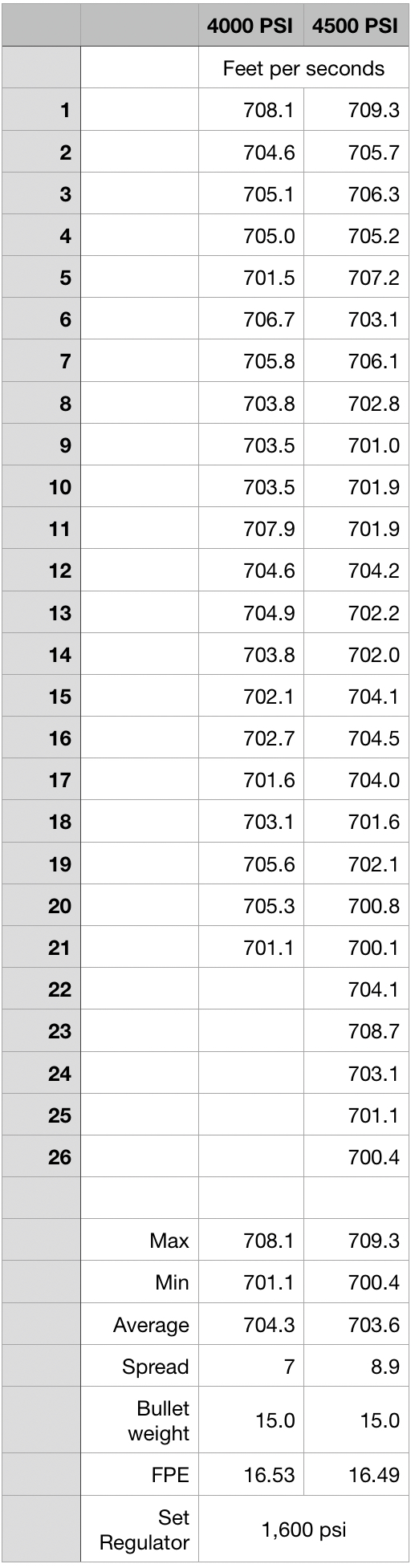

The following table shows how consistently are the Gun shooting.

The attached Instagram link shows how the regulator is working https://www.instagram.com/tv/CXtv62ijz2M/?utm_medium=copy_link

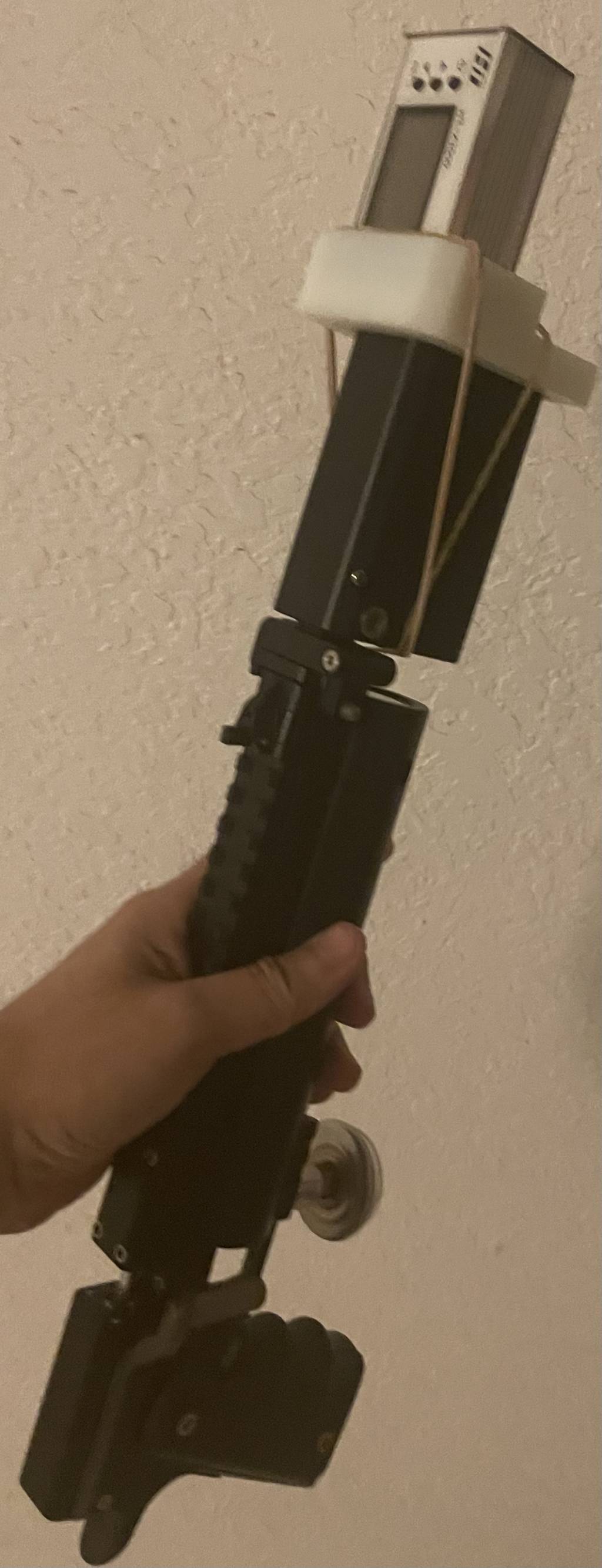

The set up to get the FPS was with the suppressor attached

In a few day I will share the shooting accuracy in a range of 10m and 20m.



[Xolotl]

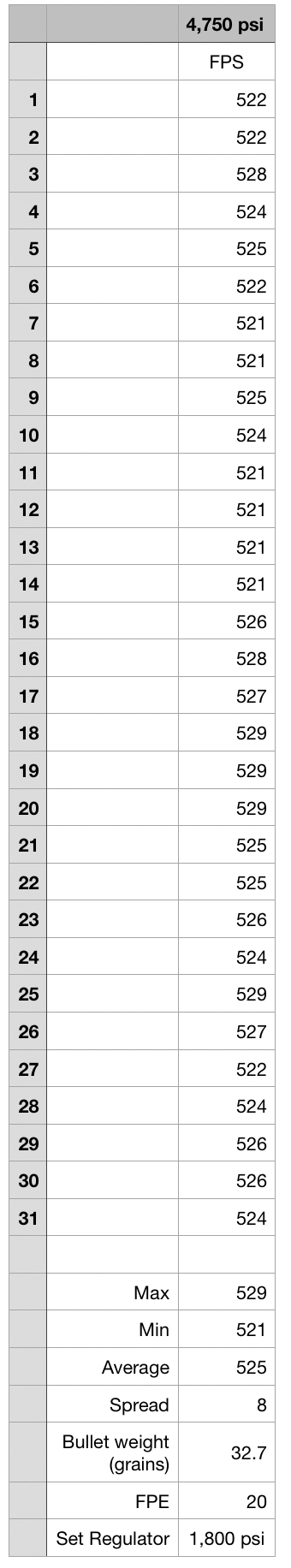

I found a old Eunjig pellets and tested the Tequila Gun using them. The attached table shows the results.



[Xolotl]

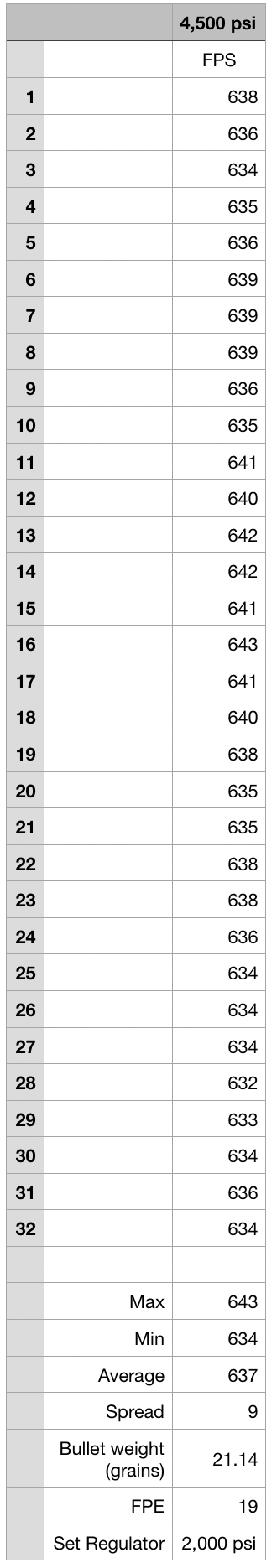

Today I received a new pellet H&N Barracuda Domed 21.14 grains. The following table shows the results. In the followings days I will do some shooting groups. Unfortunately the currently weather is bad.



[MikeVV]

Great to see that you are making good headway.

Yeah, cold and wet here in SoCal too.



Mike



[qball]

Any chance a 177 caliber in the works?



[Xolotl]

Any chance a 177 caliber in the works?

Sure!!



[Xolotl]

Hello everybody,

Finally the weather is friendly to do some shooting groups, the following imágenes shows the results.

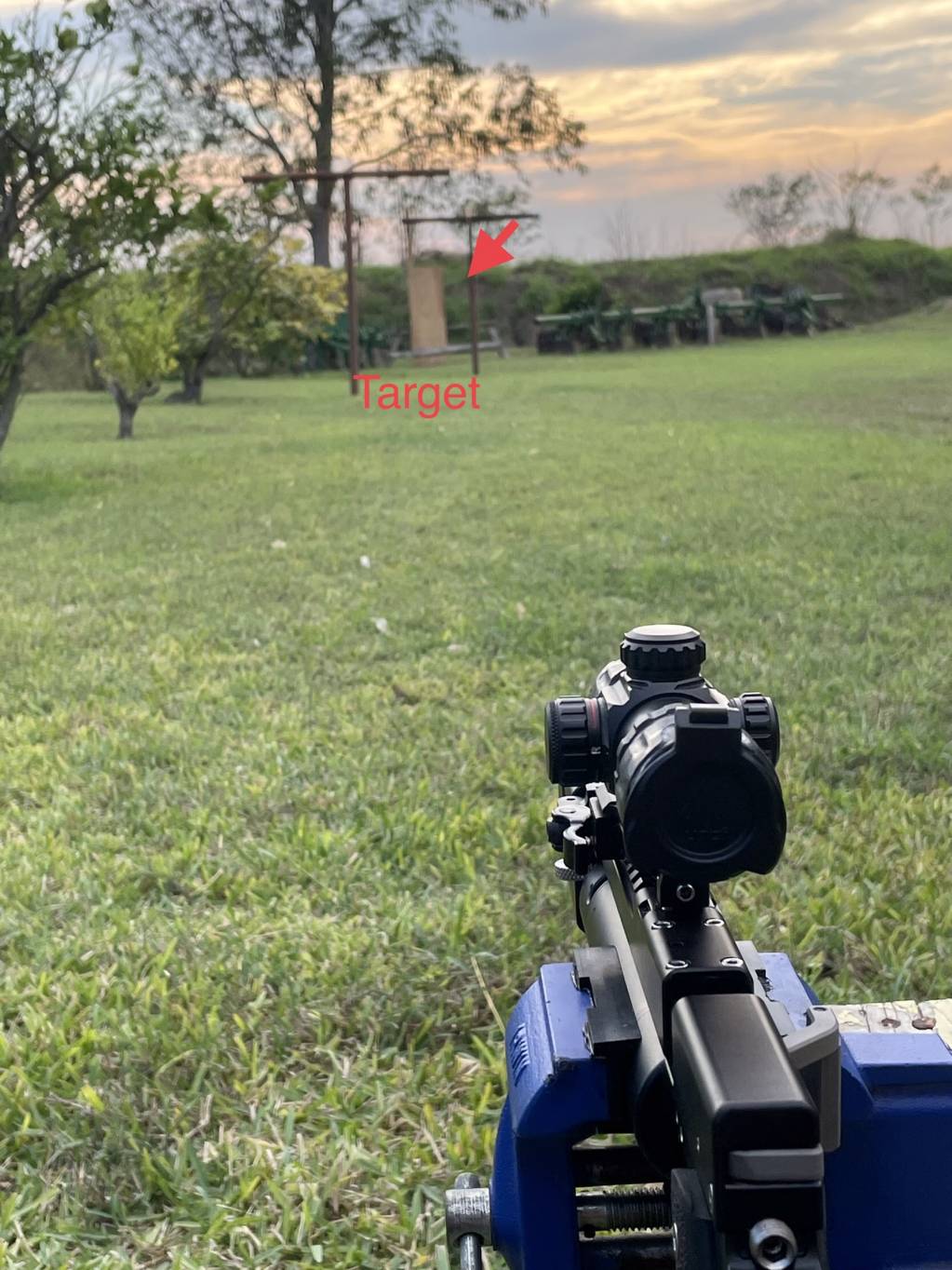

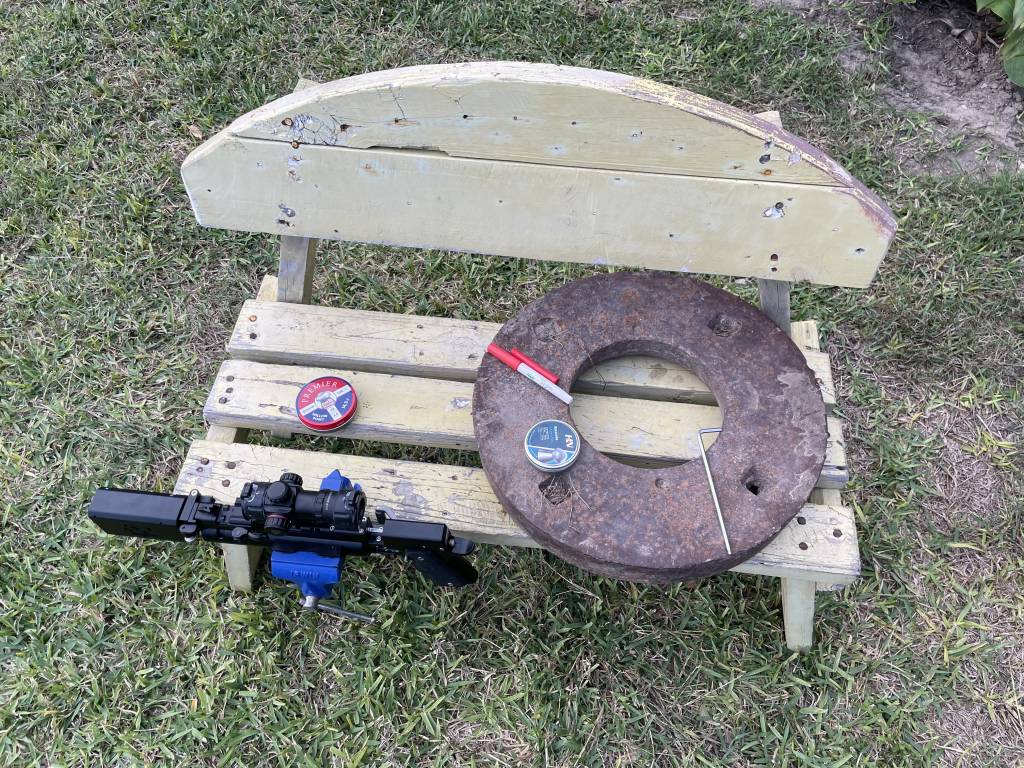

This was the set up

A vice attached a bench, in the bench a weight to avoid movement. The target was a piece of wood.

This is not a profesional setup, but give a idea about of the performance of the gun.



[MikeVV]

Interesting...

I posted a thread about your very setup a few days back. That is, a setup that proves the "gun", without...human intervention. Very good idea, if I may say so.

Mike



[Coolhand]

Hey what pellet did you use? You have two different ones in your picture. Thanks



[Xolotl]

Interesting...

I posted a thread about your very setup a few days back. That is, a setup that proves the "gun", without...human intervention. Very good idea, if I may say so.

Mike

The main goal of this setup is shows the capability of the gun only (no human, no bipod, no rest bag, no pistol scope).



[Xolotl]

Hey what pellet did you use? You have two different ones in your picture. Thanks

Crosman premier



[Xolotl]

Today I did a 5 shoots groups at 50 meters. I used the same set up, except for the target. In this session I used cardboard instead of wood.
Why? Because the wood was moving each time that the bullet impacted. The cardboard not absorbed the bullet energy.

This is the result.



[Xolotl]

Hello everyone,

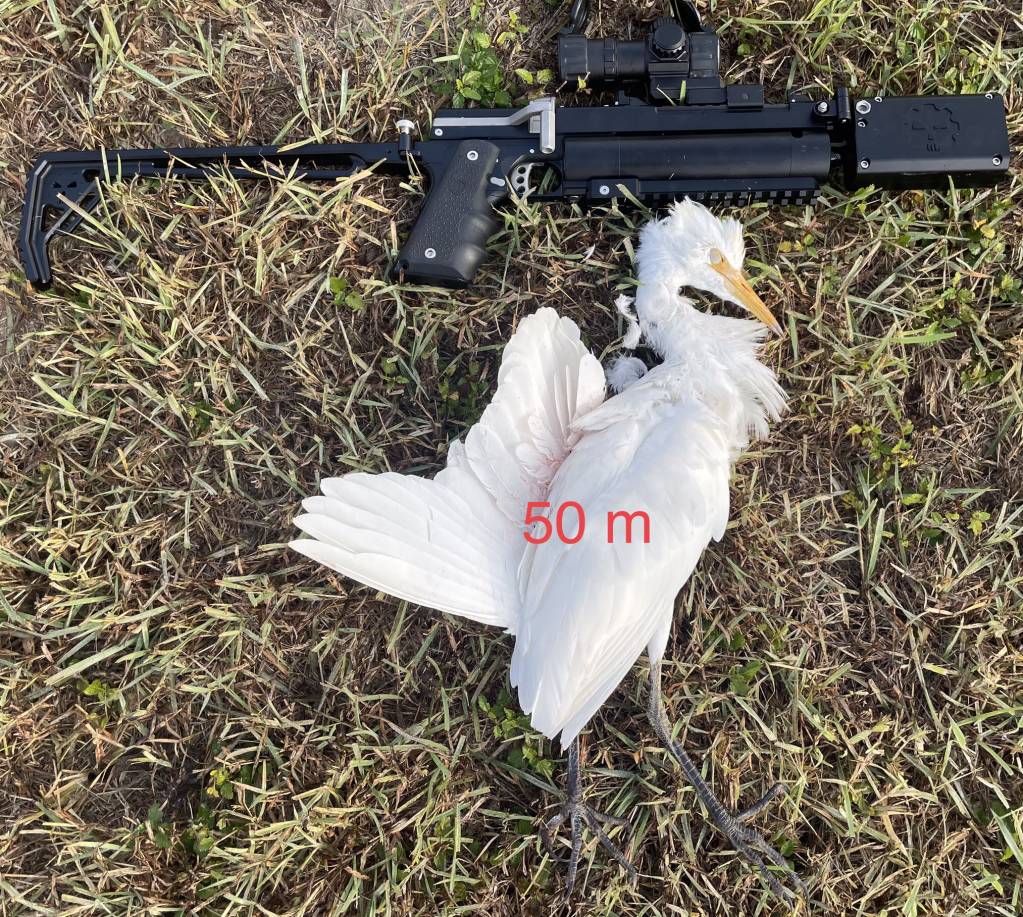

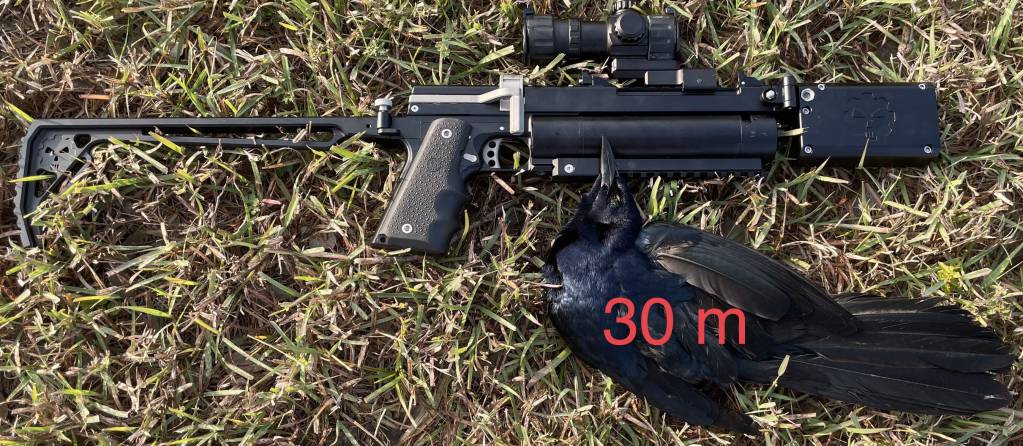

I am working in the final test of the gun before to be released. Also I tested it in the field hunting some small games.

In my YouTube channel can see some updates of the gun.

https://youtube.com/channel/UCEmQeThZNuz715lDlVy25Cg



[Dairyboy]

Great job!!! The performance looks real good for the gun.



[MikeVV]

Cool to hear.

The suppressor is pretty industrial looking, not in a bad way, just sorta...after the last war (WW III) apocalyptic look.

Mike



[Xolotl]

Great job!!! The performance looks real good for the gun.

Tks! Currently I am working in a get a little more energy with the CPHP, I am redesigning some pieces to achieve it.



[Xolotl]

Cool to hear.

The suppressor is pretty industrial looking, not in a bad way, just sorta...after the last war (WW III) apocalyptic look.

Mike

Some of my engineering background is in industrial machinery design, is probably that for this reason I added industrial characteristics to it. Also the suppressor is inspired in the “SilencerCo Osprey 45”.



[Xolotl]

Shooting CPHP

https://youtu.be/S0TABcomnd4
