Guppy tank presure gauge not reading correct. Where to source new 1 and what size treads. No mo Jo stuff. TIA
Tank preasure gauge
- Thread starter bf1956
- Start date
Upvote 0
Probably 1/8 but if you provide picture of backside of gauge it would be easier to determine. Measure O.D. of gauge threads if any are showing.
Upvote 0

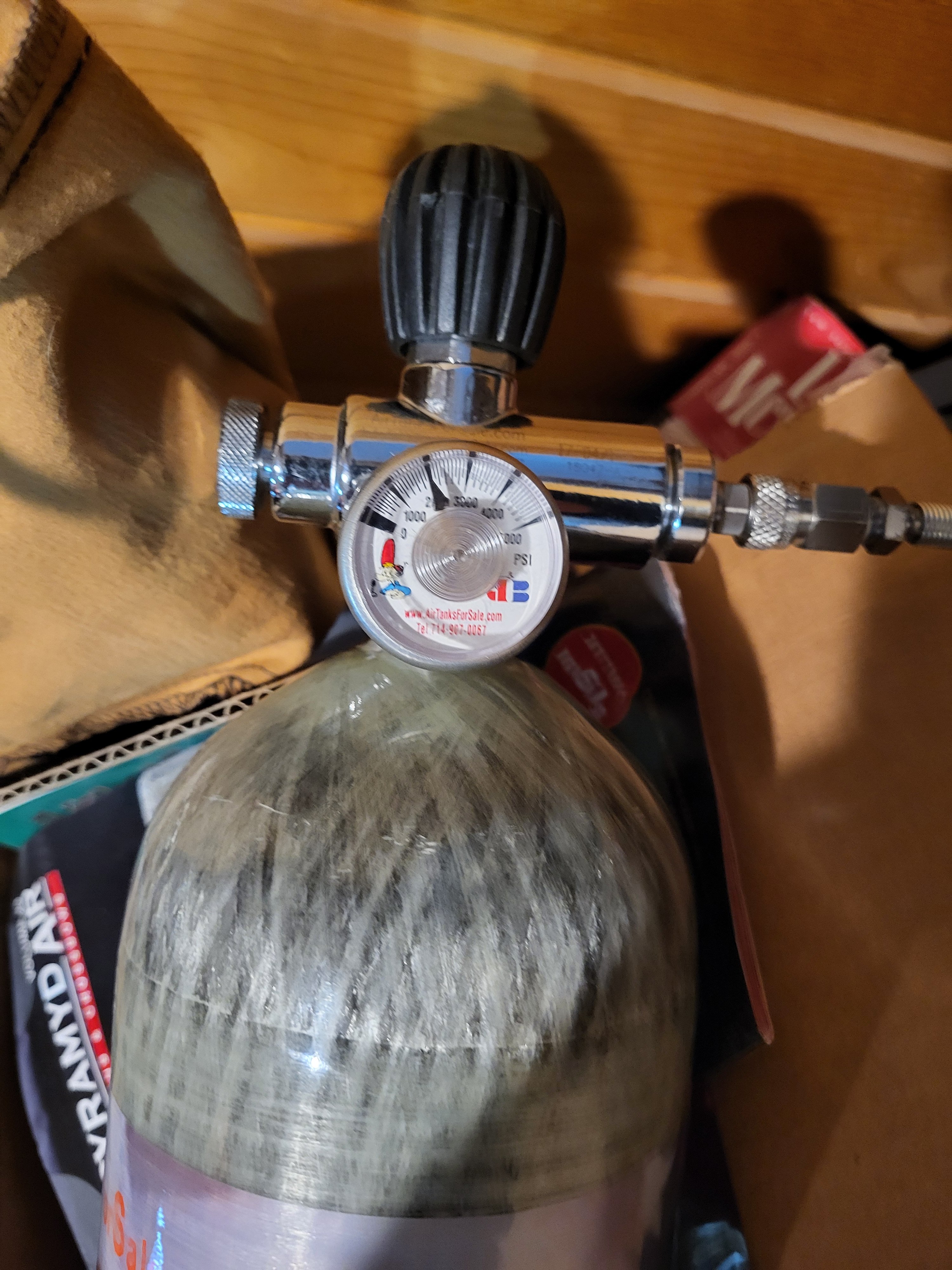

The Gauge shown is made by TAYLOR Instruments and is IMO far better than ANY of the small 1" gauges we typically use & see
I would just order another from Joe b and be done with it.
I would just order another from Joe b and be done with it.
Upvote 0
Don't like fixing until I have part ready to change out, if you know what I mean. Thanks for your input.
Upvote 0
My original purchase of tank and valve, gauges, fill whip from Joe was not a pleasant experience for me. And besides I paid dearly and feel the gauge should not have failed in the first place. No offense just saying. Thanks for your input.The Gauge shown is made by TAYLOR Instruments and is IMO far better than ANY of the small 1" gauges we typically use & see
I would just order another from Joe b and be done with it.
Upvote 0

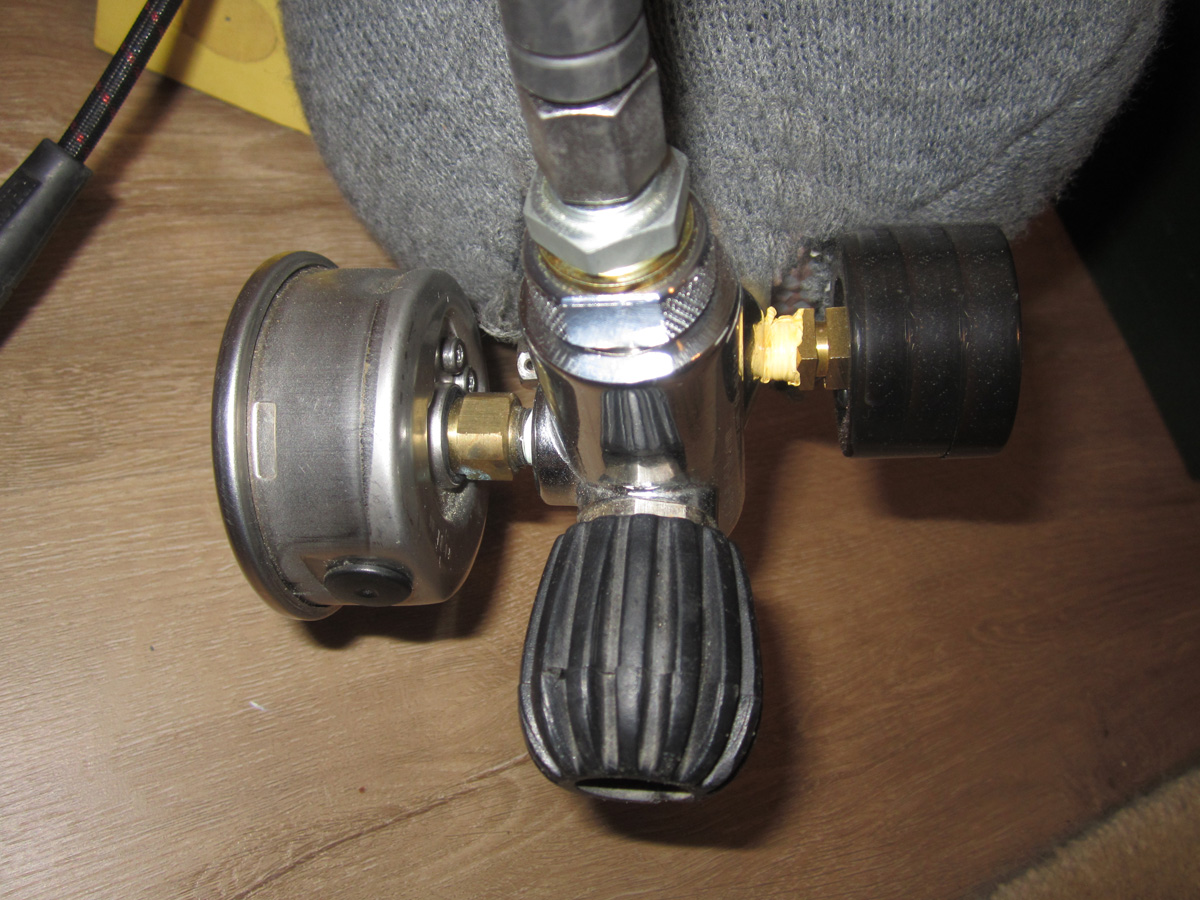

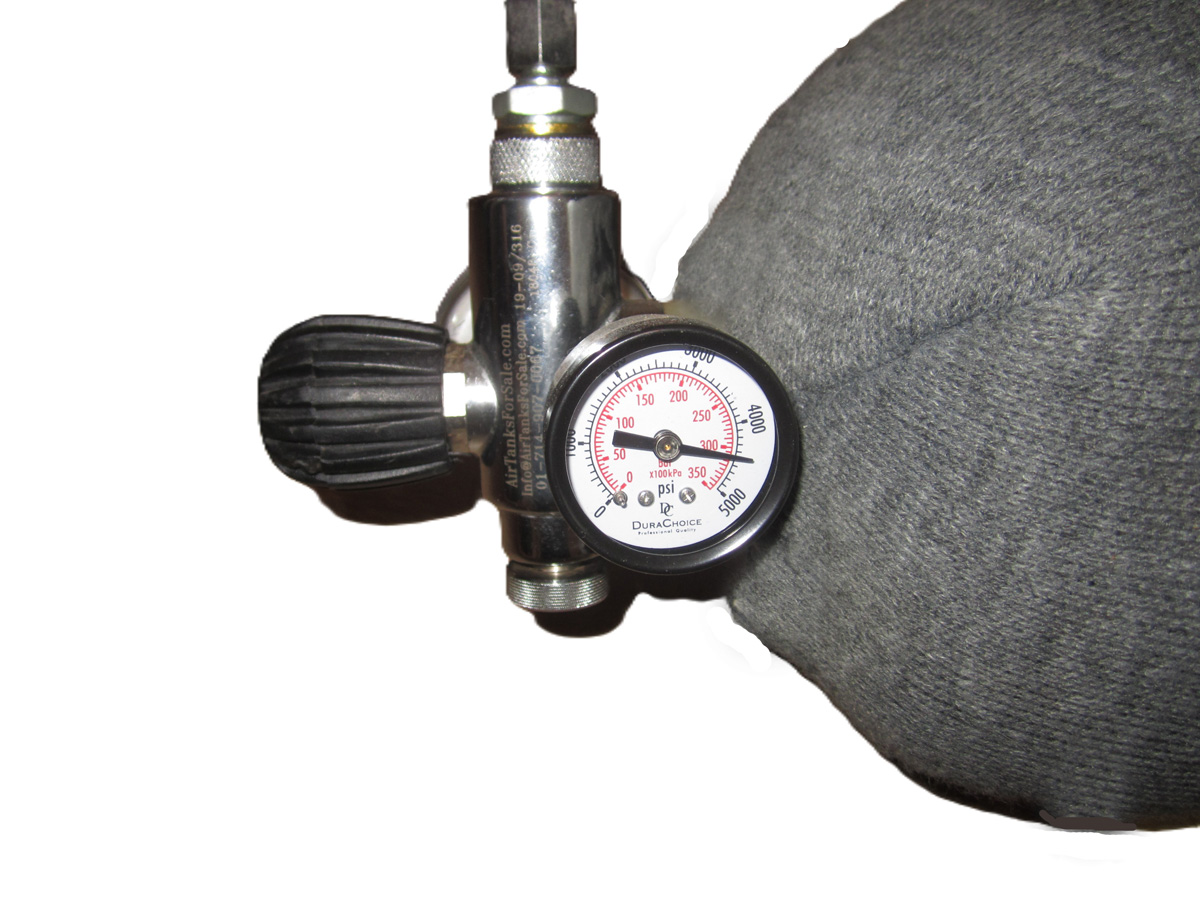

Paying $39 for a 50 cent Alibaba P.O.S. gauge makes no sense. It is probably going to be just as inaccurate. I had the same issue with mine. It is 1/8 NPT threaded. I recommend getting a Durachoice 1.5" gauge from Directmaterial.com. It will cost less than $10 including shipping. Here's a photo of mine on the back of the same fill assembly as yours. The gauge is thicker than the original but as you can see it isn't an issue.
Last edited:
Upvote 0
The specific gauge from Directmaterial.com is the PA158B-KO5. It sells for $4.02 plus shipping. Look under Utility Gauges for Water, Oil, and Gas. It's a 1.5" diameter center back gauge.
Upvote 0
