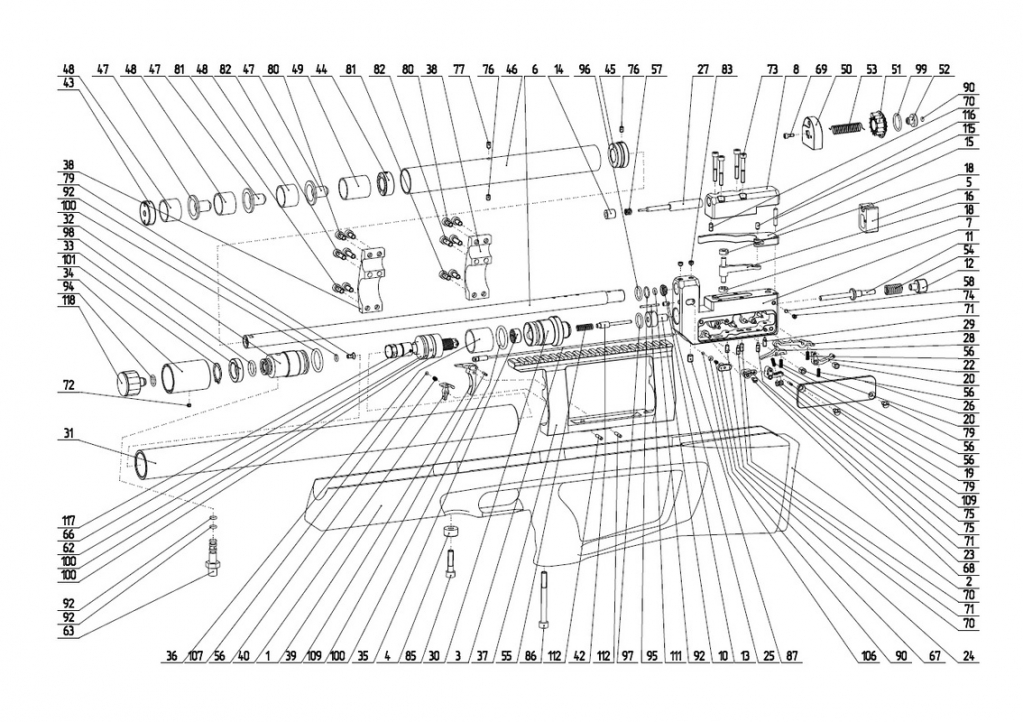

Taipan Mutant Schematics (For future reference)

[orion]

Hi all,

I just want to share this that I've found online. I have a Veteran but I noticed that few O-Rings I've matches this spec, so this might be good for the Veteran too!

21 X 3 Seal rear / front stopper tank 1 each and Regulator OD x2
13.5 X 2 ​​Seal valve body
12.5 x 2 ​​Seal the barrel on the receiver

4.47 x 1.78, -008. (.177) Probe Seal x2
5.28 x 1.78. -009. (.22) Probe seal X2

9.25 x 1.78. -012. pressure gauge
4.47 x 1.78. -008. filling nozzle

23 x 1.5 (.177) magazine od x2
1.5 x 24 (.22) magazine od x2

Regulator.
2.9 x 1.78 -006 Nozzle gear
12.42 x 1.78 -014 sleave.
6.07 x 1.78 -010 Piston reducer *Buno 70 polyurethane*
2.9 x 1.78 -006 Piston reducer *Buno 70 polyurethane*



[orion]

Wondering if anyone has a better version of this? With the list of all the O-Rings... for the Veteran?



[Motorhead]

That picture & info has been on TALON forum for years now .... sadly no one has posted the PART NUMBERS for the mechanical parts the schematic references around the picture.

yet alone a way to get them from the manufacturer or distributor/dealer.



[orion]

Right, I've found this in a forum named airgunwarriors.com while searching for the O-Ring sizes of the Taipan and had the image saved on my disk for some time now, that's why I decided to share it here. It will be cool to have this info.

Scott, you probably won't remember but I got my Taipan because your advice... thanks! Really happy with it
