Suggestion to fix Impact M3 Leak

[JJZatgun]

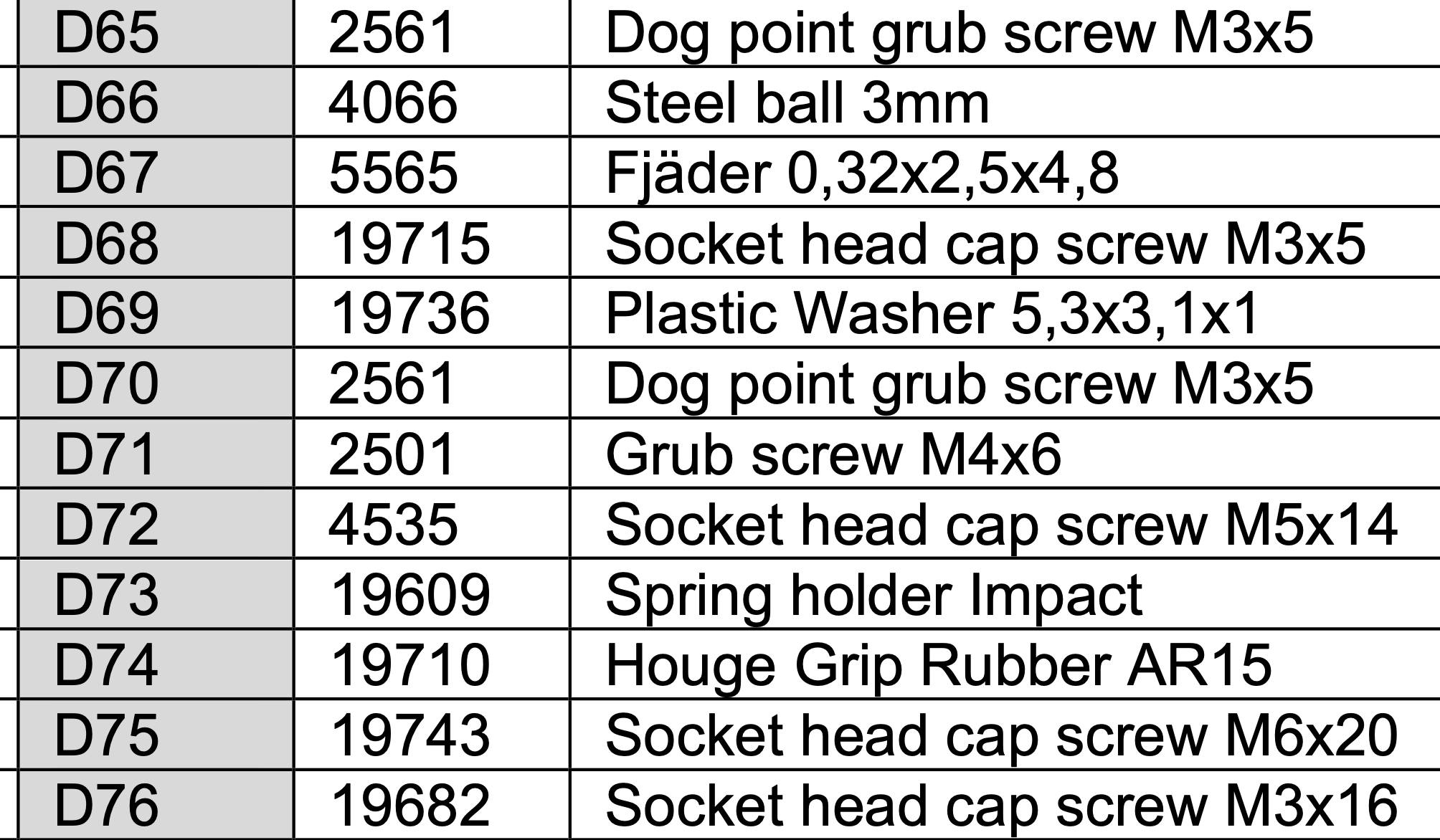

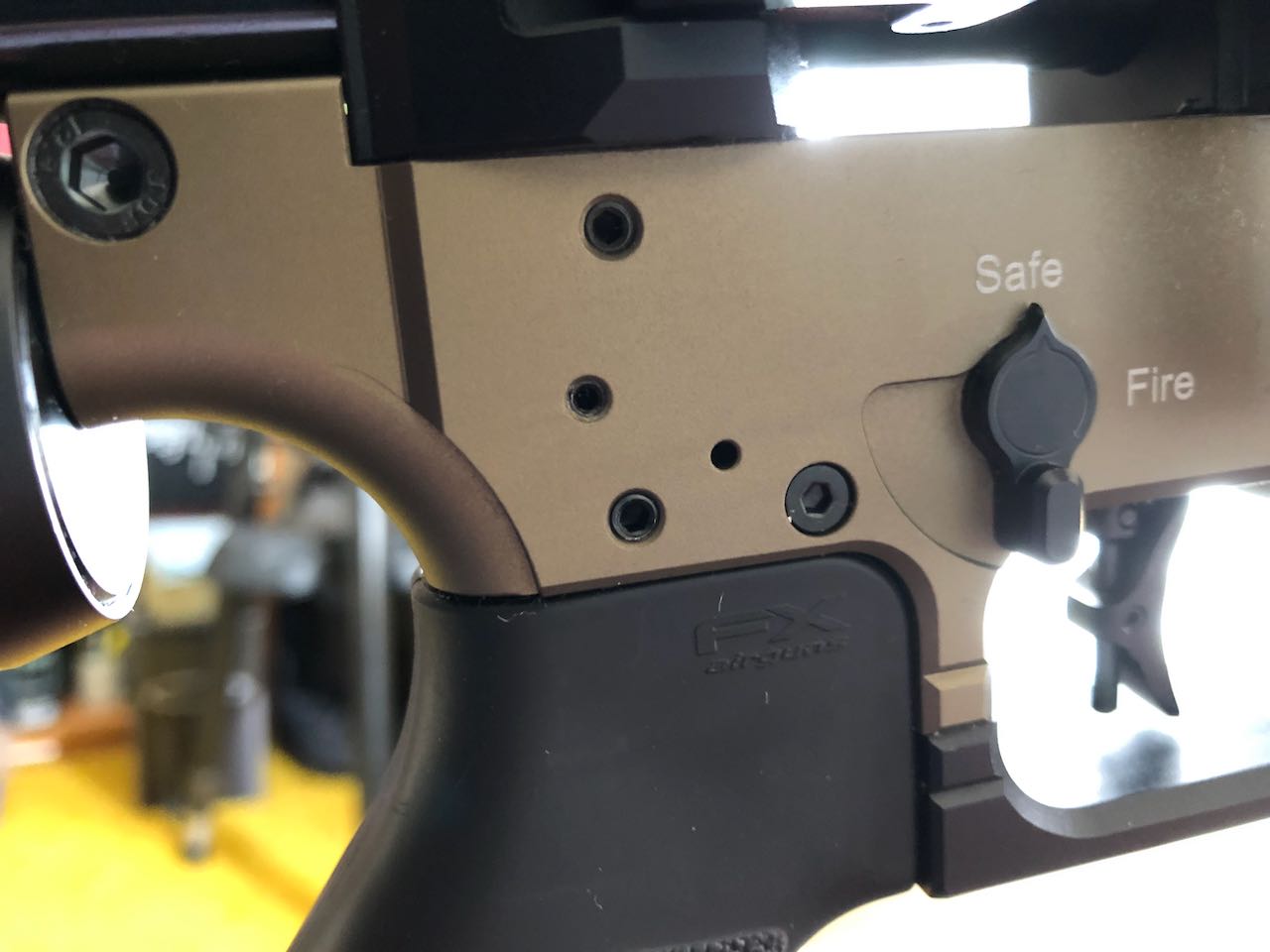

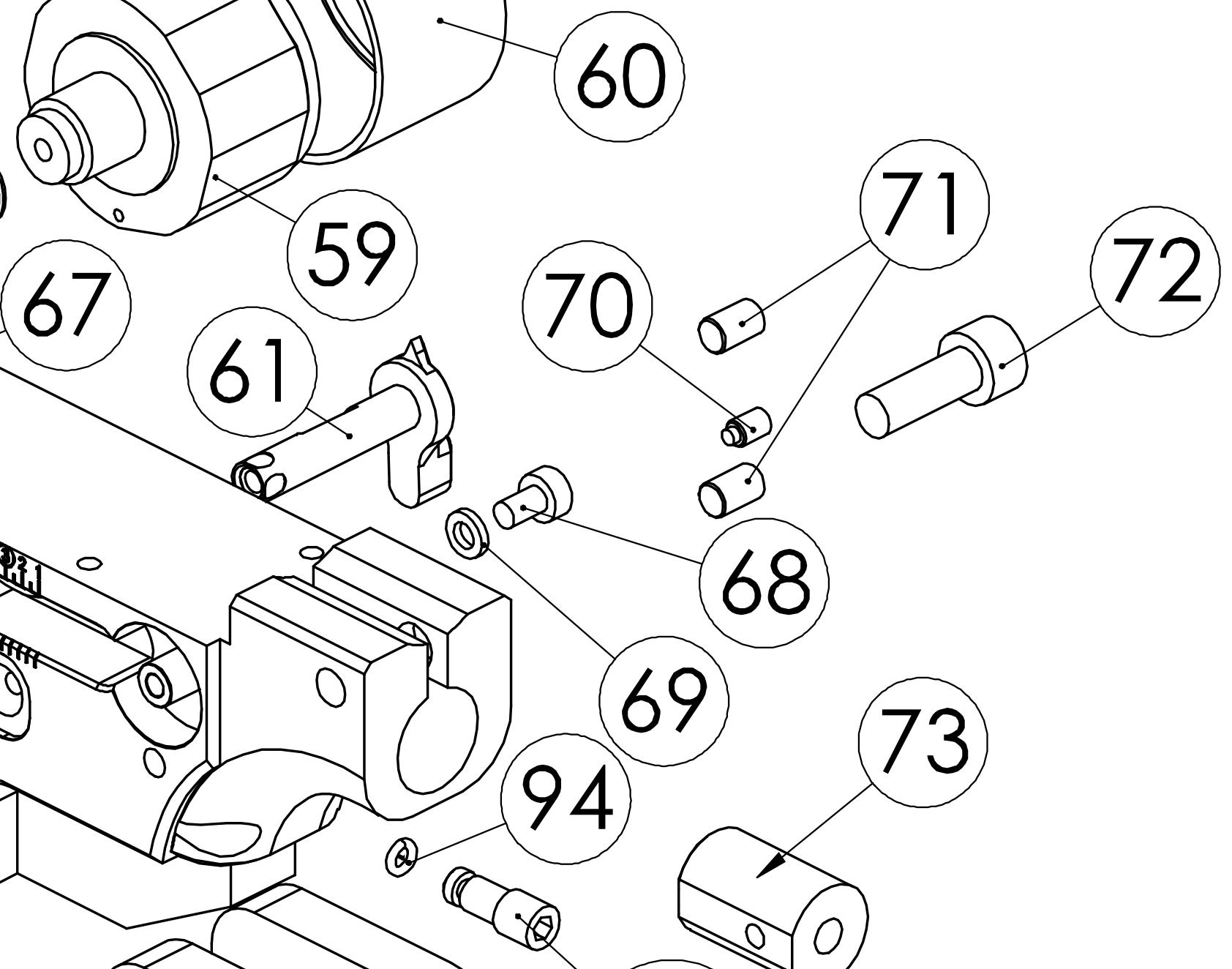

I've identified a leak coming out of the screw identified on the FX M3 schematic as D70 - Dog point grub screw M3x5. I don't see a rubber seal in the schematic so it appears to be just the screw sealing the hole. I've tried tightening it down but it is still is leaking. I don't want to tighten it too much and strip the 1.5mm socket head.
Anyone have a solution on how to stop the leak?
Thanks



[douger]

Probably a o ring I would think maybe. Try some Teflon tape if all else fails



[B_y_r_o_n]

Not familiar with the FX and the diagram isn't clear as to what the screw seals. What exactly is the purpose of the screw and if it is not connected to a air path, you have a leak somewhere else and just seeing it here.



[ripping.r]

so thats where the fx angled gauge bracket goes. i know when you mount the block it has o-rings to seal it. I dont know enough about my m3 yet to say if theres a o ring on that screw. but i bet there is.

well i watched the install vid of that block. and there is no o-ring there. oem just the little plug.

​
