Other Smith and Wesson 76G Exhaust valve

Jump to latest Follow Reply
marflow 777 said:
nope there are no valves
so, they are rebuildable
could you take them apart, they need to be pressed apart and not with a hammer, bench top vise will work
answer that question and i will see what i can do for you
Click to expand...
I believe I can get them apart, but I have a question, which way do I push the shaft out? I have 3 of them. I have seen JG airguns on Ebay offer a rebuild kit with the plunger, but it is shorter, and appears to have a nylon head. They also had the "exchange" program on their site.

Upvote 0
tools needed
vise or arbor press
block of wood with a hole to push the shaft into
a punch to tap out what cannot be pressed out
JG airguns
there cost to do the service is not cheap and if i had to guess they are using heat and have taken no time to clean the valve stem, quick and dirty as they say
the valve

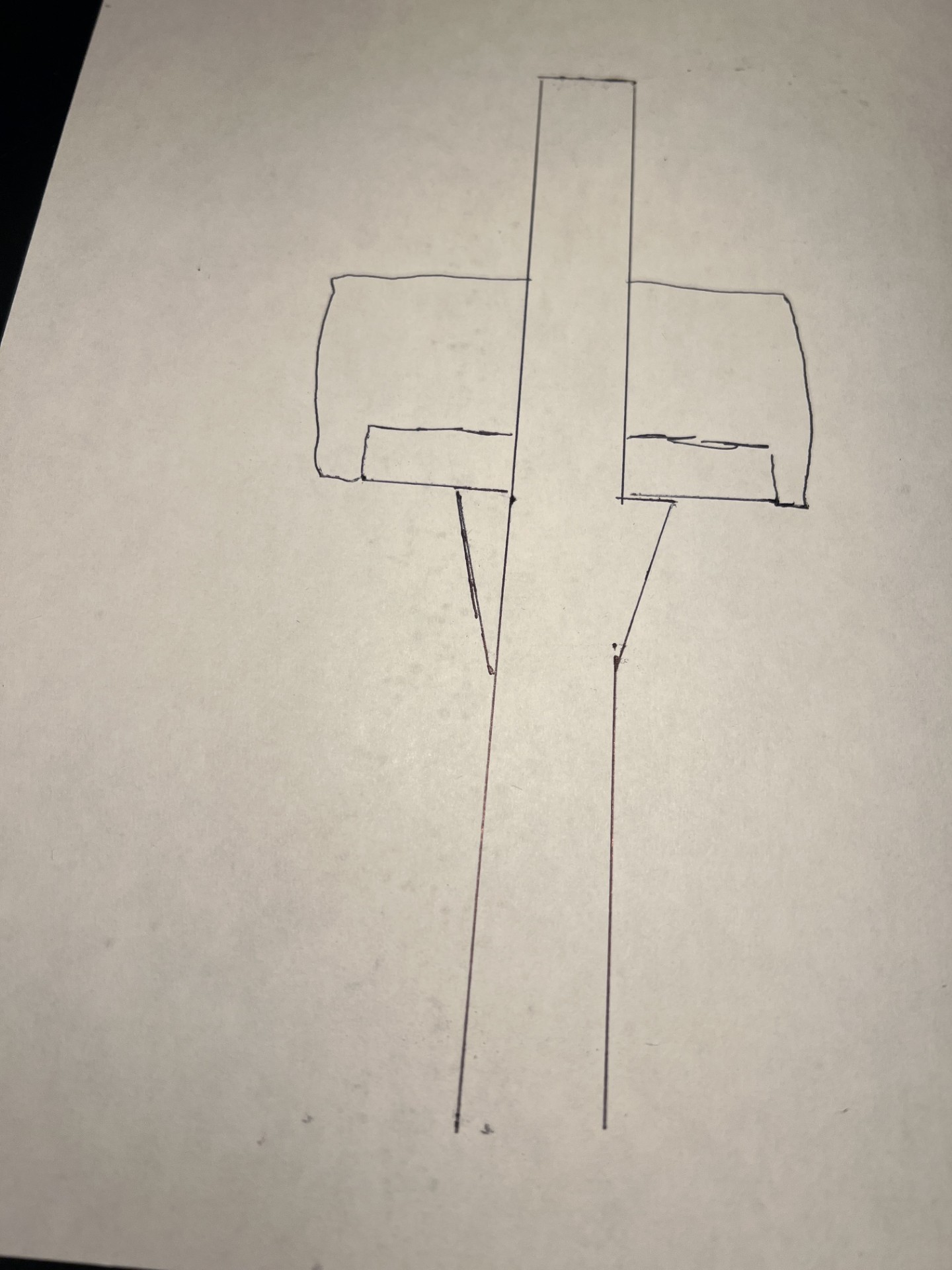

the stem is push out toward the seal side and in the crude drawing i have made you will see why
there a barb on the stem shaft and the barb holds the seal in place

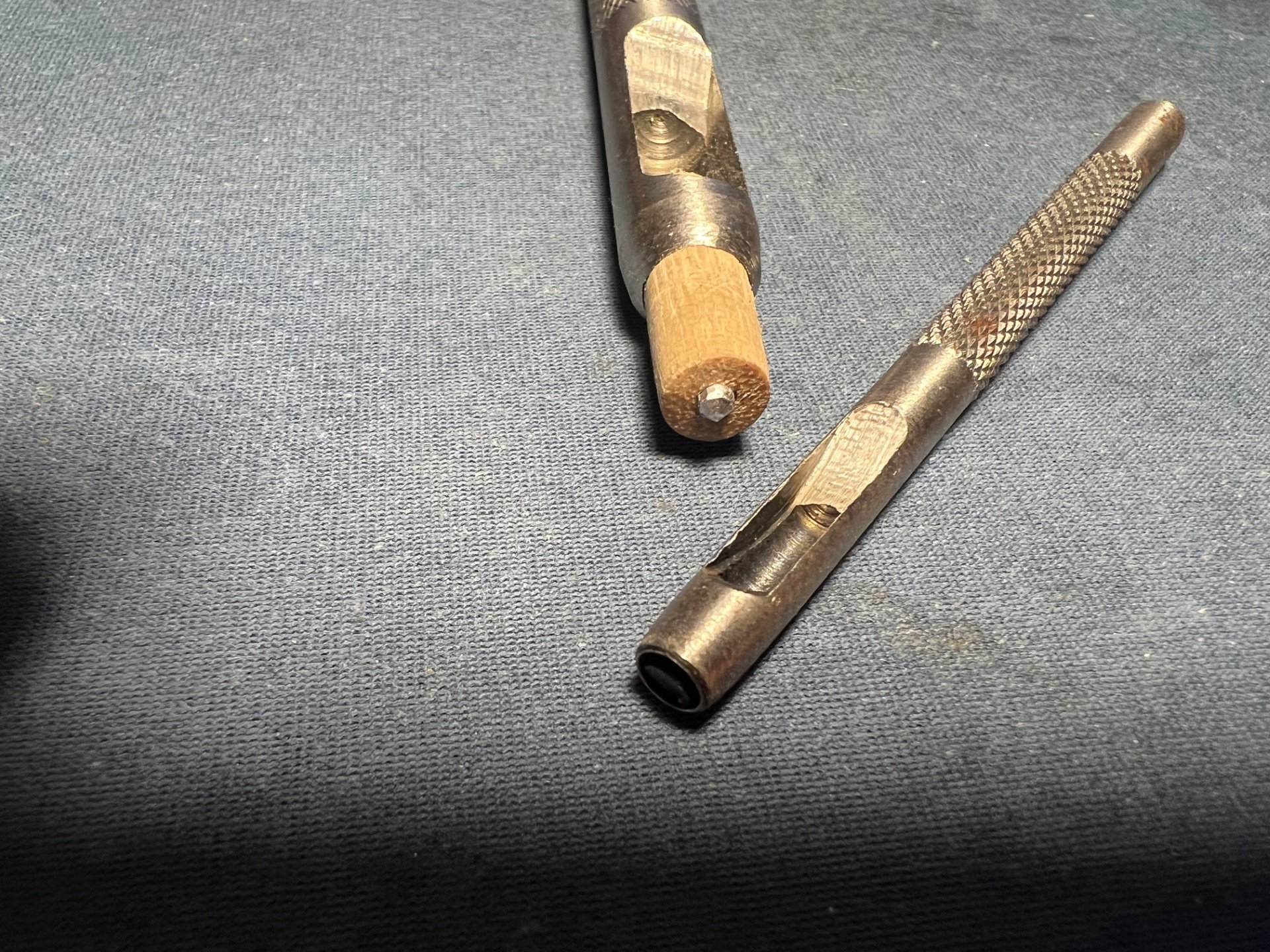

long ago i bought urethane sheet goods and leather punches to make the seal and the reason was just because
i can make the seals and or rebuild them i live in Washington state


Upvote 0
Tackleberry said:
I am looking to purchase 3 exhaust valves for S&W 76Gs, I found one source that will exchange refurbished one for your old ones. But read that the customer service is very poor., and I do not want to lose the valves I have, because of poor communication. Anyone have a source for these valves?
Mark
Click to expand...
Jg airguns, They are the place. You will get the part u need. I've sent many exchanges with Heather at Jg airgun you will get your part, I understand why they have the exchange policy. They need your I part to pass on to someone else. Good luck.

Upvote 0
the stems for the S&W 78-79g are a three piece deal
you have the stem, a cup that is brass and the seal
the Crossman are all the same part 1322-a011 and that is a cast seal of unknown material on the steel stem
so, no i cannot make them

the S&W stems need to be taken apart cleaned and reassembled with a new urethane flat seal

  • Like
Reactions: Tackleberry
Upvote 0
marflow 777 said:
the stems for the S&W 78-79g are a three piece deal
you have the stem, a cup that is brass and the seal
the Crossman are all the same part 1322-a011 and that is a cast seal of unknown material on the steel stem
so, no i cannot make them

the S&W stems need to be taken apart cleaned and reassembled with a new urethane flat seal
Click to expand...
So I push the stem towards the seal, it will come out and than I can put a new flat seal into the cup side. So the stem pinches the seal and some what holds the seal in place.
I am going to take them apart, and see what happens. I would gladly pay you for the new seals, if you can make them for me. I now have 4 guns to re-seal. I pick up a very beat up one at a yard sale this morning. It’s rough to say the least.

Upvote 0
