Tuning sig x-five asp pellet pistol....anyone know how to remove the slide?

[starlingassn]

had the sig mpx,worked great.

liked it so much i sold it and bought the sig virtus,
love it for its purpose,
and way more accurate than the mpx was.

anyway,
decided on a new sig and went with the x-five asp from pyramyd.

would love to be able to remove the slide so i can work on taking the wobble out of the barrel.

ive found disassembly videos on youtube for other sig models,
but not this one.

anyone know how to get the slide off of this guy?

there are no takedown levers/buttons that are functional,
they are merely molded in to the frame.



[Modski66]

I had one of these, there is a roll-pin forward of the trigger, knock that out then the slide 'blocker' drops down, and then you can pull the slide all the way back over the hammer and lift it up and away.



[starlingassn]

niiiiice!!!! thank you!!

although i did knock that pin out last night,
but didnt notice the blocker drop down.

ill try it again today though


things like this frustrate me lol
if it was one of my pcp's id already have it tore down to every last screw lol



[MikeVV]

This one ?

or -

or -

Mike



[starlingassn]

no,its not the 226.

its closer to the 320

its this one.

SIG Sauer X-Five ASP CO2 Pellet Pistol, Black | Pyramyd Air

We've got a great price on the SIG Sauer X-Five ASP CO2 Pellet Pistol, Black. Shop and get expert advice from the largest airgun retailer!

www.pyramydair.com



[starlingassn]

I had one of these, there is a roll-pin forward of the trigger, knock that out then the slide 'blocker' drops down, and then you can pull the slide all the way back over the hammer and lift it up and away.

thanks so much again!

i hadnt noticed the slide blocker drop down the last time i had the pin out,

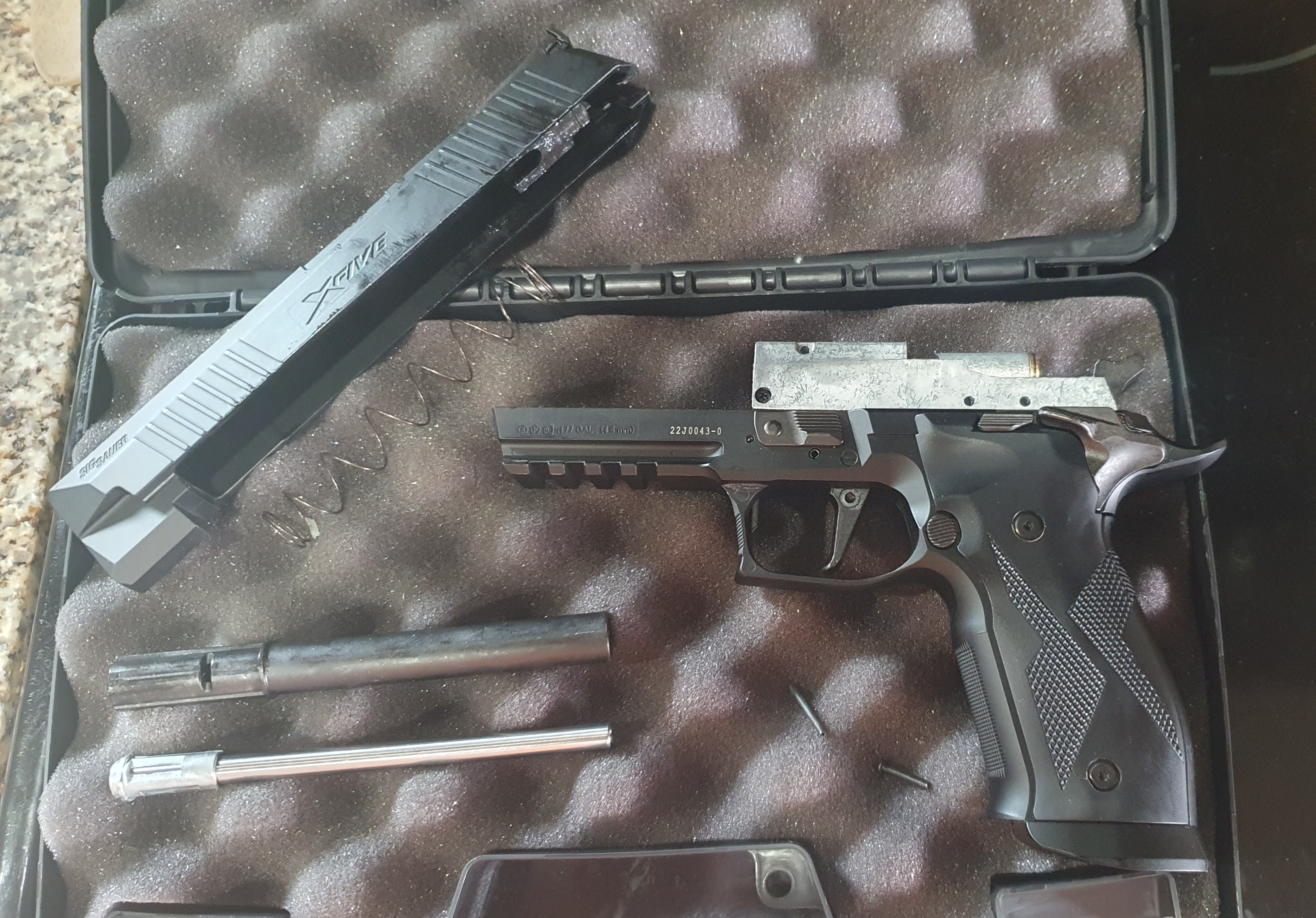

came apart easily and can now tighten up the bit of slop in the barrel

thanks again brother!



[Modski66]

No worries, glad to help out..



[Skiper]

niiiiice!!!! thank you!!

although i did knock that pin out last night,
but didnt notice the blocker drop down.

ill try it again today though


things like this frustrate me lol
if it was one of my pcp's id already have it tore down to every last screw lol

Sorry, how do you exactly knock the pin out? Mine does not want to move at all, I even deformed it by applying force. I need to disassemble the gun because I got pellet stuck and I can't remove the mag.



[Skiper]

Ok, I got this. The pin is in the smaller circle next to dummy take down lever. I knocked it from right to left. Then, the slide blocker dropped down. For more details: https://www.airgunnation.com/threads/sig-sauer-x-five-pellet-gun-disassembly.1294645/#post-1547716
Thank You.
