Hi, hope all good. To be honest I'm zero when comes to this upgrades. There's is any chanse to send make a video on YouTube to help me to sort this? I really want more power on the gun. Thanks
Upvote 0
Tuning Sig Sauer p226 x5 C02 valve mod
- Thread starter Hatsan123
- Start date
Hello together,
I'm new on this forum and in co2 pistols. Just bought recently a cz75 p-07 blowback in second hand.
I found very interesting in this mod, but since I am new on this, whould be so nice if you can make a video tuttorial
best wishes
I'm new on this forum and in co2 pistols. Just bought recently a cz75 p-07 blowback in second hand.
I found very interesting in this mod, but since I am new on this, whould be so nice if you can make a video tuttorial
best wishes
Upvote 0
Thanks mate.

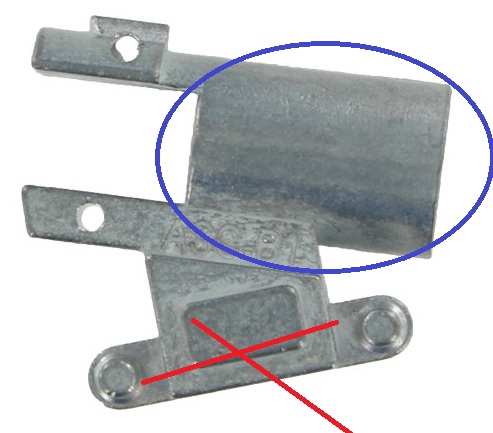

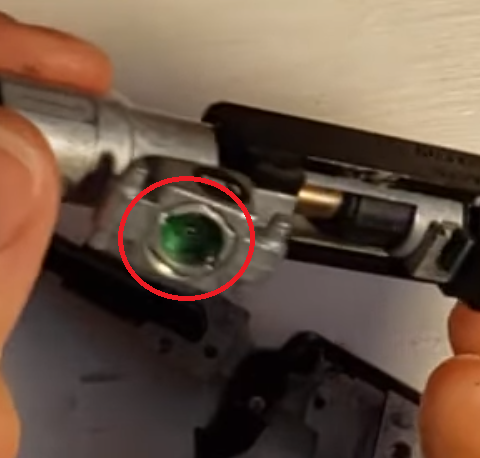

So when you say inlet, is the co2 inlet or where the hammer hits ( the blue circle ) ? The Ideia is to increase the volume capacity correct? Many thanks for your support
So when you say inlet, is the co2 inlet or where the hammer hits ( the blue circle ) ? The Ideia is to increase the volume capacity correct? Many thanks for your support
Upvote 0

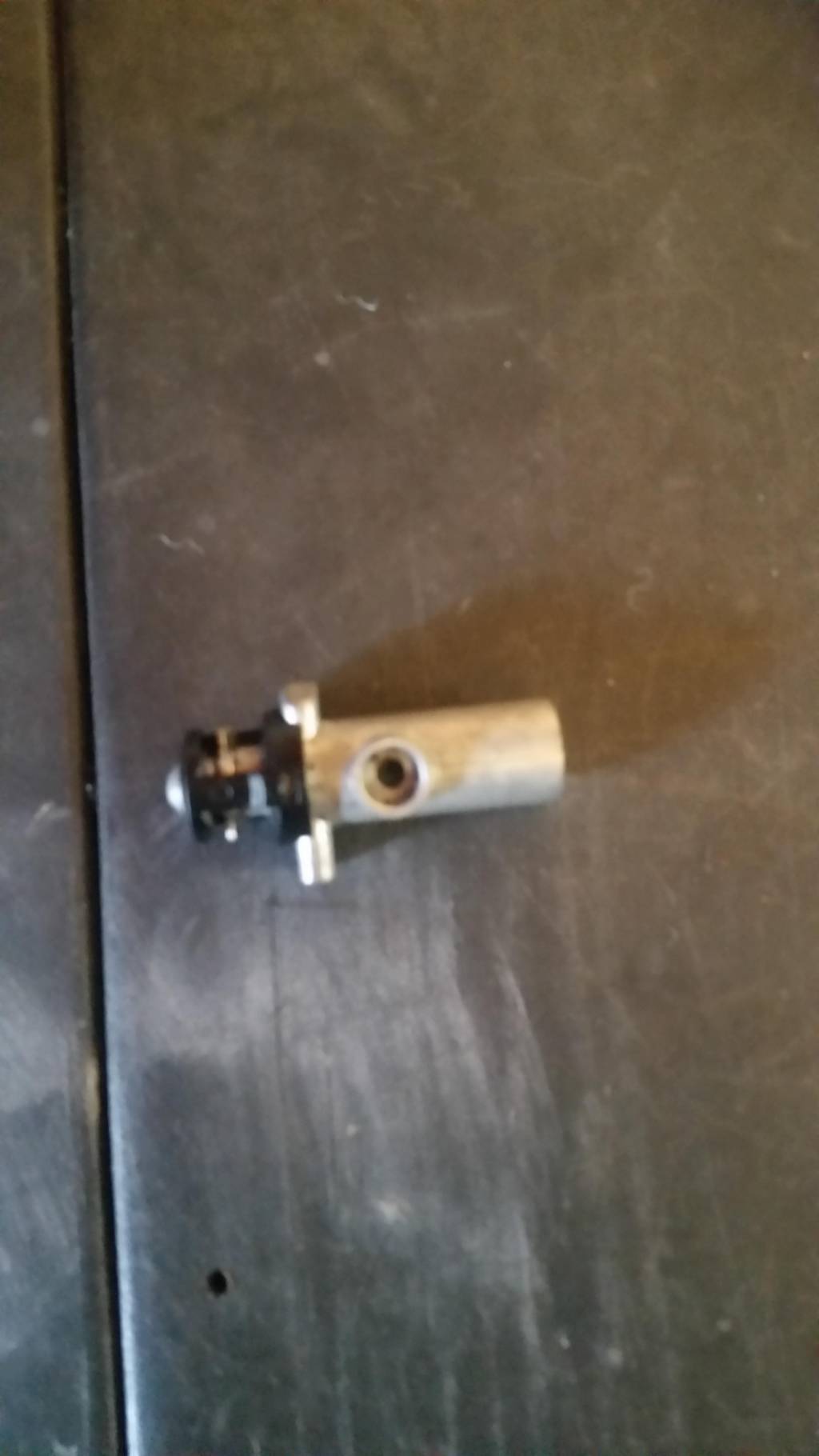

The inlet on the valve is right after the first pic you sent. The goal is to allow more gas to get through for each shot. Also bumping the hammer spring tension helps a ton.
Upvote 0
Hi Joeyjohnson, thanks for a very informative post. I have a Sig M17 which has just started leaking thru the valve in the magazine so I need all the orings and the nylon washer in that valve. Do you know where I can find them? ALSO,I have not opened up the gun to see the valve you are talking about but do you know if the same mods would apply to the M17? Thanks again...jim
Upvote 0
Hi cassador, where did you get the exploded view of your gun? I need one for my M17...thanks
Upvote 0
Hey Jim,
For orings - https://www.ebay.com/itm/233887542004
For the nylon c02 washer, these usally don't go bad. They can get scuffed up or dirty. Usually I take them out. Sand with some fine wet sand paper just to clean up any dings and then clean really well. Then use some gun oil when you install the c02.
As for the valve, I have not been inside this exact model but they all function in the same manner so yes the mod should work fine. Let me know if you have any questions.
Thanks
For orings - https://www.ebay.com/itm/233887542004
For the nylon c02 washer, these usally don't go bad. They can get scuffed up or dirty. Usually I take them out. Sand with some fine wet sand paper just to clean up any dings and then clean really well. Then use some gun oil when you install the c02.
As for the valve, I have not been inside this exact model but they all function in the same manner so yes the mod should work fine. Let me know if you have any questions.
Thanks
Upvote 0
Hey,
There's a few sites with the exploded views of the gun. Tipical they are used to in airsoft.
There's a few sites with the exploded views of the gun. Tipical they are used to in airsoft.
Upvote 0
Hello JoeyJohnson,
I am intereted in giving my SIg Sauer a bit more power.
But I don`t understand how to dismount it. (2 first points)
1.) Remove c02 cover and c02 if one is in it.
Do I have to remove grip right and left?
2.) Remove retaining pin by trigger and slide. Back of valve should be exposed.
Are that the spring pins in front of the dummy take down lever or below it and behind the grip?

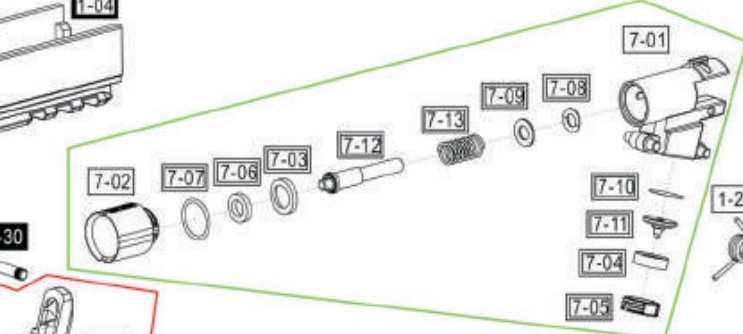

I added an explosion diagram of the pistol.
Can you explain by giving the corresponding part numbers?
View attachment Sig sauer X five 4,5 Co2 Exploded Diagram.1621962985.pdf
As you wanted to modify your MCX i added also an Exploded diagram of that rifle.
View attachment Sig Sauer MCX Exploded Diagram.1621963135.pdf
Thanx in advance for your advises
I am intereted in giving my SIg Sauer a bit more power.
But I don`t understand how to dismount it. (2 first points)
1.) Remove c02 cover and c02 if one is in it.
Do I have to remove grip right and left?
2.) Remove retaining pin by trigger and slide. Back of valve should be exposed.
Are that the spring pins in front of the dummy take down lever or below it and behind the grip?
I added an explosion diagram of the pistol.
Can you explain by giving the corresponding part numbers?
As you wanted to modify your MCX i added also an Exploded diagram of that rifle.
Thanx in advance for your advises
Upvote 0
Hello Mokka,
No you will not have to take the handles off. Just open the back and then take the c02 out. For the pin, yes it is in the fake take down lever. #50 in your diagram I believe. Thanks for the info on the MCX.
No you will not have to take the handles off. Just open the back and then take the c02 out. For the pin, yes it is in the fake take down lever. #50 in your diagram I believe. Thanks for the info on the MCX.
Upvote 0
Hi Joey
As other members have said, thanks for sharing your work on this. Have just bought one of these and looking to carry out the mod you've highlighted. What's the best way of removing that pin on the dummy take down lever? The reverse has a straight cut away edge to it so was wondering if it has to be turned to release it?
Thanks!
As other members have said, thanks for sharing your work on this. Have just bought one of these and looking to carry out the mod you've highlighted. What's the best way of removing that pin on the dummy take down lever? The reverse has a straight cut away edge to it so was wondering if it has to be turned to release it?
Thanks!
Upvote 0
@JoeyJohnson,
New to the forum, glad to have found an outlet for my creativity. I have the MPX. Can I assume the above MCX diagram will be similar enough for disassembly? Also, which mod would you consider the most beneficial for velocity increases; HPA kit or valve porting+spring change?
New to the forum, glad to have found an outlet for my creativity. I have the MPX. Can I assume the above MCX diagram will be similar enough for disassembly? Also, which mod would you consider the most beneficial for velocity increases; HPA kit or valve porting+spring change?
Upvote 0
