Shoebox 4500psi in need of assistance

[Shoebox]

I have a Shoebox 4500 that now leaks. Does anyone know where I can get 1. it serviced, 2. get rebuild parts, and 3. where I can find instructions on how to rebuild?



[Airgunmann]

Where is it leaking from?



[Airgunmann]

There is a list of o- rings that are needed I believe someone put together on gateway to airguns try there



[Shoebox]

Something popped and air started venting out a little hole on the left side of the vertical aluminum shaft.



[mcoulter]

I had a very similar issue with my f10. I posted about it here:

1st leak with Shoebox F10 - Airguns & Guns Forum

1st leak with Shoebox F10 , Air guns, Airgun Forum

www.gatewaytoairguns.org

I see some photos are missing there. Sorry about that!

For my issue it was one very small oring that was behind the vent knob. If I can find the oring measurements I'll post them here!



[ontargetnow!]

Something popped and air started venting out a little hole on the left side of the vertical aluminum shaft.

Same problem with mine



[Revoman]

It could be coming from the above suggestion, or the Burst Disc #27, or the Vent Valve Assembly #37. O-Rings will fix all but the Burst Disc.
I believe that the O-Rings for those parts are the same as the ones for the small check valve. The Vent Valve Assembly is underneath a flat metal plate with 2 small screws holding it down. Use caution when opening as the Assembly is spring loaded.
I have highlighted those parts on the attachment sheet for you to better see their locations.

View attachment Shoebox Exp View I.pdf



[mobilemail]



[mobilemail]

Is this helpful?



[ontargetnow!]

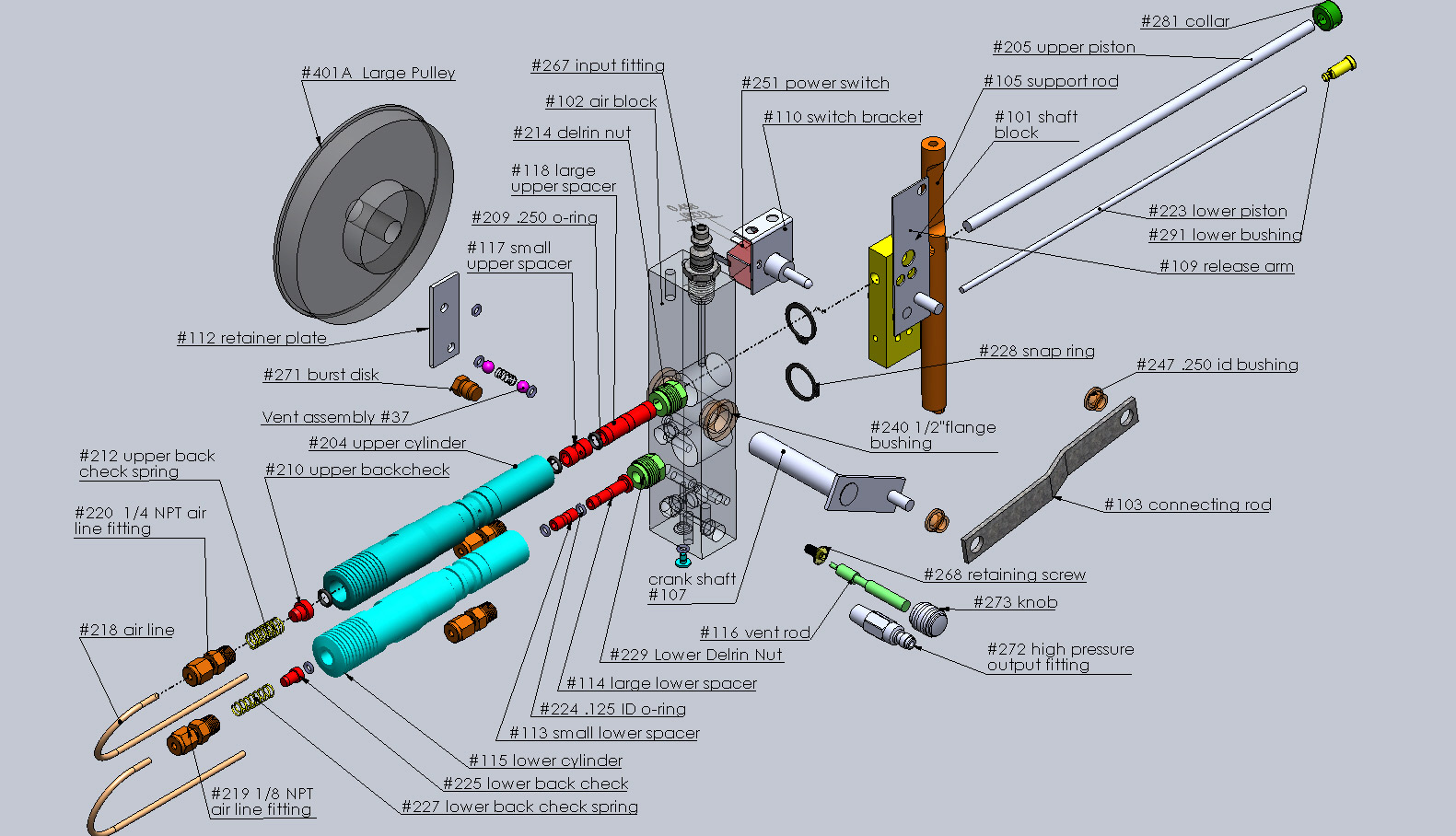

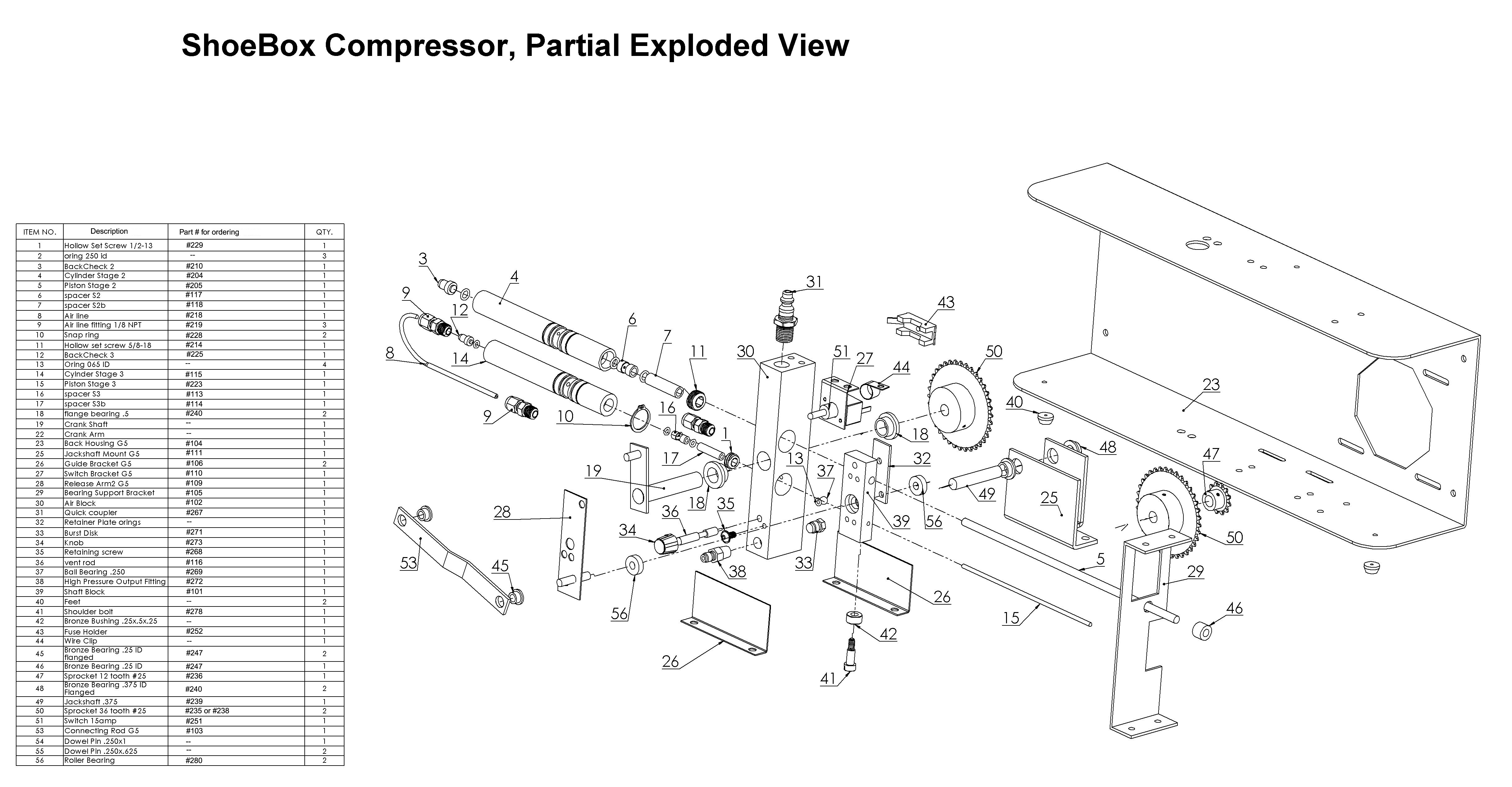

View attachment 313768View attachment 313769

Is this helpful?

Oh, yes. Thank you.
