SEKHMET Digital Gauge review - A+

[Healthservices]

I would be surprised if you can see the the silver finish on the fx boss when installed. Biggest issue I see is the diameter as the wood stock surrounds the whole gauge, is the Sekhmet the same or smaller than the fx gauge?



On my impact I just got, the gauge assembly was so close in size that the black outside sleeve on the factory gauge almost interchanges between the two.







https://youtu.be/ytTWgB4co8Y







Although you are not doing a full teardown, this will get you in the right direction should you get lost.



I just noticed you have the field target model does it even come with a wood or synthetic stock?



[Healthservices]

I'm waiting on the m10x1 gauge to be in stock so I can put on my LCS SK19....



Oh, make sure you inspect the condition of your O-ring and replace if necessary as mine was over tightened and deformed.



[kaylaindy]

I would be surprised if you can see the the silver finish on the fx boss when installed. Biggest issue I see is the diameter as the wood stock surrounds the whole gauge, is the Sekhmet the same or smaller than the fx gauge?

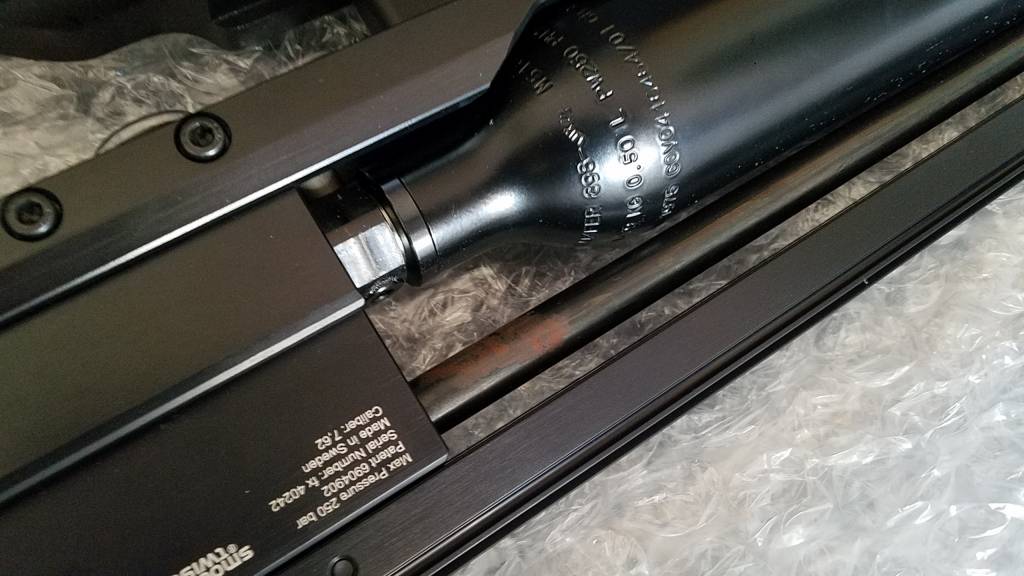

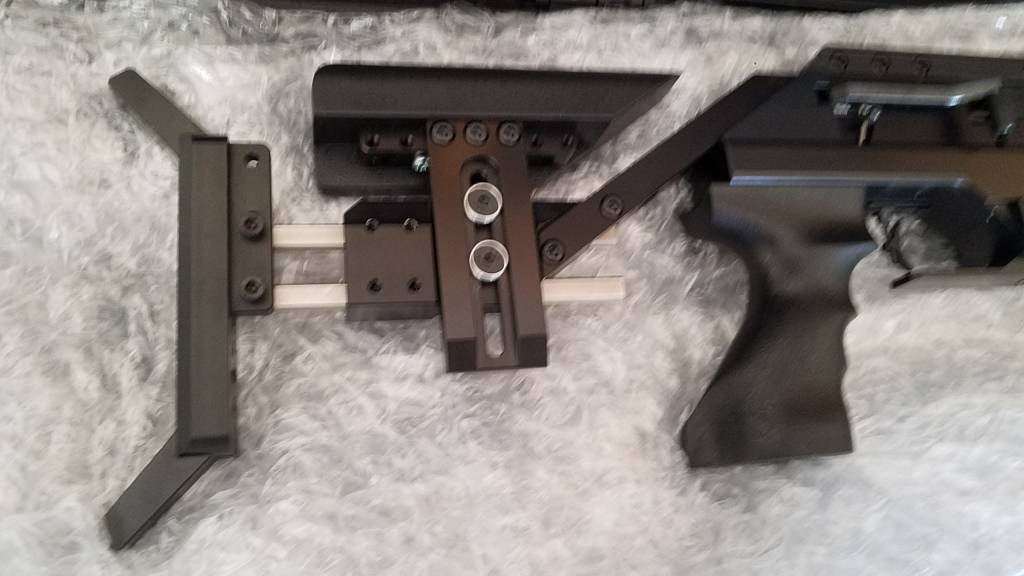

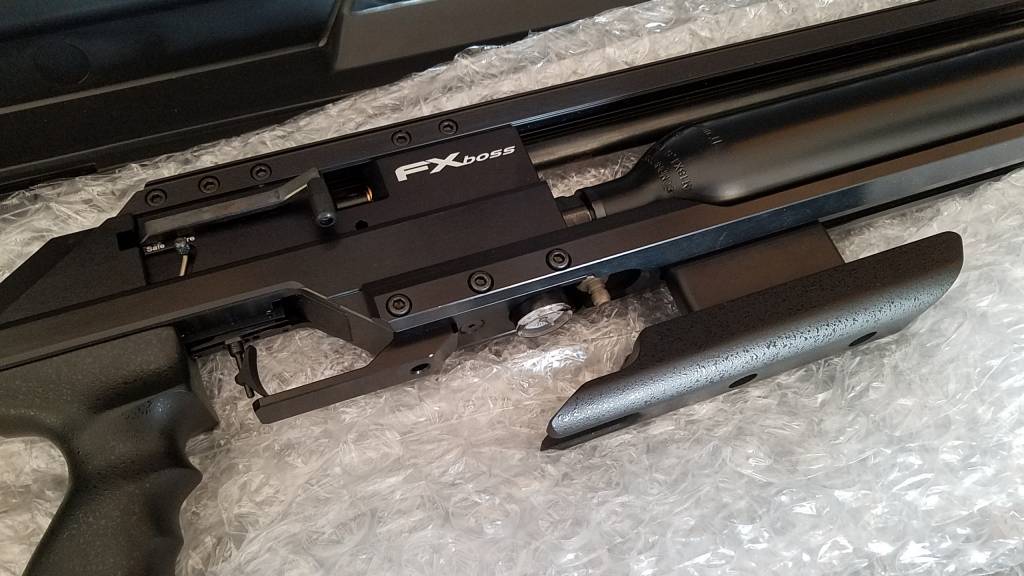

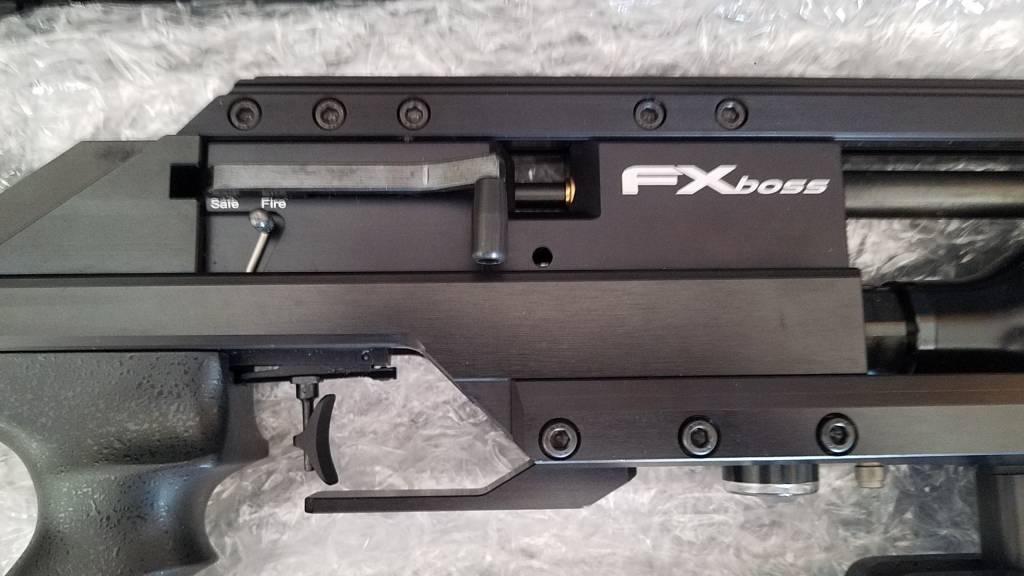

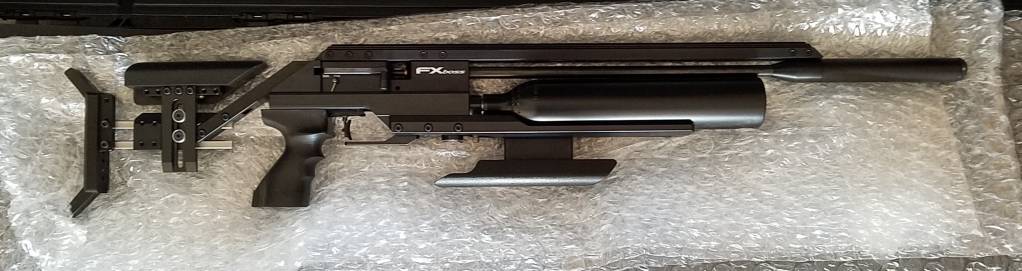

When I said it was a RARE FX Boss. This is what I meant. Here are some pics.

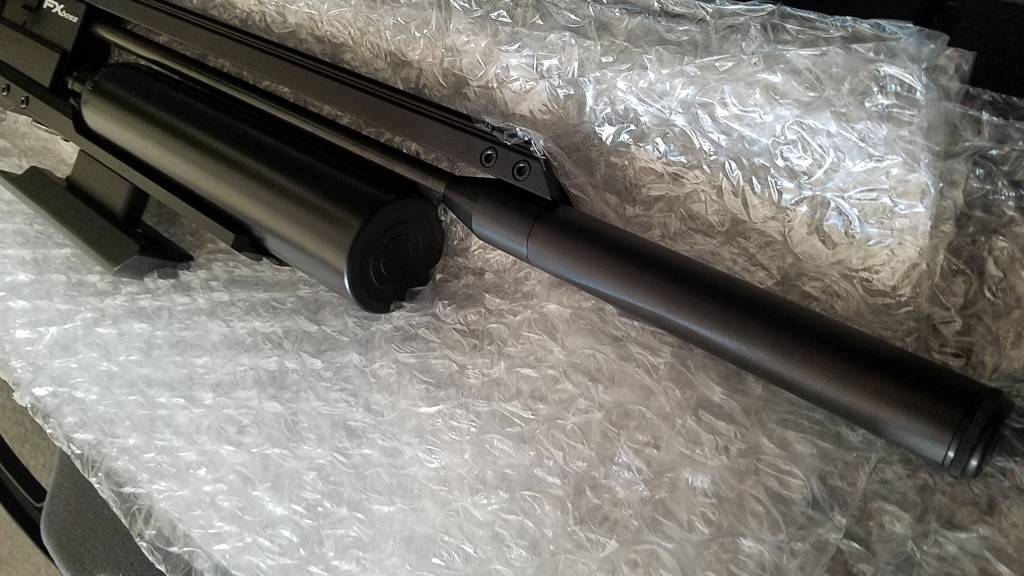

And also, here is what can happen when you don't store guns properly (rust on barrel, gun never fired) .



[Healthservices]

Oh no, hopefully you can get it off without needing to re-blue the metal.



[kaylaindy]

Oh no, hopefully you can get it off without needing to re-blue the metal.

Yes, it may be at the stage where I can save it. I wouldn't mind having to re-blue it. Time to start shooting this gun! -Nate



[Drumsnguns]

I just posted about my Sekhmet gauge. At first I thought that it was defective but turns out I had tightened it a little too much and it would not read so I back off about a quarter turn and voila.



Also, I can't get shot count and bar per shot to give any readings. Is this because I have my gauge on the reg pressure side? I think that's why, (pressure remains constant on this side), but if anyone can answer?



[Glem.Chally]

I just posted about my Sekhmet gauge. At first I thought that it was defective but turns out I had tightened it a little too much and it would not read so I back off about a quarter turn and voila.



Also, I can't get shot count and bar per shot to give any readings. Is this because I have my gauge on the reg pressure side? I think that's why, (pressure remains constant on this side), but if anyone can answer?

Yeah that's why. Needs to be on the tank side to make use of those options.



[Healthservices]

It looks like they are in stock now for the m10 x 1. so I just placed an order for 2.



[dwilson050]

@drumsnguns Same thing happened to me. I tightened it a little too much and it did not read. I also backed it off and it works fine now. -Dave



[dwilson050]

@orion I put them on both the fill and reg. While the reg doesn't benefit from all the features, I can tell exactly what bar I'm at.... especially helpful when tuning. -Dave



[the1stkim]

I have been wondering and asking about these for a while. I'd like to replace the gauge for bottle pressure on the LCS SK-19. I'm out of town and not with the rifle. Does anyone know the thread pitch. Someone said it may be m10, but I'd like to know for sure so I can order two and be able to install when I get back to the States



[ctshooter]

I was skeptical on this digital after the EDMU (I know you gave it a shot Ed - a v2 probably would've taken care of the button issues), but nevertheless I pulled the trigger on purchasing one for my Leshiy 2. Arrived today and I am definitely pleased and more. Ease of installation and setup. 3 buttons making it easy to navigate the menus once you get the hang of it. Seems like the sleep feature is working so battery life may be better than I speculated.

I only have one complaint and not sure how this would be fixed other than through software. When I fill the guns tank the pressure reads on the gauge, but as the fill cools and I lose a few psi it calculates that as one or two shots taken.



[Peskådot671]

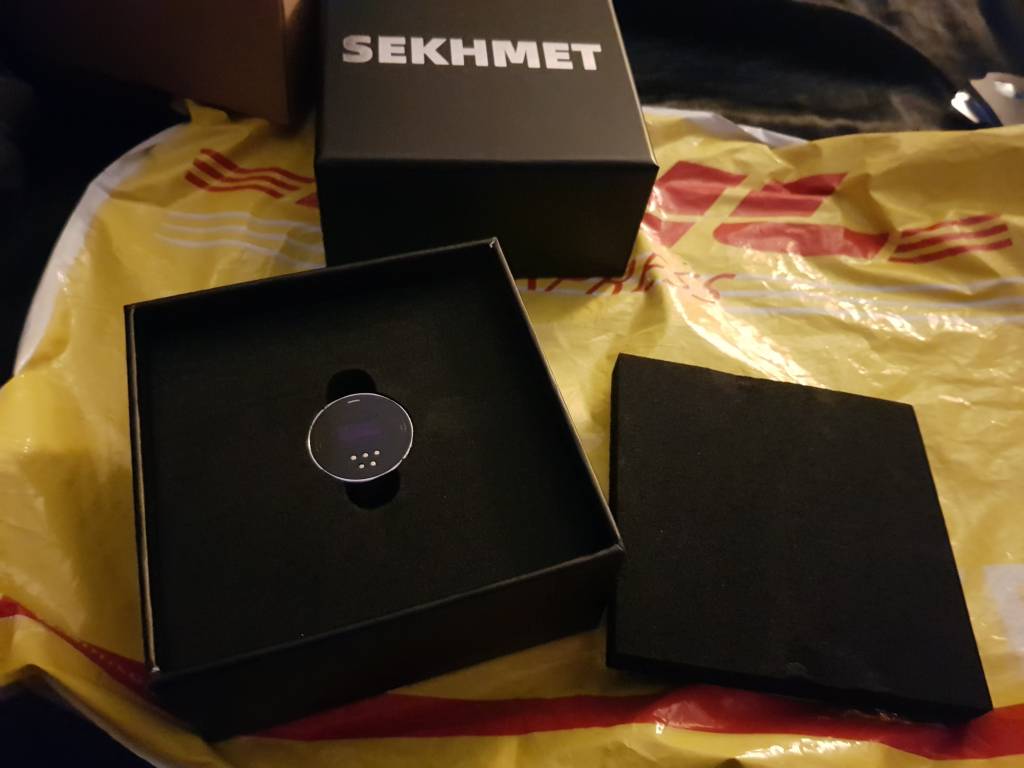

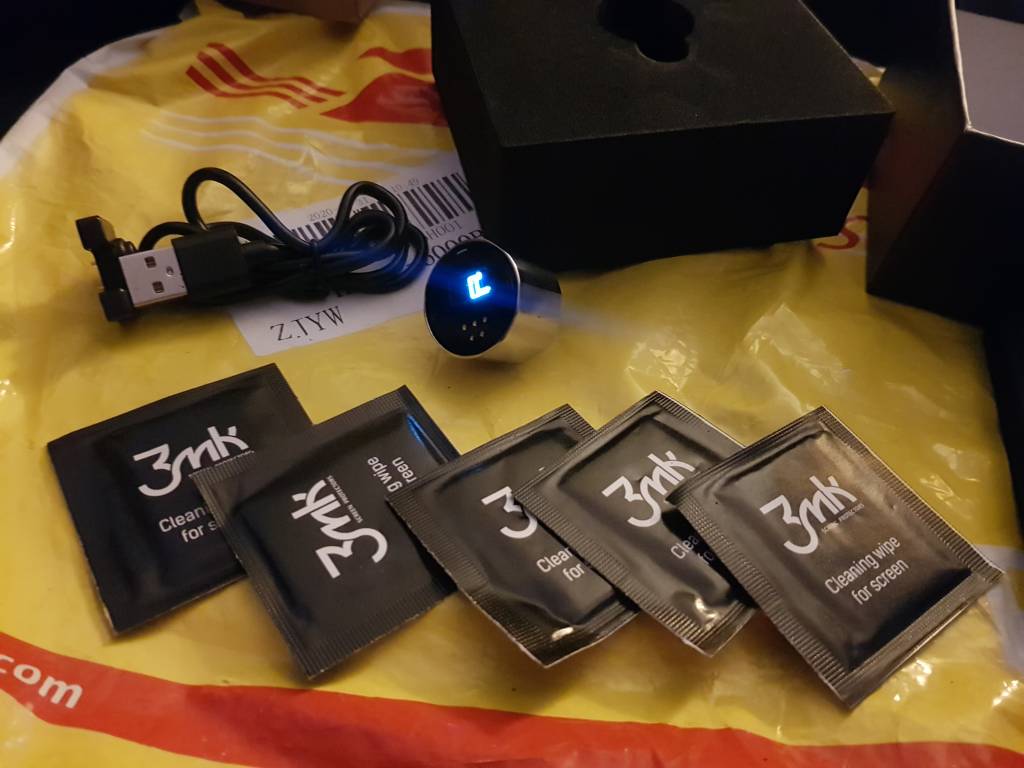

I just received mine today which was shipped directly from China via DHL Express. It took only 10 days from the time I placed my order to when I received it. I gotta say, it comes in a nice presentation box and gives you the feeling that you purchased a quality product. On a side note, the first thing I started to look for was the user manual but it did not come with one.

It's not that big of a deal because you can go directly to Sekhmet's website for reference but it would still be nice if it came with one. Mine came charged at 63% battery life. It took a few attempts to line up the magnetic charger but I eventually got it to charge.

One thing that I haven't seen covered is what the screen will display when it's at full charge. All I see is the bars moving from left to right to indicate that it's charging. I might have more questions or not once I install it on my Leshiy Classic. Sorry for the dark pics.

Edit:

Okay, it did not take long to charge. Probably 30 minutes until it reached 100%. The unit turned itself off until I touched the top button and it read 100%.



[Healthservices]

Hmmm. Thats weird, on the website it says all gauges are available yet below that it says all m10x1 are sold out. I bought one in bspp got confirmation, information on shipping, tracking, got it, and love the unit but when I processed a order for the m10x1 paypal says money shipped but no confirmation, or shipping details.



[brawler1588]

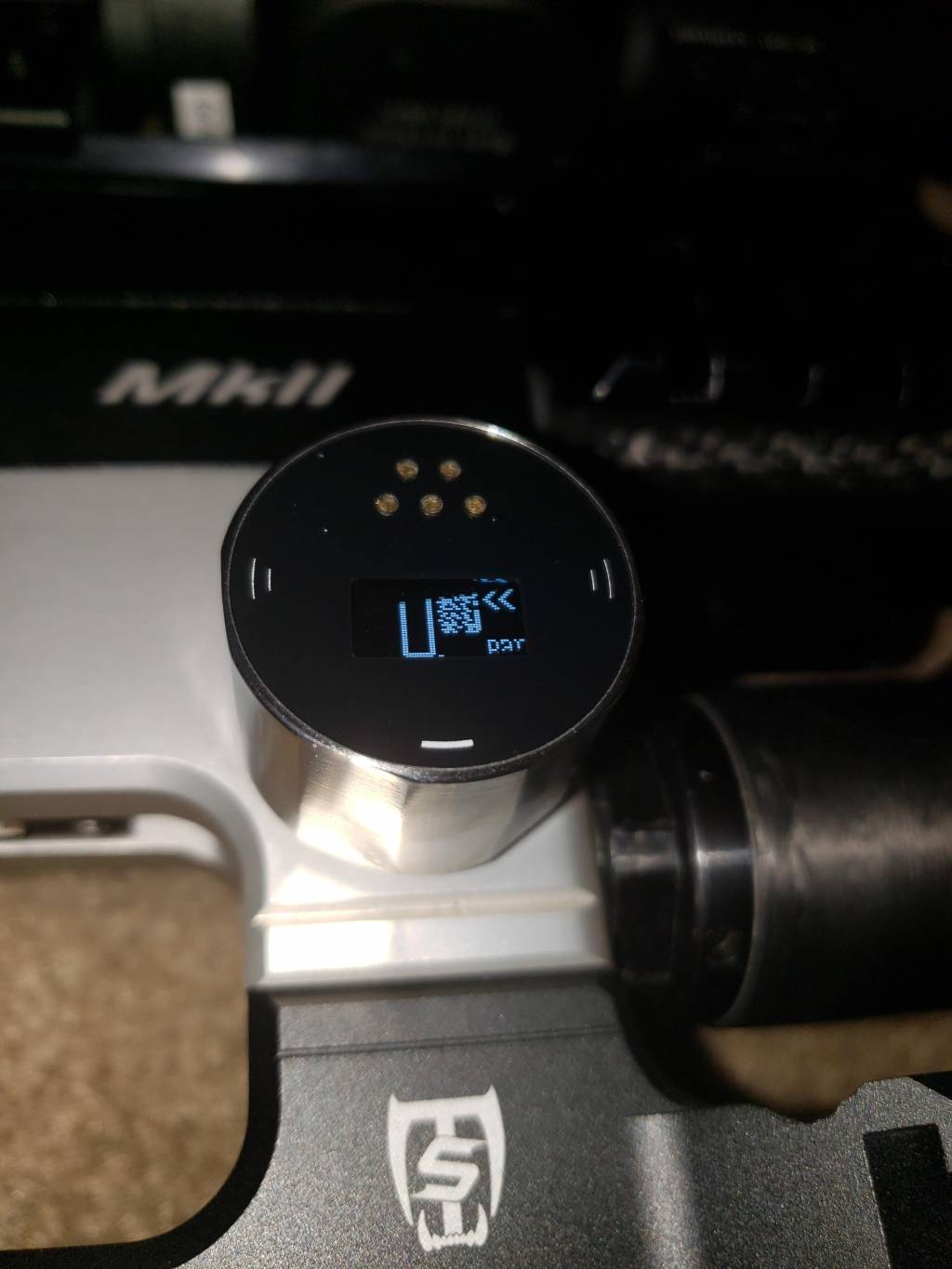

Has anyone seen these readings on their gauge pictures attached i don't get the last shot used all the time and average sometimes registers i have tried reseting and it is not in simple mode. Also mine givesme the issue of not reading the bottle pressure but I have tried every possible position eventually I get it to read but if I pull the bottle and re-install the gauge doesn't work again I than have to mess with the bottle a few times wasting air to get it to work properly which defeats the purpose of a fast change while in the field. Any info would be greatly appreciated.



[ctshooter]

@brawler1588 - have you tried resetting the gauge when it does that? Try the hold middle button and tap right button to clear data. I'm in simple mode too as I don't find the shot metrics to be very useful, yet still after some shots it'll display shot information - so maybe a small software glitch?



[Healthservices]

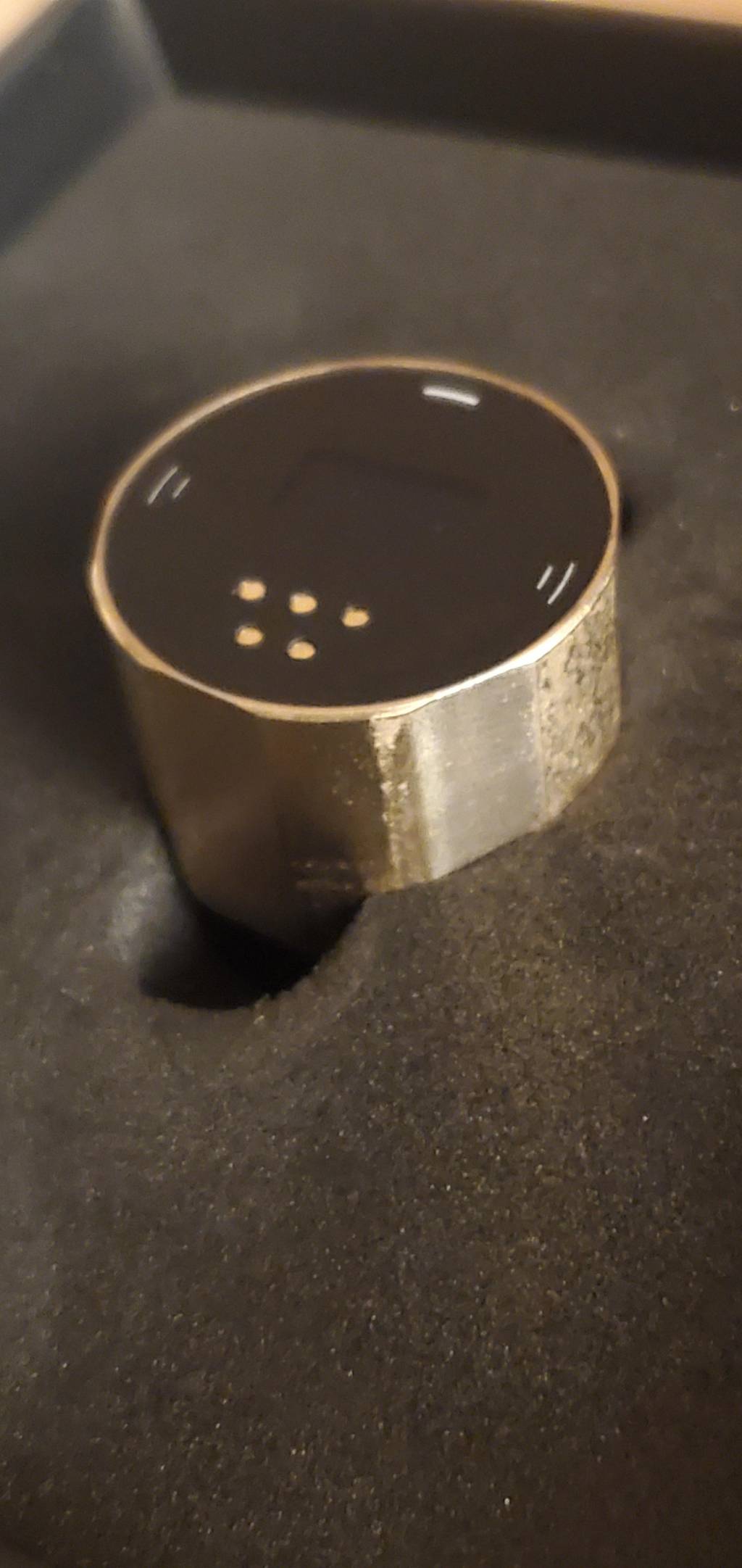

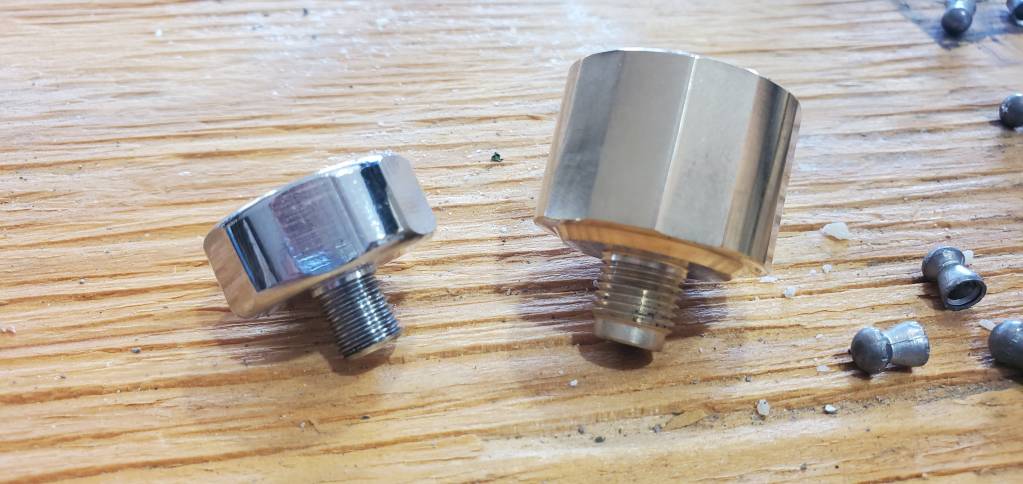

Looks like I just got my Sekhmet gauges for my sk19!



But for some reason they sent the brass colored ones instead of the chrome ☹



[Healthservices]



[the1stkim]

What size is it for the Sk-19? I am currently out of country and away from the gun and have been trying to figure out what thread pattern the gauge is. Any help is greatly appreciated.



[Healthservices]

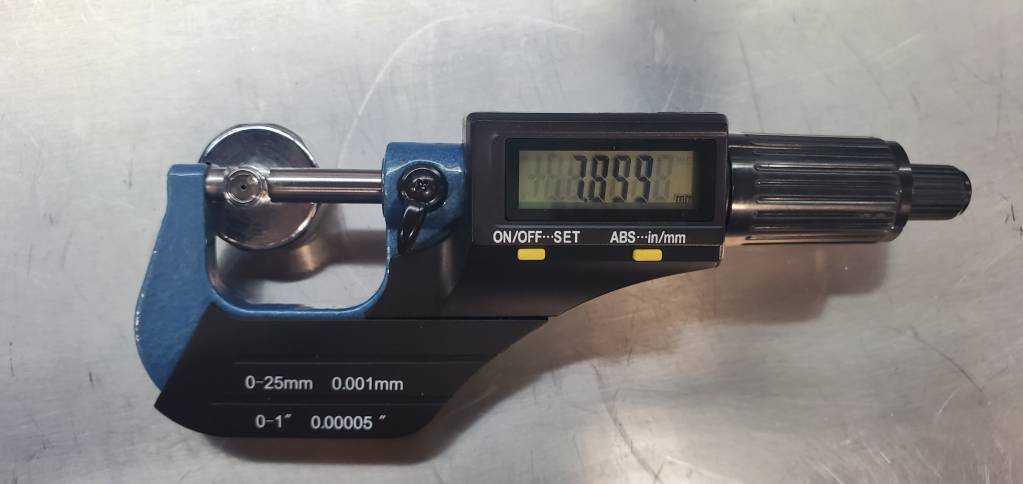

Well looks like I was wrong the thread size I thought I needed was incorrect. I thought I needed a m10 × 1 its not that and looks to be something like a m8 x 1
