I am seriously considering updating my scope level, I have a 30 MM tube. Suggestions are appreciated .
FX Scope Level
- Thread starter killahog
- Start date

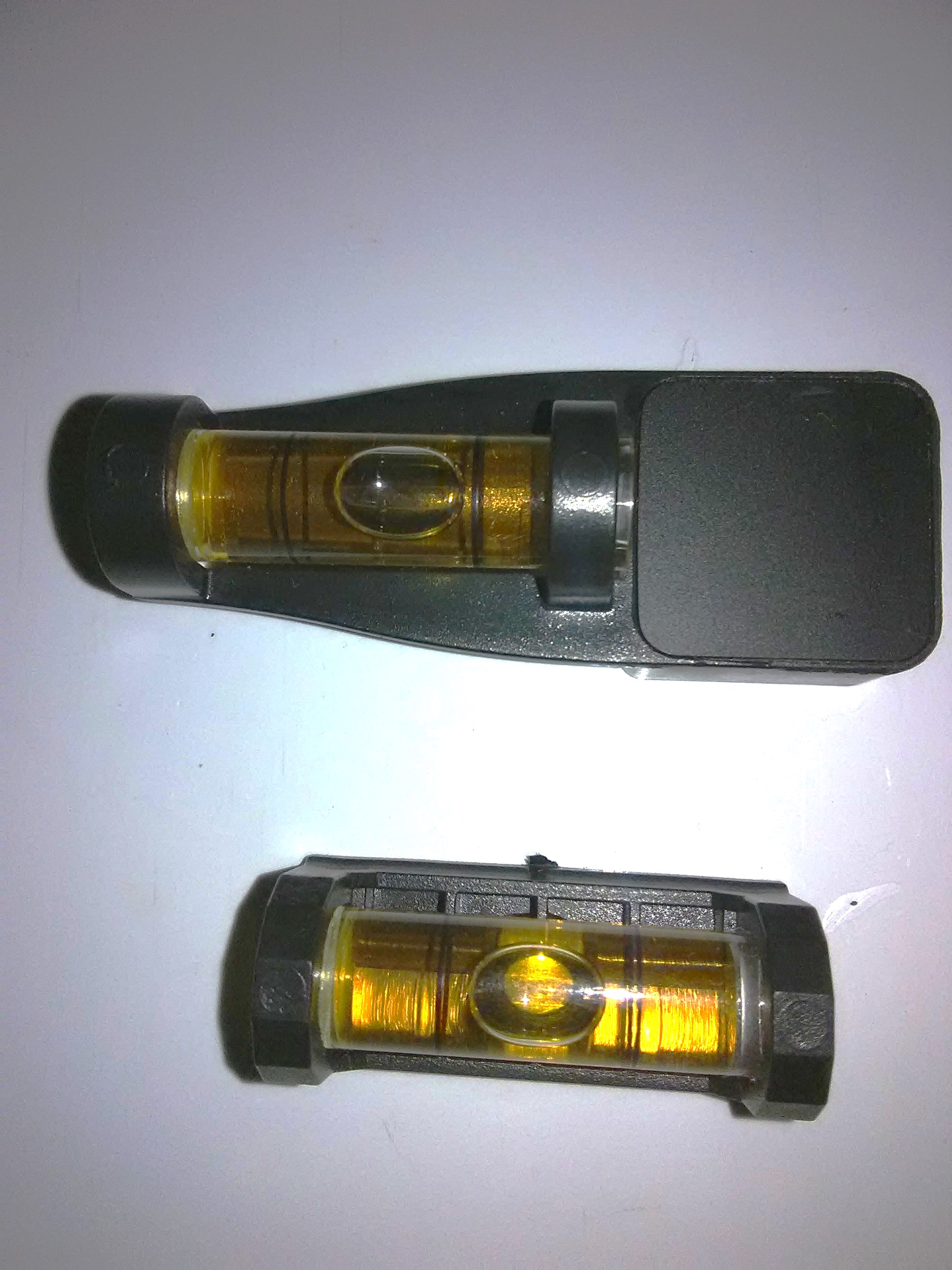

Paid under $5, on eBay. Magnet on smaller one works well on scope turret, but magnet under long black tab doesn't hold to non-ferrous picatinny scope rails. Hold in place with finger or string. WM

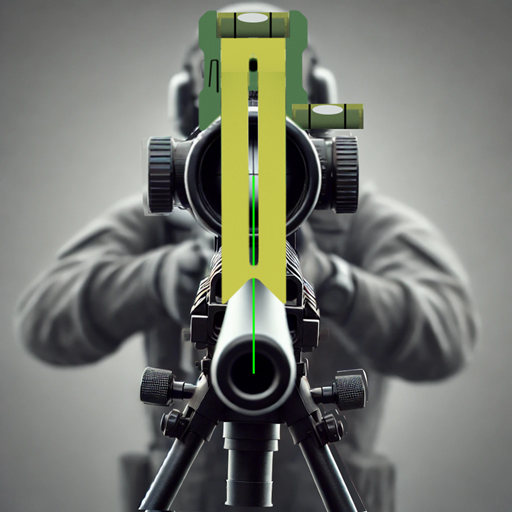

I always level my scope using a mirror. The line of the elevation needs to be centered to the bore. If that is done, mount a level that attaches to the tube of the scope.
This way you eliminate all the rail imperfections or other things that doesnt align properly.
This way you eliminate all the rail imperfections or other things that doesnt align properly.
Upvote 0
Are you setting up the scope or at you looking for a level to keep you from canting the rifle?
I think the one I have is Lone Star. It was inexpensive and metal.
I think the one I have is Lone Star. It was inexpensive and metal.
Upvote 0
This one does not look broken ? I hang a string and small weight down range . (Washers ) Use a Level on the gun , then use the vertical in the scope . line up and carefully tighten the mount screws checking when the screws are just barely tight . then again as you tighten more . Alternating tightening the screws maybe 1/2 turn each time .
OH he just clarified his want is an on gun cant level 6/3/25
Last edited:
Upvote 0
Is this level for scope installation or to prevent canting while shooting. Clarity is your friend.
Upvote 0
I was asking for recommendations on a gun mounted level but I like your method , I have just eyeballed them in the past.
Upvote 0
any of the rail mounted bubble levels work well , unless you want to spend $$$ on a digital one ?
Upvote 0
This is the one I use. I like it because the level can be folded back so it is not sticking out in the rifle case.
BKL rings awesome. They are made in The Great State of Texas. 'Merica!
BKL-610-12Way Folding Scope Level - BKLTech.com
The level is easy to install and attached to any 1-inch or 30mm scope tube. Position the level vial above, below, or off to the side for shooter preference
www.bkltech.com
Upvote 0
Just want to say I can’t recommend strongly enough to try a mirror to mount the scope. Why? Well I guess it takes no convincing that eyeballing it is prone to error, but even the common approach that involves placing levels on the gun and the scope are subject to several potential sources of error.
Then when it comes to holding the gun level when shooting, a level which fastens to the scope tube is preferable to one that attaches to the mounting rail. The reason is because the mounting rail is not necessarily perfectly perpendicular to the imaginary line (gravity) where the reticle intersects the bore.
Some good reading on the subject if you are interested.
Best way to level a scope
I’m planning on receiving a scope that I had ordered tomorrow and I like to have everything as close to perfection as possible, what is your guys best way to level a scope
www.airgunnation.com How important is perfect level your scope to your gun?
I see people attaching bubble levels and whatnot on there guns and scopes trying to get perfect level. How would you know your gun is even level? Since most guns aren't flat on top how would attaching a level on the barrel you know its even level. So when I install my scope. I hold the gun to...
www.airgunnation.com Last edited:
Upvote 0
This is the one I use. I like it because the level can be folded back so it is not sticking out in the rifle case.
BKL rings awesome. They are made in The Great State of Texas. 'Merica!
BKL-610-12Way Folding Scope Level - BKLTech.com
The level is easy to install and attached to any 1-inch or 30mm scope tube. Position the level vial above, below, or off to the side for shooter preferencewww.bkltech.com
That level looks like a good one, thanks
Upvote 0

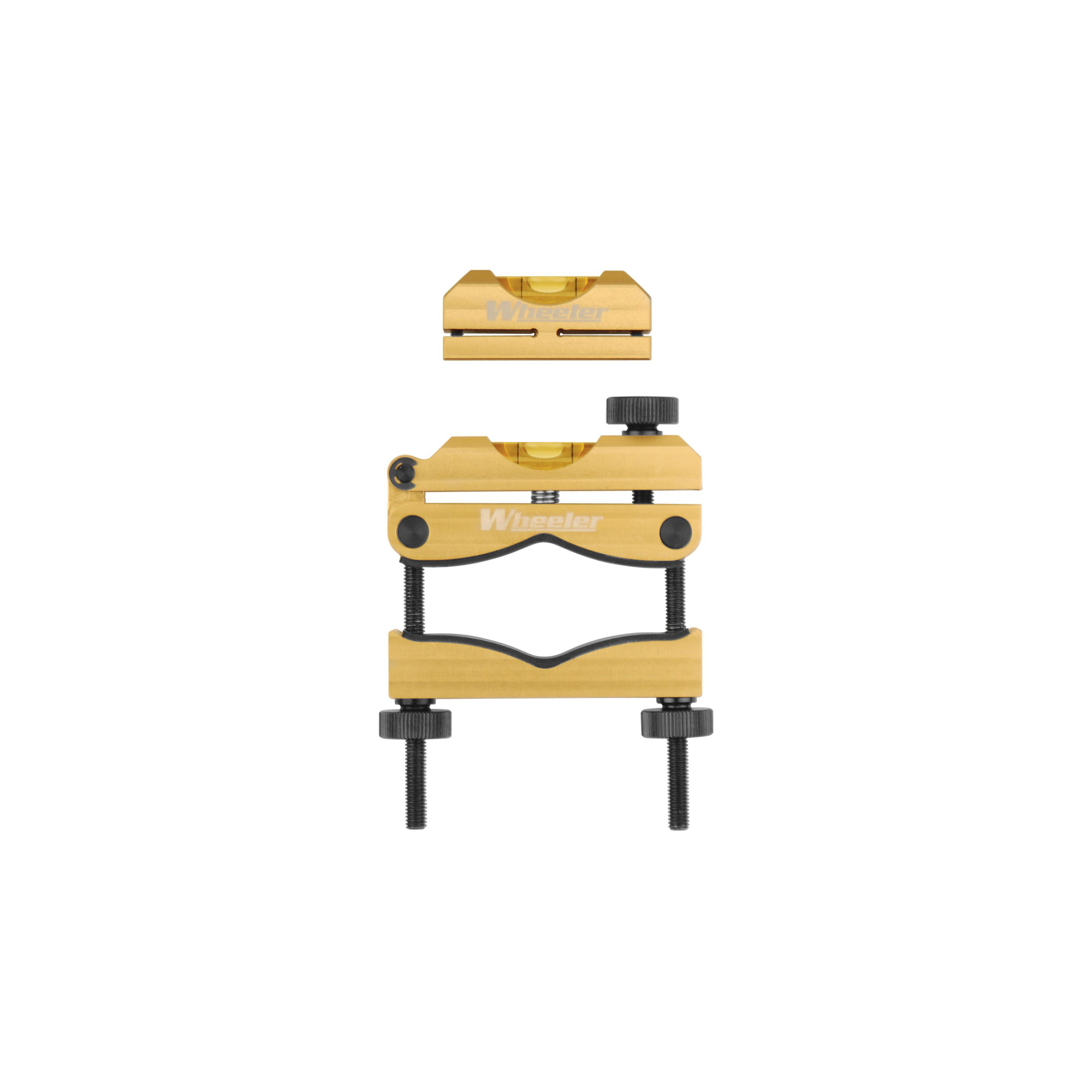

Wheeler Engineering makes a nice kit for getting your scope mounted properly:
www.wheelertools.com

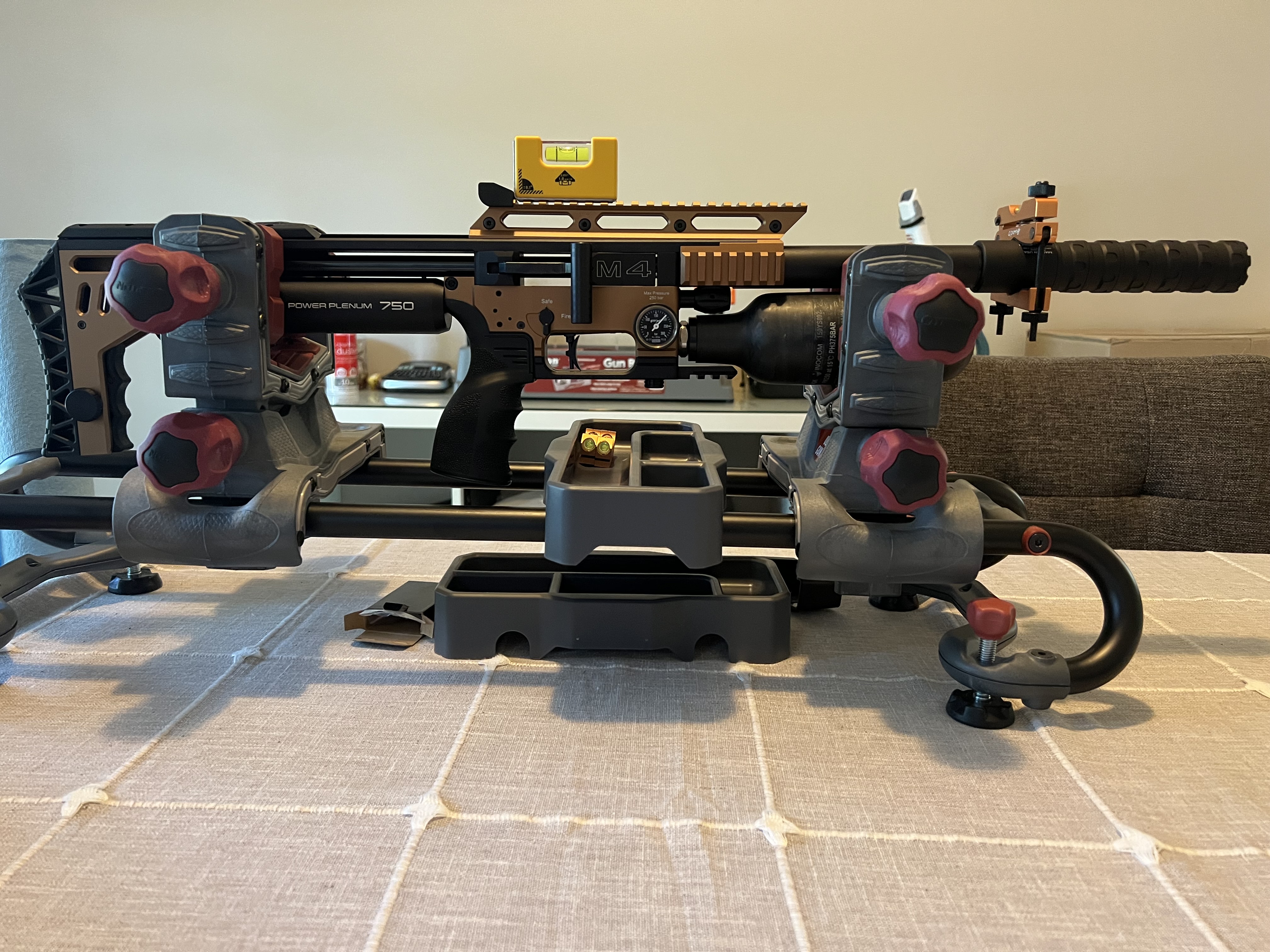

As a gunsmith, i have used it quite a few times. Many rifles have a rail, so getting the scope level to the gun axis is pretty straight forward. After that, your rifle-mounted level will keep you honest when shooting.
Professional Scope Reticle Leveling System | Wheeler
Professional Reticle Leveling System
www.wheelertools.com As a gunsmith, i have used it quite a few times. Many rifles have a rail, so getting the scope level to the gun axis is pretty straight forward. After that, your rifle-mounted level will keep you honest when shooting.
Upvote 0

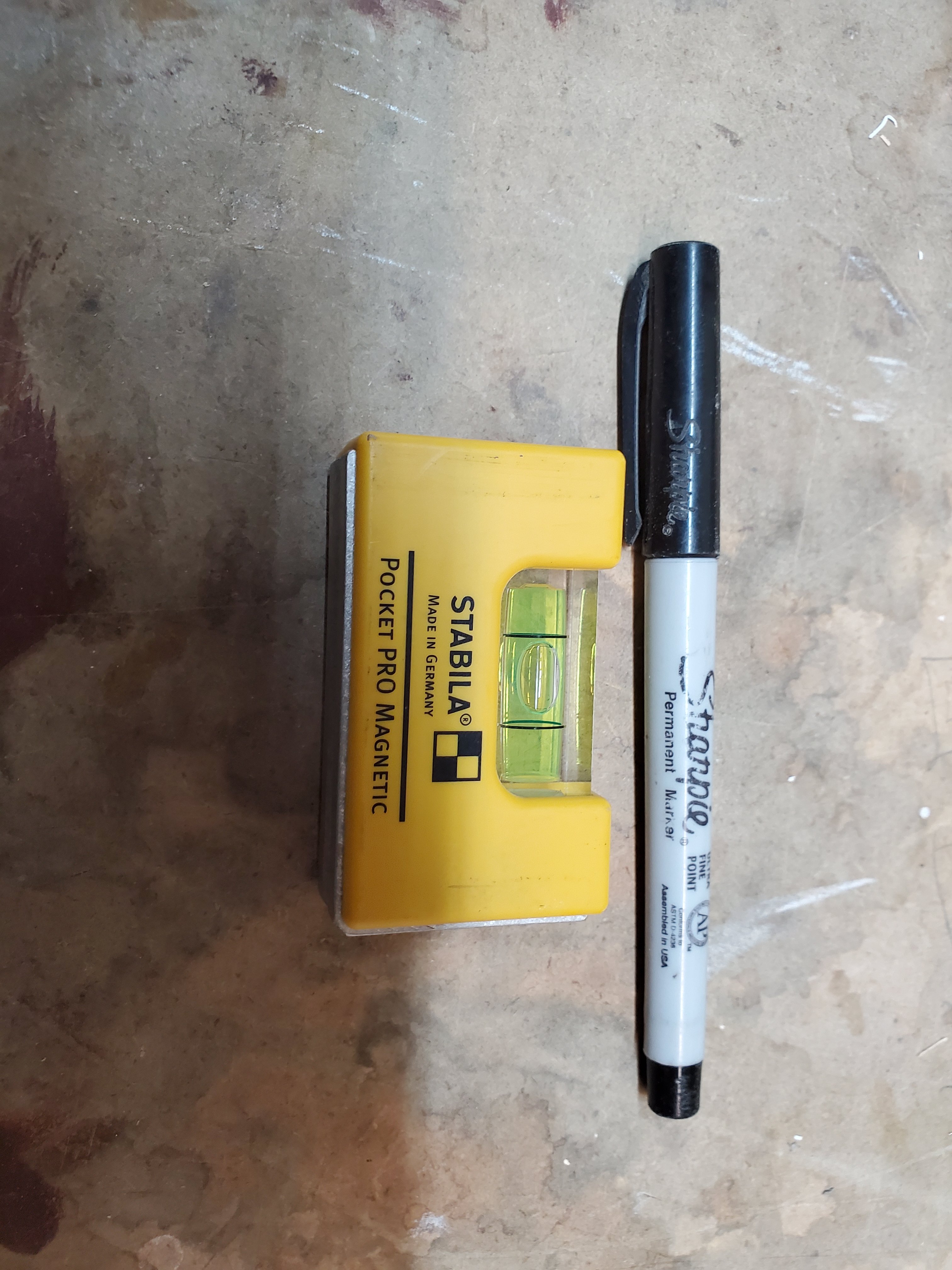

I use stabila leveler too. I use it to adjust my other bubble level so they’re leveling the same.
Upvote 0

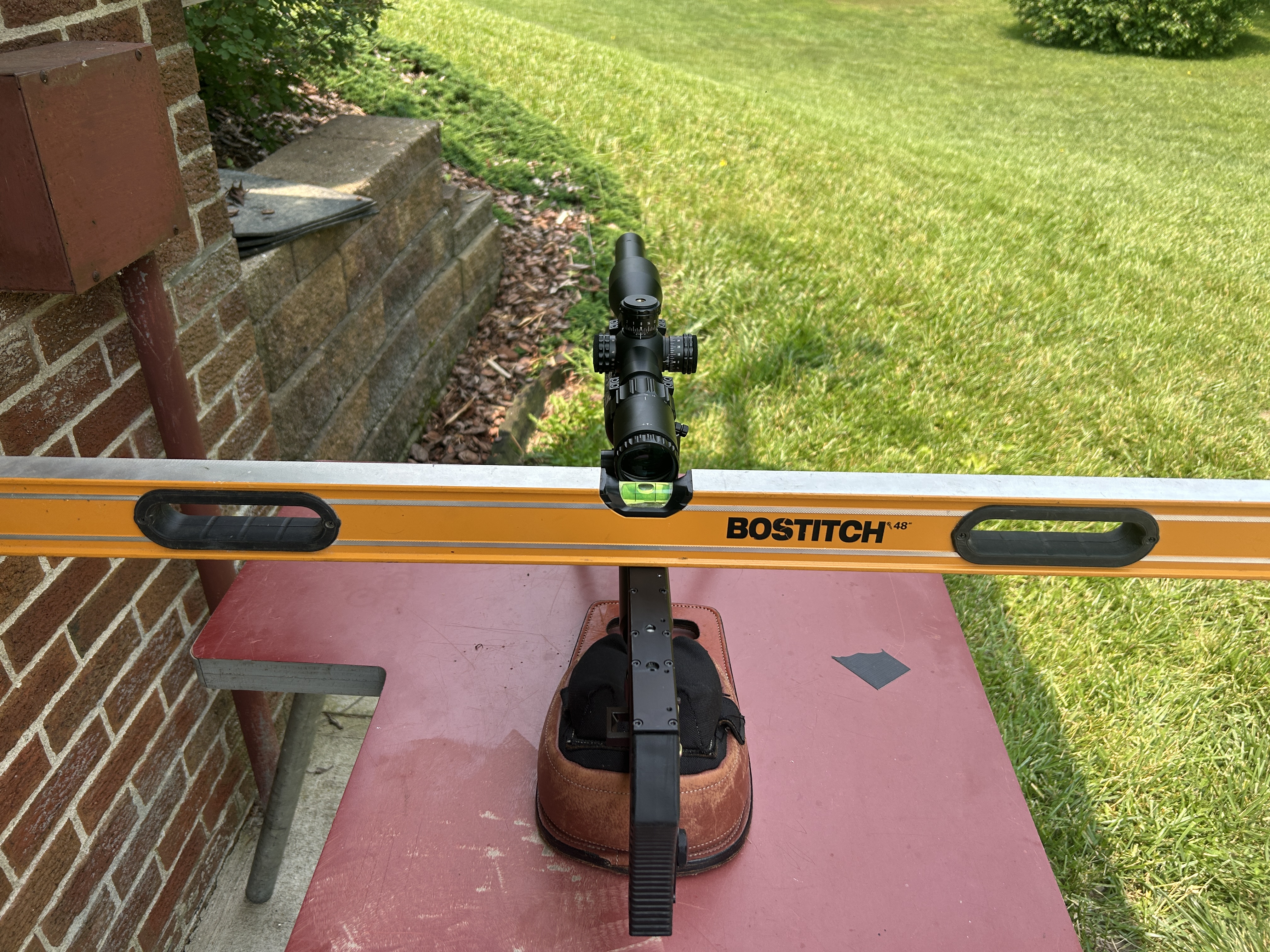

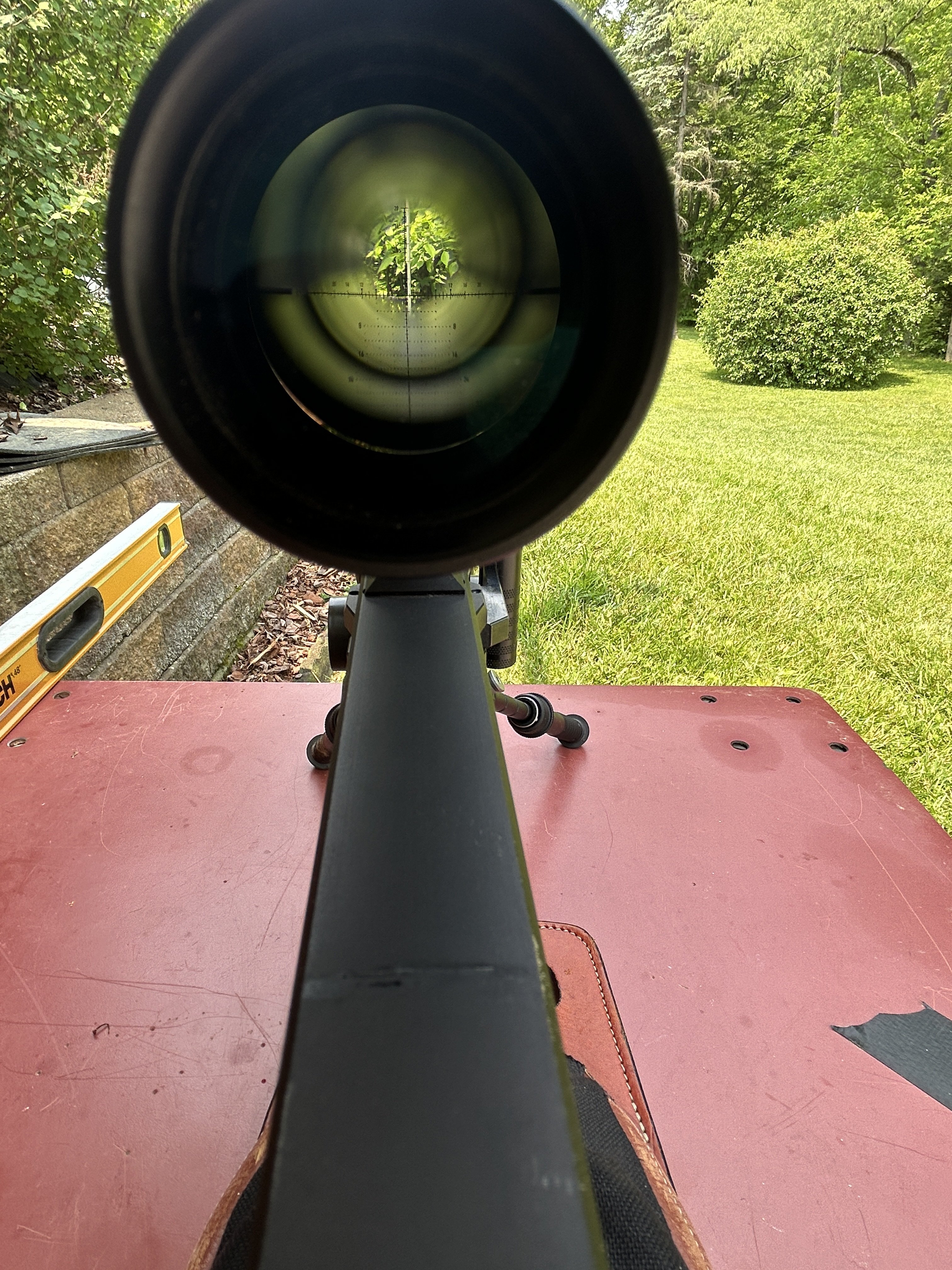

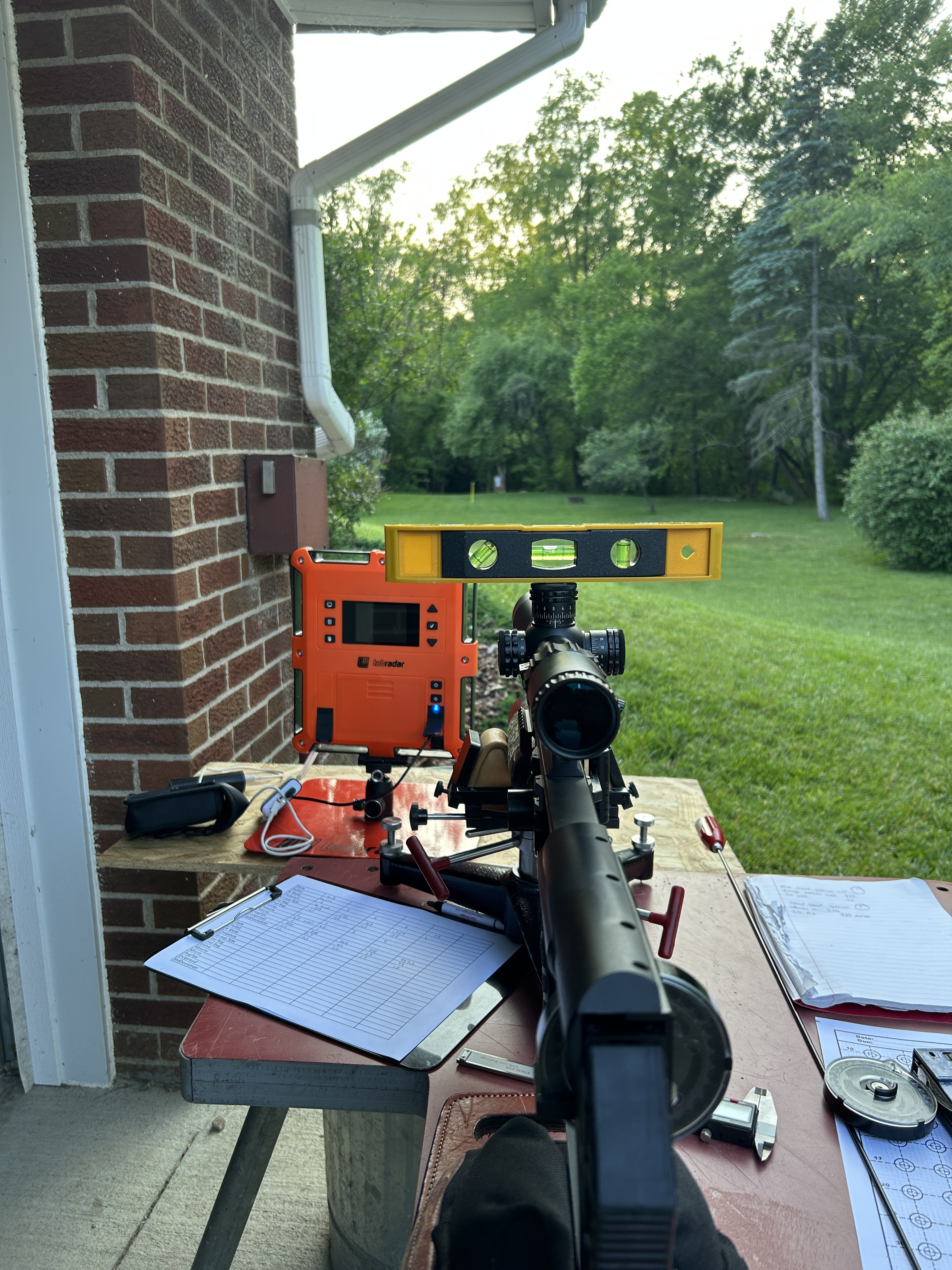

It’s interesting how a vague post can lead to thought provoking discussion, I was inquiring about a scope mounted level but I should have clarified from the start. I appreciate the recommendations. I actually did verify the scope was mounted level using a carpenter level and a plum bob at 75 yards, I couldn’t get the mirror method to work.
Upvote 0
