RTI PROPHET COMPACT II 22 caliber CZ barrel stuck

[airgunmike56]

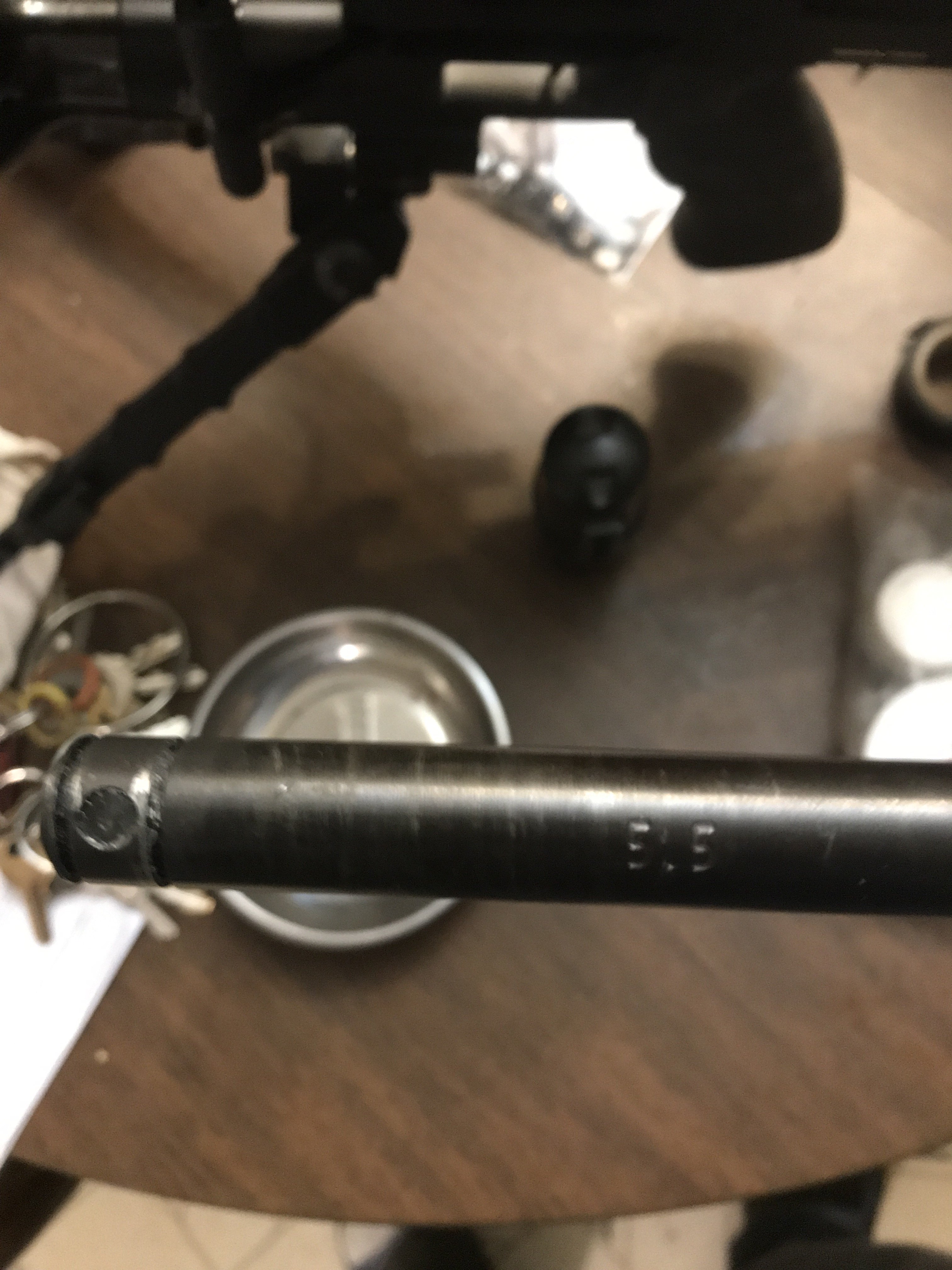

I got the barrel out with vice grips on the RTI tool and a lot of force, Scratch marks on the barrel by the two orings, A few metal shavings also very fine, I am not putting the barrel back in, Just way to tight..
Cleaned everything up and the 177 LW barrel snugged right in, I will see if I can post the pictures up tomorrow.
I will get a word into RTI and see what they have to say about this..
Mike



[airgunmike56]



[Vetmx]

Yikes! Back that phone up so it will focus. Then we can enlarge the clear picture that you took.



[Chuck-in-Ohio]

That is some serious swarf you got there.

Did the rifle come from the manufacturer like that?



[Vetmx]

From what I can see I would check the TP hole and grub screw hole for any burrs. It only takes a couple thousandths between barrels to make one catch on something and one not. I would also take some calipers to both barrels and compare dimensions in a few key areas. That info in itself will give more credibility to the email you plan to send to Rok.



[Vetmx]

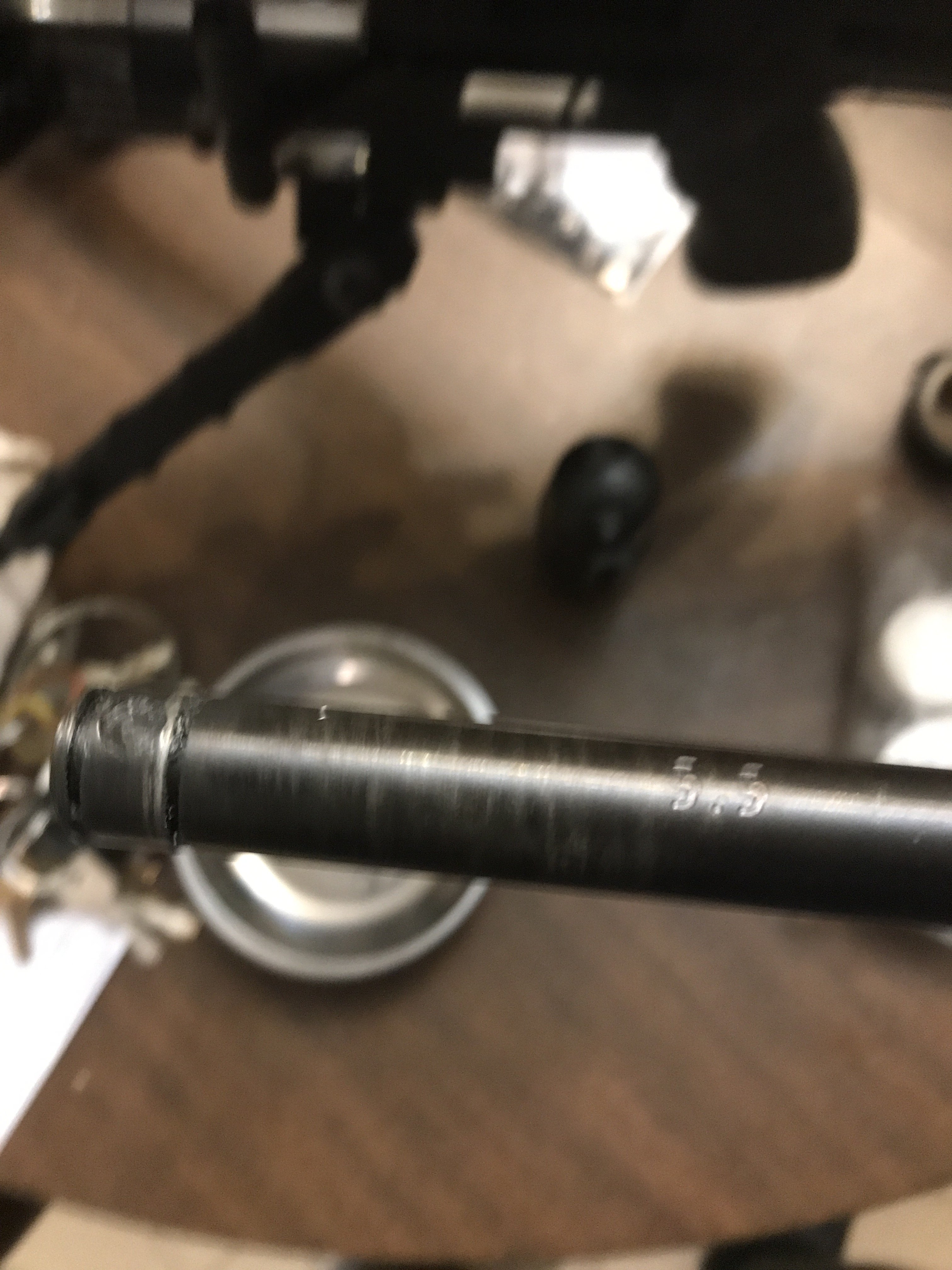

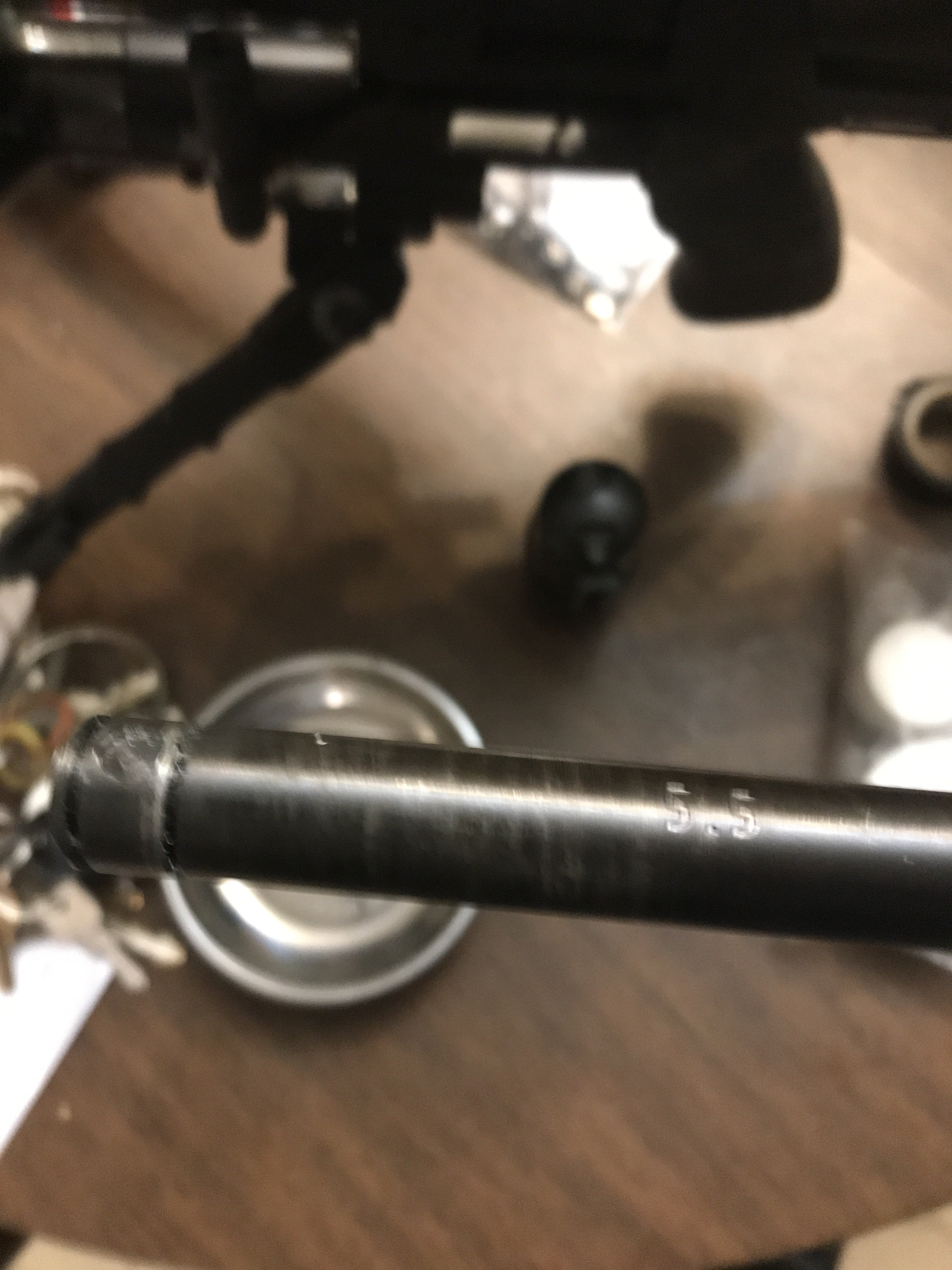

In this blurry pic, is this a lip or is it just wore off. I can’t tell



[Scotty1]

And what is that in the o-ring groove…gross



[lbc_PSI]

@airgunmike56

Camera focus tip..lay the part you're photographing on the work surface..something not moving. Then move back 3-4 feet and use the camera zoom feature to get closer for the detail you want. At a further distance, the camera will have an easier time doing its focus thing.



[EPG]

I got the barrel out with vice grips on the RTI tool and a lot of force, Scratch marks on the barrel by the two orings, A few metal shavings also very fine, I am not putting the barrel back in, Just way to tight..
Cleaned everything up and the 177 LW barrel snugged right in, I will see if I can post the pictures up tomorrow.
I will get a word into RTI and see what they have to say about this..
Mike

Hi Mike,

I have 2 full sized Prophet Performance v1s - a .22 LR and a .25 LR .

I swapped the .177 LW barrel into the .25. The standard RTI PP v1 spring is 2.65”. The hammer weight is 30.65g in both my rifles.

To shoot .177, I picked up an extra spring when I bought the .177 510mm barrel.

I cut the extra spring and flattened the end - it is now 2.46”. I use this shorter spring when I’m shooting .177. This enables me to dial down the velocity a bit with .177 using the hammer spring adjuster screw.

I’m shooting 10.3g JSBs at 885-895 fps with the reg at 85 bar.

This was the best of about 5 groups I shot recently - this was outstanding but all groups were well under a dime at 30 yards. I was dialing it in at 30 yards to use it in the “30 Yard Challenge” on this forum, lol.

Good luck with your new LW RTI .177 - maybe this info will help you get it dialed in.

How did your CZ barrel shoot btw?

-Ed



[airgunmike56]

I will get some better pictures up, If it was a burr in chamber the LW 177 barrel would not slip in smooth, Thanks for the picture info.
EPG,
The CZ and the LW shoot pretty well lights out, I have the 25 LW, and the 30 also.
Mike



[Vetmx]

What probably happened was the barrel was pushed just a little too far back towards the mag. When the grub screw was tightened it clipped the detent shearing off a tiny shard. With such tight tolerances that shard became a wedge. When you seat your barrel to your mag, have to make sure RTI made the detent big enough so you don’t clip it.



[airgunmike56]

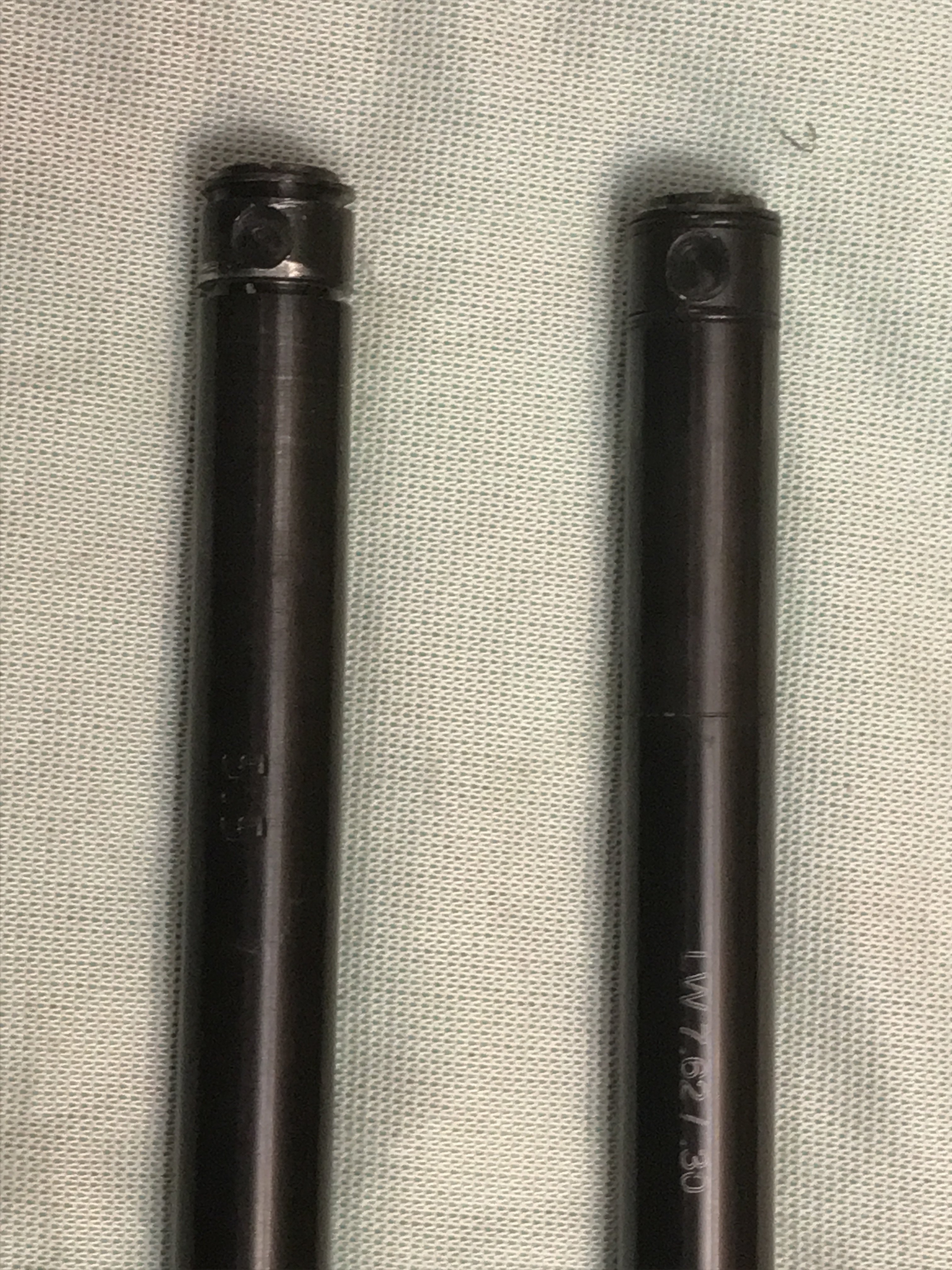

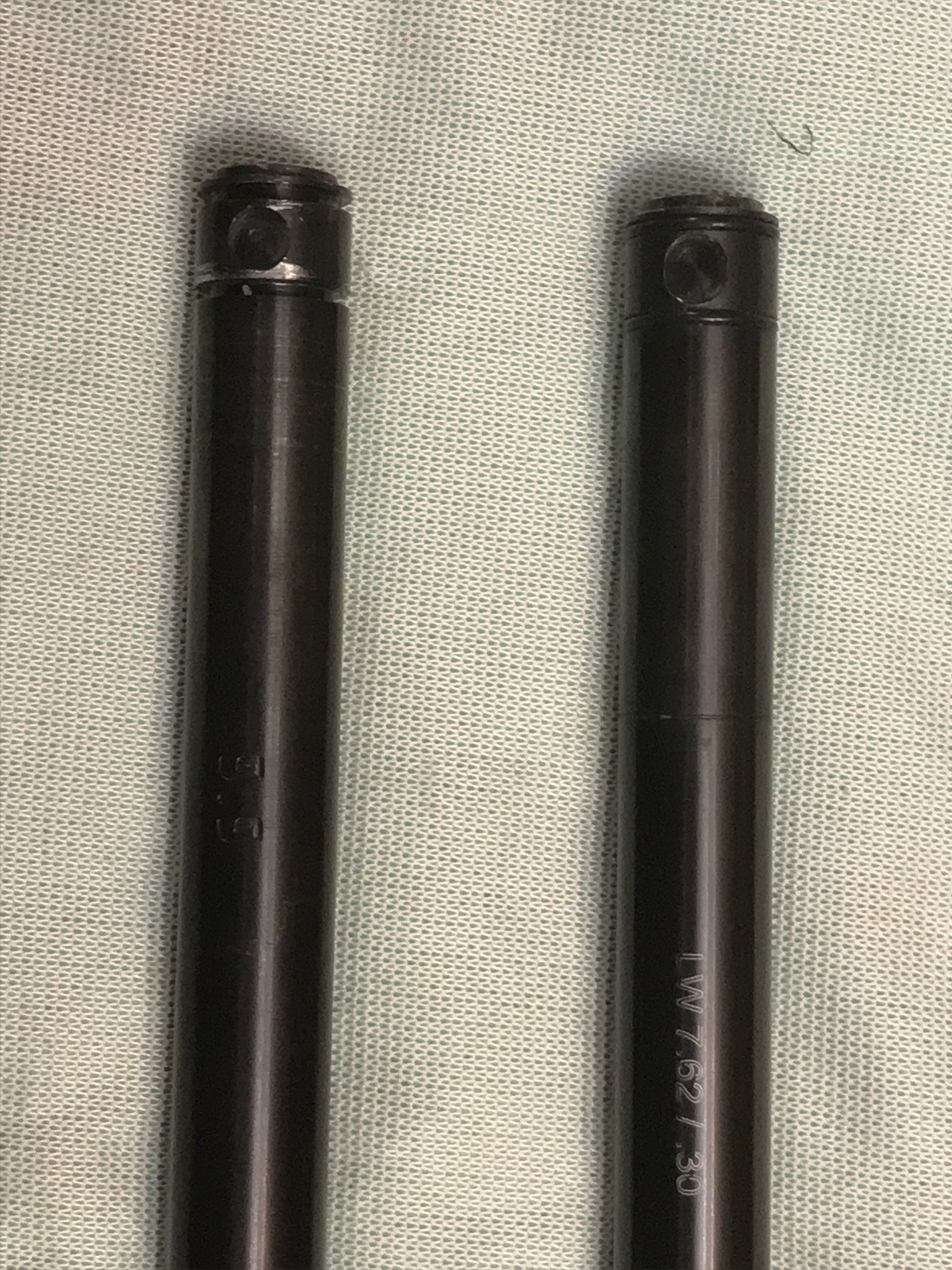

I got some better pictures the CZ barrel along side my 30 cal LW barrel, Both LW barrels slip in tight but just real snug, The CZ 22 barrel I would have to use come major force to get back in not something I like to do to any gun...



[EPG]

Hi Mike,

I‘d polish that CZ barrel using sandpaper, polishing paper and elbow grease until it measures the exact same diameter as your LW barrels- it’s likely only a thousandth or two off. Might also want to polish the breech where it slides in.

Are the CZ barrels for the Prophet choked?



[Scotty1]

The 20”, .22 and .25 I’ve had were indeed choked.



[airgunmike56]

EPG, I would be on the sand paper out but this is a 2000 dollar gun, This is the same company that sent me a 177 Magazine that did not work, I even sent a video in of the magazine as requested ,, They said they would send a new magazine and never did. I will wait until I get an answer from RTI.
Mike



[airgunmike56]

OOPs I just got a e mail from RTI , I screwed up and called my Prophet a Priest , So I just explained that I read so mush about the guns I just called it the wrong name...
They did have a record of me just buying the Prophet PP II compact... I really need to proof read what I send , I did send more pictures of the barrel and told them I really do not want to sand it down with sand paper, Just not comfortable doing it. I could send the barrel back to them and let them take a look at it on my I would pay, They would be out nothing.
Mike



[airgunmike56]

I just sent my 3ed Email to RTI , I informed them I would pay to ship the barrel back to them to take a look at it, I sent more pictures to show the marks on the barrel, I sure do not want to take sandpaper to the barrel, When I have to start fixing RTI problems it's when I stop buying their products.
Mike



[airgunmike56]

Not sure if I should copy and paste there post here, But in a nut shell RTI said they would give me 70 euros and I could keep the barrel,,No The gun is under warranty I want the barrel fixed or I want a new barrel. I do not think this is to much to ask for a 2000 dollar gun. I got hold of AOA and ask if they would honor the RTI Warranty .
Mike



[Vetmx]

If you’re not comfortable with how RTI is handling this, I would talk to someone at AOA. And I mean talk, F emails. They should guide you in a direction. When I bought my first RTI, pretty much before anyone even noticed them, I had an issue. I dealt with a dude named Rich at AOA. He handled things great. When I had an issue with the second gun, the gen 1 adjustable reg, AOA didn’t have a cure so I direct dealt with RTI and they were great. They have grown since then with a ton more guns out there acting up. If their newest model is having some issues hopefully their CS won’t suffer with oddball issues like you experienced.



[airgunmike56]

Vetmx Thanks,
I think I remember you from T A G and your Prest you bought....
over 10 years in PCPs and never delt with any warranty, Well except on my Vulcan 177 I complained about a twang, And AGT sent me a hammer,spring and a weight and some other parts free just sent it to me, They were reading the forms .
I have bought three or four guns from AOA always super good, I will give them a call and see what they say,,
Mike
