rti prophet bottle rotation ( to position gauges ) -- o-ring spacer

[jdanvers]

Those of you who own one and have slapped a spacer in between the bottle and block ( when re-positioning the gauges ) -- what size o-ring did you use?

I'm still not back to work yet post surgery last month and drive right by a lowes on my way to PT which is where I'll be headed shortly. I figured I'd pop in and grab a few if I get any responses back from ya'll and if you happen to remember what size you grabbed.

Thanks guys . . .



[Guest]

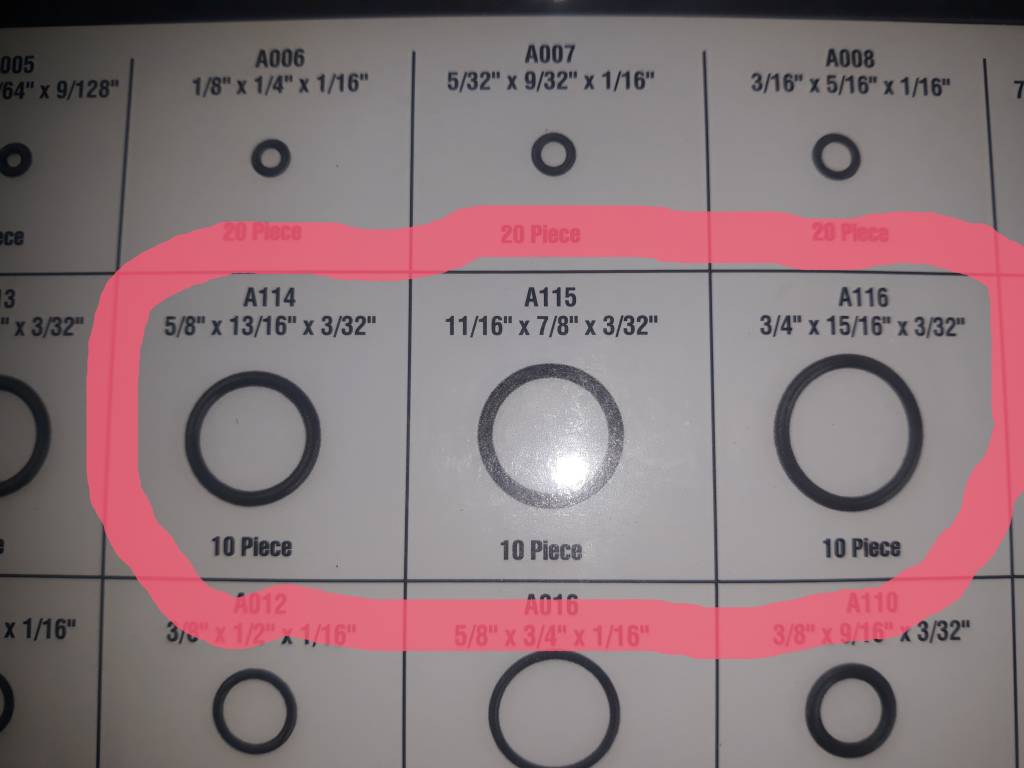

I used one of the o-rings in the Harbor Freight variety pack. It's not a place where you need to be picky, no sealing.

Pretty sure it was one of the sizes circled in red.



[douger]

not sure why you would need a extra oring to do this i think it would cause more issues as its a sealing surface



[Guest]

The oring were talking about is not sealing and only gives you something to tighten the reg against when positioning / clocking / aligning the gages and fill port.



[Riaandw79]

Don't technically need an o-ring. One could screw in all the way, back off to the position required and fill. The air pressure will secure. O-ring doesn't hurt though.



[Guest]

...O-ring doesn't hurt though.

Yup



[jdanvers]

A114, 115, 116 - perfect, thanks guys! Just out of PT, off to lowes.



[douger]

The oring were talking about is not sealing and only gives you something to tighten the reg against when positioning / clocking / aligning the gages and fill port.

SORRY BUT IT A SEALING O RING LOOSEN IT UP ENOUGHT IT WILL LEAK LOOK AT THE PARTS DIAGRAM I HAD A LEAK THERE BEFORE TRYING TO MOVE GAUGE TO POSITION UNDER PRESURE IT KINKED THAT O RING AT MADE A LEAK. SO ITS UNDER PRESURE



[Scotty1]

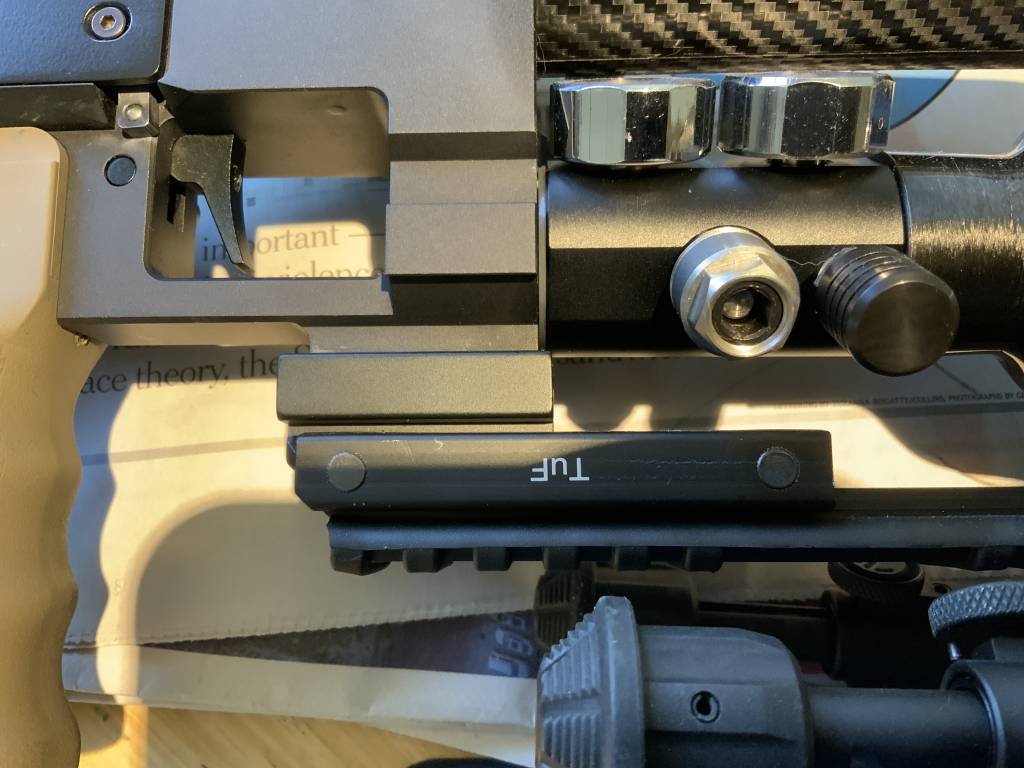

Douger, the o-ring is simply an additional part to fill the space created by loosening the bottle to clock the gauges, and to have something to snug against to help keep the bottle parallel with the barrel. Think of it as a bumper. In this pic, I have a nylon washer instead of an o-ring, same function though.



[Kovas]

Future RTI customer here… forgive the ignorance here, maybe this was tackled before, but why are the RTI Prophet gauges 90degrees of the fill port?! Wouldn’t it make sense to have them on opposite sides? Problem would be solved, no?



[Aimright]

Future RTI customer here… forgive the ignorance here, maybe this was tackled before, but why are the RTI Prophet gauges 90degrees of the fill port?! Wouldn’t it make sense to have them on opposite sides? Problem would be solved, no?

I think the side lever would either block the view of the gauges or block the access of the fill port if they were 180 from each other. I kinda like how they are situated, I do have them angled up slightly and it does make looking at the pressure gauges easier.



[MikeVV]

Future RTI customer here… forgive the ignorance here, maybe this was tackled before, but why are the RTI Prophet gauges 90degrees of the fill port?! Wouldn’t it make sense to have them on opposite sides? Problem would be solved, no?

One reason...it's one less step in the design and machining, and quality process to machine (drill, counter bore, tap) two locations on the same plane, than 180 degrees apart for two different locations.



Mike



[Jerkey]

I just received my Prophet 2 Performance rifle. I was messing with the bottle trying to relocate the fill port and gauges and tore the O-ring. Can someone tell me what size this oring is? And also if I need to fill the gap with another oring or washer what is best for that.

Thanks
Mike



[lbc_PSI]

RTI said you could snug the reg, then back out up to 3/4 turn to time the gauges. I like the idea of the nylon spacers over an o-ring. The size that works is a 30mm OD and a 20mmID. You just need to have a few thicknesses on hand or use one made of rubber. You can measure the thickness you need with feeler gauges.



[Jerkey]

RTI said you could snug the reg, then back out up to 3/4 turn to time the gauges. I like the idea of the nylon spacers over an o-ring. The size that works is a 30mm OD and a 20mmID. You just need to have a few thicknesses on hand or use one made of rubber. You can measure the thickness you need with feeler gauges.

Thank You for the info...



[jmohme]

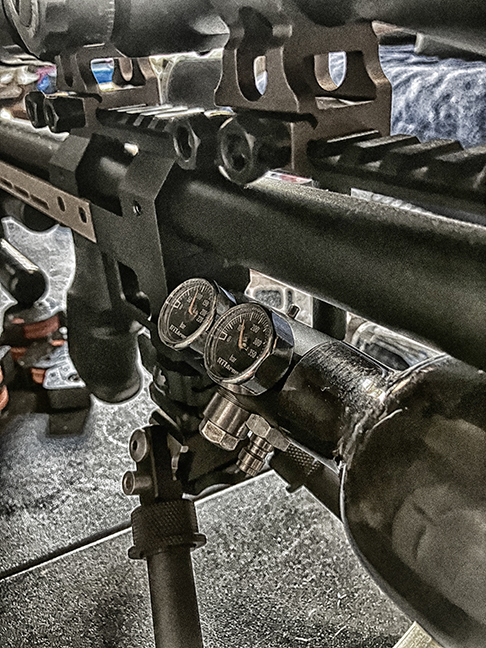

I degassed mine, rotated the bottle counterclockwise 45 degrees so that the gauges are more easily seen and so the fill port could be accessed easily while resting on the bipod.
Once rotated, I filled the gun and everything has been good from there on.



[Mrshosted]

18mmx2mm



[Mrshosted]

I degassed mine, rotated the bottle counterclockwise 45 degrees so that the gauges are more easily seen and so the fill port could be accessed easily while resting on the bipod.
Once rotated, I filled the gun and everything has been good from there on.View attachment 293589

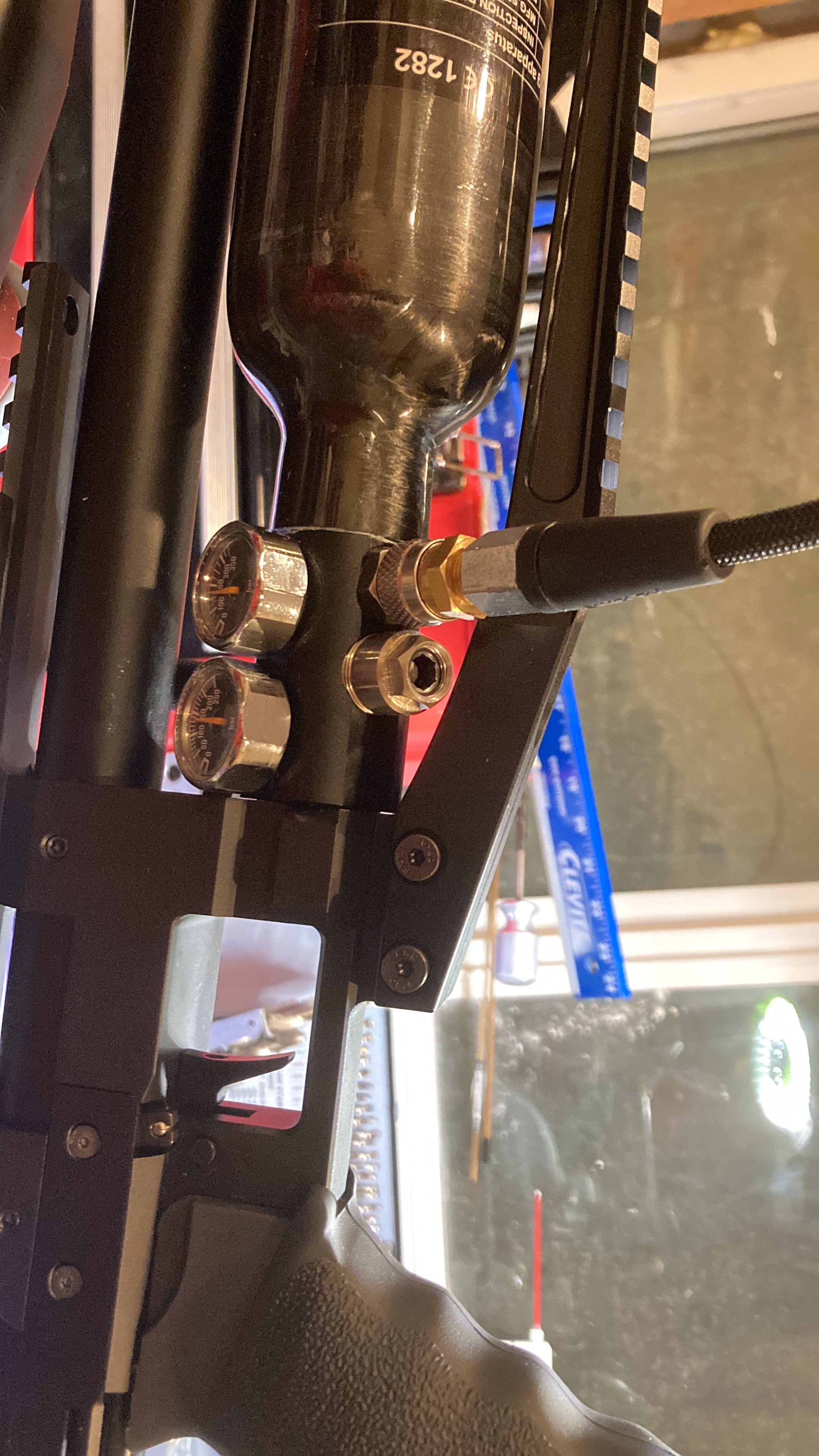

I. Did some thing very similar so I could us the Huma lower mount with any fill cord.
