got a huntsman revere on the way have a scope but not sure about which rings to get so they will clear the mag. Bell is 40mm so just need to get above the magazine but as close as possible.
- The AGN App is ready! Search "Airgun Nation" in your App store. To compliment this new tech we've assigned the "Threads" Feed & "Dark" Mode. To revert back click HERE.
rings and ring height for daystate huntsman
- Thread starter jasperjet
- Start date
Sportsmatch medium rings from England clear the mag perfectly. They can be found at AoA. Even clears my Carm high capacity mags.
Upvote 0
If you are planning on using the old style 30mm height magazines, then the dovetail 30mm BKL low rings (BKL-S-303L MB) or the 1" BKL low rings (BKL-257 MB) will allow you mount your 40mm or smaller objective lense scope as close as possible to the shroud and leave a miniscule gap between the top of the mag and the scope tube. I have two Daystate rifles (Huntsman Regal .20 and Air Wolf MCT .22) set up with these self-centering low rings (30mm) Cat's meow! I bought my BKLs on Amazon and had to order the 30mm low mounts as two "single" ring boxes. I could not find them for sale as a "pair." No problem with the 1" low rings.

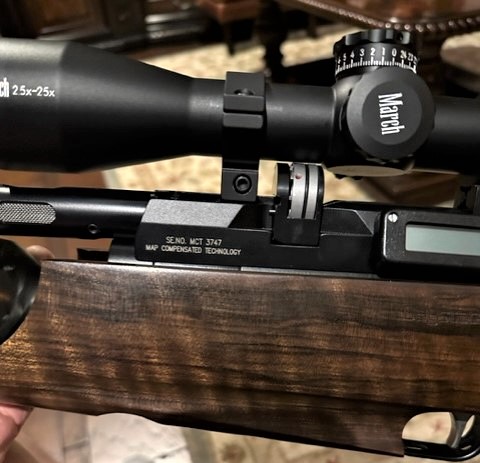

BTW, the attached photo shows the scope and mag clearance on my Air Wolf with a 42mm Objective lense. A 44mm objective may also fit, but probably without the lense covers.
Upvote 0
Keep in mind that depending on where you want your scope, the turret housing may also get in the way of the mag since this sits a few mm lower than the tube itself. There’s also a notable difference between using 1” tubes and 30mm tube scopes. The 30mm tubes are less forgiving for clearing the mag. I had to go with the CARM low profile mags for my Revere in order to fit my scope where I wanted it since it’s a 30mm tube and the turret housing was in the way. And that is even with high rings. I could have moved the scope back a bit more to clear the housing but this was not a comfortable location for me. So just be aware that everyone’s setup will be different. You may not know what you need until you’ve tried your setup.
Upvote 0
i have some vortex medium rings and an athlon 4-14 scope on mine. the carm mags (9 shot .22) clear the scope but the factory mag does not.
Upvote 0
This may help. My HW95L with a Hawke 3-9 x 40 mm AO scope using Sportsmatch T04C medium 2 piece rings.
Upvote 0

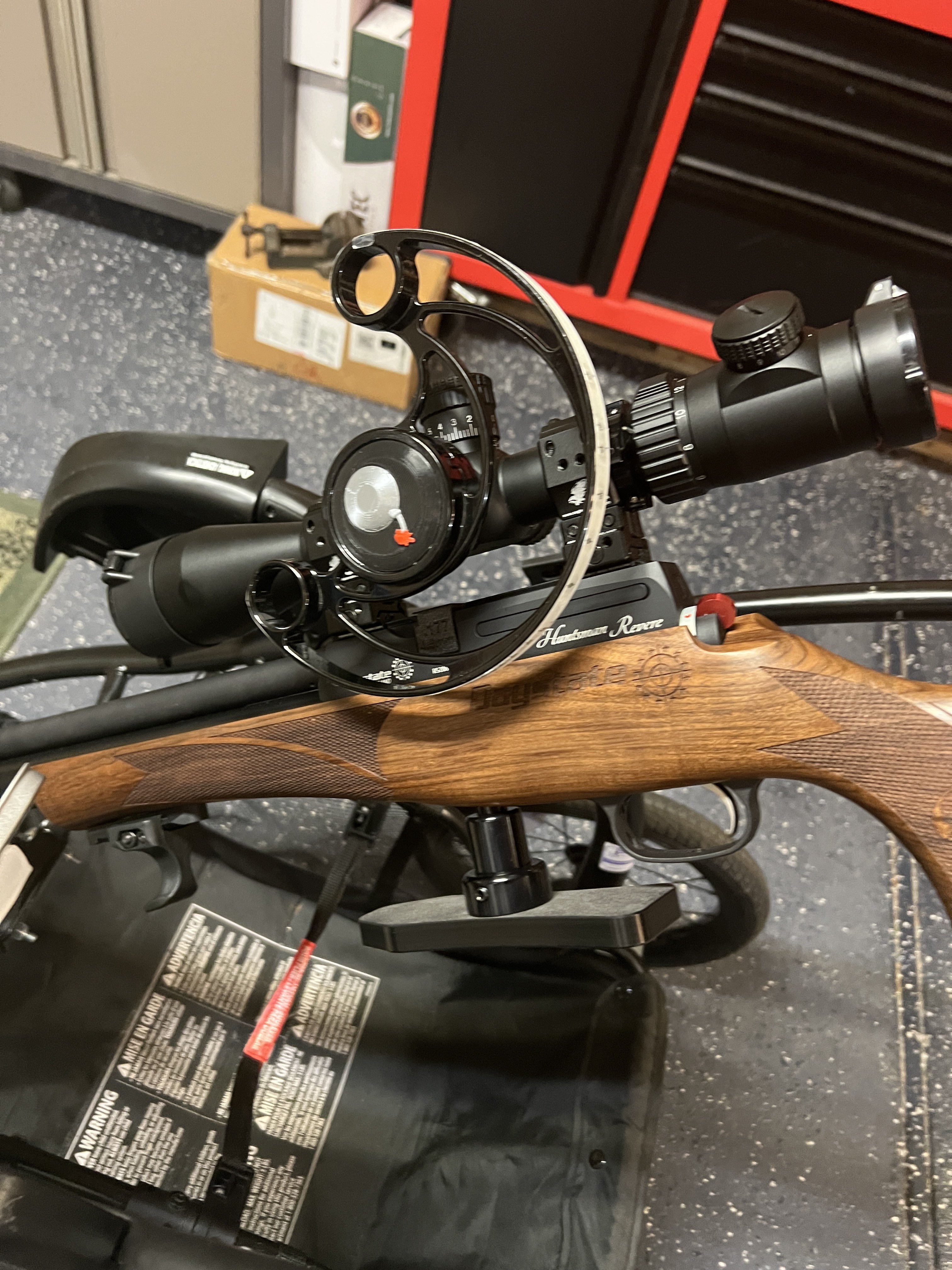

Eagle visions 30 mm inf adjustable Ring’s with super low profile dovetail to picatinny adapters - Athalon scope with Carm single shot loader
Upvote 0
Hello everyone, I’m also thinking of buying a daystate revere but want a .177 to shoot FT with since it’s 20 ftlbs. Does anyone know the height that the mag would be above the top of the receiver? I found some Talley cz rimfire rings. High are .50 and extra high are .60. I’m going with a 30mm tube and 50mm objective.
Upvote 0
Upvote 0
The actual magazine, not the tray, thanks. I’m super excited to get my revere! I ordered the safari.
Last edited:
Upvote 0
Well my scope is a 1" tube but it clears the magazine with sportsmatch medium rings. The top of the reciever to the bottom of the scope is 16mm with 2mm to spare for space under the scope.
Upvote 0
If you’re going to shoot FT, just go with the single shot sled. Won’t have to worry as much about mag clearing.
Upvote 0
I’m wanting to get one but Carm mags is closed until next month. Want another mag tooFor me the flip out loaders work better because I don’t drop as many pellets
