Replacement Pressure Gauge for Compressor

[jqdesigner]

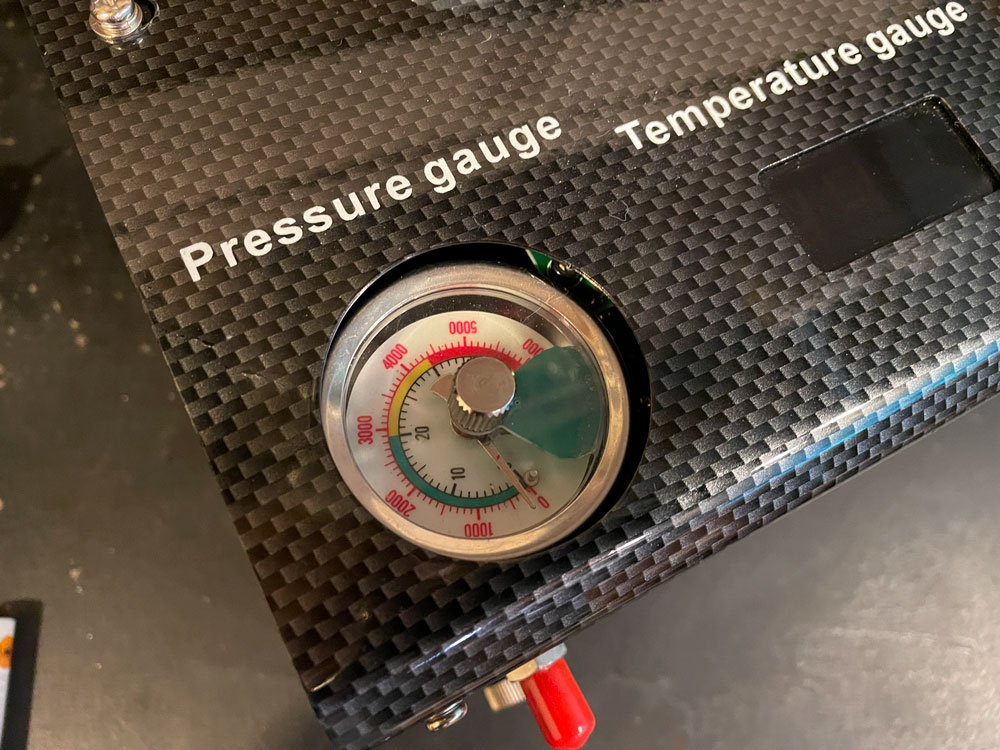

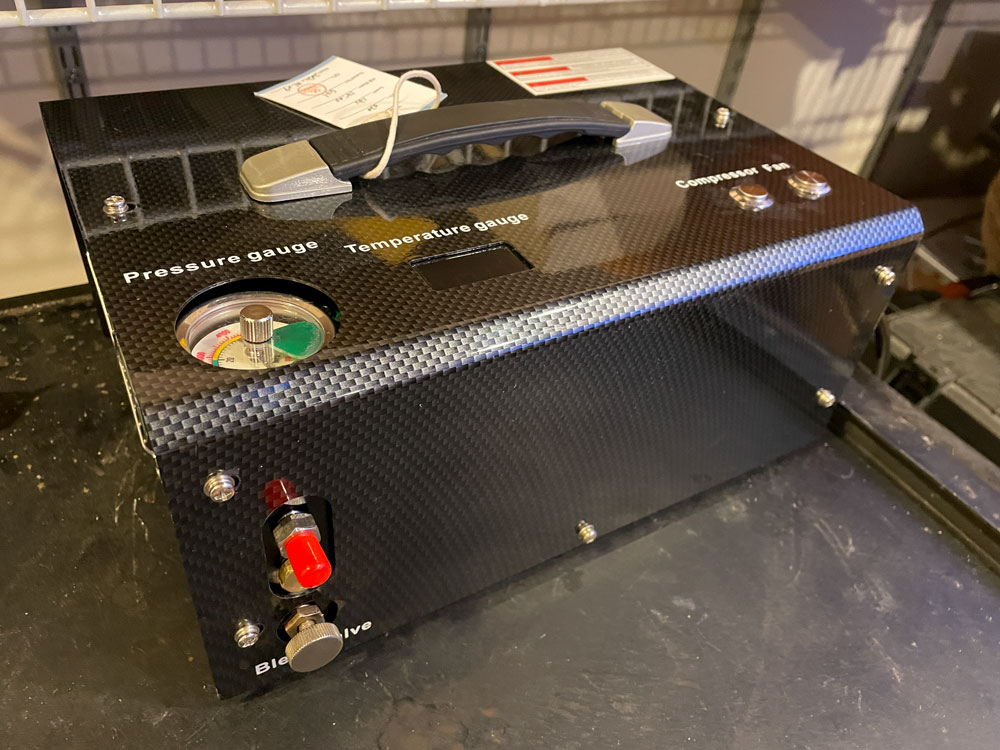

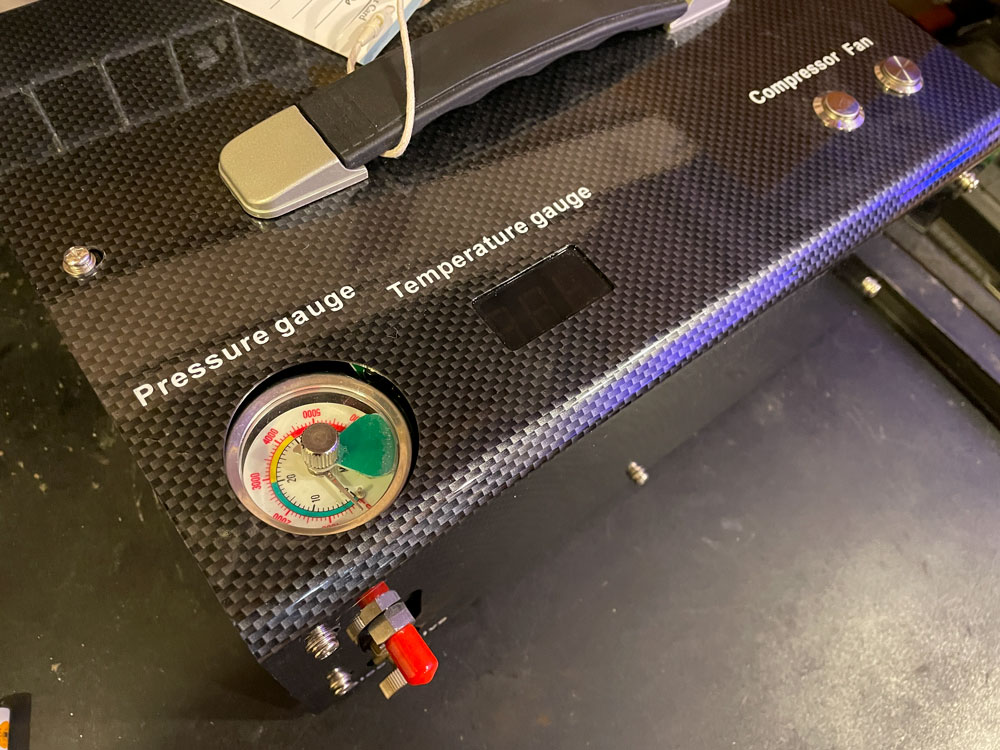

Hey there everyone, I'm hoping someone here knows what gauge I can use as a replacement for my PCP compressor see images below.

I'm not sure of the thread size. Is it M10*1 or M12*1.25. Any recommendations are appreciated.



[5thumbs]

I have a Nomad II compressor. It has a gauge that looks very similar to that. When I 1st got the Nomad II I noticed that the gauge was constantly a bit off and it irritated me. I contacted the vendor (Pyramyd) and they sent me a replacement gauge that is spot on. It was fairly easy (<15 min) to take out the old gauge and put in a new one. You may want to take yours apart and snap some photos/measurments of the fittings. I can look around for the old one but I'm not at that location for a few weeks.

https://www.pyramydair.com/product/av-nomad-compressor-gauge?a=8576



Good luck,



[Chickenthief]

Never heard of M12x1.25 as a HP thread.

The Chinamen tries to introduce their own standard on HP threads by forcing the M10x1 on all Yong Heng (and others).

Most is BSPP (Brithsh Standard Parallel Pipe) which by nature is a parallel thread with 55deg threads, then there is the NPT (National Pipe Thread) that is a US conical thread.

https://www.gewinde-normen.de/en/whitworth-pipe-thread.html

https://www.gewinde-normen.de/en/npt-pipe-thread.html



I'll bet you never knew that there are so many weird thread standards!

https://www.gewinde-normen.de/en/index.html



[jqdesigner]

Thanks for the info, I'll have to take the gauge off to see if I can get some measurements to make sure.



[Healthservices]

Should be easy to find once gauge is removed and inspected. Metric fittings on gauges are normal to find on the majority of the products found on Chinese made products including airguns. AliExpress shows several to choose from.

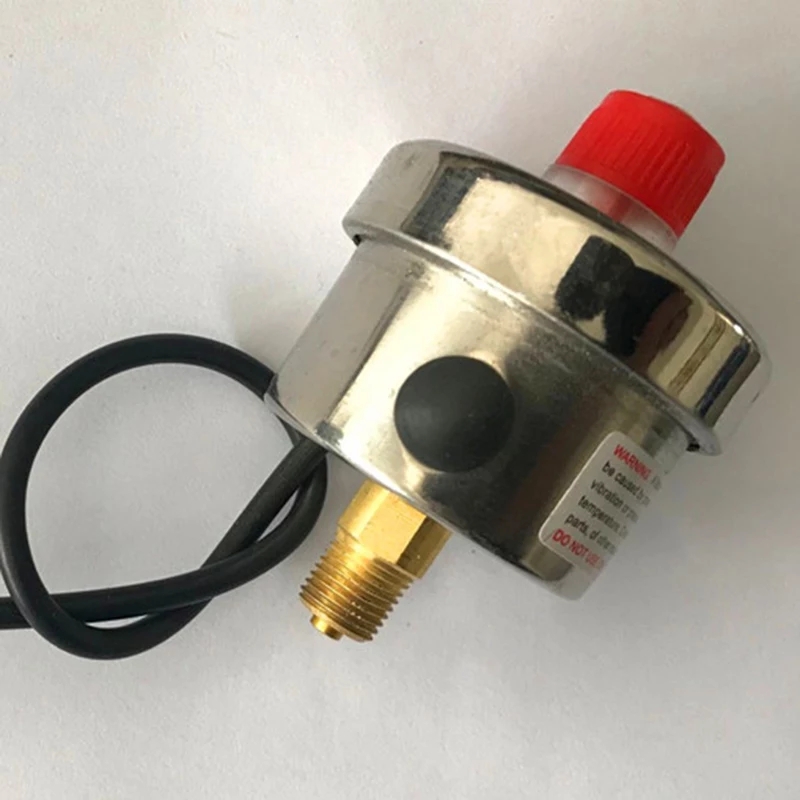

US $24.99 | Yong Heng Compressor Spare Part Set pressure Gauge for YongHeng PCP PUMP
https://a.aliexpress.com/_m0mbF5c



Allen
