Redwolf hp o-rings???

[sigp220]

Does anyone know the sizes of the o-rings for a redwolf hp in. 22.

Mostly interested in the barrel ones. The two on the outside of the barrel, where it inserts into the action.

Thanks



[Yo]

In milimeters 5 id x 8 od x1.5 or most just call it 5 x 1.5. Yo!



[5thumbs]

Does anyone know the sizes of the o-rings for a redwolf hp in. 22.

Mostly interested in the barrel ones. The two on the outside of the barrel, where it inserts into the action.

Thanks

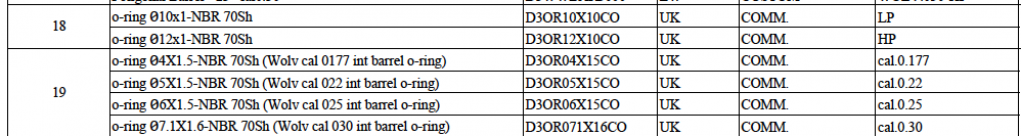

Looks like different specs for HP vs LP



[5thumbs]

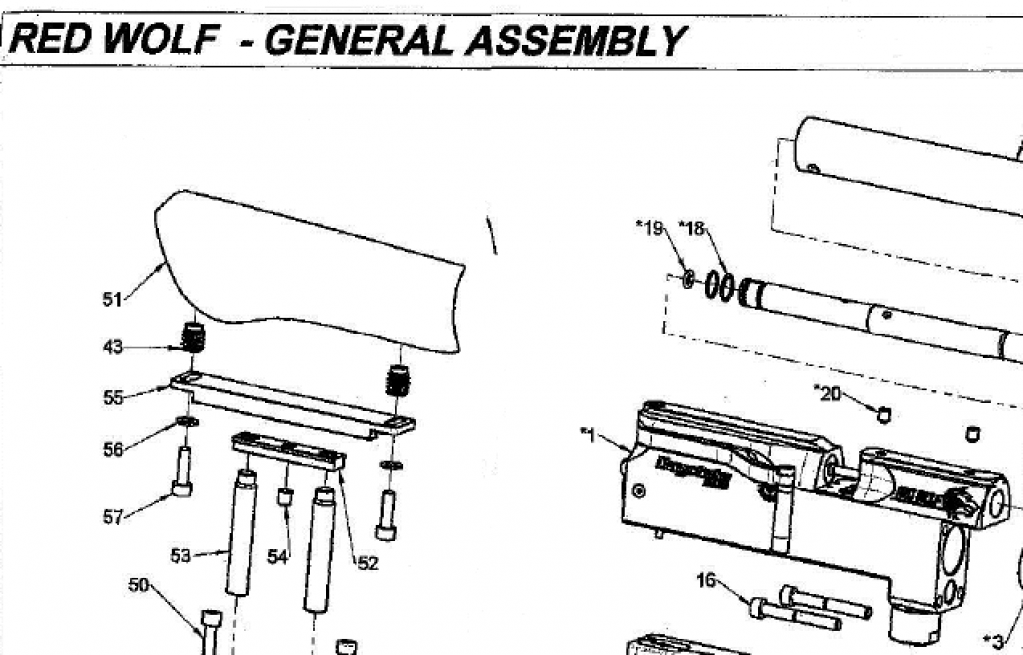

just illustrating it is indeed for a Red Wolf (since the part ID indicates it is the same part on the Wolv for part 19)

)



[Yo]

I looked through 30+ Pages feel free to check out DAYSTATE REPORT. Yo!



[sigp220]

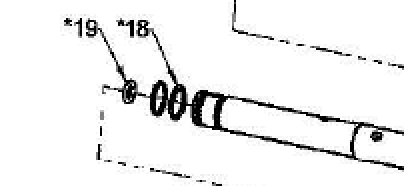

Number 18 are the ones I need. For some reason I have nicked the first one.

Wondering if it's not happening when passing the transfer port.



[5thumbs]

There is a youtube video where a guy swaps out the barrels on the Red Wolf. He mentions that those 0-rings (18) are very fragile and we should have spares. I think it was by TomCat. Anyway if you end up ordering, if you dont mind please share that part number.



[newy]

Anyone got a link to the expanded parts drawings?

Ive got a copy of the owners manual that includes drawings but doesn’t include parts list.



[ChrisUSA]

Number 18 are the ones I need. For some reason I have nicked the first one.

Wondering if it's not happening when passing the transfer port.

I have a .25 HP. Assuming the barrel was never out as new, the rear O ring was cut when I pulled my barrel. Upon closer inspection,... there was a burr in the action at the transfer port. It 100% would have cut the rear ring. Have a look-see there. I de-burred by hand and never had the barrel out since.



[elh0102]

Number 18 are the ones I need. For some reason I have nicked the first one.

Wondering if it's not happening when passing the transfer port.

It's possible, but I've had my Red Wolf barrel off numerous times for cleaning with no such issue. If you can detect any type of burr there, then it may need some attention.



[Davec107]

12x1 for the external barrel orings on 22hp red wolf.



[5thumbs]

What is the function of the #18 O-rings? Do they flank the transfer port and seal the flow of air? Or are they purely to hold the end of the barrel snug? I experienced a ~20 FPS reduction in speed in the 10 days of shooting my Red Wolf but things have somewhat stabilized. I did not remove the barrel before observing this reduction in FPS, however I have since remove the barrel but did not inspect the O-rings. Wondering if the #18 O-rings could be part of this cause.

Any wisdom/input is appreciated.



Thanks,



[sigp220]

Thanks, that was the sizes I needed on 2 of them. Any idea on any other sizes of o-rings for the wolf. I want to put an oring order together and don't want to order just 2 sizes.

5thumbs, I noticed a 20 fps increase when I changed the orings.

I'll check for a burr when I have new orings.

Thanks for the replies



[5thumbs]

YOu got the O-rings already!!! Where did you get them? My head explodes when I get onto the oring store and try to find the right ones.



[sigp220]

Sorry, for the confusion, I haven't got new ones yet. I stole one off another barrel.

I'll post part numbers and links when I put my order together.



[sigp220]

Here's a link to the ones I ordered

https://www.oringsandmore.com/metric-buna-o-rings-12-x-1mm-minimum-25-pcs/



[5thumbs]

Here's a link to the ones I ordered

https://www.oringsandmore.com/metric-buna-o-rings-12-x-1mm-minimum-25-pcs/

SEnt you a PM. Looking for part list so you order can be comprehensive. Need some time to find it and did not want you to pay all that shipping without getting a comprehensive set. Meet me in the PM section and give me a bit of time to wake up and find the files.



[Crusher]

Here are the sizes you need if you haven't found what you are looking for.

Crusher

https://daystate.com/product/o-rings/
