RAW HM1000X EXTERNAL PLENUM

Jump to latest Follow Reply
Richieg

Richieg

Member
Oct 27, 2018
799
578
Missouri, United States

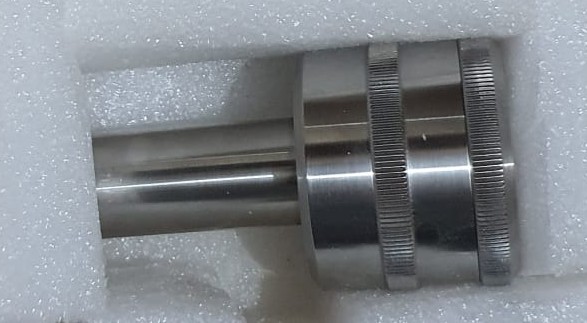

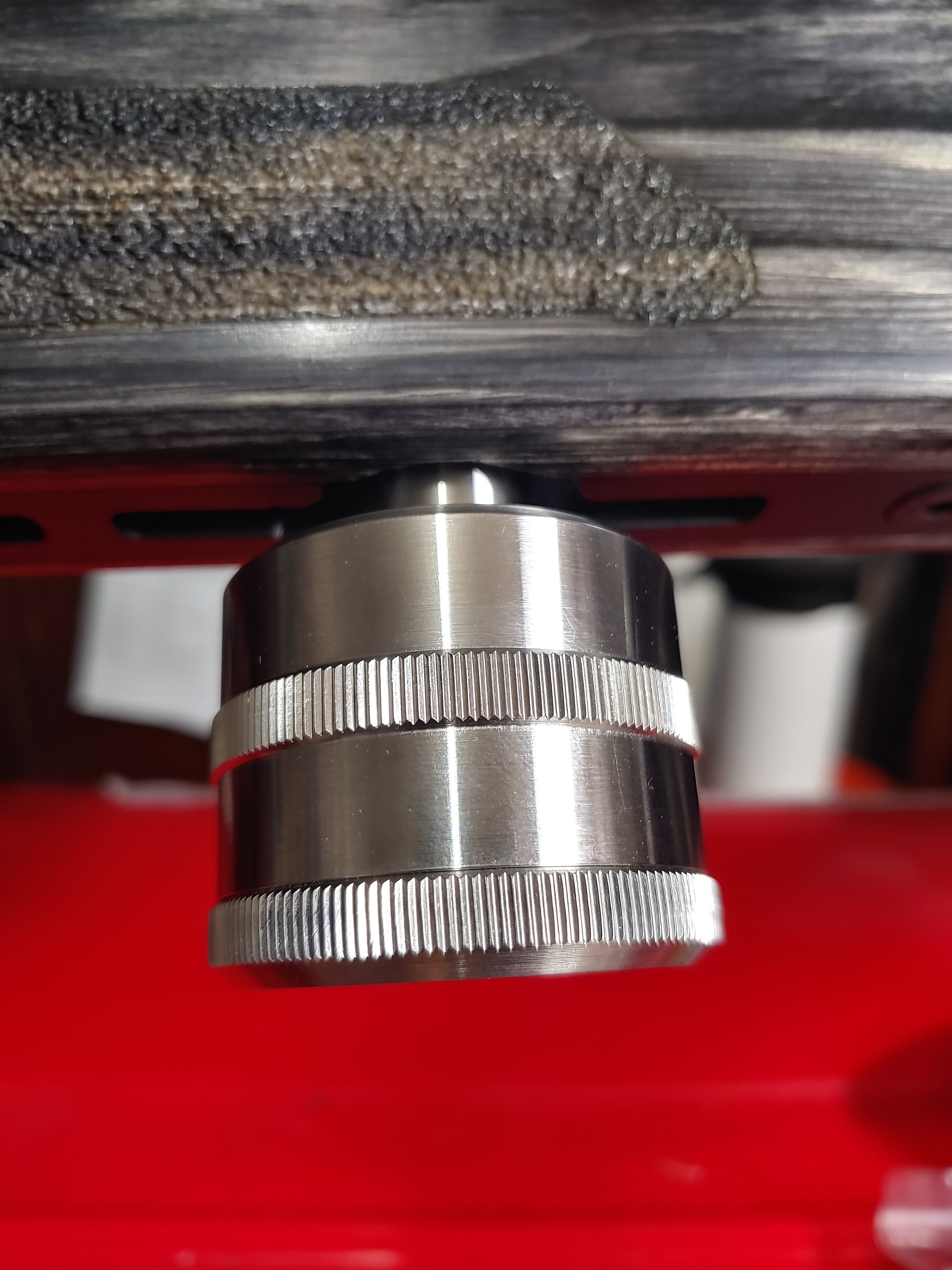

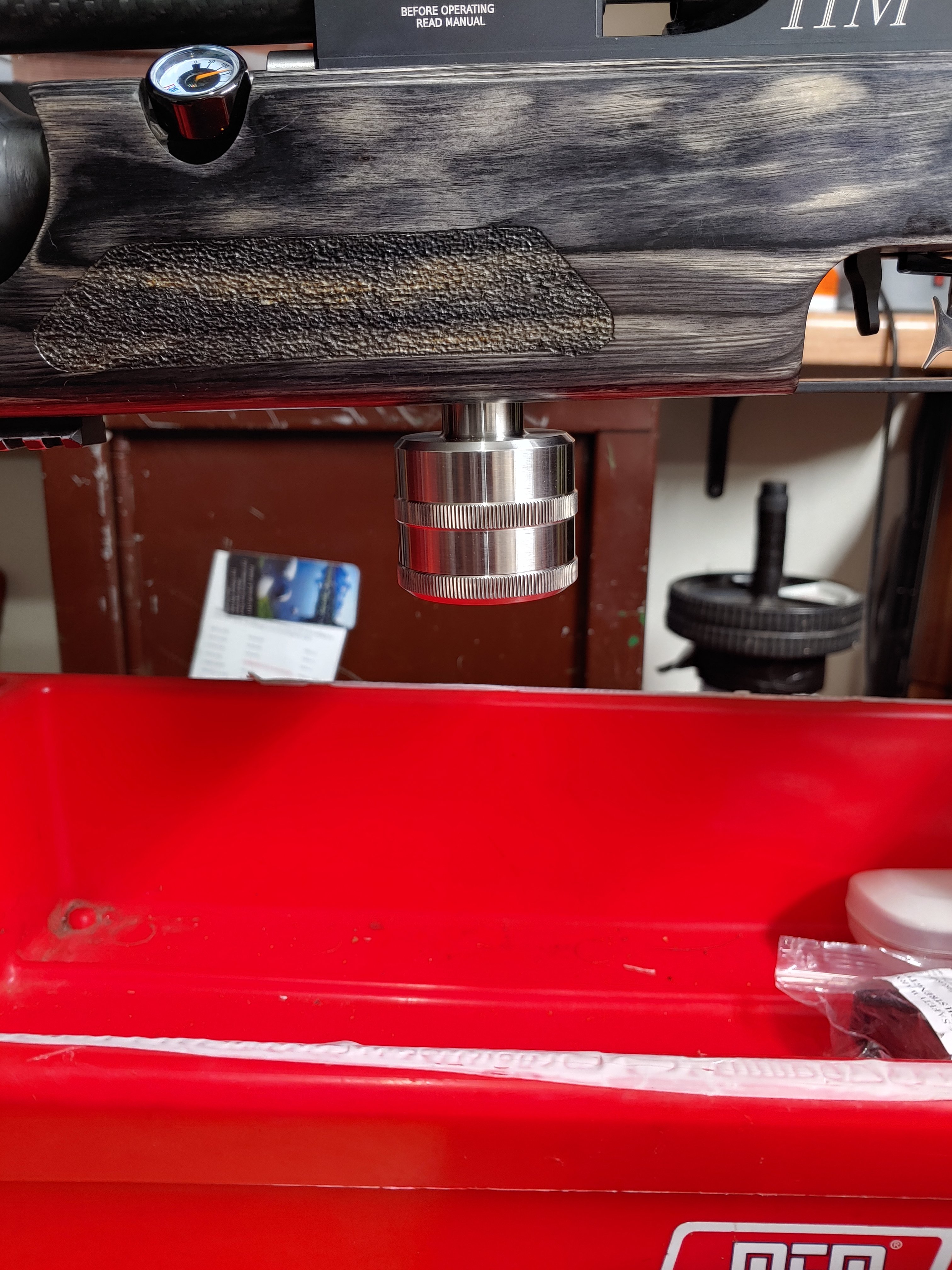

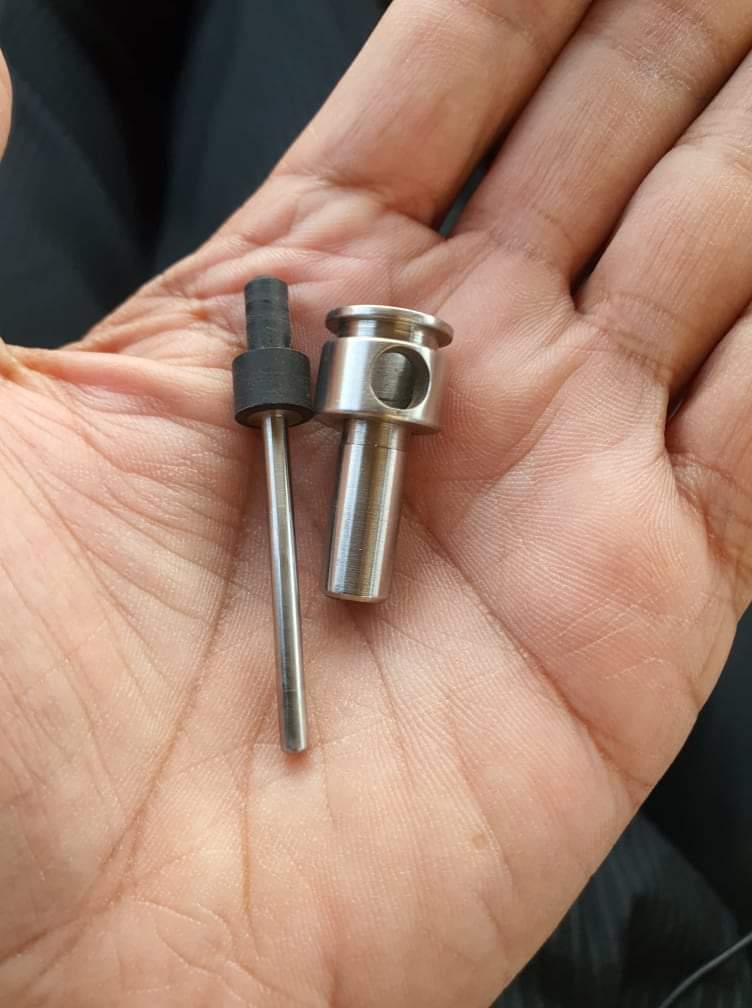

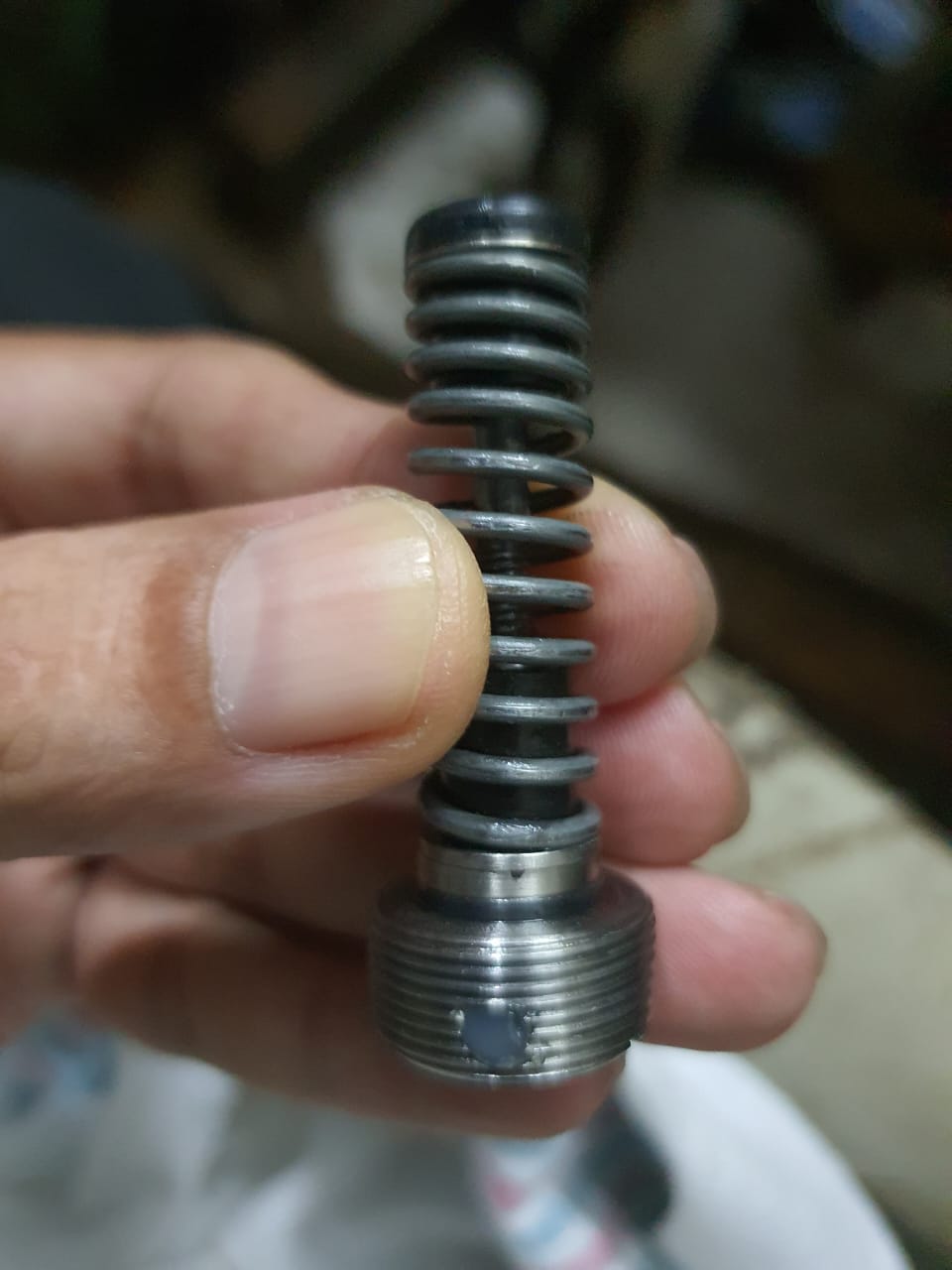

I had a AGN member Mubhaur make a 35cc. external plenum for my RAW. He changed the design so it was the same size O.D. as the blanking plug in the action. I had to drill a 1" hole thru the stock and cut the rail on the bottom, both were easily done. He also made a high efficiency valve and a hammer debounce device. I installed all the parts, had the hammer screw turned all the way out against the stock and it was shooting 994fps. Before I installed the new parts I had it set 935fps screwed in several turns. That increase was just because of the parts...I had not adjusted the regulator, it was set from the factory.I ended up cutting 1 1/2 coils off the factory spring to be at 900fps. with the hammer screw all the way out...turning it in aless than 1 revolution increased to 975, shooting 25.39 .22 pellets.Here are a few pics and the you tube link he made showing the parts. The quality of his parts was outstanding. It took 5 days for his parts to get to me from Pakistan...You can't get stuff delivered a few states away in 5 days here. He also video called me and walked me thru the installation of the parts in case I had a problem or question about them.

Last edited:
  • Like
Reactions: Cannonball, mubhaur, Airgunmann and 5 others
Richieg said:
I had a AGN member Mubhaur make a 35cc. external plenum for my RAW. He changed the design so it was the same size O.D. as the blanking plug in the action. I had to drill a 1" hole thru the stock and cut the rail on the bottom, both were easily done. He also made a high efficiency valve and a hammer debounce device. I installed all the parts, had the hammer screw turned all the way out against the stock and it was shooting 994fps. Before I installed the new parts I had it set 935fps screwed in several turns. That increase was just because of the parts...I had not adjusted the regulator, it was set from the factory.I ended up cutting 1 1/2 coils off the factory spring to be at 900fps. with the hammer screw all the way out...turning it in aless than 1 revolution increased to 975, shooting 25.39 .22 pellets.Here are a few pics and the you tube link he made showing the parts. The quality of his parts was outstanding. It took 5 days for his parts to get to me from Pakistan...You can't get stuff delivered a few states away in 5 days here. He also video called me and walked me thru the installation of the parts in case I had a problem or question about them.
View attachment 286437View attachment 286438View attachment 286440View attachment 286442View attachment 286443
Click to expand...
It's so kind of you writing for me and my parts. I am happy when you are happy. I understand that happiness is priceless. It doesn't come from when we earn more. It comes when we feel like a child in our hobbies and something better enhances the performance of our hobby equipment. Then we again become child in this age and to me its priceless to feel like a child again.

However I understand that real happiness comes from helping other for the sake of God.

I am too much happy when you find improvement in your hobby equipment.

It is a pleasure during all the procedure from designing of parts to help you to install the parts sitting on the other side of the world through video call

Happy shooting.

You are welcome to contact me anytime in case you need any advice that I can give you.

All the pleasure was mine working for you.

Thank you once again.

All the above discussion is about RAW HM1000X in .22 using redesigned .22. 25 grain jsb pellets.

Regards,

Bhaur

Last edited:
  • Like
Reactions: BSJ, Barenger, SteveV and 6 others
Upvote 0
wolfmangreg said:
My heart goes out to the people affected in your country.

We recently had severe flooding in parts of Kentucky, so I've seen the devastation it leaves behind. The disaster in Pakistan is on a much larger scale- can only imagine the effort that will be required to recover.
Click to expand...
You are absolutely right and your concerns are very humane and worth appreciating.

We all seek avoidance from such incidences from God for everyone on the earth.

Bhaur

  • Like
Reactions: wolfmangreg
Upvote 0
Richieg said:
I had a AGN member Mubhaur make a 35cc. external plenum for my RAW. He changed the design so it was the same size O.D. as the blanking plug in the action. I had to drill a 1" hole thru the stock and cut the rail on the bottom, both were easily done. He also made a high efficiency valve and a hammer debounce device. I installed all the parts, had the hammer screw turned all the way out against the stock and it was shooting 994fps. Before I installed the new parts I had it set 935fps screwed in several turns. That increase was just because of the parts...I had not adjusted the regulator, it was set from the factory.I ended up cutting 1 1/2 coils off the factory spring to be at 900fps. with the hammer screw all the way out...turning it in aless than 1 revolution increased to 975, shooting 25.39 .22 pellets.Here are a few pics and the you tube link he made showing the parts. The quality of his parts was outstanding. It took 5 days for his parts to get to me from Pakistan...You can't get stuff delivered a few states away in 5 days here. He also video called me and walked me thru the installation of the parts in case I had a problem or question about them.
View attachment 286437View attachment 286438View attachment 286440View attachment 286442View attachment 286443
Click to expand...
I understand that if you keep the previous power level that is around 945fps with redesigned pellets, you will get around 30 more good shots. And may be more.

If you have counted ever before new setup, please do it again with improved parts and share with us.

Bhaur

  • Like
Reactions: Richieg
Upvote 0
mubhaur said:
I understand that if you keep the previous power level that is around 945fps with redesigned pellets, you will get around 30 more good shots. And may be more.

If you have counted ever before new setup, please do it again with improved parts and share with us.

Bhaur
Click to expand...
Before with a fill to 220 BAR and a velocity of 935, I was getting about 20 shots down to 200 BAR. I can fill to 220 and shoot down 200, never counted total shots before. I generally fill to 230 BAR and shoot down to 160 BAR or so and fill It back up. I never shot it all the way down where it fell off and counted all the shots.

  • Like
Reactions: mubhaur
Upvote 0

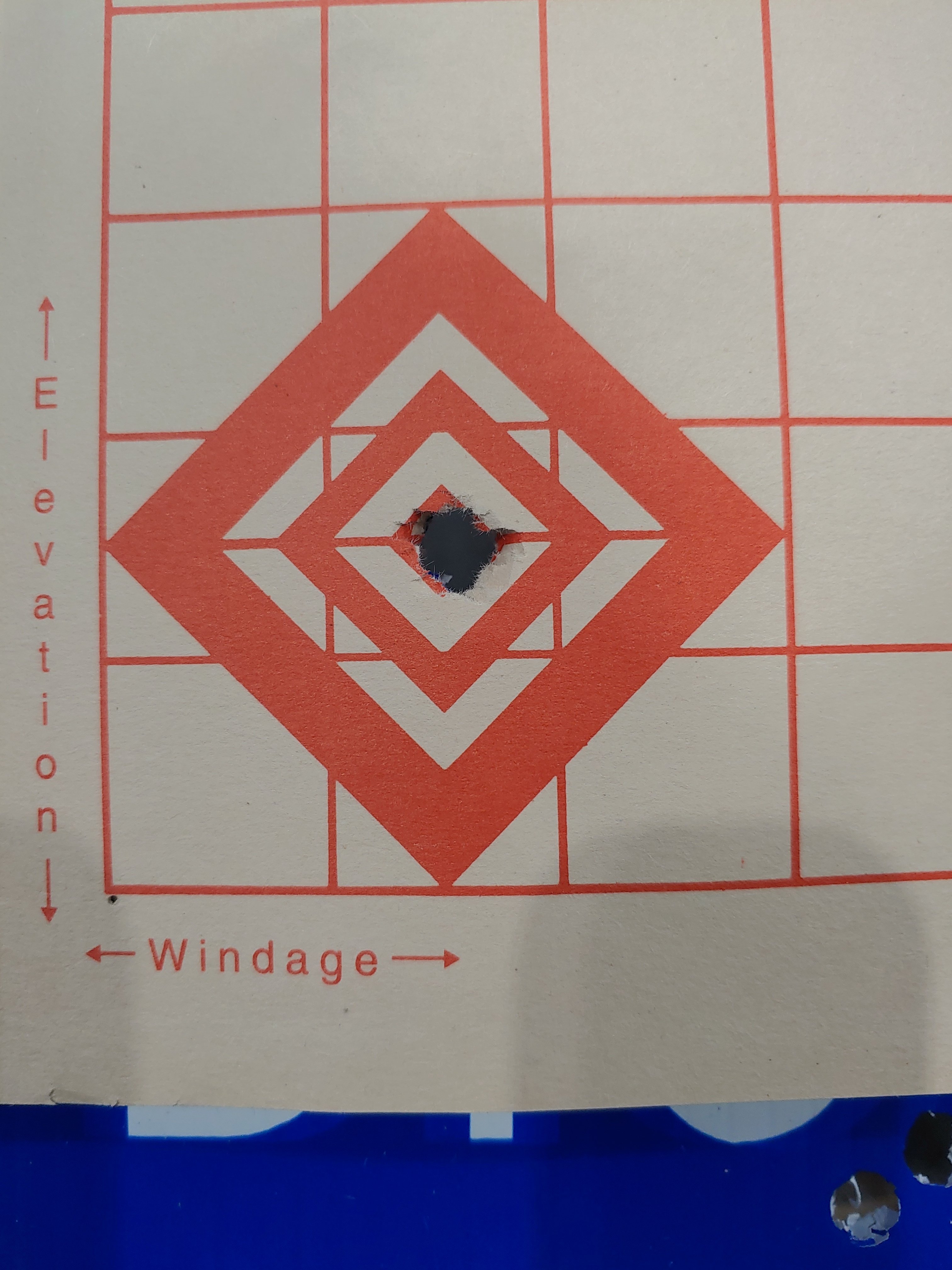

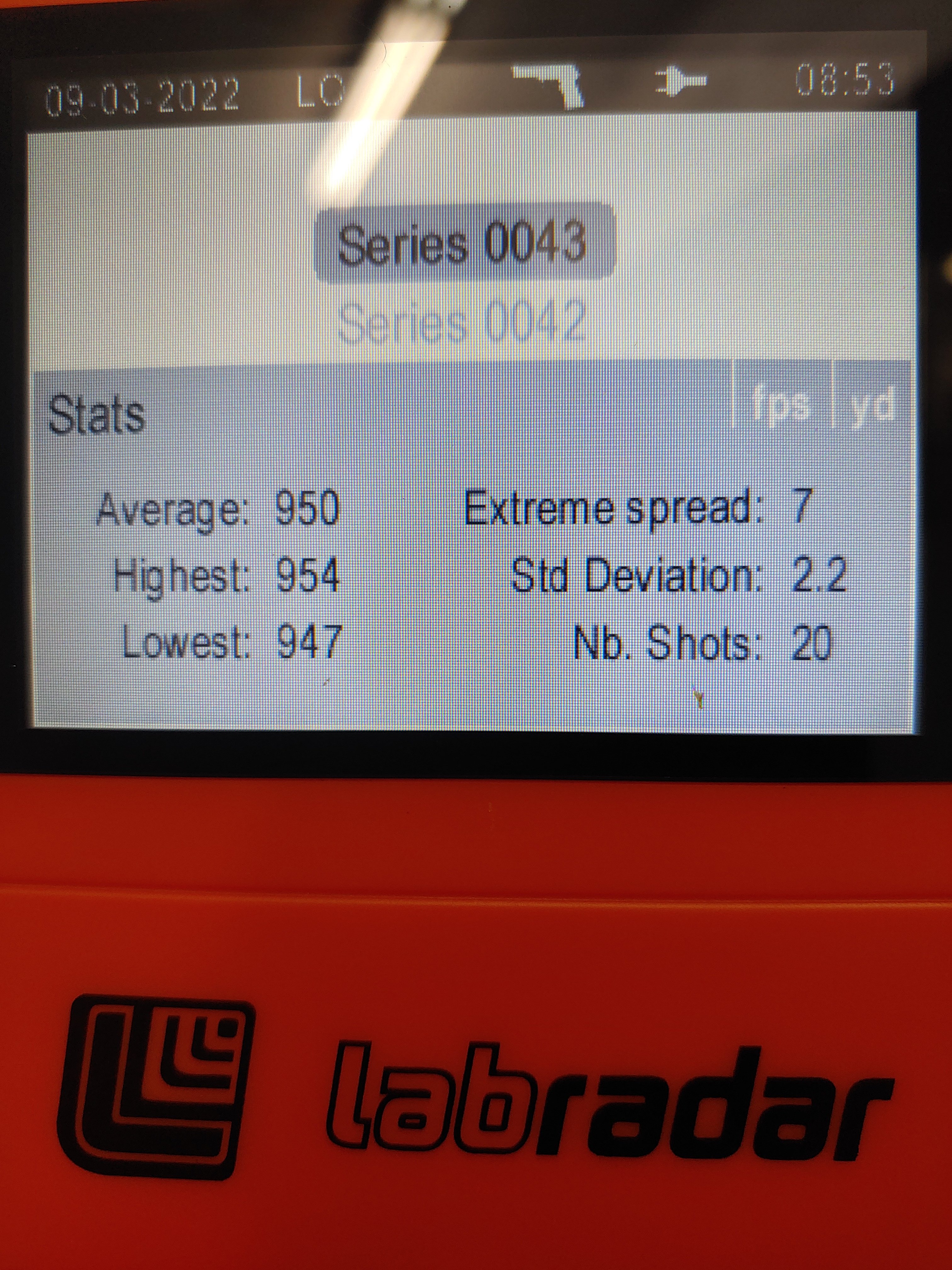

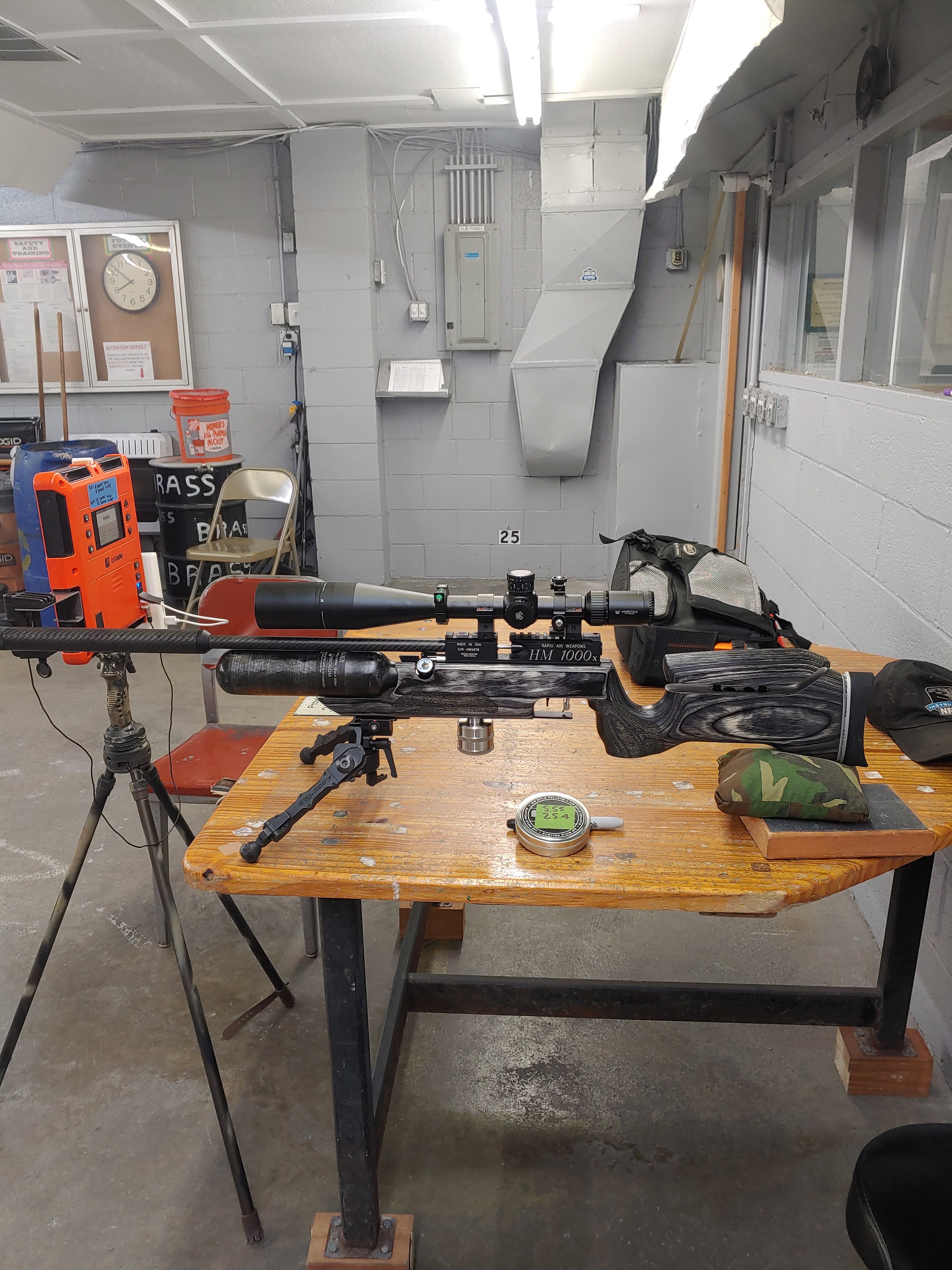

First chance to sit down and shoot my HM1000X .22 since installing Mubhaur upgrades. I did a good cleaning of the barrel with some wd40, which I read from this forum,then ran a few patches with beeswax, which I also read from This forum. This was my 20 shot group at 25 yards shooting the FX branded JSB. I shot all 20 thru my lab radar.
