Question to the users of MKM products

[Bigragu]

I’m seeking input from those of you that are users of MK Machining scope accessories, in particular the star studded parallax knob focus wheels and their anti cant scope levels.


Based on my research, it seems a lot of manufacturers that design these type of scope levels never show a focus wheel on the parallax knob when advertising these levels in their catalog. What I would like to see if any of you are able, is a pic of a view as if you were looking thru the scope as normal, and I’d like to see if the side focus knob/wheel blocks any view of that level. If a pic cannot be produced, your feedback is welcome. This would be of course for folks that mount the level on the left side(right handed shooter), and mount the level ahead of the turrets.

im a big fan of MKM, and use their throw levers and side focus knobs exclusively on all my scopes and anyone I’ve mounted scopes for. It’s the levels being blocked by the focus wheel is what concerns me. I’ve used the Wheeler level that folds to the side for years, just looking for something different.



thank you

BR



[Dairyboy]

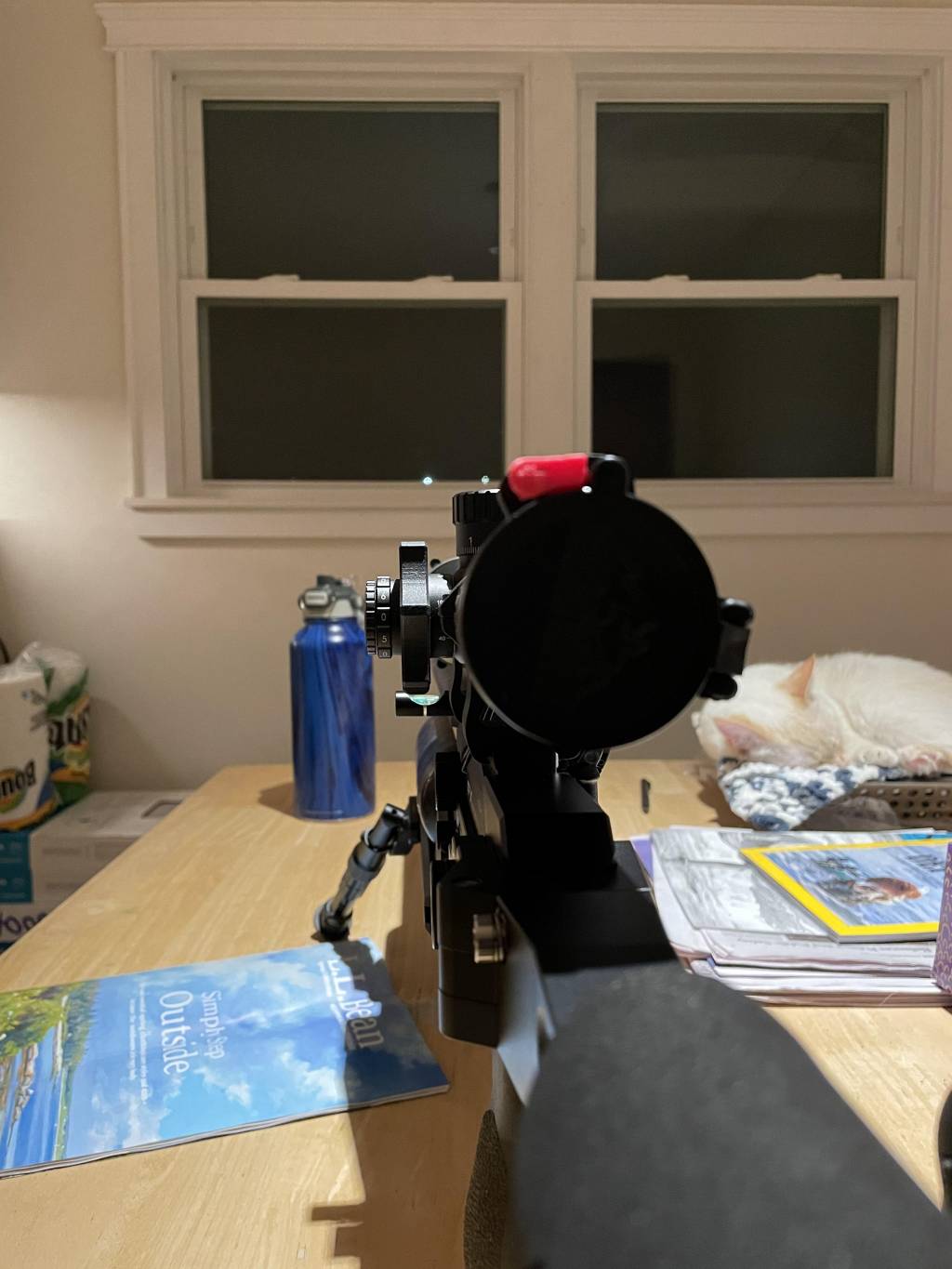

This is basically what I see from behind my scopes. Meaning while looking through with my right This is what my left eye sees. This is my 4-20x50 Athlon Helos BTR Gen2. My 2-12x42 Helos BTR Gen2 also looks similar with the same level. With a focus wheel I can see it being difficult to see I think.



[Bigragu]

Thanks for posting, Dillon



[Scotty1]

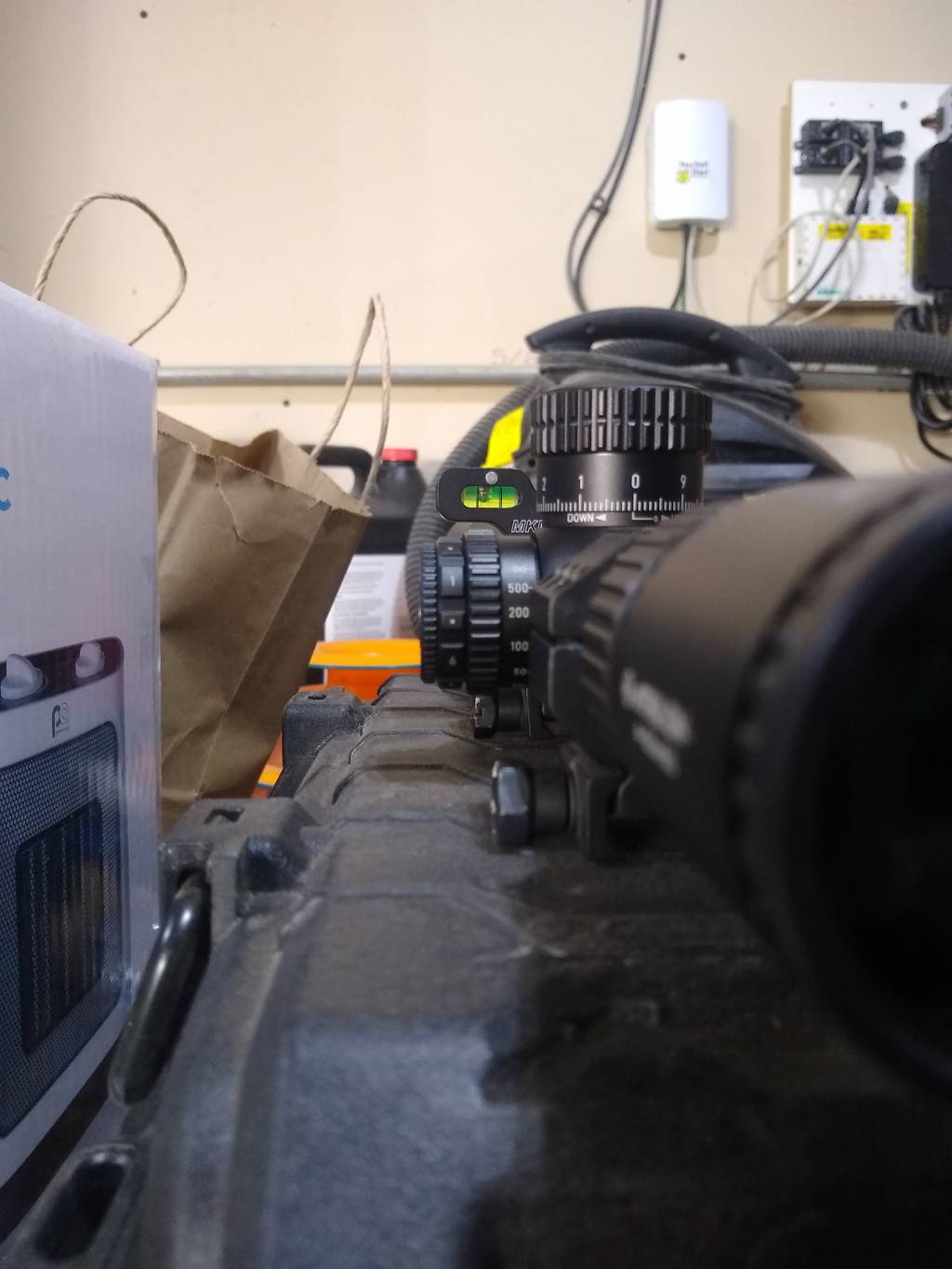

Augie, here is mine on my Crown. As you can see I have my level on the pic rail, but this wheel is small enough that I believe a scope mounted level may work as well.



[Bigragu]

Scotty!!! Thanks a bunch! Between yours and Dairyboys pics I’ll be able to tell.

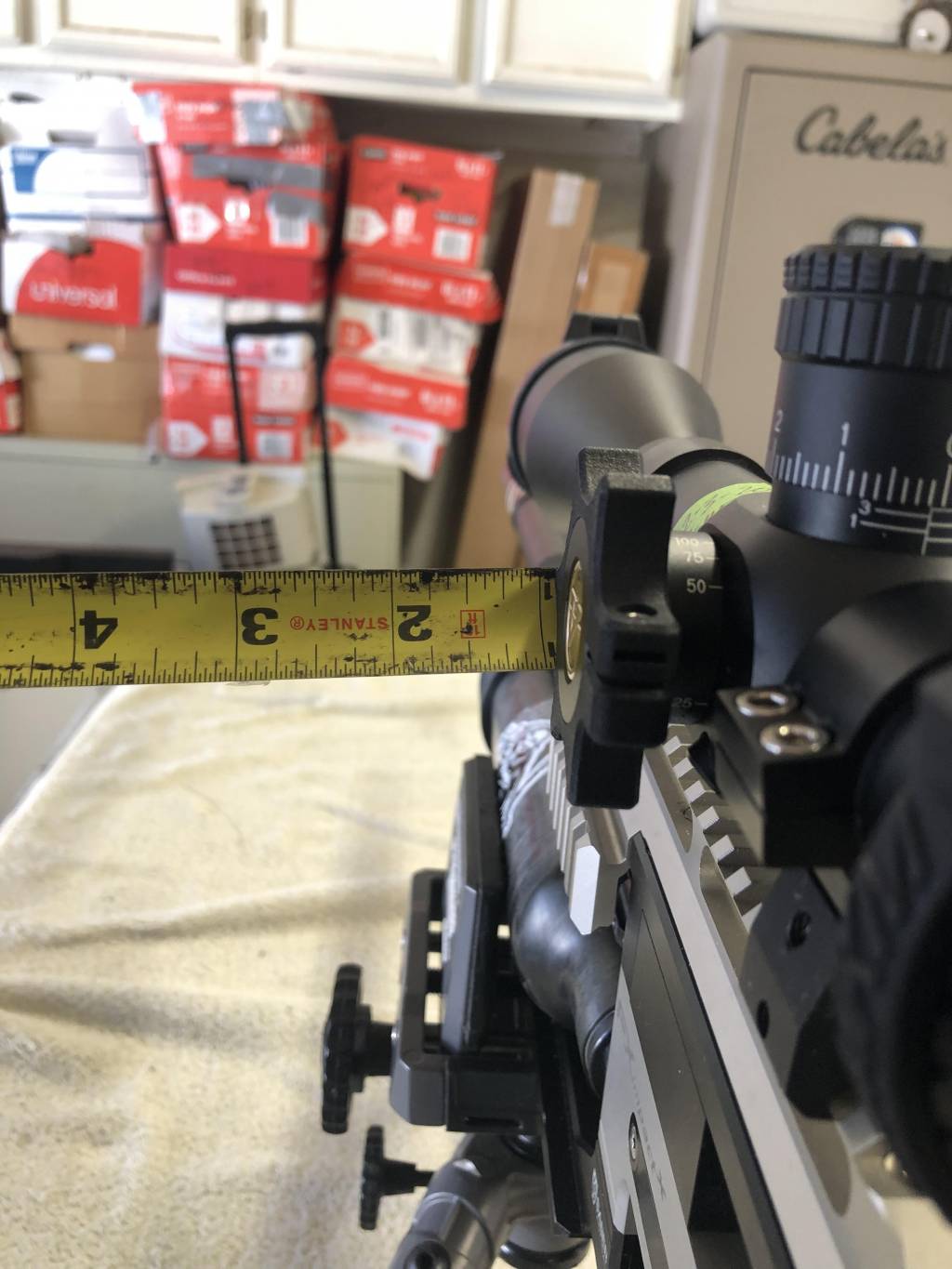

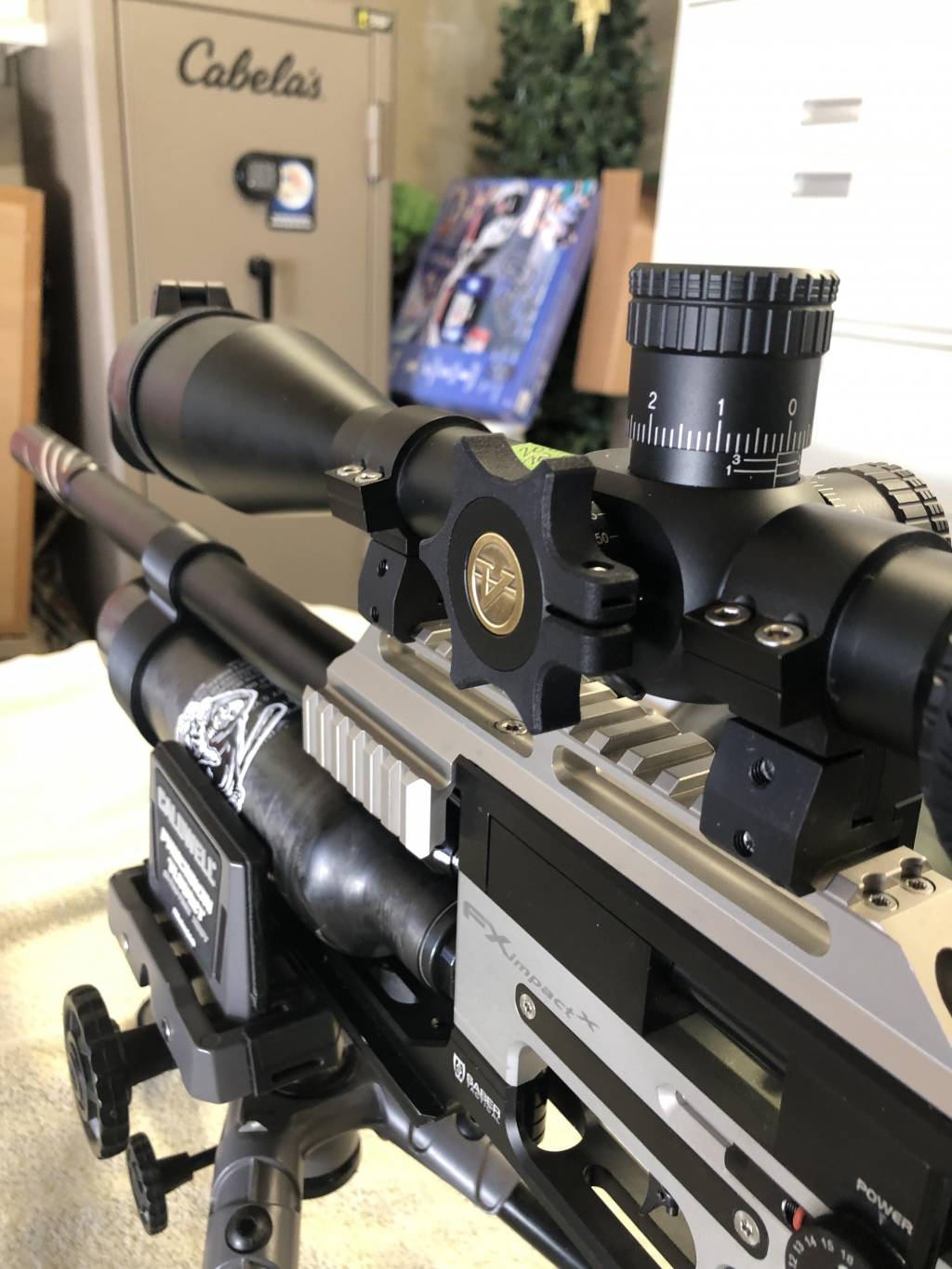

I just realized by looking at both your pics my MKM focus knob is even slightly farther outwards than both yours as the scopes I’m wanting to mount the levels on have no illuminated reticle side switches on the parallax knobs-



[Bigragu]

Following up on this-

i was given center to center dimensions from a manufacturer whose anti cant level I was considering. The measurements were from center of mounting ring to center of bubble, and after mocking something up on my scope to simulate the view of the bubble with my eye looking thru the scope, I found I would have to pull off to try and see the bubble so I declined from deviating away from the Wheeler levels that I’ve been accustomed to, the ones that fold up against the scope body when done shooting and swing outwards when shooting. I never have to pull my eye off the scope with these, and, because of the price point, I was able to toss my $$ I had planned on the more costly ones like I had my eyes on initially, onto something else.

thanks for all that contributed to this thread.



[Scotty1]

Well, that was easy, you just had to go around the block to arrive back to your known solution. Glad it worked out and you saved the expense.



[Ranchibi]

https://www.amazon.com/dp/B08T64JGDR/ref=cm_sw_r_oth_api_glt_i_57G1X225T1KTWRQBHZHD


I know this is kinda late but this level can be set at the back of the picatinny rail out of the parallax wheels view FYI.



[Bigragu]

https://www.amazon.com/dp/B08T64JGDR/ref=cm_sw_r_oth_api_glt_i_57G1X225T1KTWRQBHZHD


I know this is kinda late but this level can be set at the back of the picatinny rail out of the parallax wheels view FYI.

Thanks, Ranchibi but I can already tell I’m going to be moving my noggin away from my sight posture to see the bubble position, and secondly, I’m not a big fan on any level mounted anywhere besides the scopes tube.


Thank you, though
