I'm ordering o-rings for a couple guns, figured I'd add PP750 o-rings to the order.
Does anyone know the sizes or have a oring list?
Thanks in advance
Does anyone know the sizes or have a oring list?
Thanks in advance
- The AGN App is ready! Search "Airgun Nation" in your App store. To compliment this new tech we've assigned the "Threads" Feed & "Dark" Mode. To revert back click HERE.
Tuning PP750 O-ring list
- Thread starter kkarmical
- Start date
Found this list floating around a while back on the gta forums. Theres 2 orings on that list that will have to be bought of ebay forget which ones.
Upvote 0

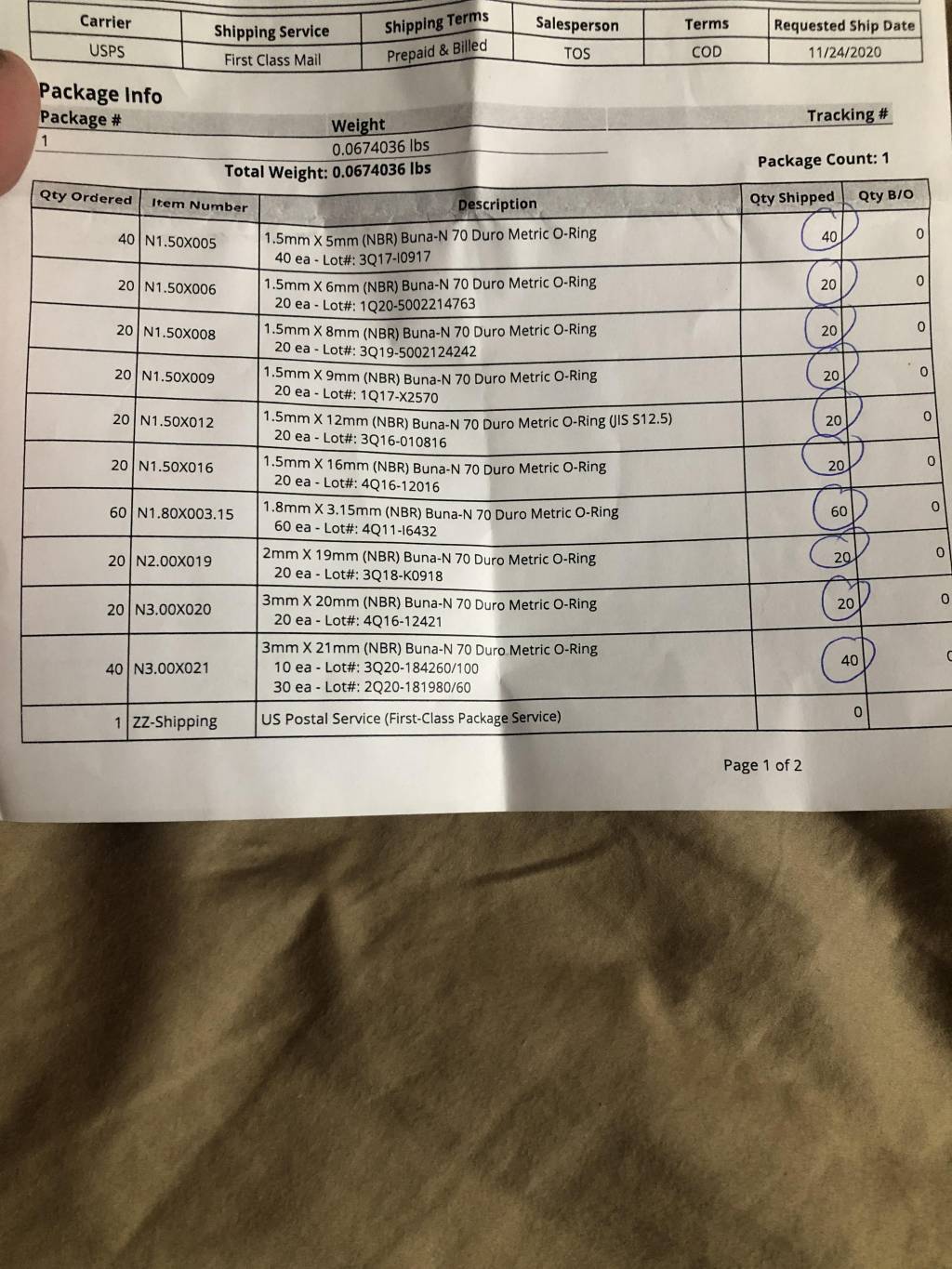

View attachment Orings - Artemis PP750.16055938381.1614572028.pdf
Found this list floating around a while back on the gta forums. Theres 2 orings on that list that will have to be bought of ebay forget which ones.
Thank you
Upvote 0
Im a bit confused another list from the web for the pp700sa has
Part No./Cross Section/Inside Diameter
27 1.5mm X 5mm
34 1.5mm X 5mm
36 1.5mm X 8mm
8 1.5mm X 9mm
and so on...... WHAT IS THE PART NUMBER??? is the part number only specific to the place that you buy the orings from??? I should just ignore he "Part No." and concentrate on the (CS) x (ID) buna- n-70, is this correct???
Part No./Cross Section/Inside Diameter
27 1.5mm X 5mm
34 1.5mm X 5mm
36 1.5mm X 8mm
8 1.5mm X 9mm
and so on...... WHAT IS THE PART NUMBER??? is the part number only specific to the place that you buy the orings from??? I should just ignore he "Part No." and concentrate on the (CS) x (ID) buna- n-70, is this correct???
Upvote 0
If you are looking at SPA’s exploded drawing, beware they list the O-rings by OD and cross section. The rest of the planet calls them by the ID so do the conversion to find the right size to order. For example a 1.5x10 is actually a 1.5x7.
Upvote 0
