Oversized suppressor...? Would this work?

[Lobi]

I'd be interested to run one of those over a microphone at about 15 feet. I am sure they are very quiet. They are also a very fine weapon. I still maintain that a mouse fart is not audible. Respect back at you.

The expression I always heard was "quieter than a mouse peeing on a cotton ball"
Would a mouse fart be louder?



[Patrick1]

You can easily compute the amount of air your rifle uses for each shot. That volume is important when building a moderator.

Let's have an example. Suppose my HW110 gives me 30 shots on a 140cc tank from 200 BAR to 100 BAR. That's all you need to compute the volume of air your rifle uses for each shot. The math looks like this: ((200-100)*140)/30=466.7 cc/Shot. We are calculating the start volume in bar minus the end volume in bar times the tank volume divided by the number of shots. That gives us the volume per shot at ONE BAR.

For that rifle it works out to about 457cc. There are different ways that a moderator works. Some simply allow enough expansion to drop the pressure before venting to the atmosphere. Some use turbulence created by baffle designs to slow down the release of pressure over time. Some use both approaches. If you reduce the volume of a moderator by half you double the working pressure of that moderator. If you double the volume of a moderator you reduce the working pressure by half.

The HW110 primarily uses the first approach (expansion chamber) with a couple of very simple restrictors thrown in to add turbulence. IN THEORY if you reduce the pressure of the shot to ONE BAR before it enters the atmosphere you could actually achieve "mouse fart" quiet. The HW110 moderator is EXCEPTIONALLY good. It will reduce the shot volume to something like about 68 dB at 15 feet from the muzzle. That is just superb. Most moderators are struggling to reduce shot volume below about 78 dB.

Remember the shot volume I calculated above? The moderator on that HW110 is 170mm x 30mm external (6.7" x 1.2") and 162.5mm x 27.5mm internal. So the volume of that moderator is 96.5cc. That means the ratio of volume of the moderator to the shot volume is 1:4.8. The volume of the moderator is only about 1/5 of the volume of the air used for each shot. A lower moderator volume is going to mean MORE noise. Cut that ratio in half and you are going to APPROXIMATELY double the noise power +3dB. Double that ratio and you are going to APPROXIMATELY halve that noise power -3dB. That theory APPROXIMATELY holds for IDENTICAL designs. As you shorten a moderator the distance from the muzzle to the exit port reduces and that adds in additional problems (usually solved by increasing turbulance with more baffles).

Now lets go back to that assertion that an exit pressure of 1 BAR means "mouse fart" quiet. If the moderator to air volume ratio is 1:5 the working pressure inside the moderator never exceeds 5 BAR. It is a "5 BAR" moderator. So a "5 BAR" moderator is capable of 68 dB performance. A "2.5 BAR" moderator should be capable of 65dB performance and a "10 BAR" moderator should be capable of 71dB performance.

What are the dimensions of those two moderators. Well the easy (and best) way to change the moderators volume is by changing length. So the "2.5 BAR" moderator would be about 13.4" x 1.2" and the "10 BAR" moderator would be about 3.35" x 1.2".

The question was essentially what is the biggest moderator I can make without wasting space. The answer IN THEORY is something like a moderator which gives you a 1:1 ratio of moderator volume to shot volume. Well we can calculate that. Lets suppose you have a Condor shooting a 9mm slug for 200 fpe. It does that on a 200 BAR charge and uses 30 BAR on a 500cc cylinder (just guessing here). The moderator that you are wanting to build will have to contain 30x500cc = 15,000cc of shot volume. Lets use a 75mm (~3") tube for our moderator. You calculate the cross section of your tube as PI * (37.5*37.5) and get 14.06 sq. cm, By dividing that into 15,000 we get a length of 1067mm or basically one meter long. That's gonna be real quiet.

OR You can do what snipers are trained to do. Shoot through a loop hole from the back of a room. In other words USE THE BUILDING as the silencer.

This may be the best explanation I’ve seen on moderators! Thanks for the detail!!



[mtnGhost]

Depending on the rifle, a moderator will only get you so far. The valves on many rifles produce a LOT of sound that carries through other areas of the rifle (typically around the low pressure side of the valve pin).

The most effective silencer that I've ever heard was a Dead Air Mask on a VooDoo .22LR. That silencer is about the size of the small Impulse Air 1250, but it's AS quiet with that suppressor shooting CenterX as my .22 P-Rod was with a Sumo. That action did a fine job of containing all of the gas pressures and sound waves to the barrel (and it was a shoter barrel action at that).



[EdinGa]

My quietest air rifle is my 22 fpe Stoeger Bullshark .177. It has a massive shroud and a screw on ldc. A close second is my Marauder pistol. Once again, it has a shroud and a screw on ldc. Volume is definitely your friend it comes to quiet. I would describe both of mine as small dog fart quiet. I've never heard a mouse pass gas, so I can't give an honest evaluation there.



[WDEagle]

I've never heard a mouse pass gas, so I can't give an honest evaluation there.

That proves how quiet they are.



[Healthservices]

Before I spend a lot of time on STL files and design and so on, I have this idea of making an oversized suppressor. I know that practical use scenarios prevent suppressors from being a certain size, but if I didn't care about interfering with the scope or looking silly...

...Any input on the idea from experienced users would be very much appreciated.

of course reading this I'm thinking..

Allen



[MadCowCrazy2]

When it comes to suppressors there is one design I've been thinking about. The air blowing out the barrel is what causes the sound, what if you removed all the air before it left the barrel?
Take a shotgun suppressor design as pictured below
.

You then drill holes in the bottom of it, one hole in between each baffle. You add some sort of on way valve to each hole, so air can enter but not go back out again.

You then add some thick high strength hose to each valve and have them go to a multi connector that is connected to some air bottle of some sort.

I've been planning on building something like this this summer just to try it out. To me it makes sense that it should work but what do you guys think?



[Healthservices]

When it comes to suppressors there is one design I've been thinking about. The air blowing out the barrel is what causes the sound, what if you removed all the air before it left the barrel?

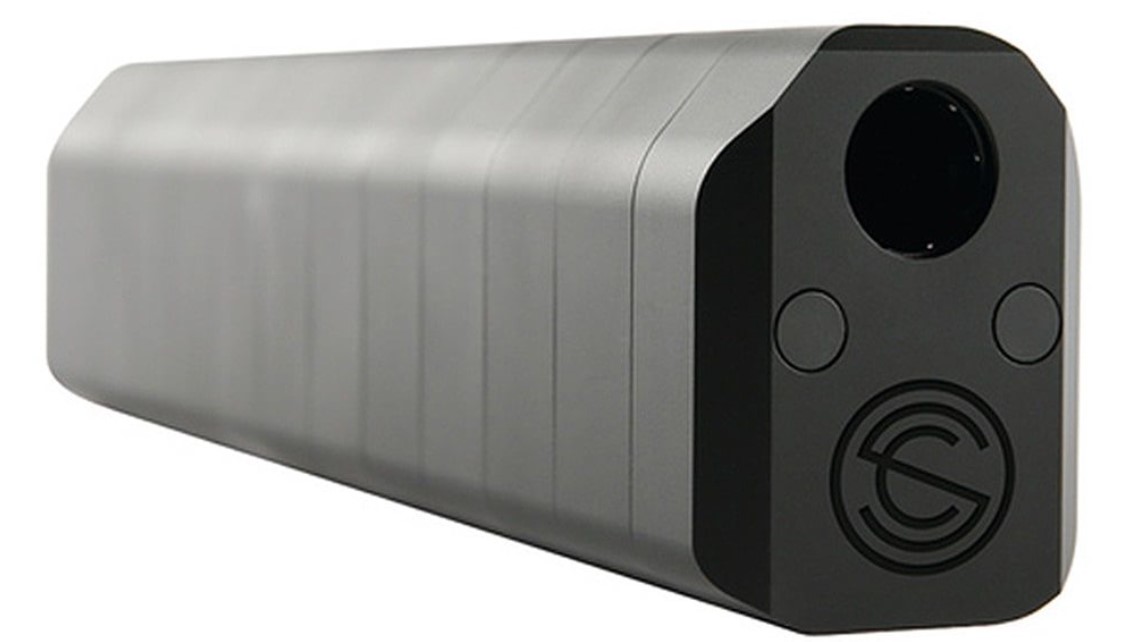

Take a shotgun suppressor design as pictured below
.View attachment 339265

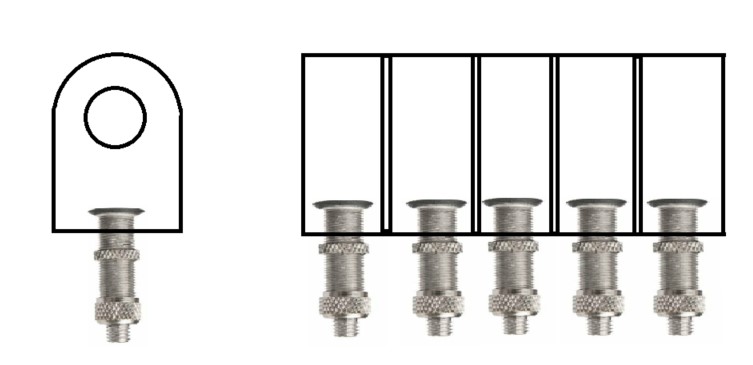

You then drill holes in the bottom of it, one hole in between each baffle. You add some sort of on way valve to each hole, so air can enter but not go back out again.

View attachment 339266

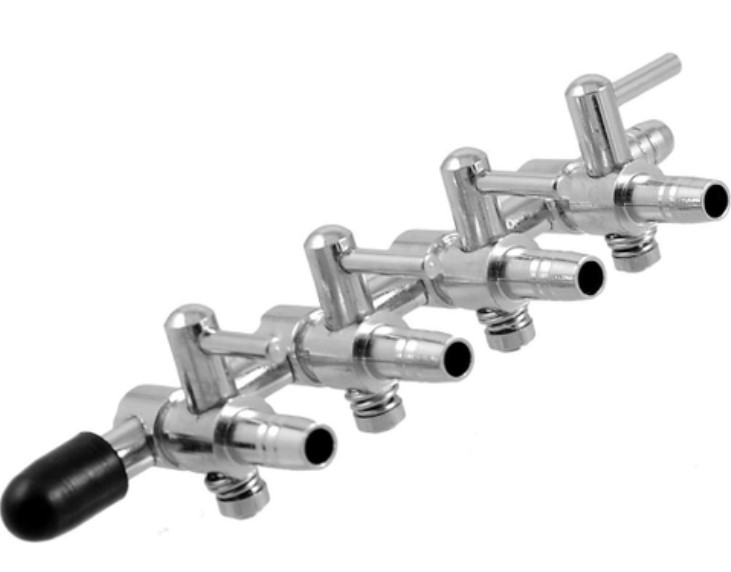

You then add some thick high strength hose to each valve and have them go to a multi connector that is connected to some air bottle of some sort.
View attachment 339267View attachment 339268

I've been planning on building something like this this summer just to try it out. To me it makes sense that it should work but what do you guys think?

Just from the knowledge that I have gathered. It's not the air coming out of the barrel but the force that it comes out of the barrel with, that causes the sound wave. So allowing the air to to come out without so much force would cause the sound wave to be less. Having a air stripper and diverting the air will cause the sound wave to be smaller. Having larger chambers in which the the air escapes thru to dissipate would help. This is why just having a shroud on a barrel with a couple of diverters or air strippers help with noise.

In theory it would work to a certain extent, but the amount of air chamber maynot require such a large chamber as air still escapes behind the projectile as it exits the moderator.

Allen
