Notos loading issues

Recently bought a Notos as it seemed pretty popular here. It's honestly not a bad gun for the price. I have been having issues however since the first day. It will not reliably load pellets from the magazine. It jams badly. The first day I tried it, first pellet, went to chamber it, and it got stuck about a 1/3 of the way (lever forward). At this point I was unable to get the magazine to release, and sadly had to bench it for the rest of the outing until I could figure a way to get it out. I had to go buy a long enough .22 cleaning rod to try to get it to release by going through the front of the barrel. It took a lot of finagling, but finally got it out. Tried again and same result. Ordered a couple of Carm magazines and tried them with same result. Something seems like it's not aligning correctly. I can get the Carm mags to function if I "wiggle" them in all directions as I am trying to chamber the pellet. Not ideal at all. The single shot magazine functions fine. Nothing looks obviously wrong visually. I do notice that the bolt (?) when manually cycling ( the part that pushes the pellet) seems to drop down a little when first going forward, and wondering if this is the problem. When all the way back, I can wiggle it a bit if that makes sense. Any ideas? Trying to avoid having to send it back if it's an easy fix, I'm pretty good at repairing.

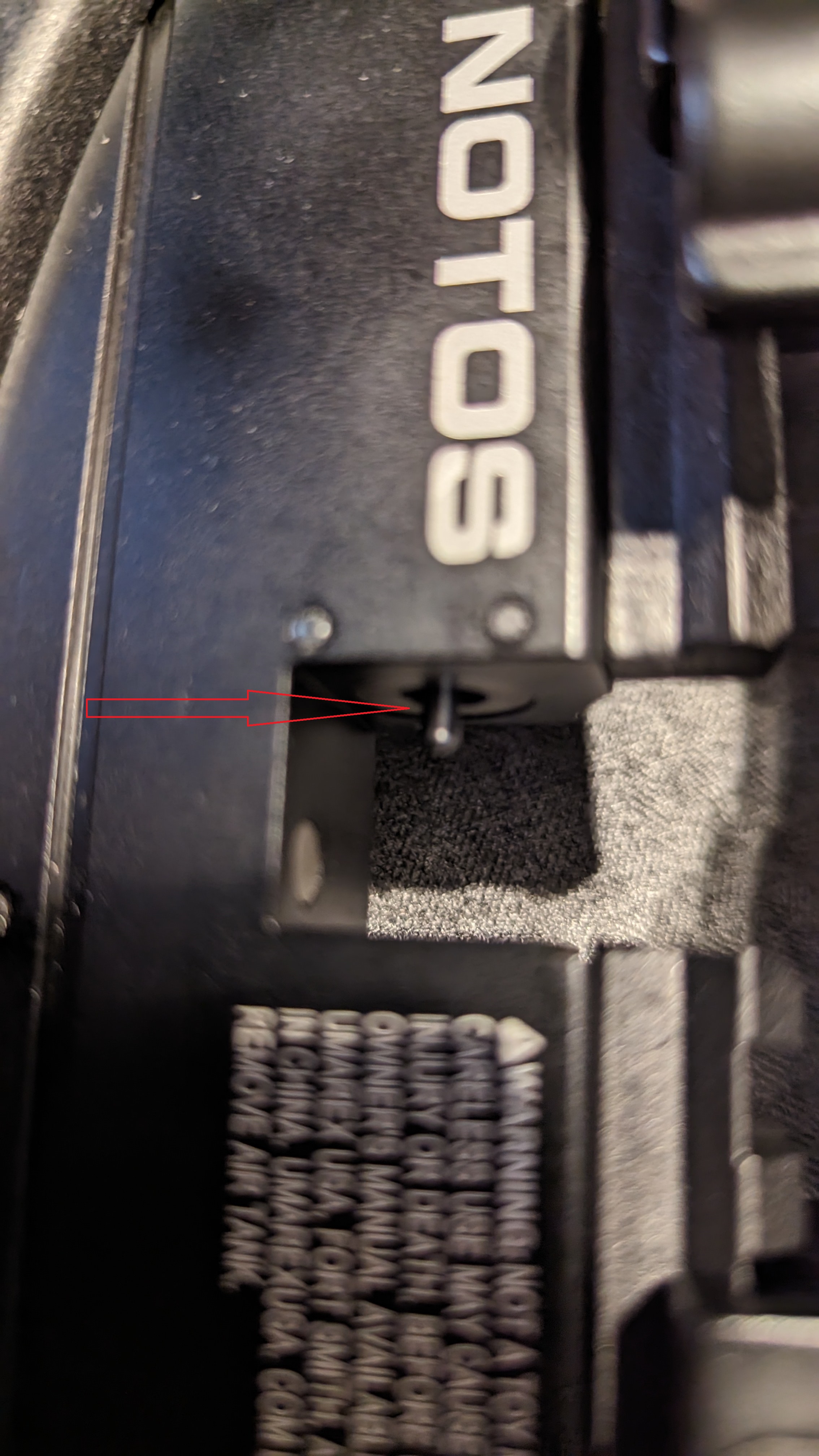

Not a great pic, but this is where I suspect the issue is, as the bolt drops just a hair once it first starts to protrude.

There's a set screw with a ball detent in it!
Look at the back of mag. It needs to be adjusted to make the small holes in the clear cover click into position! Mine were quite loose and used a drop of blue locktite to keep in place! Without that little bit of tension the cover can move around a little and cause feed problems. Also make sure the center screw is not to tight. It can bind the pellet wheel inside the mag!

Last edited:
Loading hole on the front, clear plastic, is roughly the diameter of 1 and 3/4 pellets. If you tilt upward the skirt can catch in this gap causing it to be crushed and then you have loading issues. Removing the front cover and placing some scotch tape over the loading hole making it 1 and 1/4 pellet side fixes any muzzle-up loading issues. Hope this helps

  • Like
Reactions: pnwairgunner
Loading hole on the front, clear plastic, is roughly the diameter of 1 and 3/4 pellets. If you tilt upward the skirt can catch in this gap causing it to be crushed and then you have loading issues. Removing the front cover and placing some scotch tape over the loading hole making it 1 and 1/4 pellet side fixes any muzzle-up loading issues. Hope this helps
So a new front plate made with tighter tolerances should fix the loading issues? Has anyone had loading issues with the CARM magazines on the Notos?
