Tuning New HW97 22cal Tune

Jump to latest Follow Reply
Jlowe

Jlowe

Member
Mar 10, 2017
1,097
524
51
Wartburg, Tennessee
After waiting several months for AOA to get in an HW97 in Blue Laminate in 22cal, it finally arrived. I have only sighted it in at 18 yards last night as I just finished up the tune. Below is a pic and some FYI info if anyone is interested. The tune is a standard Maccari tune kit with Vortek piston seal. This is the first HW97 I have ever owned in .22cal, so I have nothing to compare the numbers to another one in .22cal. The gun was a great shooter out of the box, but too twangy for my taste.
Below are some before and after chronograph results.
Before:
H&N FTT 14.66 5.53's 677fps
Predator GTO 11.75's. 805fps
Barracuda Green 12.96 763fps
H&N FT Green 10.03 886fps
Crosman 14.3 687fps
JSB 14.3 619fps
After:
H&N FTT 14.5 5.53 726fps
Predator GTO 11.75 861fps (19.34 foot pounds)
Barracuda Green 12.96. 812fps (18.98 foot pounds)
H&N FT Green 10.03. 953fps (20.23 foot pounds)
Crosman 14.3 756fps (18.15 foot pounds)
JSB 14.3 696fps
JSB 13.43 738fps
JSB Hades 15.89. 691fps


Last edited:
  • Like
  • Love
Reactions: bustachip, Billinoregon, maxtrouble and 15 others
beerthief said:
H&N FT Green 10.03. 953fps (20.23 foot pounds) a very light pellet , might not be good for the piston seal ? bit of heat or slam ?
Click to expand...
Couldn't say for sure. It doesn't sound like a 5 grain .177cal pellet shooting out of an R1, so it has that going for it. That was a chronograph test above of what I thought it might like.

  • Like
Reactions: beerthief
Upvote 0
Jlowe said:
After waiting several months for AOA to get in an HW97 in Blue Laminate in 22cal, it finally arrived. I have only sighted it in at 18 yards last night as I just finished up the tune. Below is a pic and some FYI info if anyone is interested. The tune is a standard Maccari tune kit with Vortek piston seal. This is the first HW97 I have ever owned in .22cal, so I have nothing to compare the numbers to another one in .22cal. The gun was a great shooter out of the box, but too twangy for my taste.
Below are some before and after chronograph results.
Before:
H&N FTT 14.66 5.53's 677fps
Predator GTO 11.75's. 805fps
Barracuda Green 12.96 763fps
H&N FT Green 10.03 886fps
Crosman 14.3 687fps
JSB 14.3 619fps
After:
H&N FTT 14.5 5.53 726fps
Predator GTO 11.75 861fps (19.34 foot pounds)
Barracuda Green 12.96. 812fps (18.98 foot pounds)
H&N FT Green 10.03. 953fps (20.23 foot pounds)
Crosman 14.3 756fps (18.15 foot pounds)
JSB 14.3 696fps
JSB 13.43 738fps
JSB Hades 15.89. 691fps

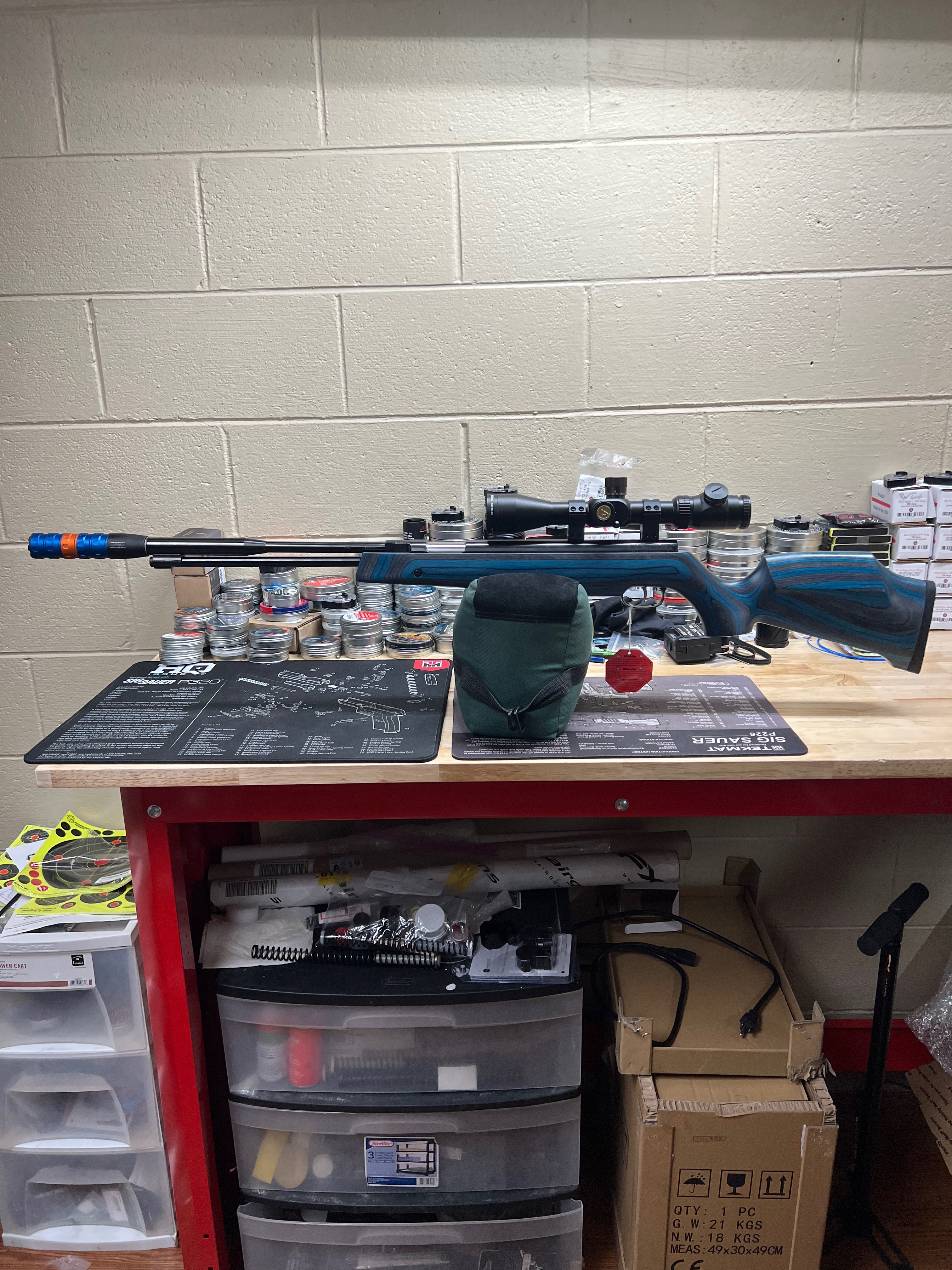

View attachment 382995
Click to expand...
Nice gun, congratulations on your choice!

Upvote 0
