Hello AGN'ers!
I have been searching to find a vendor that sells these depicted fittings.

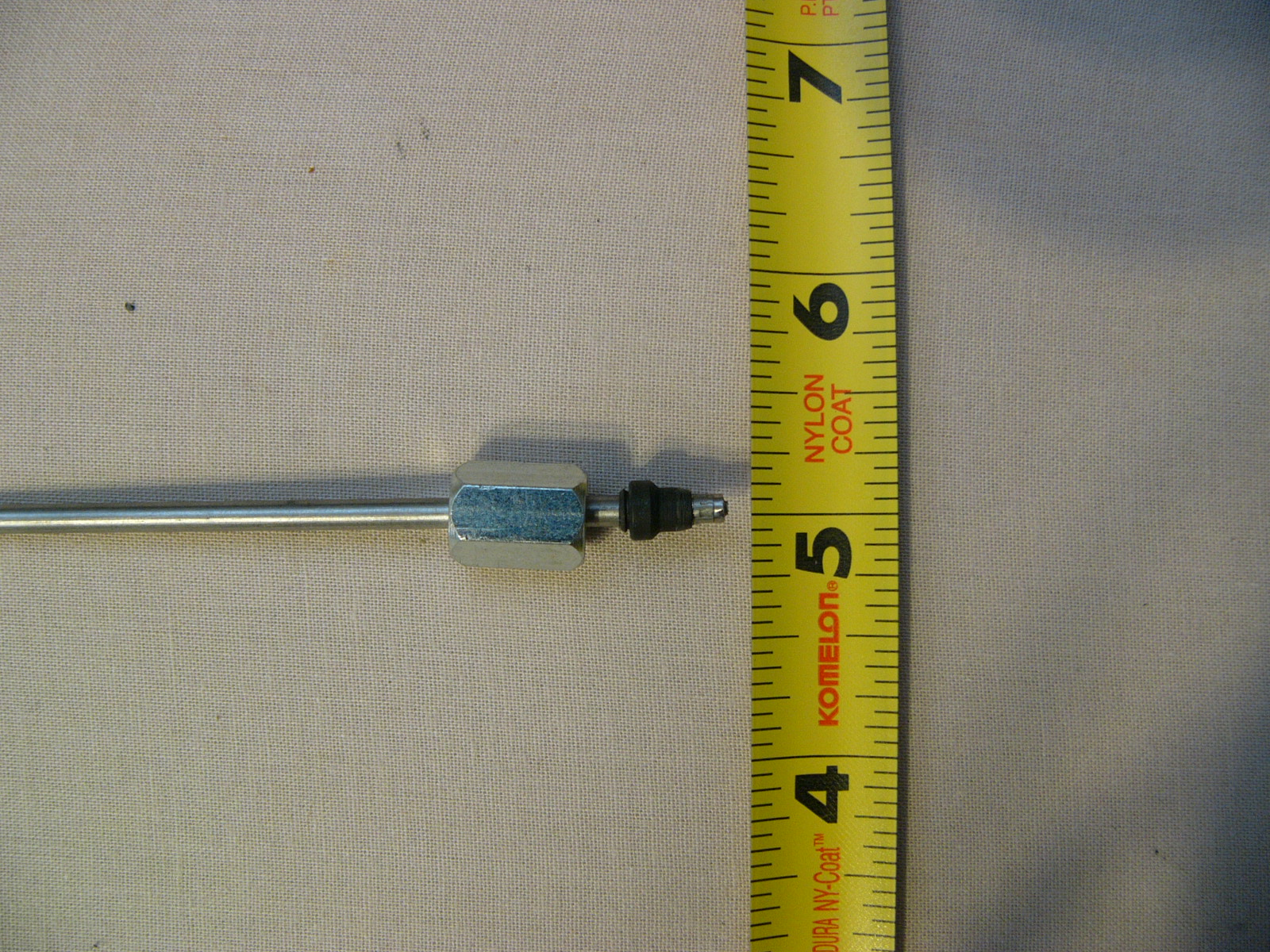

Near as I can tell, the left fitting has a 1/8" BSP, parallel thread that encapsulates the small 'barrel' looking part that is apparently swaged or crimped onto the 1/8" O.D. tubing (likely requiring a specialized tool?). Then is has a black-colored spacer with a 1/8" O-Ring to make it airtight.
It connects to the fitting on the right; the Female threads appear to match the 1/8" BSP parallel threads but are 1/4" MIP on the far-right side. The interior on the BSP side has a small recess for the O-Ring to sit in.
All is of stainless-steel material and is for HPA. The thumbnail picture can be enlarged if clicked on.
It's a complicated bit of kit!
Anyone....anyone....Bueller....anyone???
Thanks!!
Mike
