Diana Model 34 Washers on barrel bolt?

[Sqwirl57]

Yeah I saw that but i'm Confused about the screenshot from youtube showing them and the schematic from Diana not showing them...

I just checked my 34 Meisterschutze. I do have 1x very thin washer on each side of that bolt. Went through every Diana 34 diagram on the Diana site and don't see them. I've got nothin



[A.G.R]

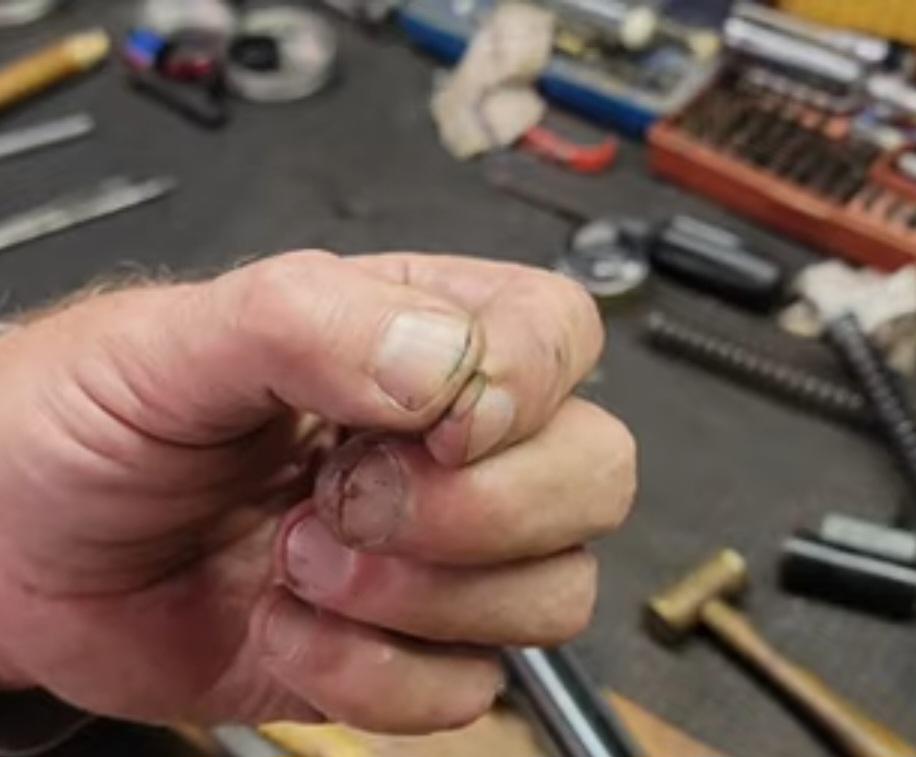

here are the screenshots showing the washer.

View attachment 427493

View attachment 427494

I just disassembled a 34 classic with a T- O-ilet 6 trigger. And it had the exact synthetic washer on one side only.



[marflow 777]

the bolt and nut tighten to the sleeve, so washers of any kind are not needed and that washer shown looks like a breech Oring shim
best place for diagrams is
https://www.omps2.it/en/715-diana-spare-parts



[A.G.R]

the bolt and nut tighten to the sleeve, so washers of any kind are not needed and that washer shown looks like a breech Oring shim
best place for diagrams is
https://www.omps2.it/en/715-diana-spare-parts

It’s a thin delrin friction washer.. to create draw and stay



[harrympope]

I took it to the 50' smallbore range a bit ago.Shooting with the irons it shot pretty well considering a suspect sight picture.I had played with spring length and made a tophat and a tighter rear guide and after a bit of tweaking I got it to just Under the 12 fpe I was looking for.
This one is a trail plinker and I didn't need power,I wanted easy to cock and quiet.
