Tuning Mod FX Royale/Streamilne by adding 2nd pressure gauge?

[BlackbirdPS]

Hello Everyone,



The dreamline has a 2nd reg air pressure gauge. Is it possible to drill/tap the block to add a similar gauge on the Royale or Streamline?



Best regards

K



[elh0102]

On the Royale, being a bottle gun, the reg is in the action block. The stock attaching screw enters the bottom of the plenum, so no room there. It could probably be done on the side of the action, with a hole for the face of the gauge drilled on the side of the stock. Since the reg has to be removed for adjustment, maybe the better solution is a reg test gauge, then you're not creating another source for a leak.



[Glem.Chally]

Jking did this I'm pretty sure.



[jking]

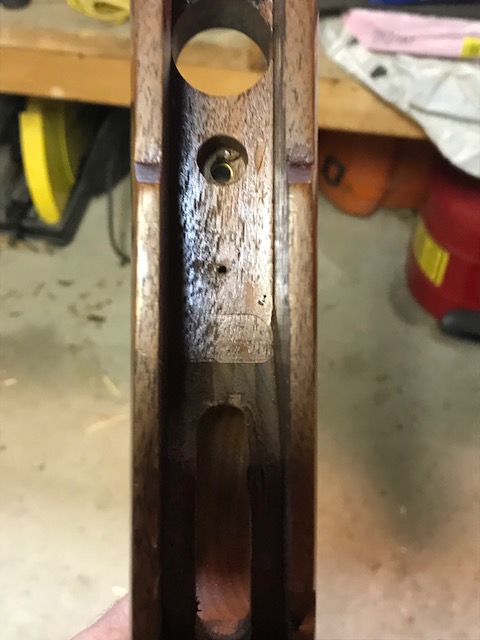

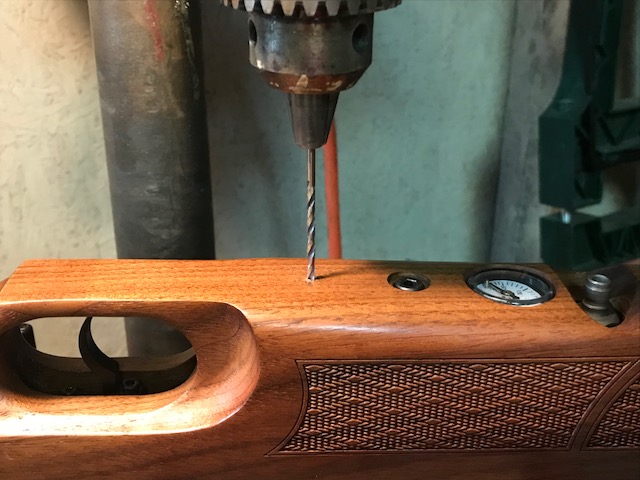

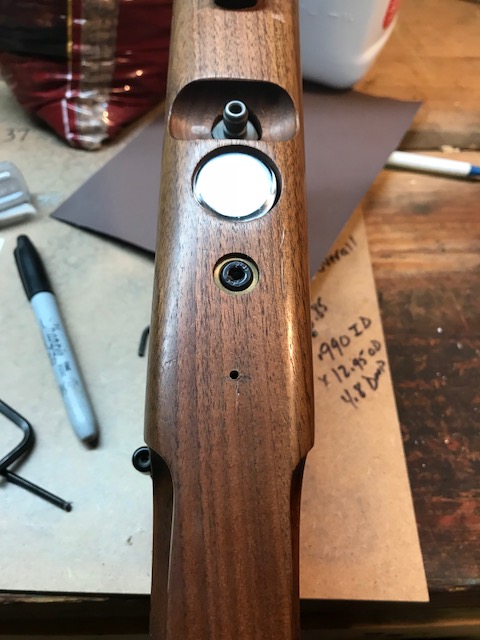

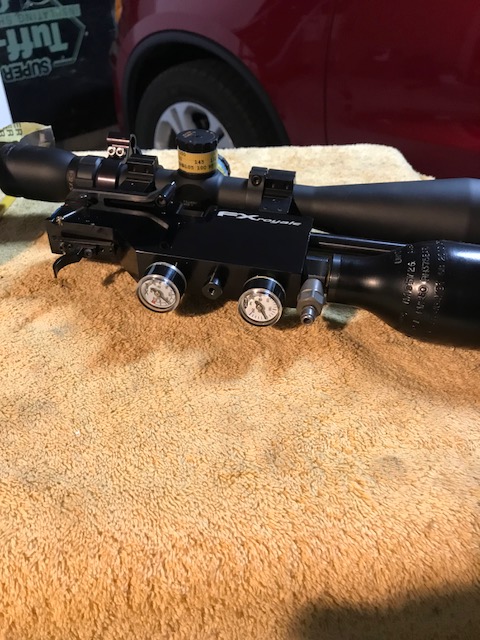

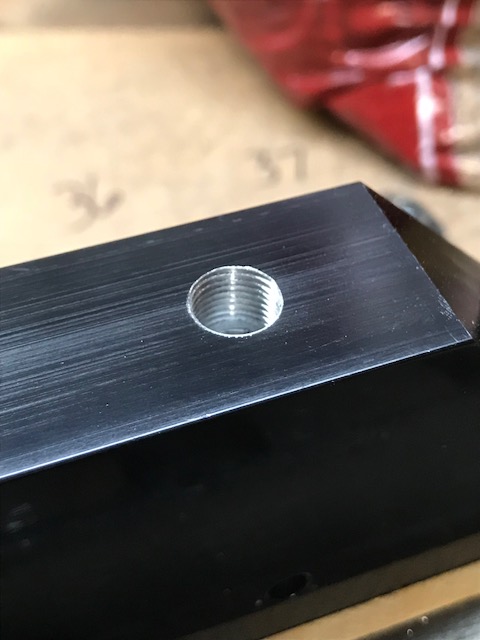

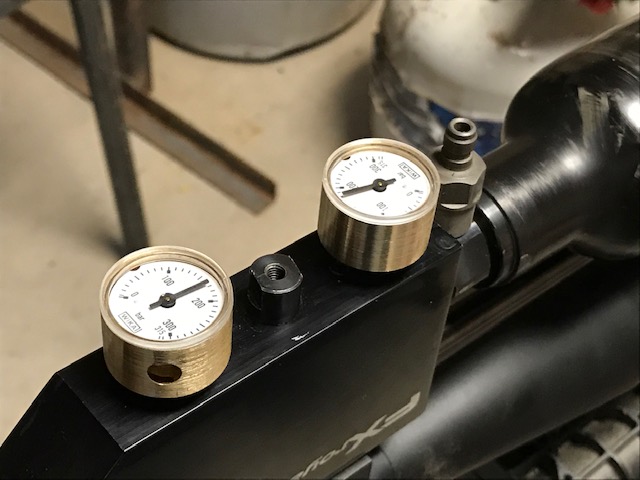

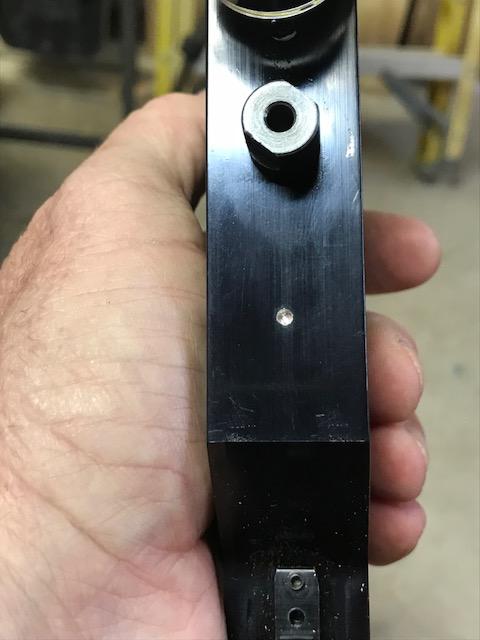

Sure did Glem, and a fun but sphincter tightening adventure it was lol. In summary just drill a hole through your stock to accommodate the gauge of choice. Drill and tap a the action block for the new gauge and wallah your done. Without a lot of description here are a few photos pretty much in order of the whole process I went through. To finish up I did modify it Wika gauges.

Jking



[elh0102]

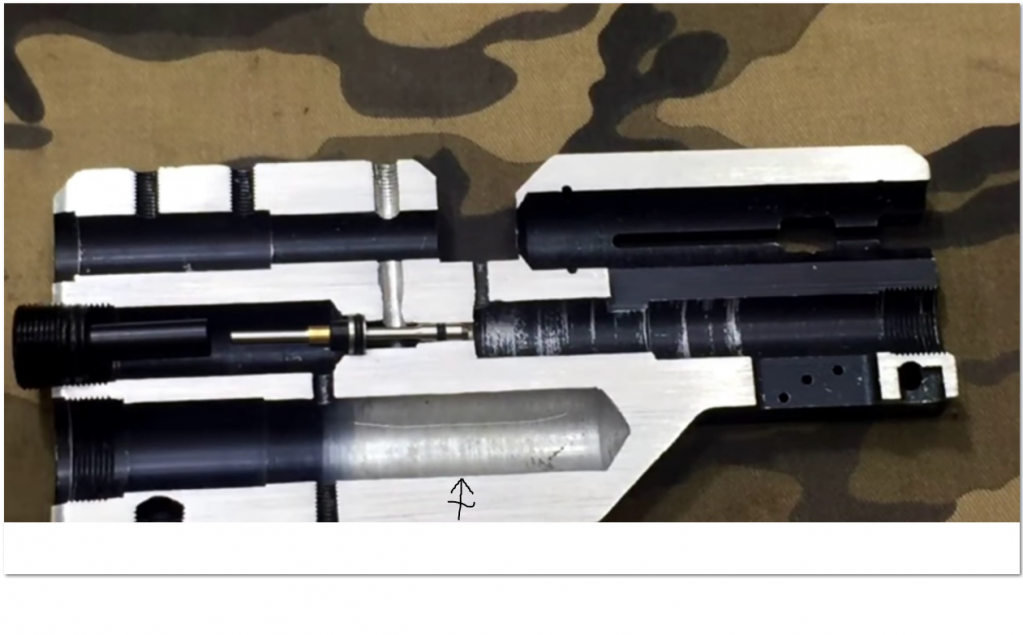

That's neat. I didn't know there was room to the rear to tap into the plenum. But as my wife reminds me, I'm always wrong. Great job!



[Bigragu]

What an awesome job you did, Jimmy.



[Glem.Chally]

What an awesome job you did, Jimmy.

Heck yeah! No wonder that memory stuck those pics are fantastic!

Nice work Jimmy



[jking]

Thanks guys, like I said it was a fun project. I sold that gun a couple of years ago and as usual regret it now.

jimmy
