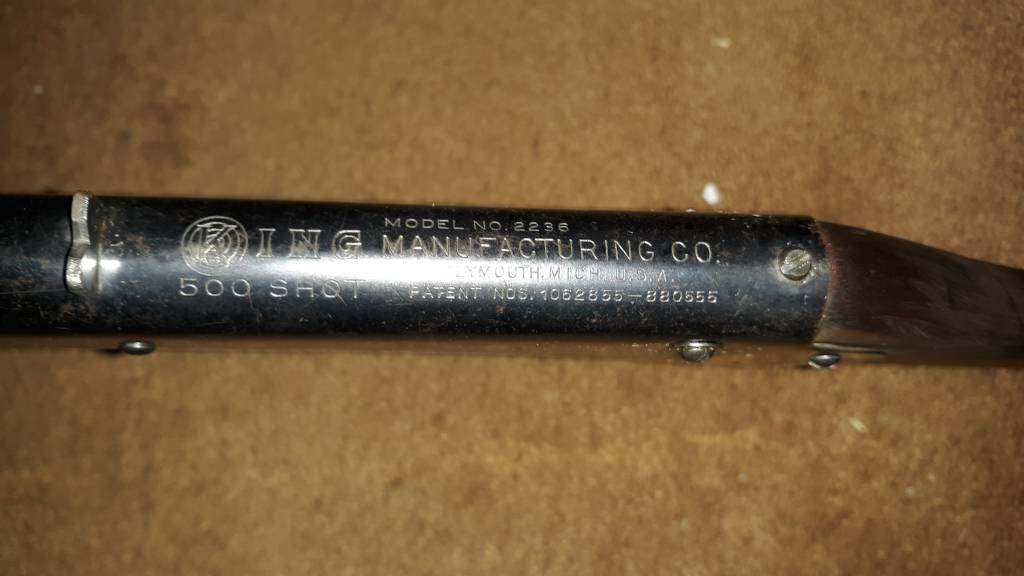

Markham King 2236

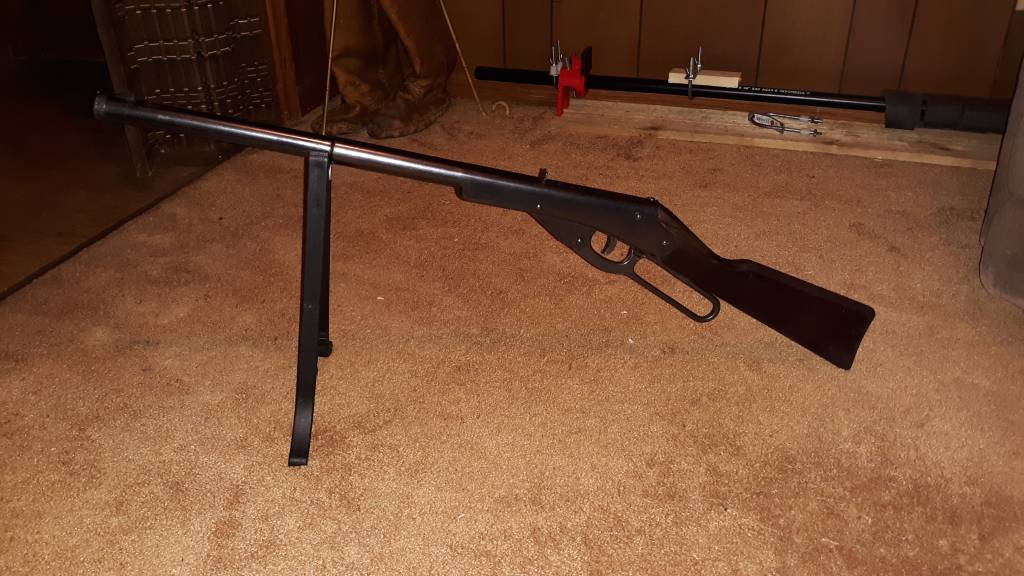

Here is a Markham King 2236 I have just restored. A video will follow at some time in the near future.

The Daisy no. 101 and 102 represent the “Depression Era” BB guns that were first produced in 1933. They really were just the Markham King 2233 gun rebranded as a Daisy no. 101 model 33. The 500 shot no.102 was also released in 1933. Both guns were reissued with longer barrels in 1936 and were subsequently named “Model 36”. The shot tubes on the later 1936 models were removable unlike the no.102 Model 33 which was peened shut. In 1916, Daisy executives bought controlling interest in Markham Air Rifle Company. During the Great Depression, King Air Rifle Company suffered huge losses, while Daisy experienced a thirty percent reduction in sales. In 1931, the King plant was closed and from then on, all King guns were manufactured at the Daisy plant., Although King guns had always been as good as Daisy's, most boys preferred to own a Daisy. The Red Ryder had not yet come into design until 1938


Hi,

I just purchased one of these and would appreciate some guidance on caring for it. It’s a single shot 2136 is great condition. How often and where exactly should I apply oil?

Also, how is the single shot loaded and fired?

Thanks!

Doug

The seals are leather and probably dry if it has been sitting. Leather loves oil. Rremove the shot tube/barrel. Put five or six drops of 20 or 30 weight non detergent motor oil down the barrel housing. Put the tube back in. Stand it in the corner overnight. A drop or two of the same every few hundred shots. Or if it sits for a extended period of time.

Hi,

I just purchased one of these and would appreciate some guidance on caring for it. It’s a single shot 2136 is great condition. How often and where exactly should I apply oil?

Also, how is the single shot loaded and fired?

Thanks!

Doug

The single shot Markham and Daisy with a non removable tube put the oil directly down the shot tube.
