Tuning Looky what I made... 3D printing madness today....

[KatoKevin454]

I was looking at my HW100's and thought, Hmm they need something,

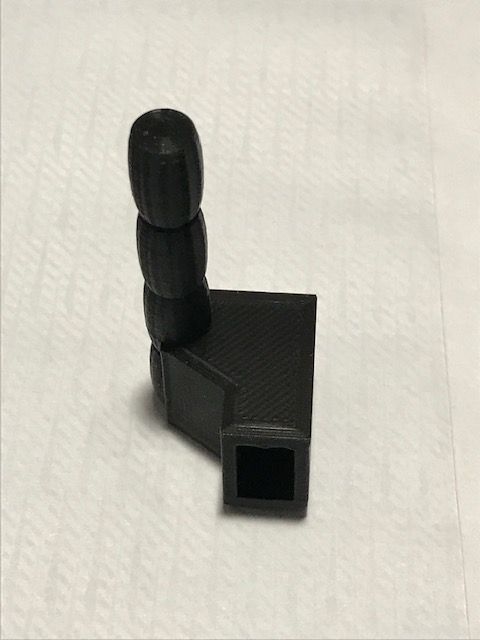

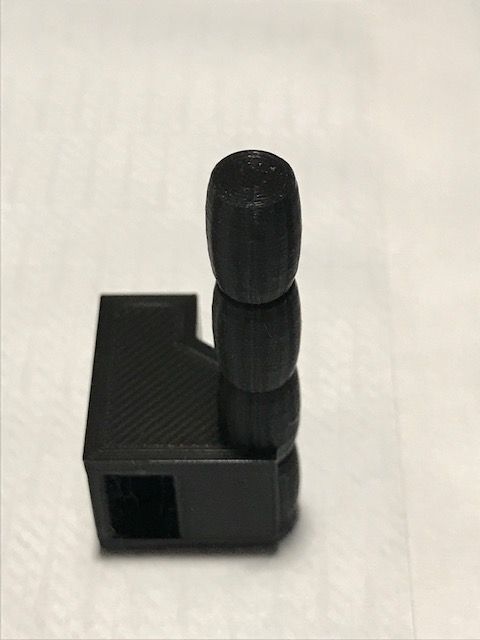

So I got on Tinkercad and made this.



[KatoKevin454]

added a 3mm Carbon rod into the Handle for added support



[KatoKevin454]

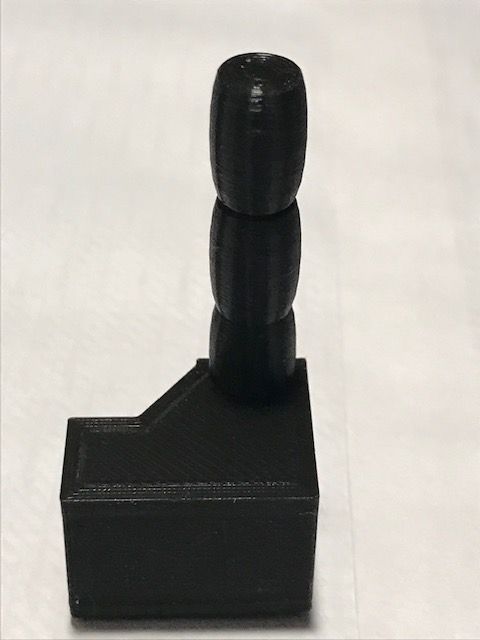

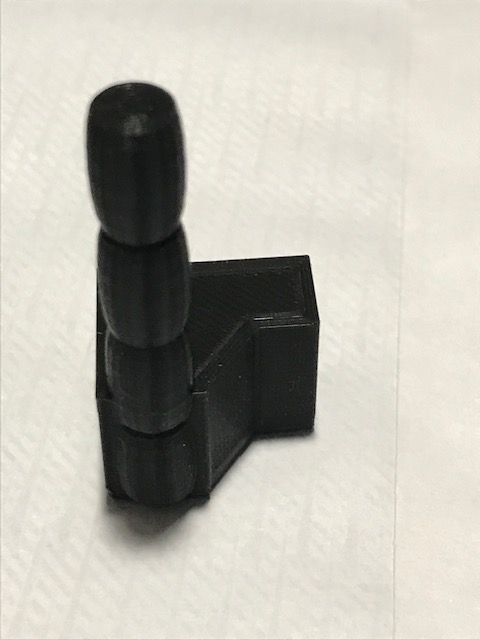

Sanded corners give it that worn in look......



[OldSpook]

Nice work.



[MDI]

Nice



[kayaker]

Nice work just wish I had those skills



[FLgunner]

Me too! I can make boxes and circles, but that's about it! That's a really nice design!



[rugerguy211]

Please pardon my ignorance, but what is it?



[KatoKevin454]

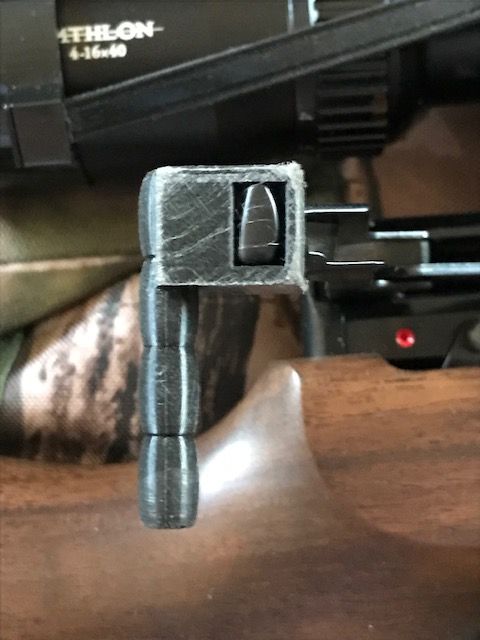

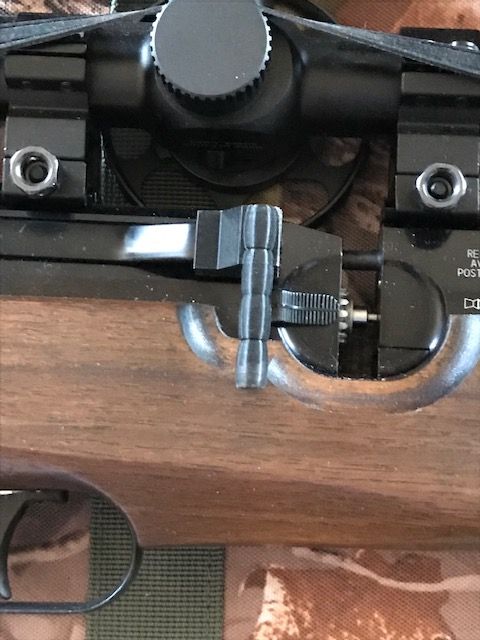

It's a Biathlon side lever handle for a Weihrauch HW100, it probably will fit others too with a little modification

here's the Tinkercad Link, this is the stl. file so it can be modified, download and send to slicer for printing

https://www.tinkercad.com/things/kQeISqv8aiD-hw100-biathlon-lever-handle-ver-22



[KatoKevin454]

Me too! I can make boxes and circles, but that's about it! That's a really nice design!

Paulie, are you using Tinkercad? it's easy to use, takes a little training to know how to combine and align things, you could watch a Youtube video on how to use Tinkercad

https://youtu.be/zjTE48Ab9J0
