Light weight sturdy bench

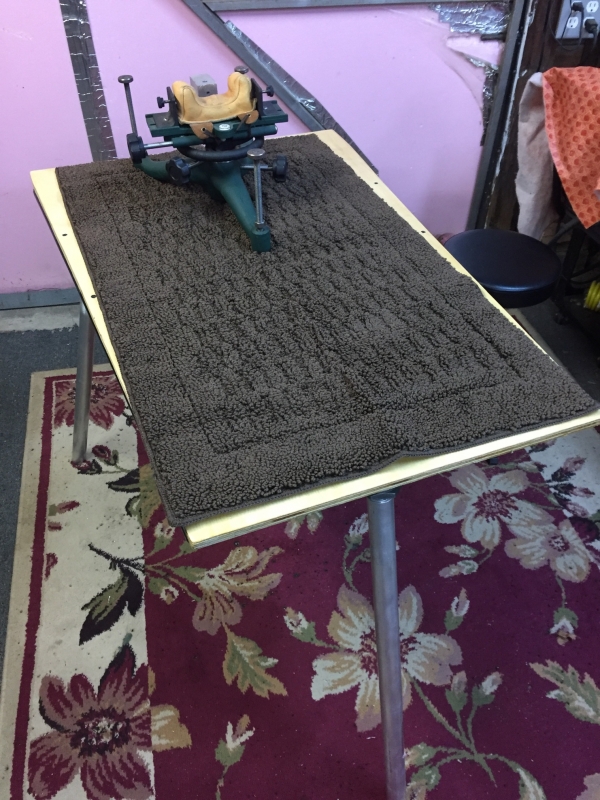

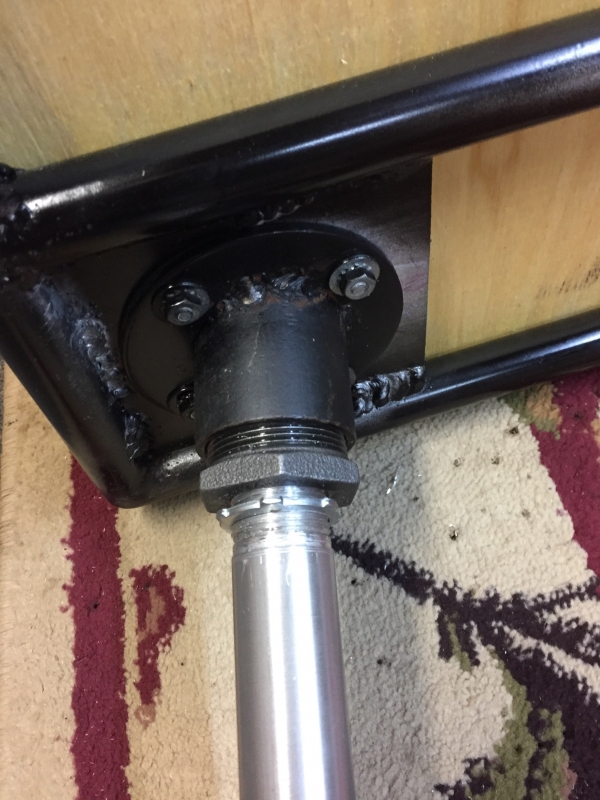

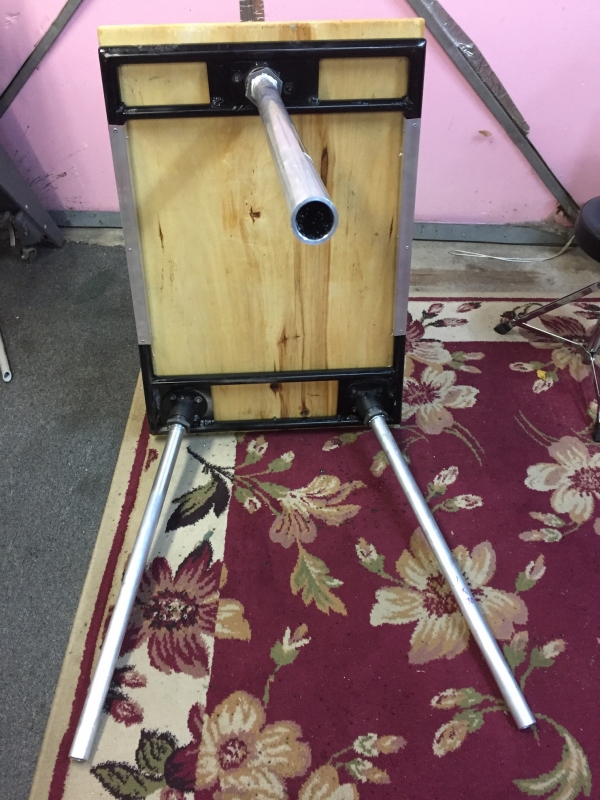

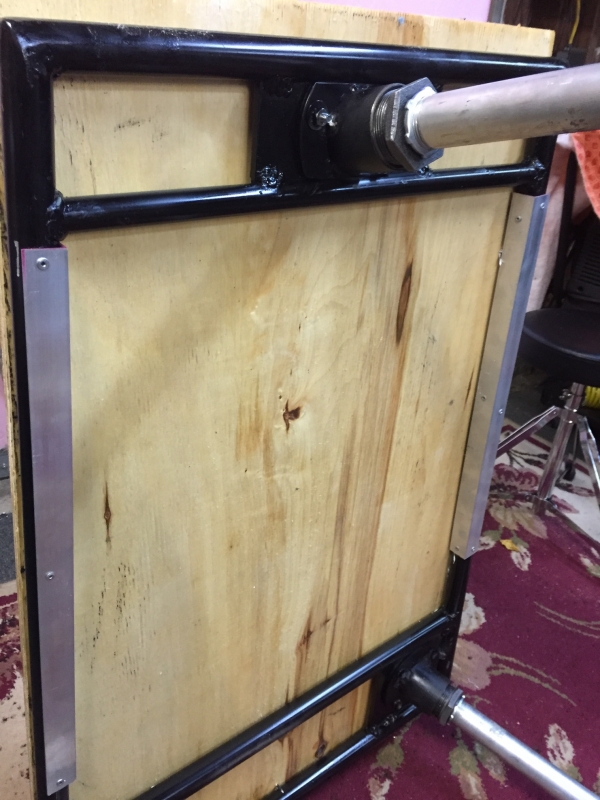

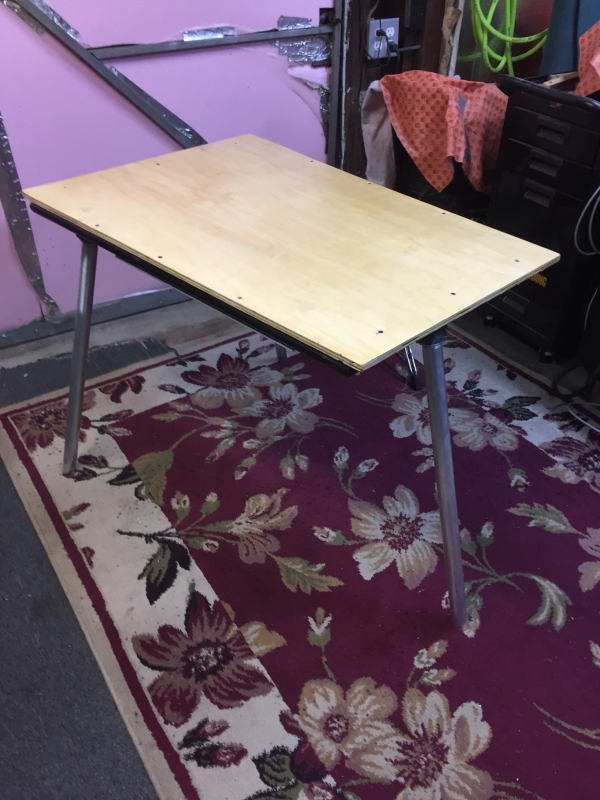

i got rid of my old shooting bench, it was plenty sturdy, but really heavy to pick up and move...I made this one using aluminum conduit, 2 sticks of 3/4” and one stick of 1” all are 10 feet long...I welded up a basic frame, 36” long, 24” at the back, and 30 inches at the front...I reused the old angled couplings (18Degree angle) and bolted it to the frame.my old legs were 1-1/2 aluminum conduit so I bushed the couplings down to 1” and screwed the legs in..adding a 1/2” plywood top finished it.its light, very sturdy, and the 3 legs make it very stable everywhere..
1539527286_17631408205bc352764498f0.73260496_FE8063A2-98F3-4224-BE8F-59EDEFBDB938.jpeg
1539527286_11250245405bc35276a28309.54986203_02613619-D091-40C8-8507-C101EDEA3FB5.jpeg
1539527287_12056111685bc35277060e96.49490607_C62B6906-0607-4601-BE6B-5436CF894957.jpeg
1539527287_13341890925bc35277c337c6.74843745_D2DEA78C-0BBE-403D-AB18-FF07D073080F.jpeg
Ihave about 75.00 in it.i also haven’t figured out how to make the legs foldable without giving up the sturdiness...Mike
