Crosman Let's show off our Crosman pistol builds!

[airgunner53]

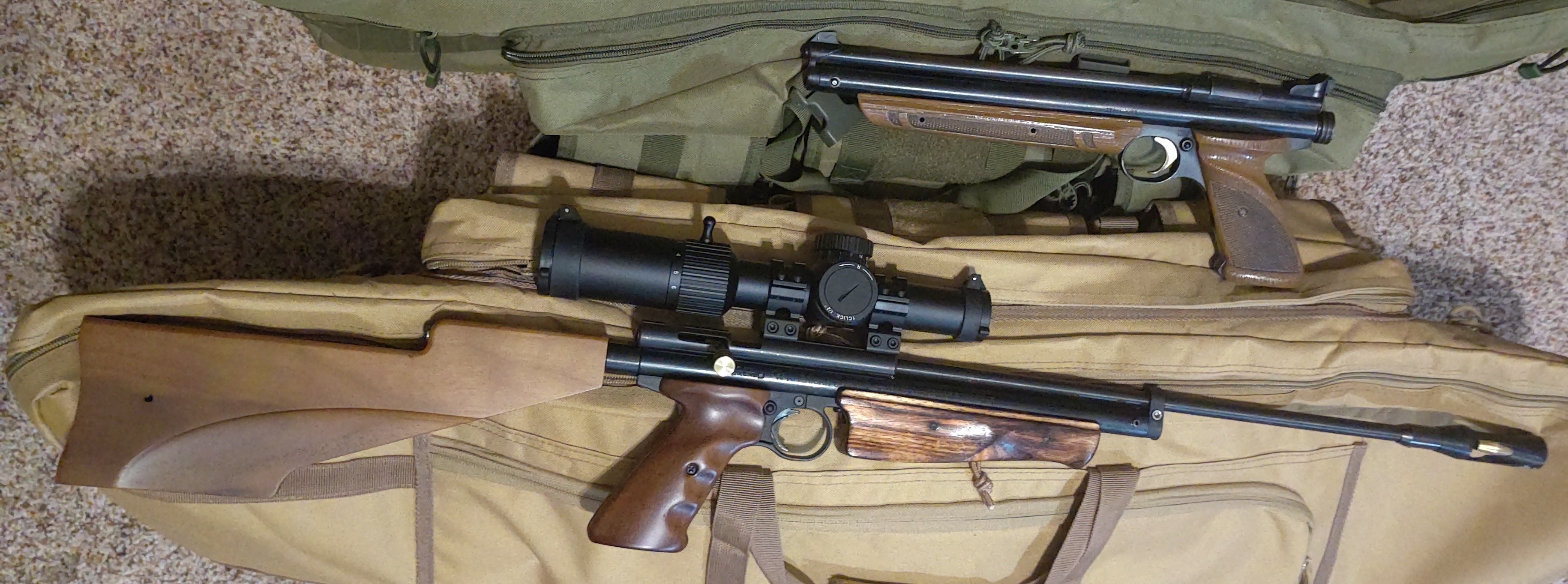

my 3 toned 1322 next to my unmolested 40 year old 1377

View attachment 408519

Nice 1322 build, how does that stock feel?



[Bngen3]

Nice 1322 build, how does that stock feel?

Stock is solid, light weight and I feel it shoulders better than the plastic one.



[Perle]

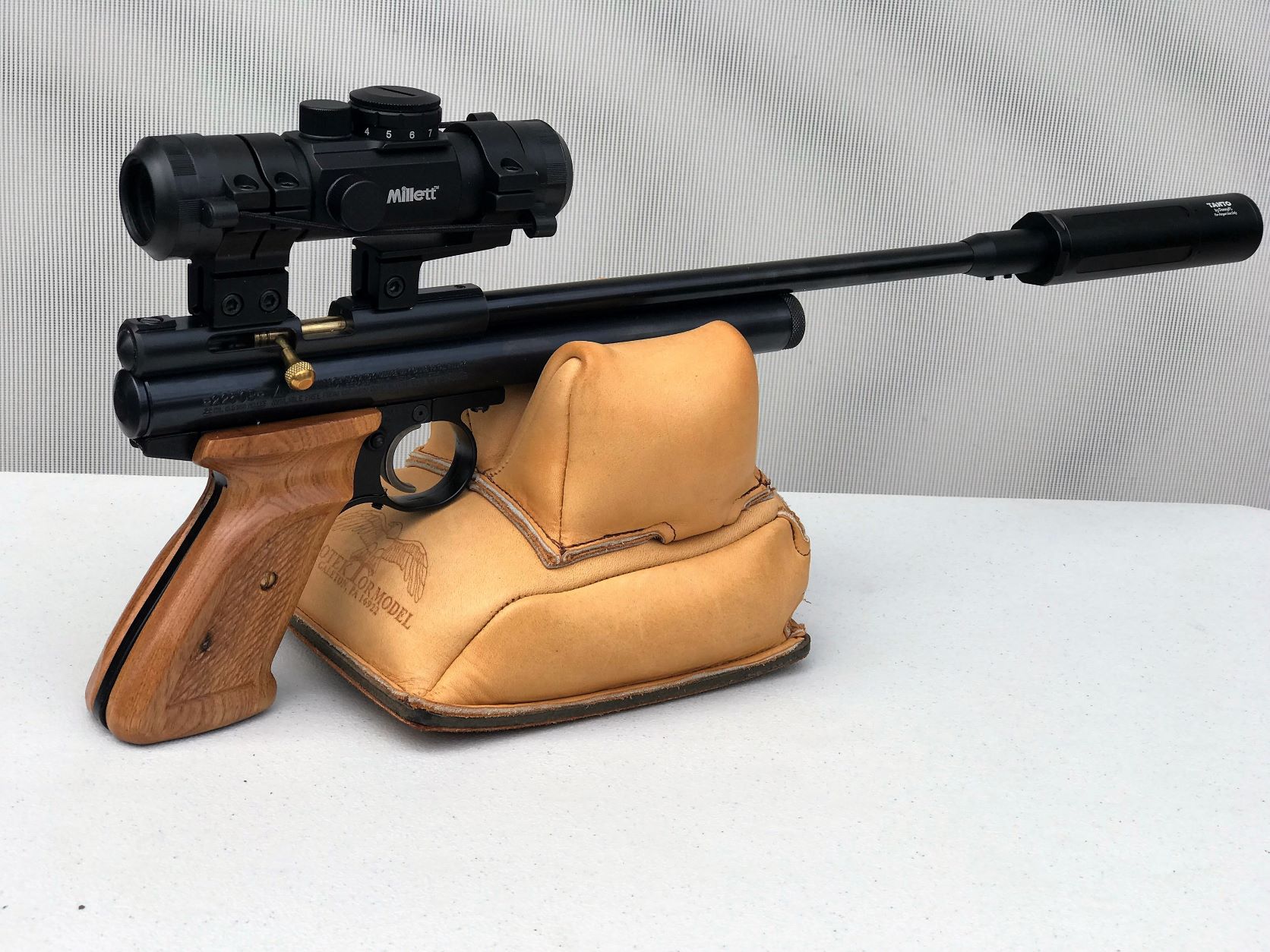

Mountain Air custom 25 caliber.

View attachment 405868

One of Roy’s. Nice



[Bramezy]

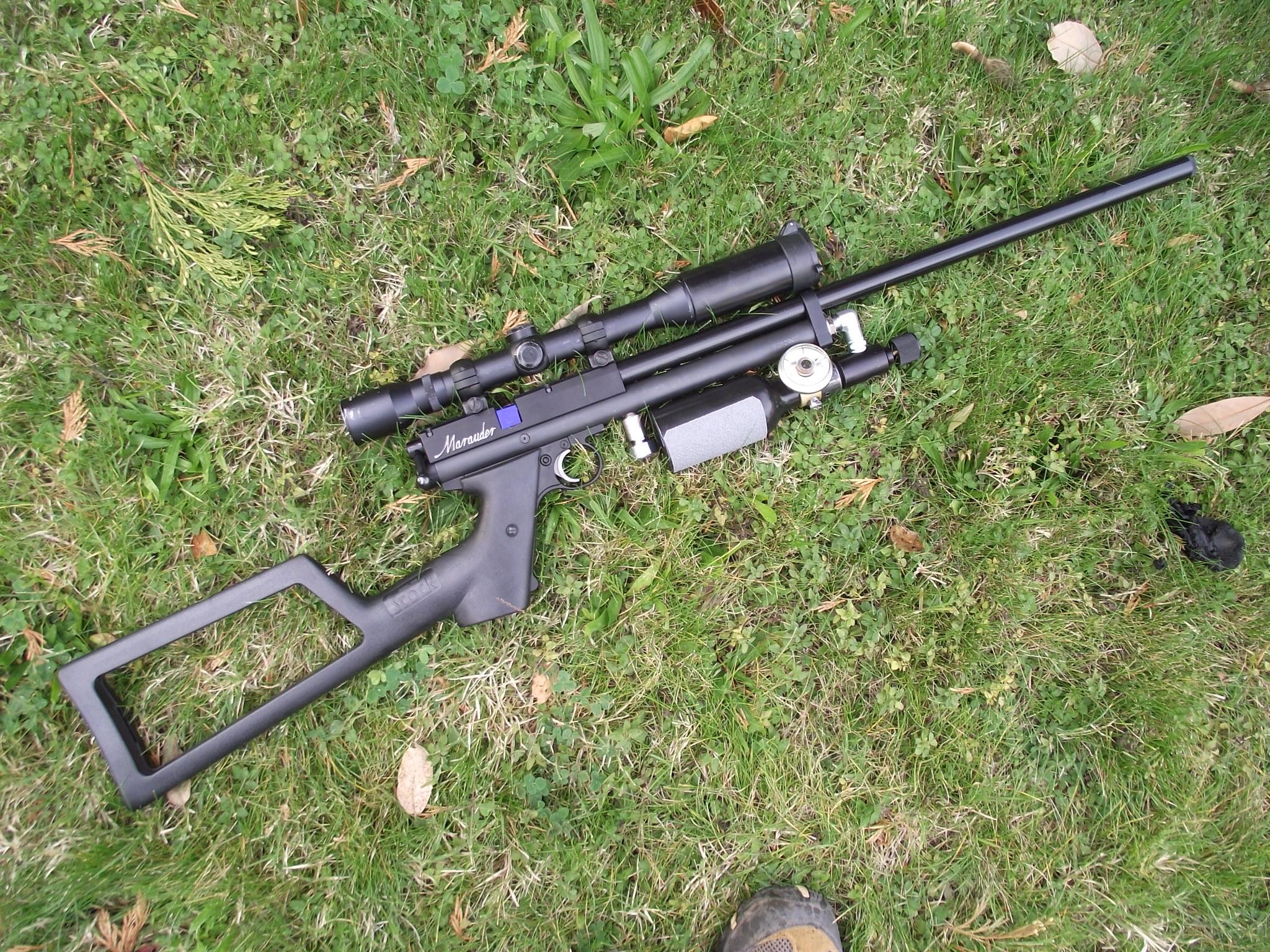

Put this one together a few years ago ...
1701 air tube, P-rod breech, 16" crosman barrel, P-rod trigger group, Shorty @ 9cuin bottle sitting backwards feeds air into tubes end. Ninja reg having entire air tube become the plenum. Some valve mods and light hammer round it out. In Cruise tune @ 20 fpe & 35 shots. Fun little bugger !!

View attachment 362403

Is that one of those old school mini co2 bottles?



[Motorhead]

Is that one of those old school mini co2 bottles?

No idea of origins .. but it is threaded 5/8" being paintball or PCP use. It is marked as 3000WP which Would Not make it a Co2 cylinder.



[Bngen3]

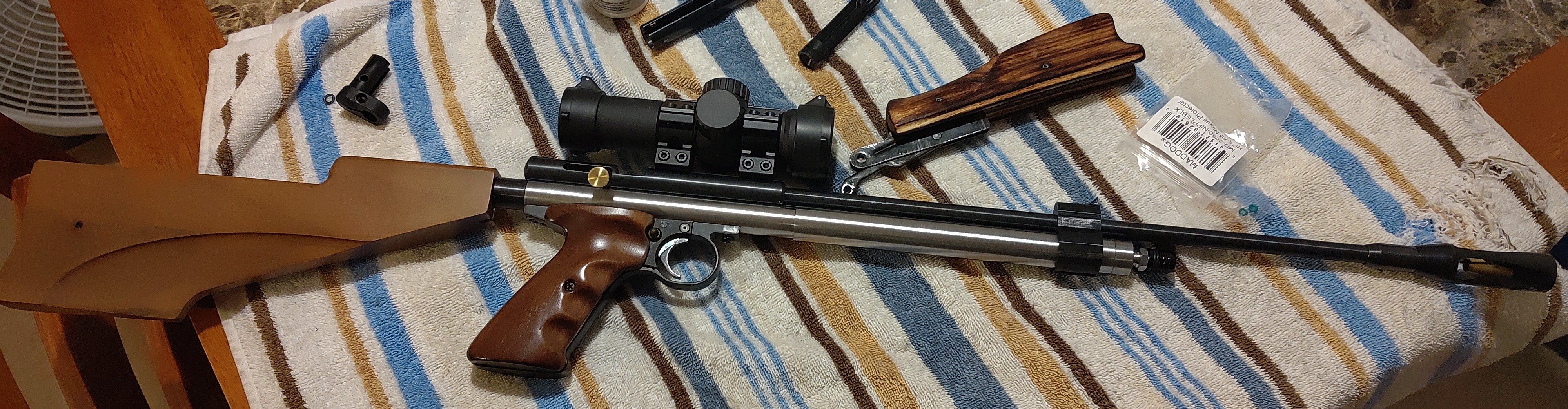

Just did a 1322 PCP conversion, now I need to figure out forearm for it. anyone have any ideas ???



[ray1377]

A marauder pistol forearm would look good on it.



[Mike_Lenardon]

I'd like to know who's conversion kit you used. And also the energy results, how many shots you're getting. You know just general information, I've been thinking about doing one for a while now.
Thanks



[Bngen3]

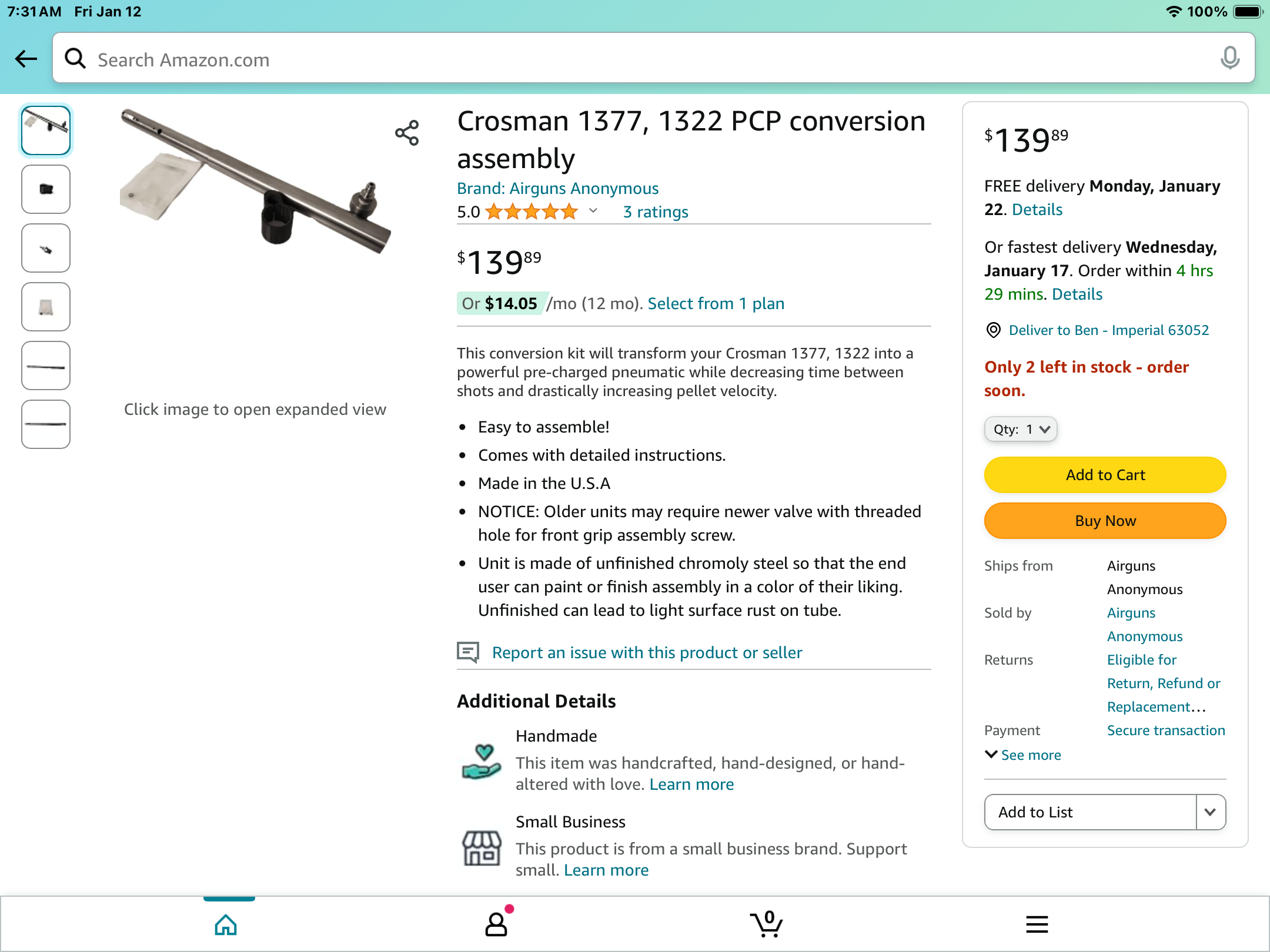

Kit I got is attached, easy enough mod. I don’t have a chrono and not sure when I’ll be able to test shot count as winter Is gonna hit my neck of the woods hard this weekend. Noticed my hammer spring was kinked so I may replace that yet as well. 2k psi fill and no gauge.



[Bngen3]

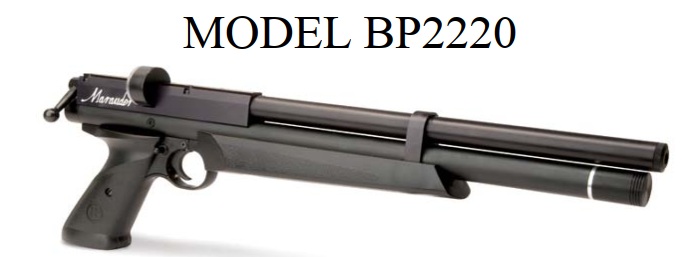

A marauder pistol forearm would look good on it.




View attachment 424447

I have a barrel band for a 2240 on the way and I’ll see if buck rails fore arm will work



[Mike_Lenardon]

Kit I got is attached, easy enough mod. I don’t have a chrono and not sure when I’ll be able to test shot count as winter Is gonna hit my neck of the woods hard this weekend. Noticed my hammer spring was kinked so I may replace that yet as well. 2k psi fill and no gauge.

View attachment 424501

Thanks Ben. Much appreciated



[Perle]

Does it actually need one.

I run my without and I like it



[sigamander]



[sigamander]

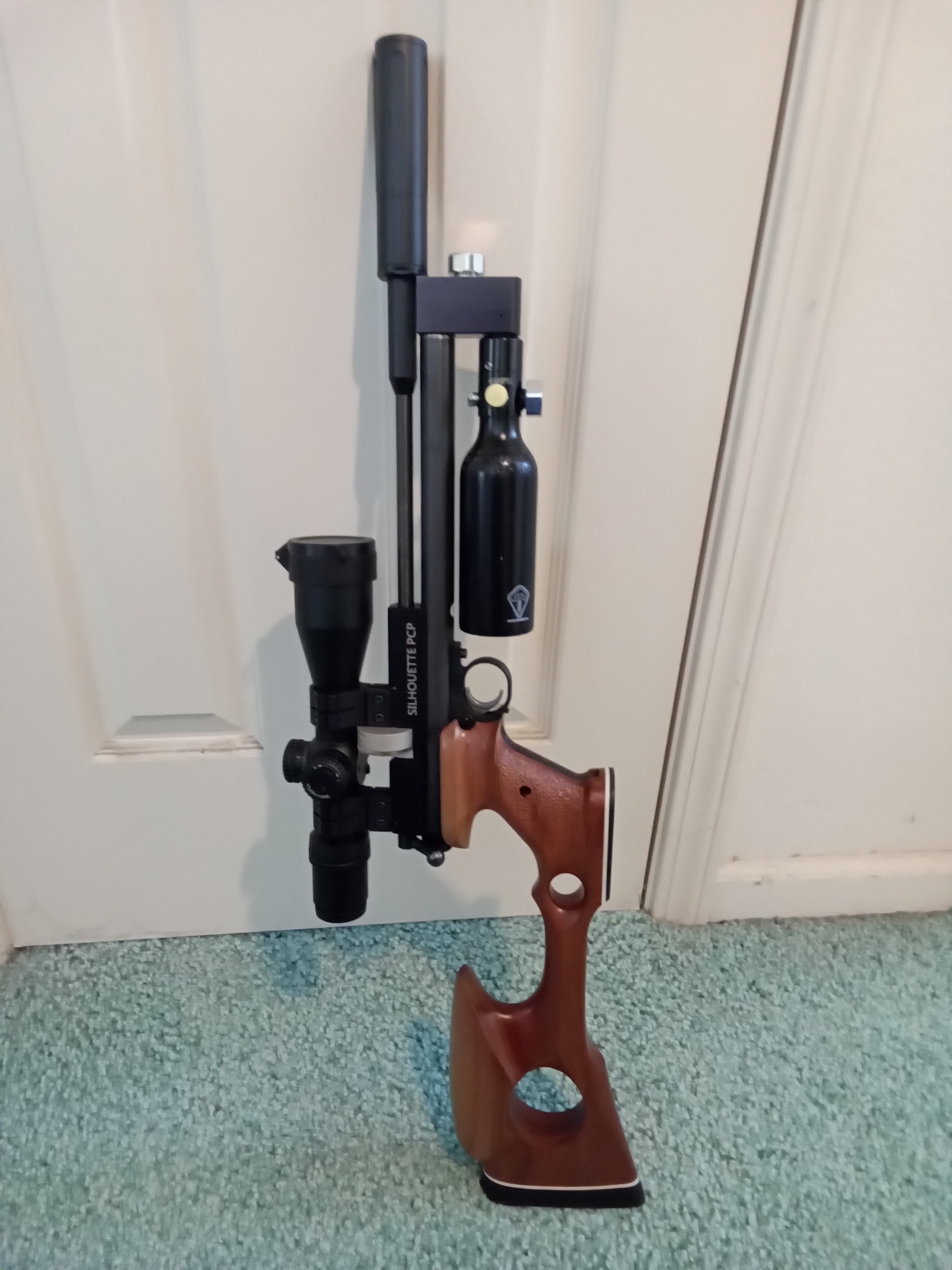

Little 177 bottle build



[ray1377]

View attachment 424603

Dude, how about some info on that tank block. That looks really nice and neat.
Ray



[sigamander]

It's a magnum air power large tankblock, machined backwards with 1/2 nf stainless steel insert to connect from block to machined fill probe.



[Perle]

It's a magnum air power large tankblock, machined backwards with 1/2 nf stainless steel insert to connect from block to machined fill probe.

Wow that’s slick.
That’s one good looking setup



[airgunner53]

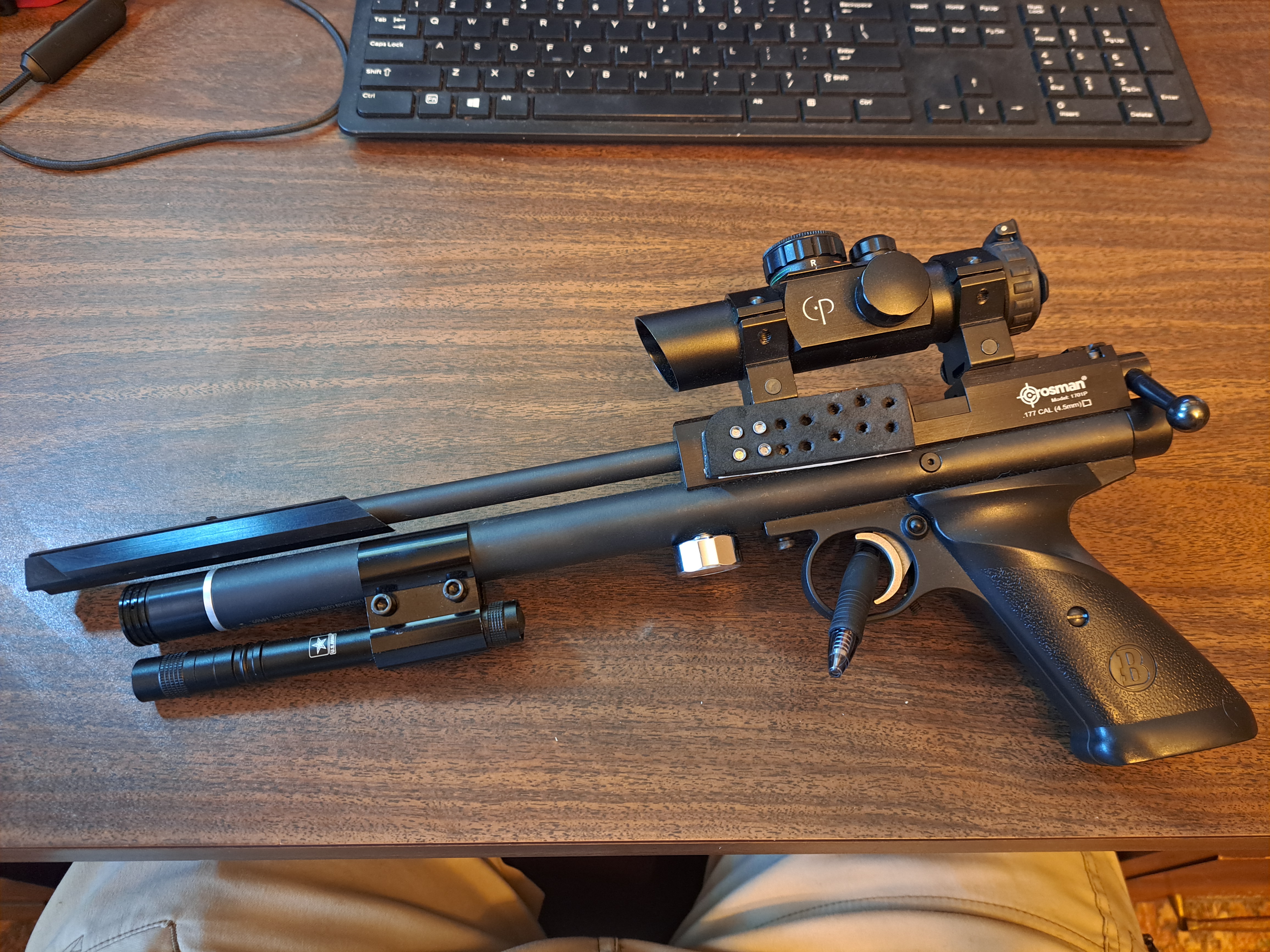

One of my favorite builds. Just slapped some extras on it.



[Bngen3]

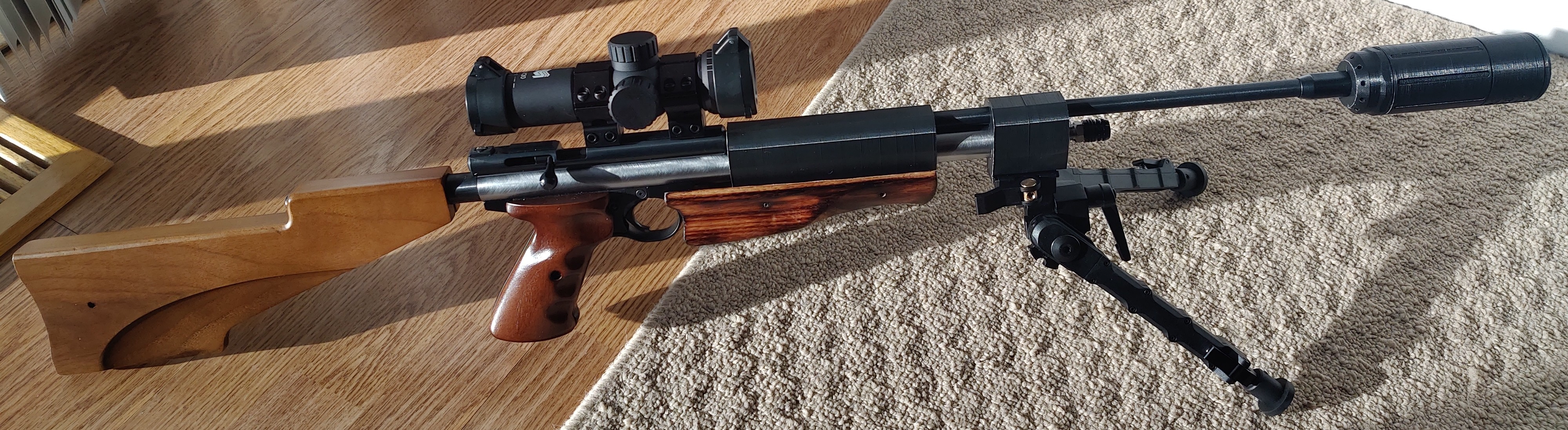

Played around with different designs all week while I waited for the buck rail arm. Also figured out why my hammer spring was kinked as I had too long of a breech in screw but not till after I broke off my bolt handle when I replaced the spring with a new one. So ended up having to disassemble entire gun to pop out bolt, drill it out and then found the original handle. Well anyways, all back together now with new hammer spring and decided against the buck-rail arm as it's just too small and printed a rail so I could mount my wood forearm I had and barrel band with pic rail.



[threesuns]

Some beautiful builds here.

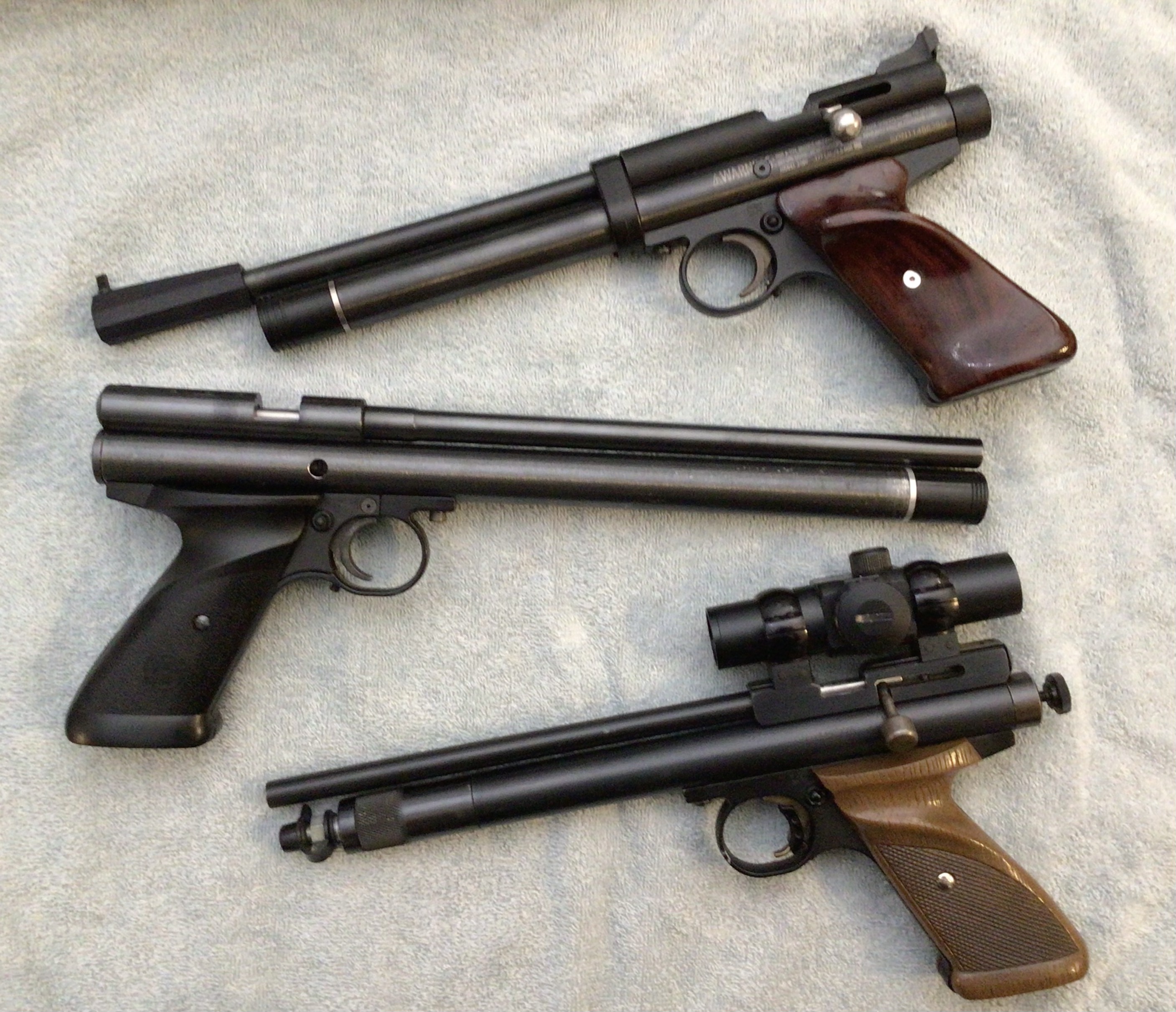

On the bottom is an older 1740 build, using DAQ breech, DAQ bulk adapter and SSP250 barrel, when I was cutting my pcp teeth. Tuned for 10gr pellets at 600fps.
On top - 2400 tube converted to pcp. Shortened Baker lefty breech. 10” LW Barrel. RB grips. Prod trigger, end cap, and hammer. 1701 front site. My valve mods, getting 38 shots at 450fps. I know I coulda just bought a 1701, but why?
In the middle a DAQ 25 cal in progress.
