Lab Jack Shooting Aide

[ThomasT]

Hello everyone,

For all you fellows and gals that use a Lab Jack as a shooting aide in one way or another, here is a modification that has worked good for me. I have found that the smooth stainless top of the Lab Jack is slick and allows my Pistol grip to slide around a bit too easy. In the past I have used a shop cloth on Top but it was also slippery.

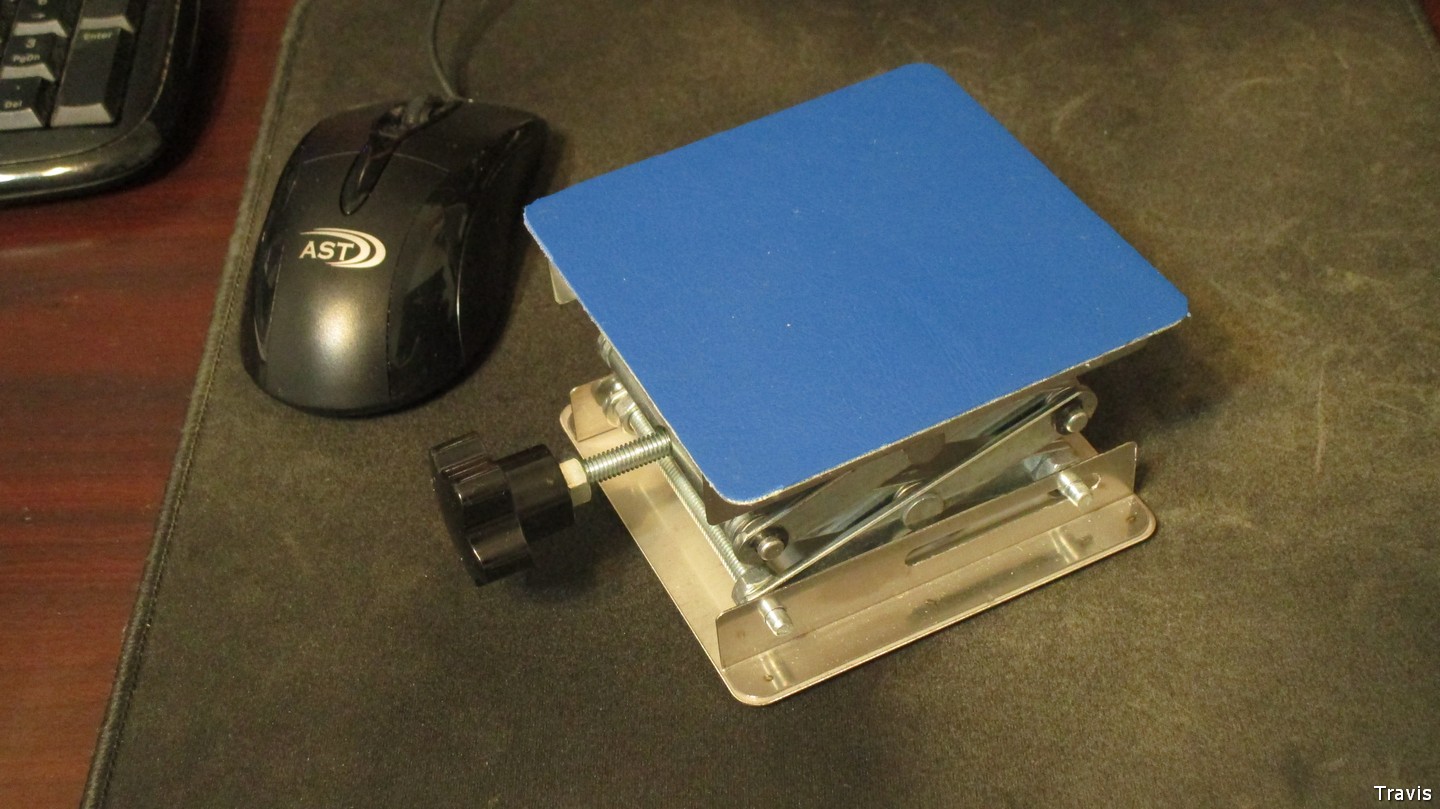

So here is my modification, I first cleaned the Top of the Lab Jack with some alcohol. Then I cut an oversized piece of some scrap Naugahyde material a bit larger than the Top. Next I applied a coat of Welwood Contact Cement to the Top and the underside of the Naugahyde and let it set up. Then I carefully placed the Naugahyde on to the Top, turned it over and added a heavy weigh and let it set up overnight. Then I used a razor blade to trim off the excess material to conform to the shape of the Top

Now I have a non-slip surface for the Pistol grip to rest on and it has really improved my accuracy with Pistol shooting. Hope you find this helpful.

ThomasT



[SacramentoSam]

Hello everyone,

For all you fellows and gals that use a Lab Jack as a shooting aide in one way or another, here is a modification that has worked good for me. I have found that the smooth stainless top of the Lab Jack is slick and allows my Pistol grip to slide around a bit too easy. In the past I have used a shop cloth on Top but it was also slippery.

So here is my modification, I first cleaned the Top of the Lab Jack with some alcohol. Then I cut an oversized piece of some scrap Naugahyde material a bit larger than the Top. Next I applied a coat of Welwood Contact Cement to the Top and the underside of the Naugahyde and let it set up. Then I carefully placed the Naugahyde on to the Top, turned it over and added a heavy weigh and let it set up overnight. Then I used a razor blade to trim off the excess material to conform to the shape of the Top

Now I have a non-slip surface for the Pistol grip to rest on and it has really improved my accuracy with Pistol shooting. Hope you find this helpful.

ThomasT

View attachment 324516View attachment 324517View attachment 324518

Great idea! I haven't heard vinyl called Naugahyde in a looooong time!



[ThomasT]

Great idea! I haven't heard vinyl called Naugahyde in a looooong time!

Hello @SacramentoSam

Well that is what we called it back in the Mesozoic period when I was a teenager .....

Ole man ThomasT



[rc4fun]

Good idea. How about skipping the glue and if you need to buy the naugahyde why not get some grip tape for guns, for tools, ect



[beerthief]

good idea , maybe a modified / thinner "rabbit ear's " rear bag for rifle shooting



[rc4fun]

good idea , maybe a modified / thinner "rabbit ear's " rear bag for rifle shooting

You could use sticky backed Velcro and use a curved needle to sew the Velcro to the bottom of the bag. Without sewing it probably wouldn't stick very long. Use the fuzzy side on the bag.



[ThomasT]

Good idea. How about skipping the glue and if you need to buy the naugahyde why not get some grip tape for guns, for tools, ect

Hello @rc4fun

I have three Benchrest and I used this same Naughahyde on all three.

ThomasT



[Scotty1]

Naugahyde is increasingly hard to find, since the last known herd of wild nauga was decimated by deforestation…



[SAZ]

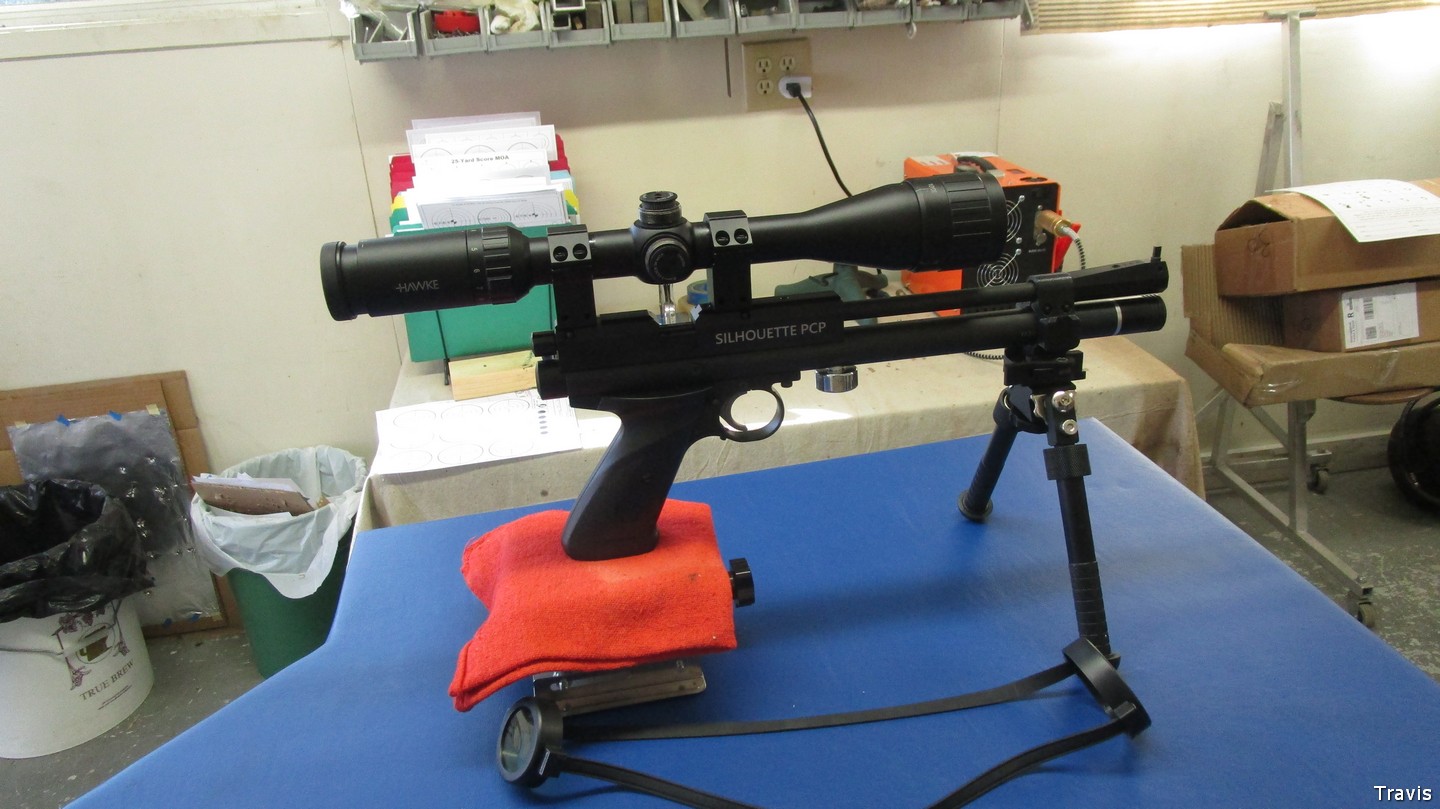

Who makes the barrel clamp / bipod mount you're using?



[ThomasT]

Naugahyde is increasingly hard to find, since the last known herd of wild nauga was decimated by deforestation…

Hello @Scotty1

Yes, I remember when that happened I was just a youngster back then . However if you remember the Blue Naugas were very rare and that is why I love them so much

Boy, do we have way too much free time on our hands , I need to shoot more.

ThomasT



[ThomasT]

Who makes the barrel clamp / bipod mount you're using?

Hello @SAZ

The Barrel Band is from Buck Rail for the Diana Bandit.
The Bi-Pod is an AT-1 (?) , cannot find my paper work so not sure of the Brand but I have another one and it is labeled AT-1 and I found it on ebay.

ThomasT



[rsfrid]

Hello everyone,

For all you fellows and gals that use a Lab Jack as a shooting aide in one way or another, here is a modification that has worked good for me. I have found that the smooth stainless top of the Lab Jack is slick and allows my Pistol grip to slide around a bit too easy. In the past I have used a shop cloth on Top but it was also slippery.

So here is my modification, I first cleaned the Top of the Lab Jack with some alcohol. Then I cut an oversized piece of some scrap Naugahyde material a bit larger than the Top. Next I applied a coat of Welwood Contact Cement to the Top and the underside of the Naugahyde and let it set up. Then I carefully placed the Naugahyde on to the Top, turned it over and added a heavy weigh and let it set up overnight. Then I used a razor blade to trim off the excess material to conform to the shape of the Top

Now I have a non-slip surface for the Pistol grip to rest on and it has really improved my accuracy with Pistol shooting. Hope you find this helpful.

ThomasT

View attachment 324516View attachment 324517View attachment 324518

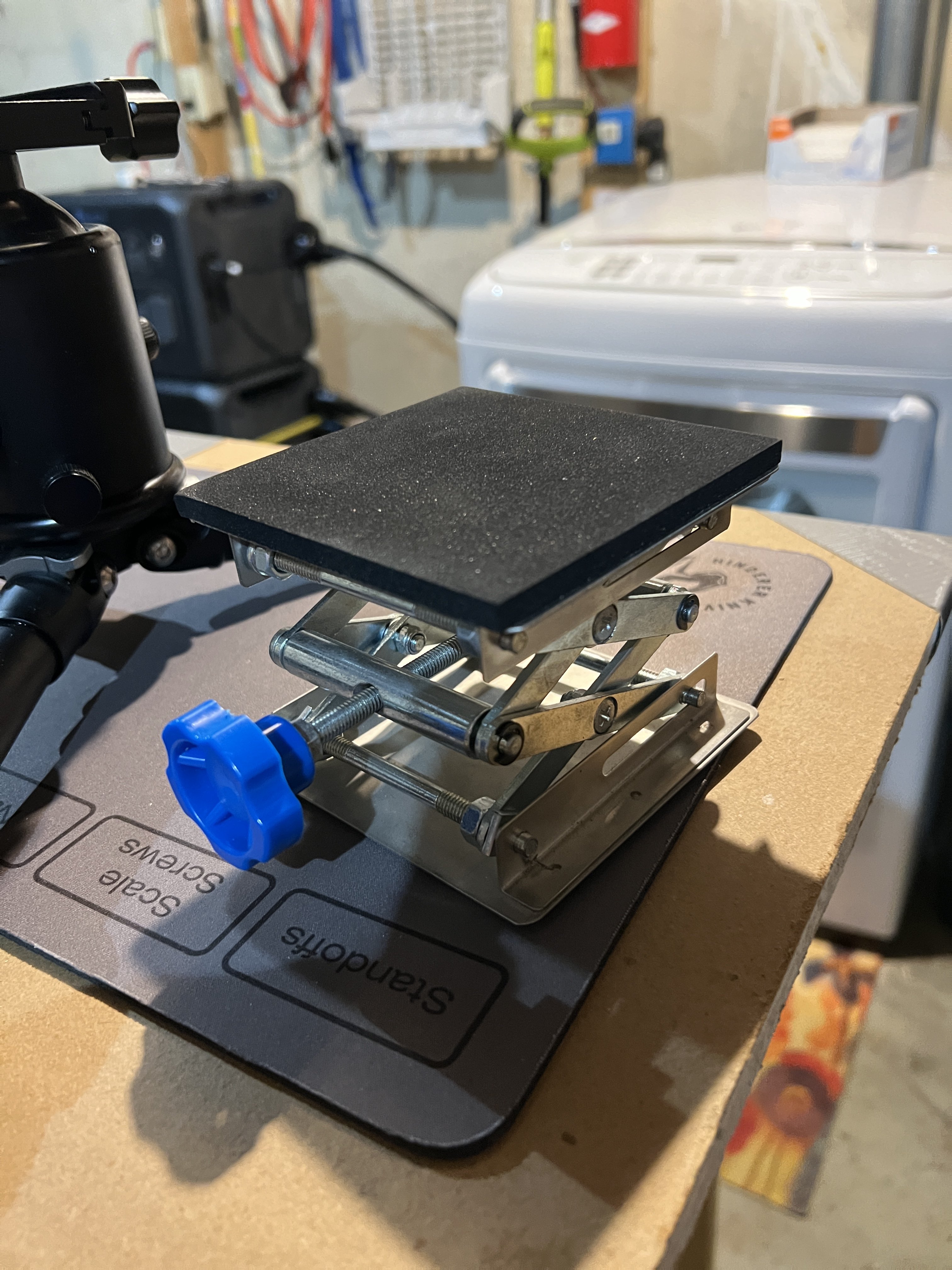

I added 1/4” hard foam to mine.



[SAZ]

Thanks for the info ThomasT !
Does it clamp on just the air tank tube and then surrounds the barrel without actually touching the barrel, or, does it physically clamp onto both ?
The picture's slightly blurred on my computer and I can't really tell.
If it clamps onto the barrel as well was there any change in your POI when you are using it with the bipod or on a rest?



[ThomasT]

I added 1/4” hard foam to mine.

View attachment 324590

Hello @rsfrid

That is super cool, probably holds better than mine.

ThomasT



[ThomasT]

Thanks for the info ThomasT !
Does it clamp on just the air tank tube and then surrounds the barrel without actually touching the barrel, or, does it physically clamp onto both ?
The picture's slightly blurred on my computer and I can't really tell.
If it clamps onto the barrel as well was there any change in your POI when you are using it with the bipod or on a rest?

Hello @SAZ

Yes it just clamps around the air cylinder so no problem with the barrel or POI

ThomasT



[SAZ]

Thank You!



[FLbushman]

Hello everyone,

For all you fellows and gals that use a Lab Jack as a shooting aide in one way or another, here is a modification that has worked good for me. I have found that the smooth stainless top of the Lab Jack is slick and allows my Pistol grip to slide around a bit too easy. In the past I have used a shop cloth on Top but it was also slippery.

So here is my modification, I first cleaned the Top of the Lab Jack with some alcohol. Then I cut an oversized piece of some scrap Naugahyde material a bit larger than the Top. Next I applied a coat of Welwood Contact Cement to the Top and the underside of the Naugahyde and let it set up. Then I carefully placed the Naugahyde on to the Top, turned it over and added a heavy weigh and let it set up overnight. Then I used a razor blade to trim off the excess material to conform to the shape of the Top

Now I have a non-slip surface for the Pistol grip to rest on and it has really improved my accuracy with Pistol shooting. Hope you find this helpful.

ThomasT

View attachment 324516View attachment 324517View attachment 324518

Looks like the one I use with my Prod from the kitchen table out to the back yard. They work great.
