RAW Rapid In line external plenum for RAW HM1000X pics included

[mubhaur]

A US based user asked me to make an inline plenum for his longer stock RAW HM1000X. But I didn't have complete specs of his after market stock.

Whatever was provided to me, I made the plenum according to those specs.

He got the chance now to install it but found that there are some differences in actual specs of stock due to which the initially sent plenum is useless.

Now I plan to make one more as now I have got better specs.

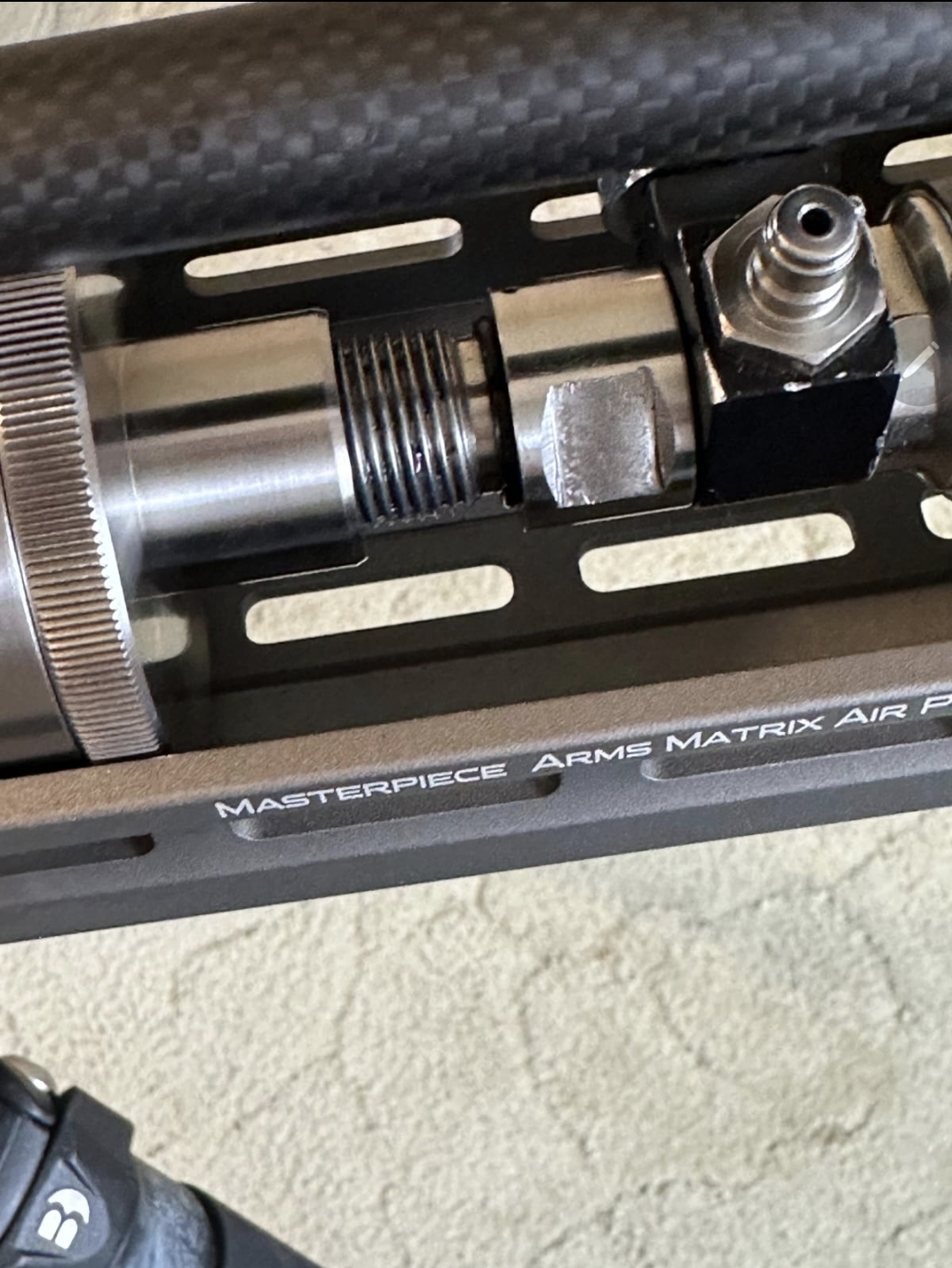

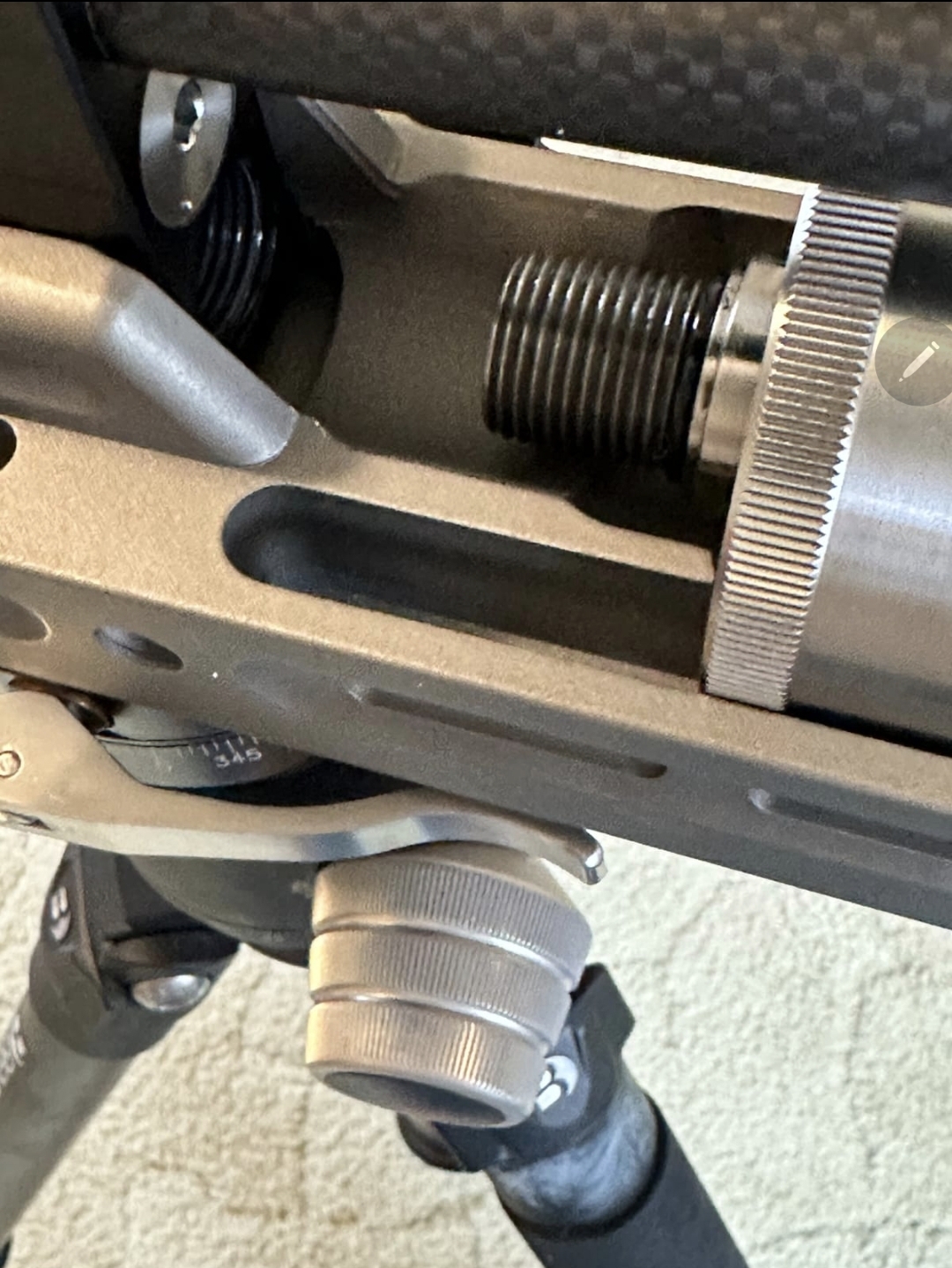

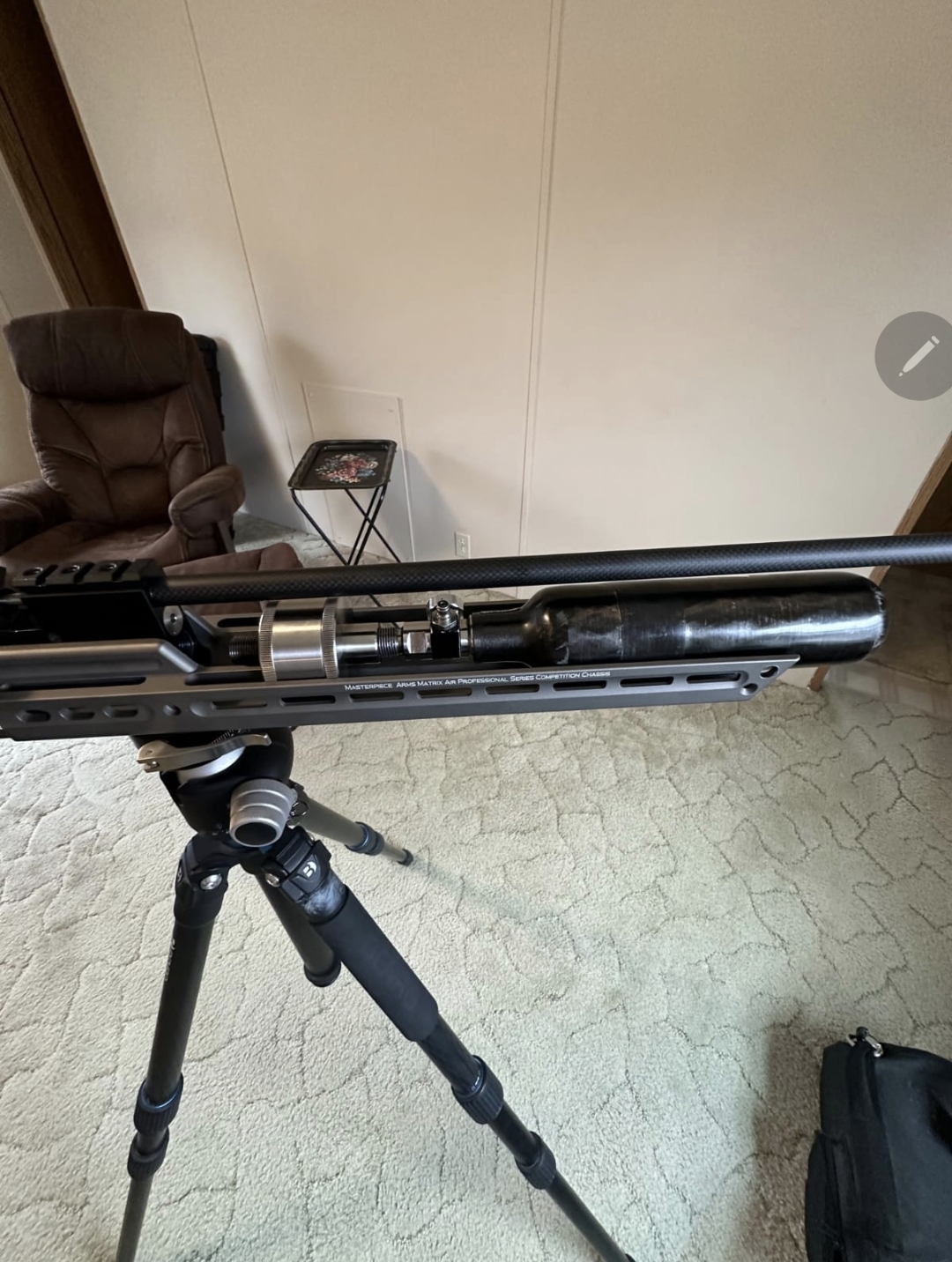

Pics are hereunder.



[manabeknives]

Is there any difference in having the plenum in-line vs. the other method you used in accuracy or efficiency?
Looks like a heathy amount of volume
You do come up with some VERY interesting mods and i enjoy viewing them

Mike



[mubhaur]

Is there any difference in having the plenum in-line vs. the other method you used in accuracy or efficiency?
Looks like a heathy amount of volume
You do come up with some VERY interesting mods and i enjoy viewing them

Mike

In fact I understand that Theoben/RAW is a great platform. For some unknown reasons the manufacturers of these brands did not introduce larger plenums, better valve etc.

Initially I did all this to my own RAW guns and posted here on AGN.

Some of the members of AGN advised me to make videos and start a YouTube channel for sharing what I do.

Then I started my YouTube channel and I post only technical stuff there.

I couldn't compare the difference between a hanging plenum and an inline plenum but I understand that straight throw of air may become more efficient.

With some modifications RAW becomes even a better gun.

Bhaur



[bucketboy]

A few years ago there was a Rapid 7 owners club member from Cyprus who fitted a second buddy bottle to the rear of his block that had a banjo connection to a stainless tube that sent reduced pressure air to the front buddy bottle via another banjo. The front buddy bottle became a huge 400cc plenum.

Bb
