Impact Valve Seat

[AirSupply]

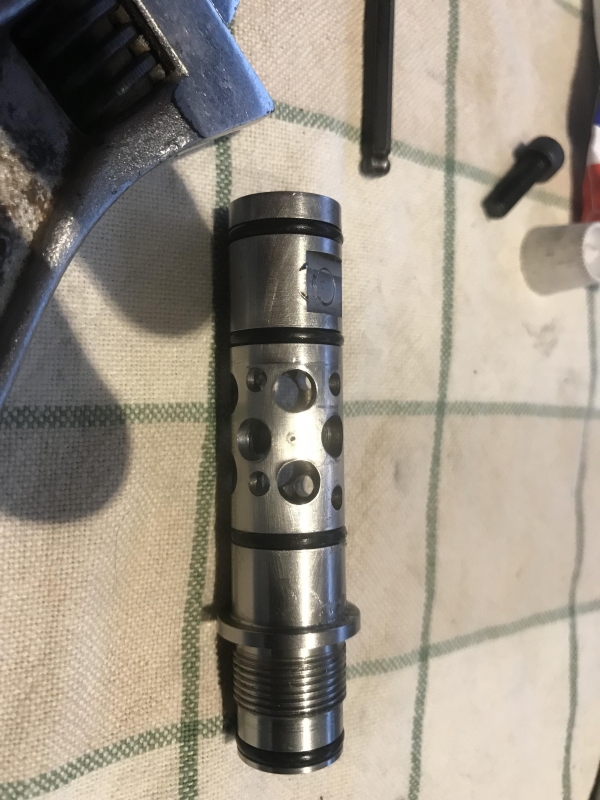

The one I drilled out worked just as well as the fx milled valve housing. I did change to the factory housing and got the same results. If your thinking of adding an additional plenum the Fx milled housing didn’t have the slot in line with the gauge hole.



[Saltlake58]

You folks with metal working equipment have no idea how jealous I am. Being able to modify parts as you wish is a real asset. Keep at it and let us know how it goes



[heavy-impact]

Can you point me to a picture of that?

Rusty

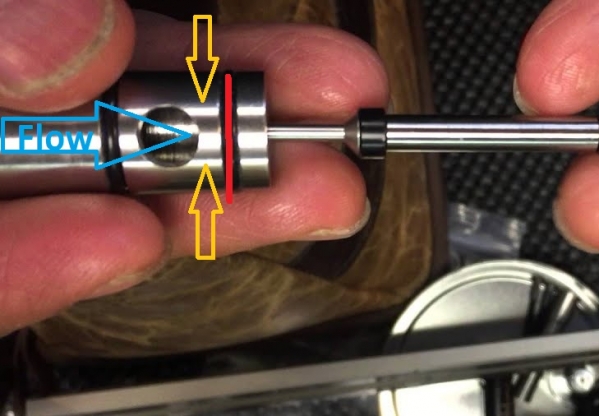

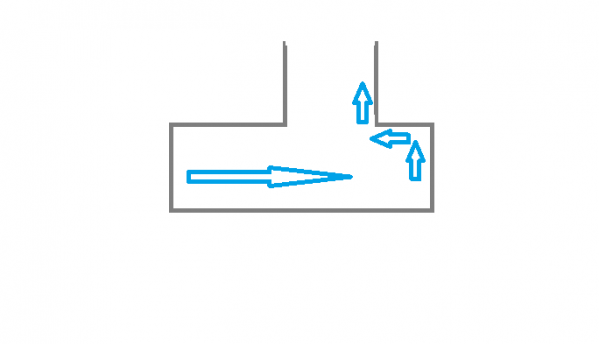

Air comes through the valve seat, travels past the valve tube transfer port and hits the back wall where the red line is so it has to turn 180 then 90 to go out the transfer port.

If you break those corners the air should make the turn faster. You'll see when you look in the valve tube.



[13brv3]

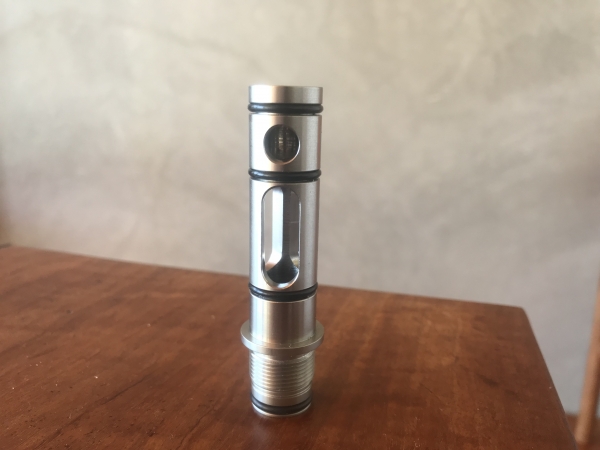

I agree. Rounding off the inside corners all around that valve outlet hole would be valuable. Thanks for the picture of the new valve tube. I wish I had just ordered one yesterday, but I guess I'll hack mine up. Did you happen to measure how wide those holes they milled are? Barring anything unexpected, I should be taking mine apart today to try some of this.

Thanks,

Rusty



[heavy-impact]

I didn't measure those.



[AirSupply]

Also Rusty if you want to maximise the size of the plenum Ernest moves the oring below the slot down further and extends the length of the slots. I may have a picture of that somewhere.



[AirSupply]

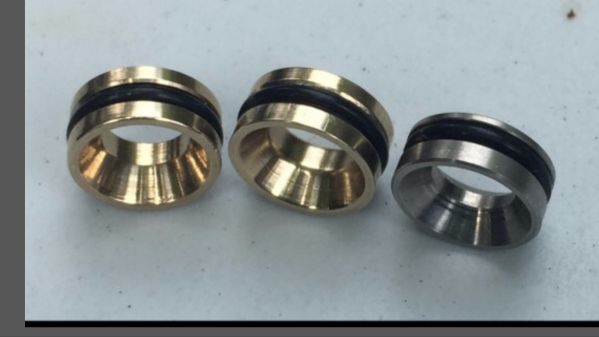

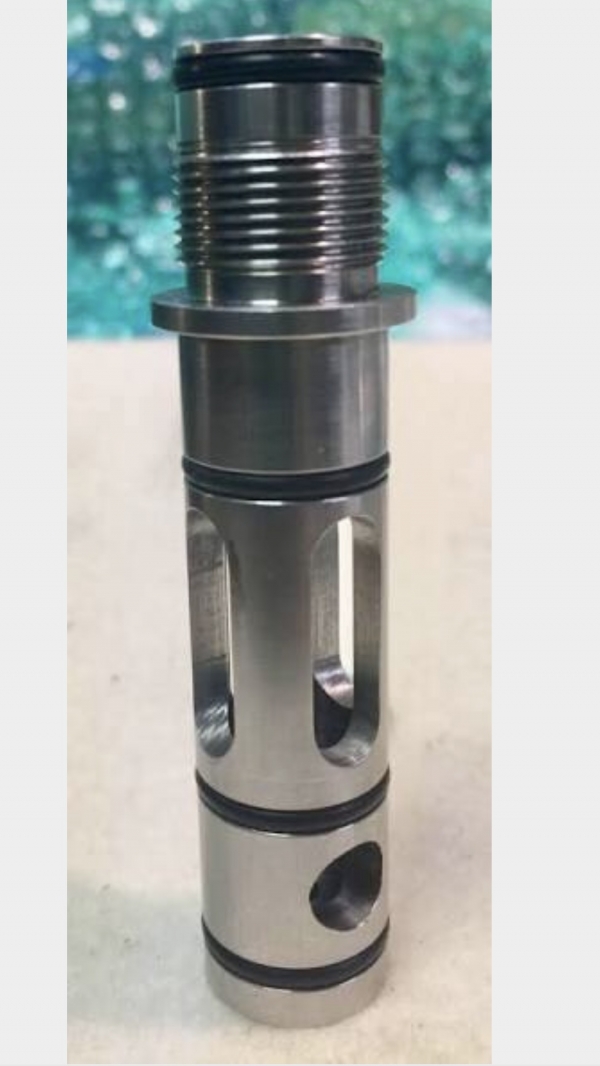

This is Ernest’s valve housing before fx adopted the idea he did have 4 slots Below are his valve seats next to a stock one His have the larger shoulder



[heavy-impact]

Below are his valve seats next to a stock one His have the larger shoulder

The ones I purchased from him on ebay look exactly like the one on the right. No wider shoulder.



[AirSupply]

Hi Heavy Impact. Yes your right. These where the first lot he made himself and not titanium. In titanium he probably didn’t need the larger shoulder for strength. I’m pretty sure as he struggled to keep up with demand himself he actually out sourced the the making of the valve seats.

I just had the pictures of his originals stored with the picture of his valve housing and thought it may be of interest.

Michael



[heavy-impact]

Hi Heavy Impact. Yes your right. These where the first lot he made himself and not titanium. In titanium he probably didn’t need the larger shoulder for strength. I’m pretty sure as he struggled to keep up with demand himself he actually out sourced the the making of the valve seats.

I just had the pictures of his originals stored with the picture of his valve housing and thought it may be of interest.

Michael

I just ordered some spare parts from FX and purchased Mr Rowe's high power kit to try out. It'll probably be a couple of weeks before I get it, depending on how busy he is. The sales person said Mr Rowe makes them to order.



[13brv3]

Thanks for all the pics and info. I got a little sidetracked, and haven't started with it yet :-(

Rusty



[13brv3]

I just ordered some spare parts from FX and purchased Mr Rowe's high power kit to try out. It'll probably be a couple of weeks before I get it, depending on how busy he is. The sales person said Mr Rowe makes them to order.

I'll be really interested to hear what you get. I had specifically asked about buying the parts, but I was never given any way to do it. I will likely still be interested in an external reservoir, since I think it's unlikely I'll get to the speed I want without it.

I got everything apart, and will start trying to modify the valve tube and valve seat tomorrow. Of course my FX parts shipped in record time, and they'll be here maybe Saturday. Heck, I wish I had known about the new valve tube, since I'd have just ordered one. Oh well, I get to play with the CNC mill some more, and I'll have one of my slots on the bottom in line with the gauge hole.

Rusty



[Saltlake58]

Well, I'm using factory parts. I'll post a pic of the new valve seat as a comparison of what FX produces now if I get a chance. I hope they adopted Ernest's design so the seat is stronger.
