I need a 25 auto TJ barrel in 9/16 diameter not sure if it’s made

Jump to latest Follow Reply
Roachcreek

Roachcreek

Member
Mar 18, 2017
869
382
Orego\'n, United States
I want to rebarrel my Kral Bighorn 25 caliber with a 28 inch .250 groove diameters barrel.

The problem is TJ lists that barrel with at 7/16 diameter and my Bighorns’ barrel is .591 /15mm diameter, but more importantly the barrel stub is .501 inch.

I have reached out to TJ via Emil to see if they make it in either 1/2 inch or 9/16.
Has anyone had a 9/16 TJ 25 auto barrel made?

Regards,

Roachcreek

Roachcreek said:
I want to rebarrel my Kral Bighorn 25 caliber with a 28 inch .250 groove diameters barrel.

The problem is TJ lists that barrel with at 7/16 diameter and my Bighorns’ barrel is .591 /15mm diameter, but more importantly the barrel stub is .501 inch.

I have reached out to TJ via Emil to see if they make it in either 1/2 inch or 9/16.
Has anyone had a 9/16 TJ 25 auto barrel made?

Regards,

Roachcreek
Click to expand...

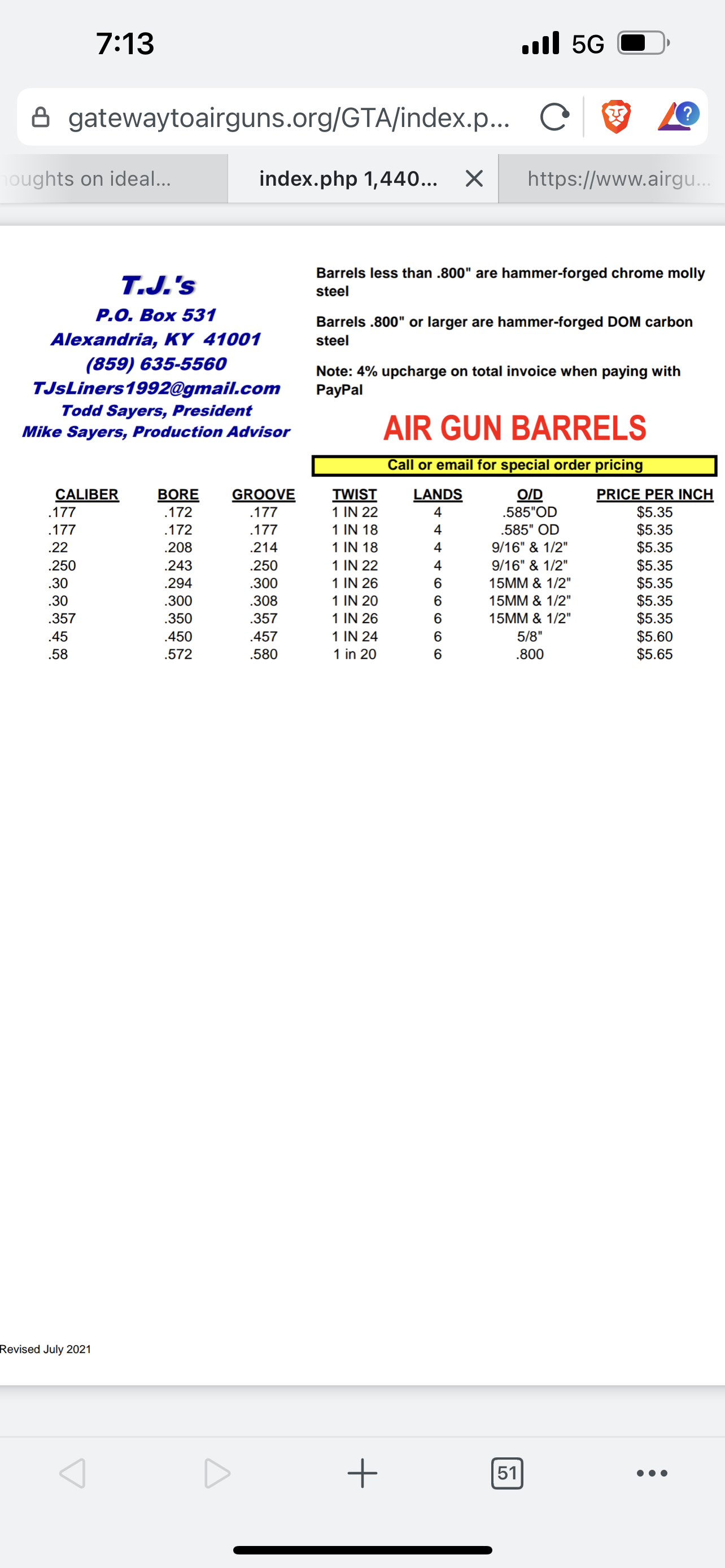

I see he has a 1:22 barrel on 9/16

Upvote 0
I’ve made a couple of barrels using TJ liners. Look for DOM tubing with a 7/16” i.d. and an appropriate o.d.. You might need to sand down the liner a small amount to get a reliable slip fit into the DOM tubing. Then use Loctite 641 to bond the liner in place. You’ll only get one chance to slip it into the DOM quickly before it sets. Finish machining like any other barrel.

  • Like
Reactions: Airgun-hobbyist, RM.510bigbore, Pale_Rider and 1 other person
Upvote 0
Boostercreep you nailed it, that is way to slow for my slugs. My Bighorn that Troy Hammer did his magic on is shooting 44.5 .251 hp slugs from a MPMold @ 945 fps, this is with a 1-17, 18 inch barrel, I of course want to break 100 fpe.

Scotchmo, eBay has 5/8 x 7/16 x 2 inch dom for less than $6.00. My barrel stub is 2”so that would work.

Thanks all,

Roachcreek

Upvote 0
Roachcreek said:
…
Scotchmo, eBay has 5/8 x 7/16 x 2 inch dom for less than $6.00. My barrel stub is 2”so that would work.

Thanks all,

Roachcreek
Click to expand...
I used stubs for another .22 barrel liner and tensioned it with a carbon shroud. It was light weight and shot OK. The two liners (.257 and 7mm) with full length 7/8” o.d. DOM barrels are very heavy but perform well (no harmonics to deal with).

For light weight, 2” stub works. For accuracy, full length DOM is better.

Upvote 0
Roachcreek said:
16 inch is the longest Dom 5/8x7/16 I can see on eBay.

It seems that TJ does make 9/16 25 caliber barrels per Trash’s post, question is whether they will make one with a 14 twist for me.

RC
Click to expand...

Speedy Metals 5/8" OD x 0.435" ID x .095" Wall Other Steel Round Tube

Buy Other Steel Round Tube from Speedy Metals, America's favorite online metal store with unsurpassed service, highest quality and best selection.
www.speedymetals.com

And TJ will make you a liner in any length. My 7mm has a 48” barrel.

  • Like
Reactions: RM.510bigbore
Upvote 0
Trash,

The longest slug I have is .450, which is a 50 grain. My 44.5 MPMold slugs are .410.

I have to shoot wrong handed these days as a old on duty assault eventually led to my right eye being removed, the eye doctors tell me the left one is on its way out also so getting tasks like this barrel bought and fitted in a timely manner is imperative.

I always knew that I would do a broadside skid to my grave, never thought it would be without headlights.

Thanks for the information,

Roachcreek

Upvote 0
RC, as someone who has lost vision in the right eye and encounters problems with the left I very much sympathize with you. For what it’s worth your exploits have inspired me, from the long range shooting to the pillow-box hallway shooting range, and has hastened my push to complete projects before my vision goes as well. From one left eyed, wrong handed shooting jackass to another; Good luck in your endeavors and thank you for the motivation in my own

Upvote 0
Trash said:
Apparently it’s pretty common to make combos outside of what’s listed in the chart, as I (and many others) have a 1:14 257 barrel. In any case keep us updated. I’d own a bighorn myself if they were left hand friendly. What is the max length slug for your magazine?
Click to expand...

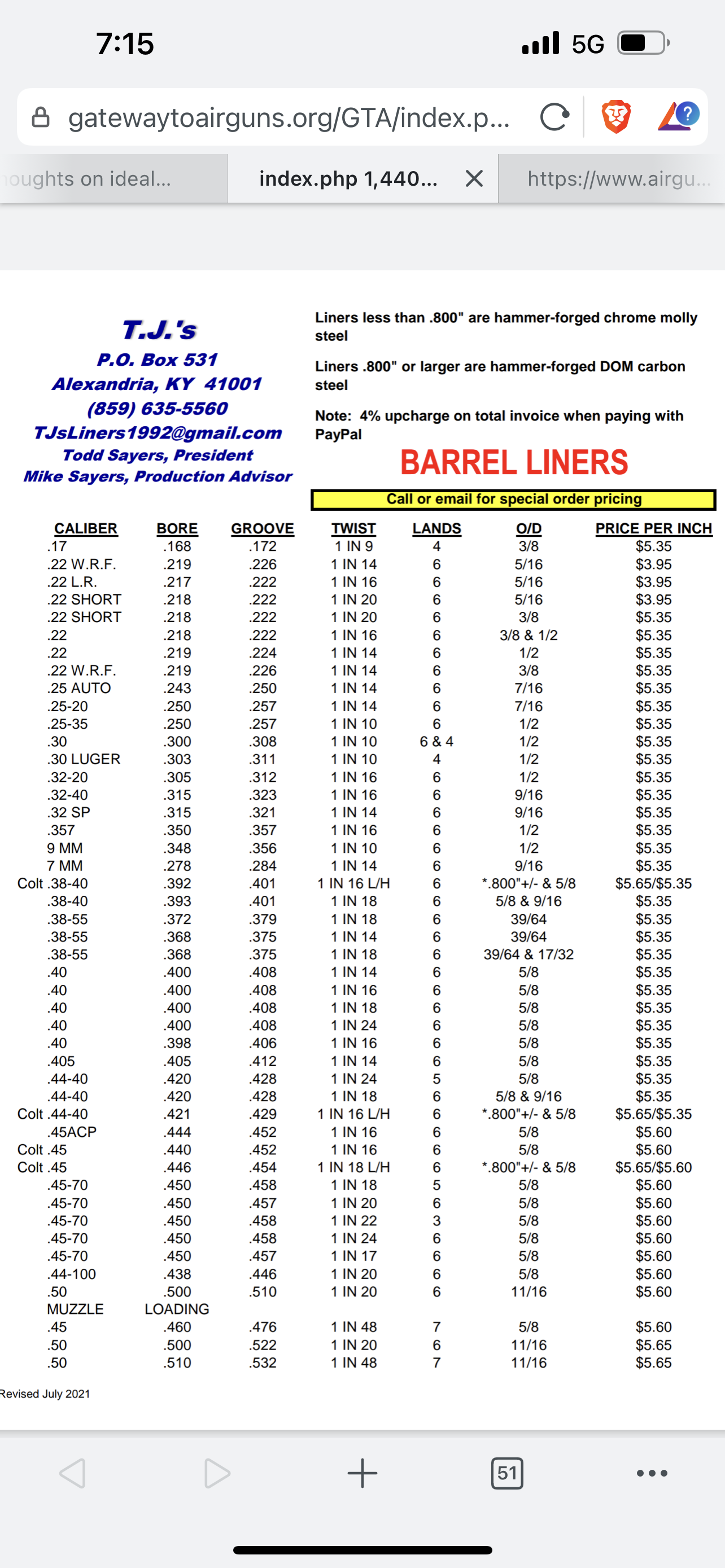

The key piece of info is the above posted price list only represents TJ's standard airgun liner price list there is an larger/separate price list for powder burner liners. For example, our 1:14 .257 liners are from the powder burner price list, they are marketed as 25-20 liners.

Upvote 0
Roachcreek said:
That yellow banner stating to email or call for special order pricing, does that mean they can make a 9/16 .250 1/14 twist? So far I have called and emailed but no return communication yet.

RC
Click to expand...
Some things never change, lol...

Eventually you should get an email response.

In the past my communication leaned more towards describing what I wanted to order and asking for an invoice for the total amount with shippjng vs inquiring about what they would or could possibly do......
