HW30S .25?

Jump to latest Follow Reply
razor62 said:
What if, instead of rebarreling the rifle, you installed a .25 cal. Barrel liner. They're available through FX for various rifles. Basically you drill out the bore to the proper diameter to receive the liner and epoxy the liner in place. The breech seal should remain intact and the machining work would be reduced to a minimum.
www.pyramydair.com

FX STX Superior Liner, 380mm .25 caliber | Pyramyd AIR

We've got a great price on FX STX Superior Liner, 380mm .25 caliber at Pyramyd AIR. Shop where the experts do!
www.pyramydair.com
Click to expand...
Thats a very interesting thought and a bit cheaper too. Added to the list!

  • Like
Reactions: UCChris
Upvote 0
I believe the older Weihrauchs were pressed in and maybe pinned. The newer Weihrauchs have what people call the star retaining nut that's visible outside the breech seal. I'm not sure if this is indeed a nut and what you'd need to do to remove it. Definitely looks proprietary. I can tell you that even then the newer barrels are still knurled and pressed in.

25 caliber Weihrauchs use a different breech seal than the rest of the line.

The liner seems like a good solution. I'm not sure about a couple of things. First, 25 is a pretty big hole by itself, now if you bore a 15mm barrel large enough for the liner will you have enough meat left where it enters the breech. The barrel may bend or buckle when cocking the rifle.

The other thing to consider is what to do about the breech seal. This can probably be solved with a McMaster Carr catalog or leather and a punch kit.

I believe the easiest solution is probably fitting a 25 caliber Hw95/80k barrel assembly to the Hw50. It's not a direct fit because the breech is longer. You'll have to relocate the cocking arm pin further back and mill out the cock arm relief longer.

  • Like
Reactions: Sqwirl57
Upvote 0
Mycapt65 said:
I believe the older Weihrauchs were pressed in and maybe pinned. The newer Weihrauchs have what people call the star retaining nut that's visible outside the breech seal. I'm not sure if this is indeed a nut and what you'd need to do to remove it. Definitely looks proprietary. I can tell you that even then the newer barrels are still knurled and pressed in.

25 caliber Weihrauchs use a different breech seal than the rest of the line.

The liner seems like a good solution. I'm not sure about a couple of things. First, 25 is a pretty big hole by itself, now if you bore a 15mm barrel large enough for the liner will you have enough meat left where it enters the breech. The barrel may bend or buckle when cocking the rifle.

The other thing to consider is what to do about the breech seal. This can probably be solved with a McMaster Carr catalog or leather and a punch kit.

I believe the easiest solution is probably fitting a 25 caliber Hw95/80k barrel assembly to the Hw50. It's not a direct fit because the breech is longer. You'll have to relocate the cocking arm pin further back and mill out the cock arm relief longer.
Click to expand...

I'm thinking that just wasting the old barrel by drilling it out is the most efficient way of doing it... no guess work involved, just in and out. If necessary I can just resize the block with a drill press afterwards.

Upvote 0
Steveoo said:
In a 30 it would be too limiting and stifle your potential on your rat forays.
The rat that shows up 40 yds across the granny floor would have to be ignored …if you see where im coming from.
Click to expand...
At 40yds you need a different gun no doubt about it. What I'm talking about is a very specific use kind of thing. I have a 30S on the way that someone was generous enough to give me a good deal on. Once its here I'll start dealing with how to remove the barrel and go from there. Worse case scenario is it will be a relatively low budget yet fun learning experience to get me through the winter months.

  • Like
Reactions: Steveoo, baranjhn and Pellets&Pistons-(Razor62)
Upvote 0
SpiralGroove said:
Yeah Si Pittaway is a great marksman, knowing how to get the best out of the HW50S in .25 caliber.
I wouldn't underestimate how much his overall shooting/set-up skills add to the performance of the his HW50S in .25.
Click to expand...
Just finished watching it now and yessir that was some incredible shooting.

  • Like
Reactions: baranjhn
Upvote 0
Sqwirlfugger57 said:
At 40yds you need a different gun no doubt about it. What I'm talking about is a very specific use kind of thing. I have a 30S on the way that someone was generous enough to give me a good deal on. Once its here I'll start dealing with how to remove the barrel and go from there. Worse case scenario is it will be a relatively low budget yet fun learning experience to get me through the winter months.
Click to expand...

Following this thread. I have been wanting an HW50 in 22 to shoot the 25 grain JSB Ultra Shocks. But the option of drilling out the barrel for a 25 liner is intriguing. I'm definitely a fan of the heavy/slow approach to pesting.

  • Like
Reactions: Sqwirl57
Upvote 0
baranjhn said:
I just wrote AofA to see if they would do this. I’ll post their response when I get it
Click to expand...

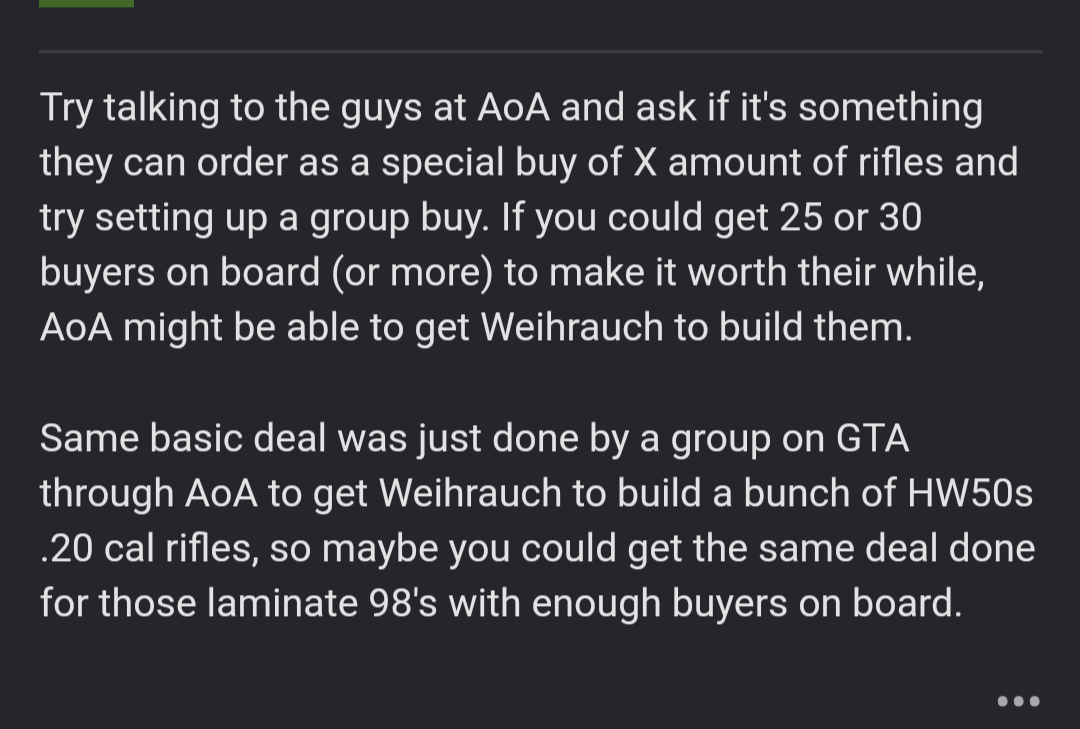

See the attached. Likey too many committed buyers needed. Below is from a AGN post dated 2020


Upvote 0
