Sure, but it may take a couple of weeks. I'm in the middle of a mounting system change/improvement.
Upvote 0

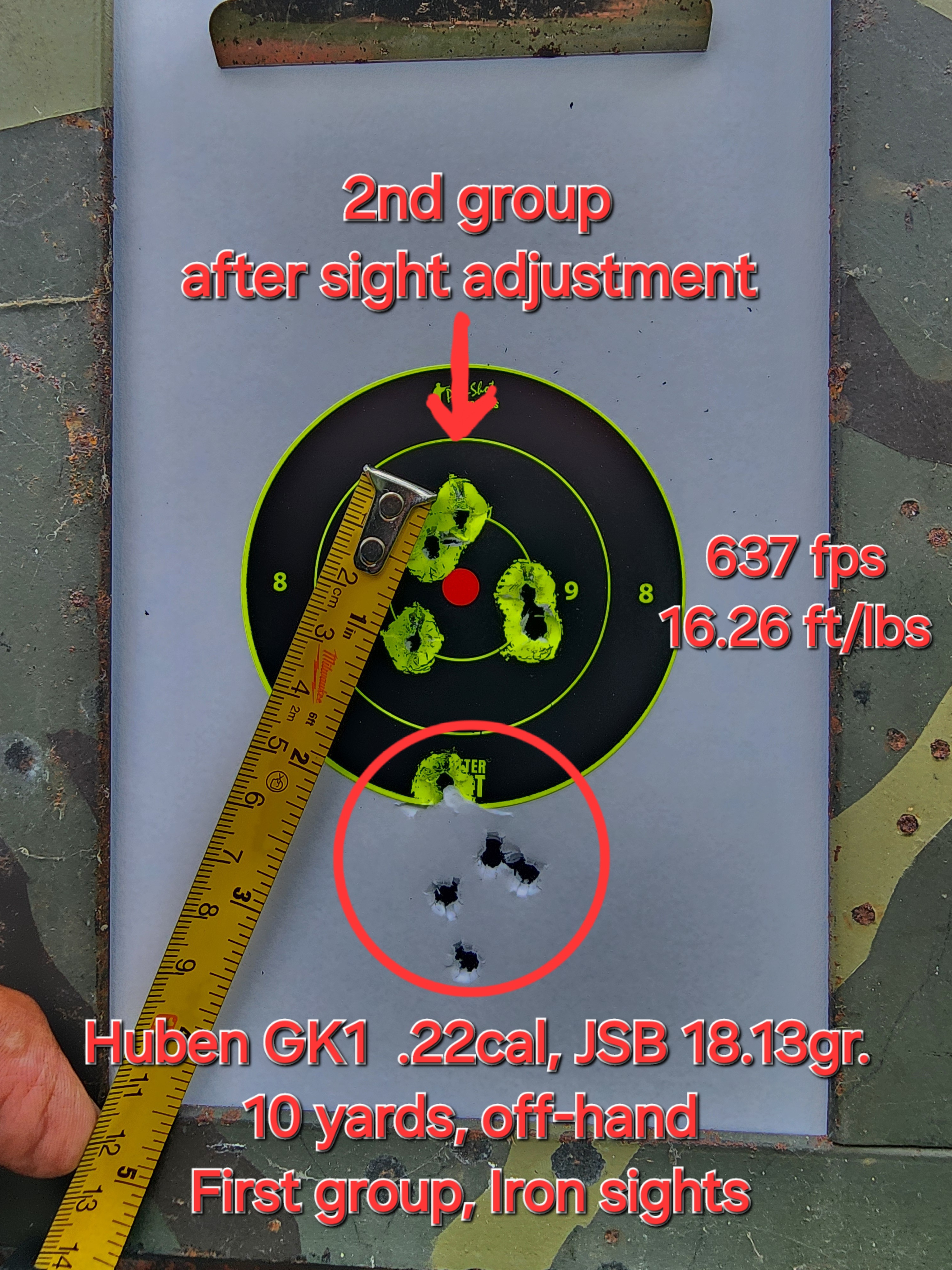

I shot this when I first got my GK1. This is at 10 yards off-hand with the factory iron sights shooting JSB 18gr at 637 fps average. I need more practice as well and it doesn't help that my eyes have gone bad over the years. I was using my reading glasses to focus on the front sight. Getting old sucks!!!
I then shot a group at 25 yards off-hand with iron sights.
I then shot a group at 25 yards off-hand with iron sights.
Upvote 0
@B low that's not how this site works. Please abide by the rules. If you chose not to, please don't violate the AGN site rules in a thread that I started thread. The following link contains the AGN rules regarding buying and selling airguns and related items.
https://www.airgunnation.com/help/classifieds-rules/
https://www.airgunnation.com/help/classifieds-rules/
Upvote 0
Okay I just became a member yesterday trying to figure how to buy my first pcp! So we aren't allowed to buy except by pm?
Upvote 0
Thank you so much! I was just reading it! I deleted the post. I didn't know what I was doing
Upvote 0
@B low No worries. Stick around, have a little patience, and take some time to get to know some members. If you haven't created a "I'm new here" post or thread in the "General Discussion" forum, this would be a good time to introduce yourself. Then you'll probably find a few topics that interest you or you may have questions after doing more reading within the forums. I'm usually around here somewhere. If I like you and I can help, I usually will try. Welcome to AGN.
Upvote 0
Hey! Okay and thanks for all the tips! Guess you are my first friend on here. That is, if you like me
Upvote 0

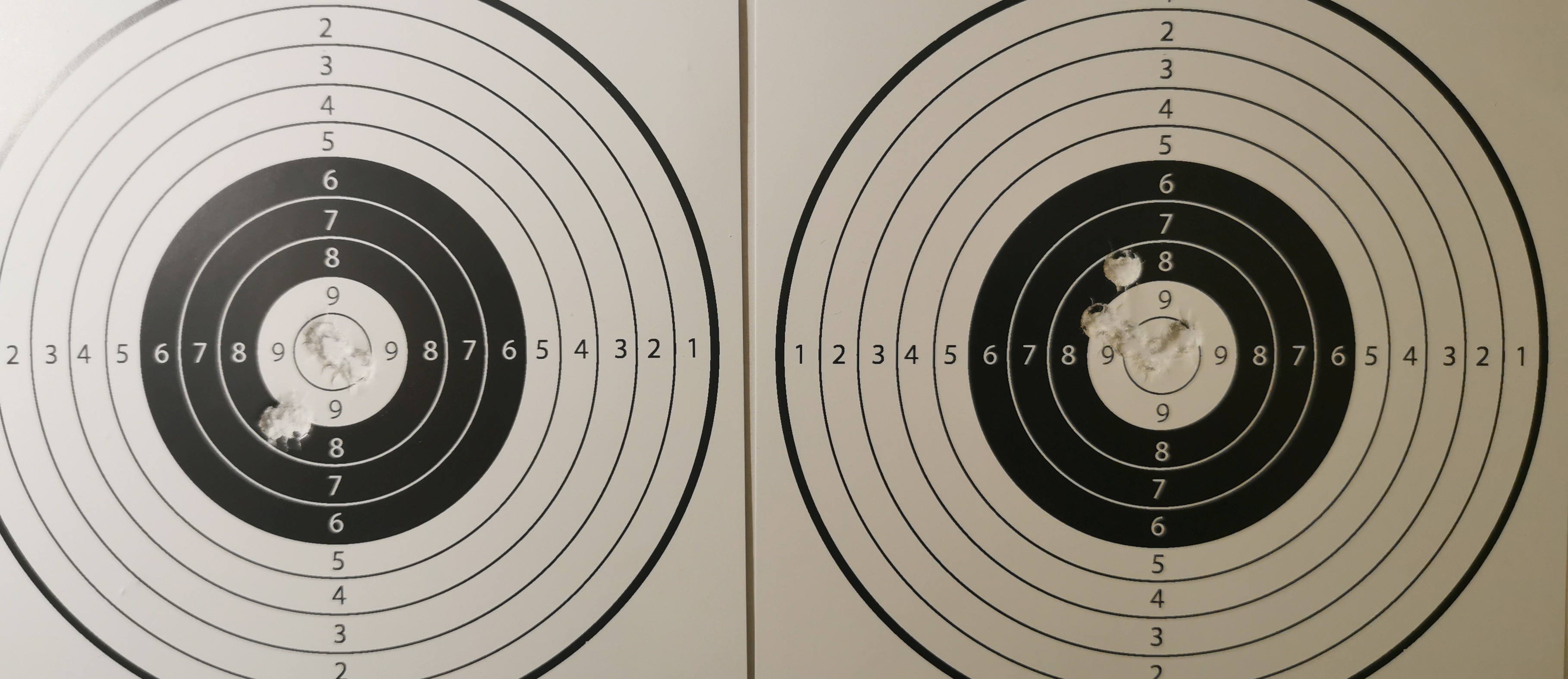

^^^ GK1 .25 with a folding stock, JSB 25gr set to 900-910 fps, distance is 50.0m, shooting from sandbags, using a red dot sight (the dot ends up being roughly the size of the 7 ring, the black part of the targets is 66mm across). 5 shot groups, CTC distance is 12mm (0.47"), other than the one flier in both cases, which is me forgetting to put pressure on the stock every first shot... I think.

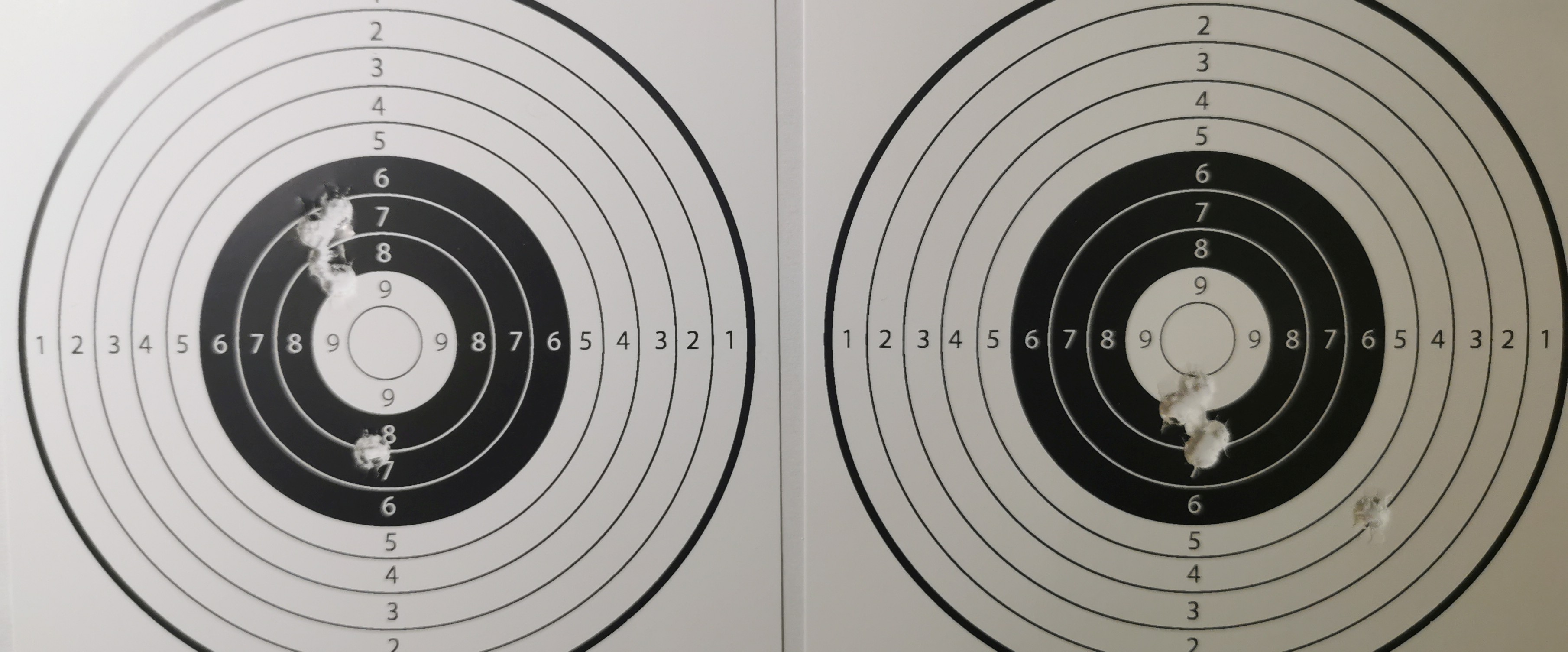

^^^ GK1 .25 with a folding stock, JSB 25gr set to 900-910 fps, distance is 50.0m, shooting from sandbags, using 24x magnification (scope mounted on the dovetail rail on the shroud). 5 shot groups, CTC distance is 16mm (0.63") in both cases.
I am a bit surprised how well the red dot worked, and how not very enjoyable 24x was, even though you can't actually see the hits with the red dot.
Last edited:
Upvote 0
How did you make your sight adjustment? I understand right or left but not up or dow. I’m very new to the Gk1.
Upvote 0
@Rwcrawford58 The screw that goes through the rear sight on top of the rear portion of the receiver adjusts the elevation. There is a small spring below the rear sight. Turning this screw raises and lowers the rear sight, thus adjusting your elevation. I suggest starting out making slight turns.
Upvote 0
Marking thread. Impressive groups for a pistol.
I am curious if any of you SEAT the pellets when you test for grouping. I've read a few reports where seating the pellets improve accuracy significantly.
I am curious if any of you SEAT the pellets when you test for grouping. I've read a few reports where seating the pellets improve accuracy significantly.
Upvote 0
Whoa
Whoa! Really? Why? OK, I'll do a search but I've been reading a LOT of GK1 posts and don't remember coming across one. In fact, a few days ago, there were a couple of posters who said they got better accuracy, noticeably so, when seating pellets. Thanks for the warning. I'll have to find the posts.
Upvote 0
I have explained this beforeseveral times. I will repeat this explanation again one more time. Both the K1 and the GK1 are revolvers. All revolvers require a magazine retention mechanism. In the case of powder burners, it is the flanged cartridge case. In the case of the K1 and GK1 it is the chamfered mouth of each magazine bore. If you measure a pellet, you will find that the skirt is about .010"{ larger than the pellet head. It is the oversize skirt that is held by the chamfer. Both the oversize skirt and chamfer is the retention mechanism. If slugs are used they must be larger than the magazine bore and that friction is the mechanism, , but that makes slug size very critical. Escentially, the guns are designed for Diabolo pellets not slugs. I use exclusively JSB pellets in my GK1s. recently tried H&N pellets and they had same size heads and skirts. So beware they rattled around in the magazine!
Upvote 0
Yep and if they rattle in the mag a jam is moments away, I leave the loading gate open after loading and seating tip the gun up and rotate the cylinder if any fall out I remove them all and never use those pellets in the Huben K1 or GK1
Upvote 0
If you look up YT vids by Gregor K he recomends seating the pellets all the way for best accuracy
I think Kelly at Krazcool agrees as he sent a pellet seating pen with my last gun purchase
I think Kelly at Krazcool agrees as he sent a pellet seating pen with my last gun purchase
Upvote 0
Like most things in life, compromises must usually be made everywhere. Revolvers are no exception. In rifles bullet jump after ignition is controlled by limiting the headspace when cutting the chamber to just a few thousands of an inch. The shorter the bullet jump the lesser the shock of striking the rifling because the bullet is traveling slower. That, if great enough will upset the bullet's balance which causes inaccuracy. A revolver has more issues that must be dealt with as well, like magazine alignment to the barrel and the physical difference in projectile length in relation to the length of the magazine's bore. Revolvers use a forcing cone at the mouth of the barrel to compensate for magazine misalignment, that extra length causes a longer bullet jump. Add that to a potential magazine length difference with a bullet and that jump and subsequent shock becomes even greater. For example, yes you can shoot 38 special cartridges in a 357 magnum pistol, but because of the greater distance the bullet must travel, the 38 special is not as accurate as the same bullet loaded to a 357 case. Well, the same rule also applies to the K1 and GK1,but we are dealing with much lower pressures and lower velocity, so yes, Greg is correct, but is this issue significant? I regularly use the 25.4 grain JSB pellet in 25 cal GK1s and they are much shorter than the magazine's bore, but the guns still shoot one ragged hole at 25 meters from a rest and I off hand usually hold a 1" group at that same distance.If you look up YT vids by Gregor K he recomends seating the pellets all the way for best accuracy
I think Kelly at Krazcool agrees as he sent a pellet seating pen with my last gun purchase
Let me give to you another example this with an air gun. In the earlier models of the FX air rifles, they used smooth bore barrels that were only rifled at the very end of the barrel. Pellet jump was many inches, yet they were amazingly accurate.
