There is a hard rubber oring / gasket in the parts bag that needs to be put on the end of the fill hose before you screw it in. I did the same thing but figured it out. After that no problem
Upvote 0
HP Davv Portable High Pressure Air Compressor Paintball Scuba Dual Piston Pump
- Thread starter skohl
- Start date
http://www.potterassoc.com/pdf/bonded_seal_information_and_sizing_chart.pdf
google for a 10 mm dowty washer or bonded washer and find . many who sell pcp fittings carry them, there is always amazon,spit spit and ebay
Upvote 0
The hose for this model is the same as on an Air Venturi and Hatsan Lightning. It is a 10mm parallel thread. There is a white or black delrin hard seal that goes in the hole the hose screws into and sits in the base of the hole. It seals at the bottom of the hose. Dowty seals perform a similar function on the outside of BSP hose connections. It is not necessary to use a Dowty seal if you just use the included delrin washer before attaching the hose to the compressor. Without the delrin washer installed the hose cannot seal properly.
Upvote 0
I truly think my china compressor is a piece of cheap azz crap. I hate working with garbage, Ya I will get it going again and I mean multiple agains
Davv 2 cylinder with all the bells and stuff
Davv 2 cylinder with all the bells and stuff
Upvote 0
How about a little information on what went wrong, how many hours on it, etc. Is it under warranty? Have you contacted the factory? All of us with similar compressors may need it in the future. Thanks
Upvote 0

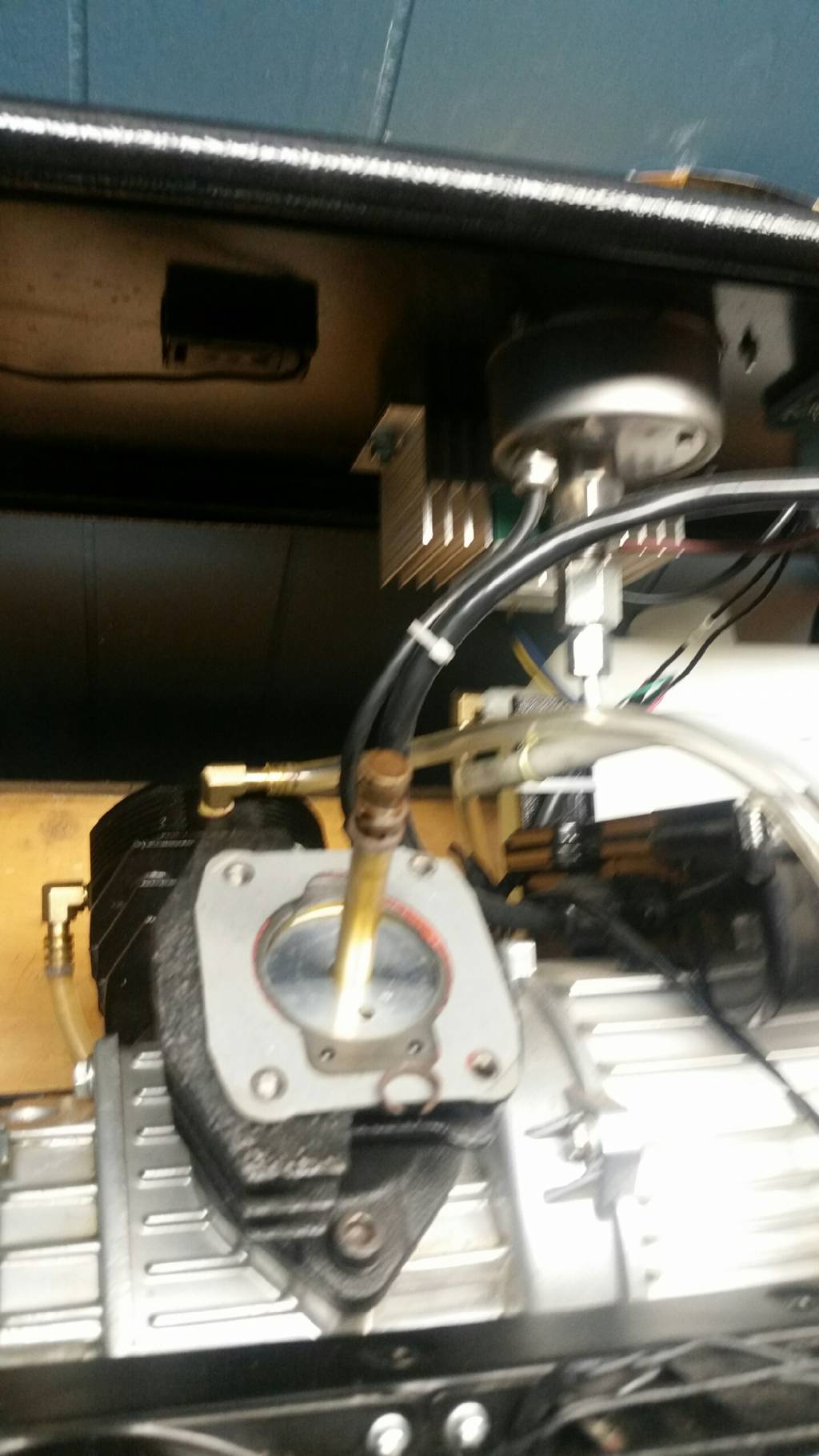

sometimes I need to vent!!! china built products are lower in quality of material, design and build Quality. The compressor I got used but pretty new at the time. It did not perform full pressure from the get go, I had to trouble shoot and repair. I have ran it for about 1-1/2 yrs only for filling my guns,,,no tanks. My opinion is ,,,expect failure and be prepared for it,,they do, that is why they include rebuild kits. As you see from my photo, rebuild time again,,the HP piston and rings are a real pain for my old tired fingers to assemble, I am thinking of a ring compressing device to help me,,I will get it fixed!!!
there are some chinese built products I like , such as my calipers from Anytime tool, china built but to our standards https://www.ebay.com/str/anytimetools2 when I was working, my tool box(company owned) had Starrett, 6" calipers, 0-1" mic and 2 1"dial indicators 0.250" travel and 2 magnetic bases. I aligned elec motors to pumps, fans or what ever needed precision alignment
there are some chinese built products I like , such as my calipers from Anytime tool, china built but to our standards https://www.ebay.com/str/anytimetools2 when I was working, my tool box(company owned) had Starrett, 6" calipers, 0-1" mic and 2 1"dial indicators 0.250" travel and 2 magnetic bases. I aligned elec motors to pumps, fans or what ever needed precision alignment
Upvote 0
I bought one of these a couple years ago and we had a flood around that time. I never uncrated it and it sat in my garage until recently.
I just unboxed it and I am having a problem right off the bat. Not too happy right now. It wants to stall out and I think there is something wrong with the power switch as well. I have not taken the time to tear into it yet, but def not too happy with it.
Too bad I didn't have time to set it up back when I got it in 2018.
I have wasted a lot of money on cheaper compressors, wish I would have just bought a good one and been done with it.
I just unboxed it and I am having a problem right off the bat. Not too happy right now. It wants to stall out and I think there is something wrong with the power switch as well. I have not taken the time to tear into it yet, but def not too happy with it.
Too bad I didn't have time to set it up back when I got it in 2018.
I have wasted a lot of money on cheaper compressors, wish I would have just bought a good one and been done with it.
Upvote 0
The fact is that quite a few of this compressor series were imported but can anyone find replacement kits that have at least the high pressure piston seals?

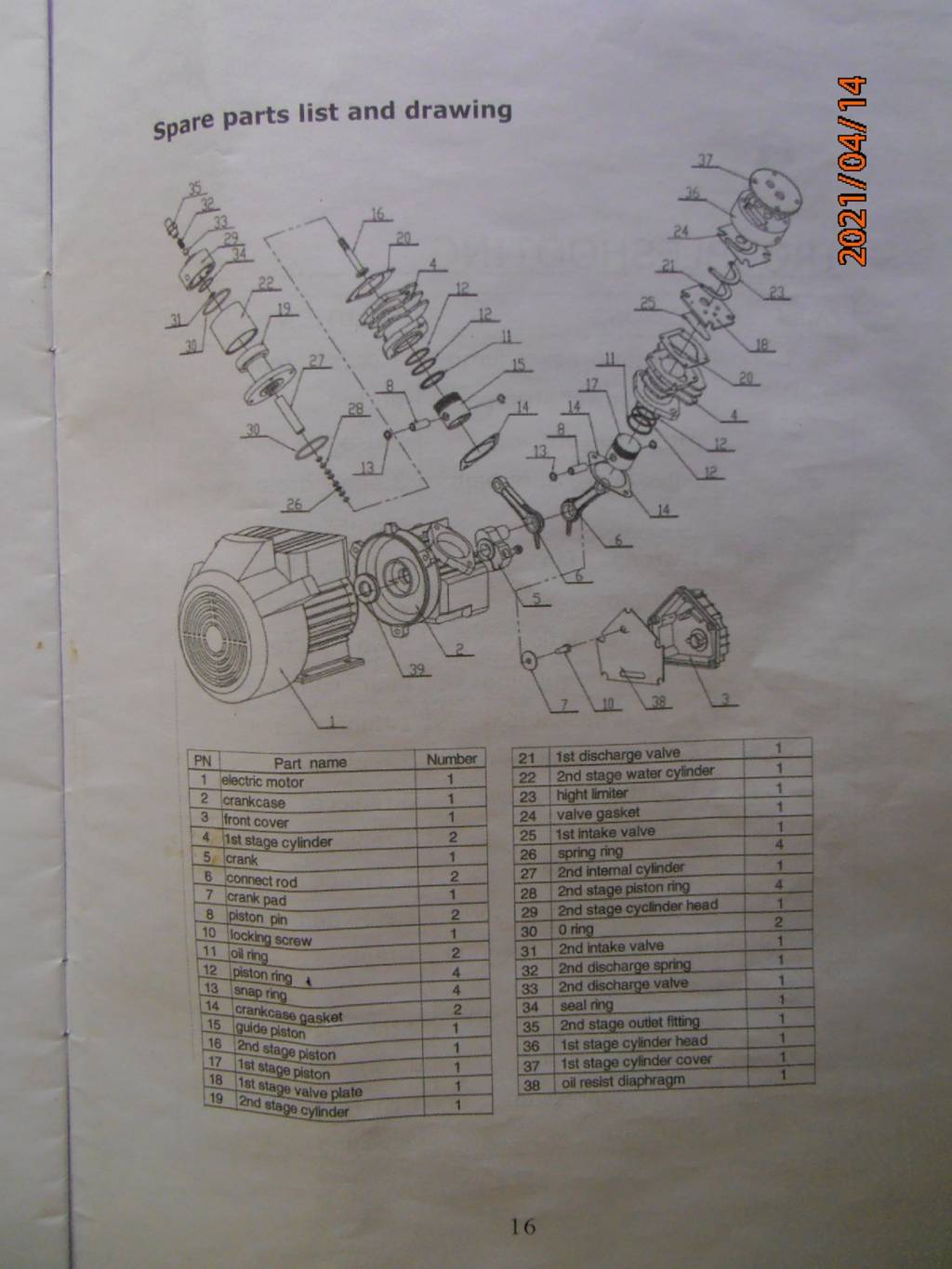

Also, I lost my manual that showed internal parts, anyone have a picture of the exploded view they could post?
Thanks,
Dale
Also, I lost my manual that showed internal parts, anyone have a picture of the exploded view they could post?
Thanks,
Dale
Upvote 0
With these high pressure compressors, believe me, I know, from experience, "you get what you pay for".
Upvote 0
Upvote 0
You guys are great, thanks for the image!
BTW, I have found and ordered 4 seal kits here if anyone is interested, they have 2 more in stock right now, else need longer to ship from China:
https://www.ebay.com/itm/HPDMC-Spare-Parts-Replacemernts-Kit-for-High-Pressure-Air-Compressor/284110174219
BTW, I have found and ordered 4 seal kits here if anyone is interested, they have 2 more in stock right now, else need longer to ship from China:
https://www.ebay.com/itm/HPDMC-Spare-Parts-Replacemernts-Kit-for-High-Pressure-Air-Compressor/284110174219
Upvote 0
Don't get one. Wouldn't build pressure after 12 hours of use, Virtually no help from manufacturer. I ended up getting an Amazon refund from the warranty I had purchased for it and then gave ir away to an airgun friend who is very mechanical. He couldn't fix it. I bought an Omega turbocharger - and now have 26 hours on it Very pleased.
Upvote 0
