Anyone know what the fitting and thread size is? I want to replace them with some PC cooling dripless quick disconnect fittings.
TIA!
TIA!
Hong Yeng water fitting size and thread.
- Thread starter KulaHI
- Start date
The threads are 1/8 M10x1 metric. Don't even think about using those computer fittings. Even if you could match the thread size, they won't handle the pressure involved.
Upvote 0
Make sure that those connectors will work well with silicone hose which is needed because it may come into contact with those stainless tubes which are very hot during operation. Other kinds of plastic hoses may melt.
Upvote 0
Thanks guys. I'll be using threaded and barbed males on the compressor side and barbed females on the bucket side. I think the silicon hoses should work on the barbs.
Upvote 0
Doesn't look like it would work without kludging it together. They all seem to be 1/4 or 3/8.
Upvote 0

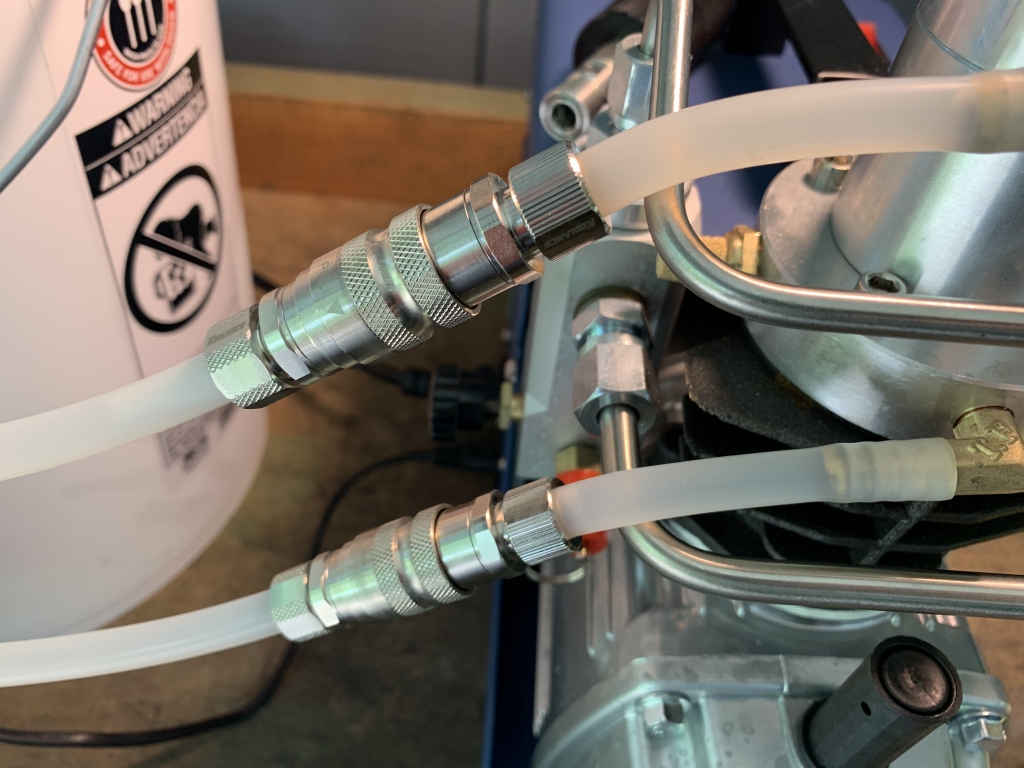

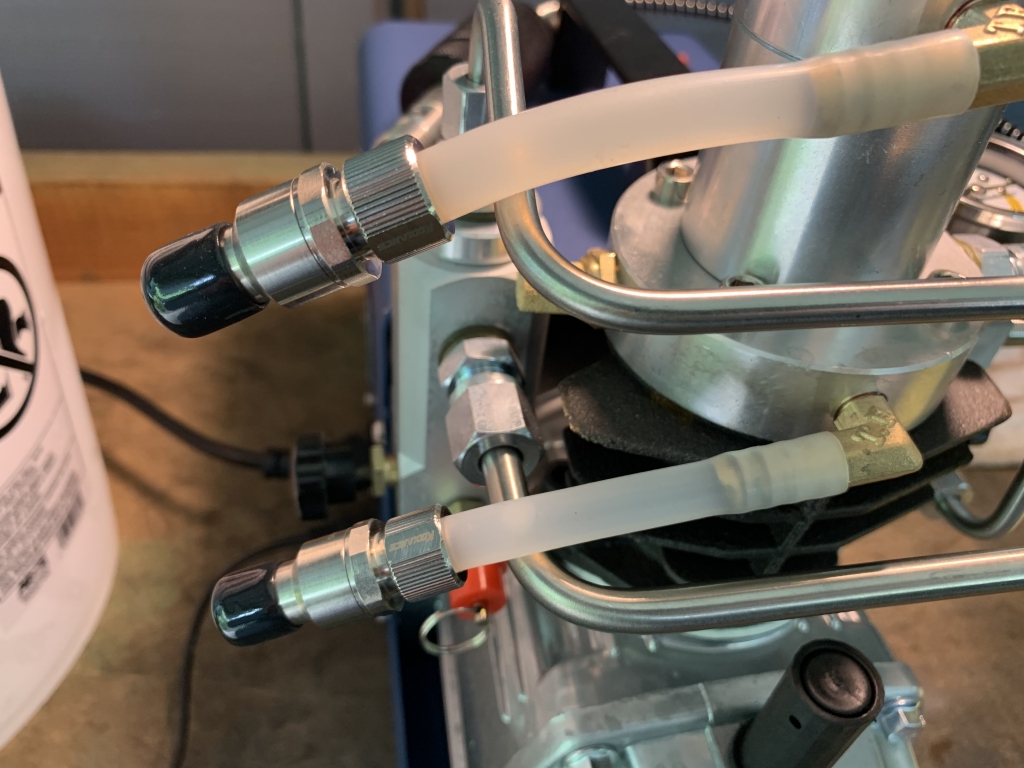

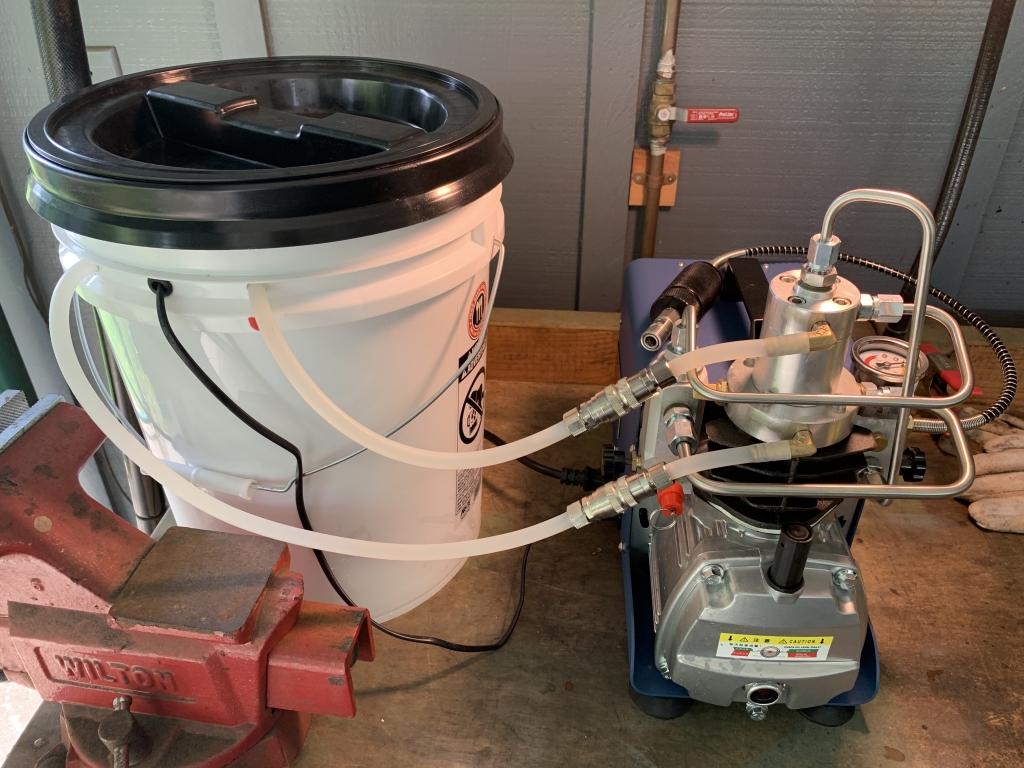

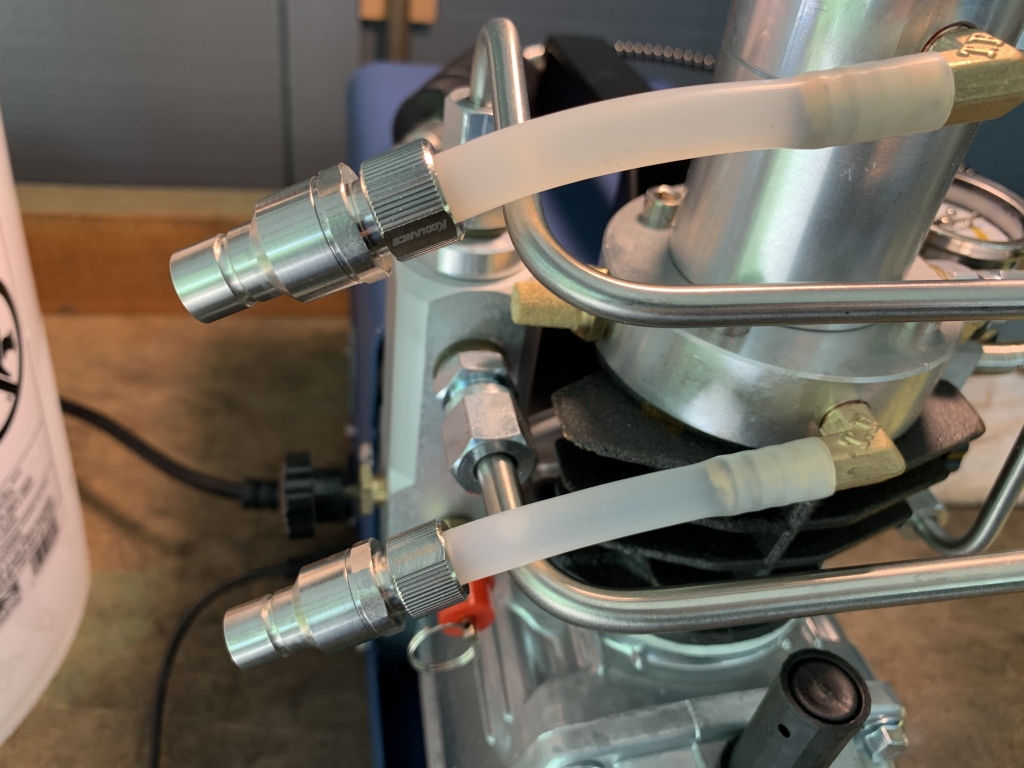

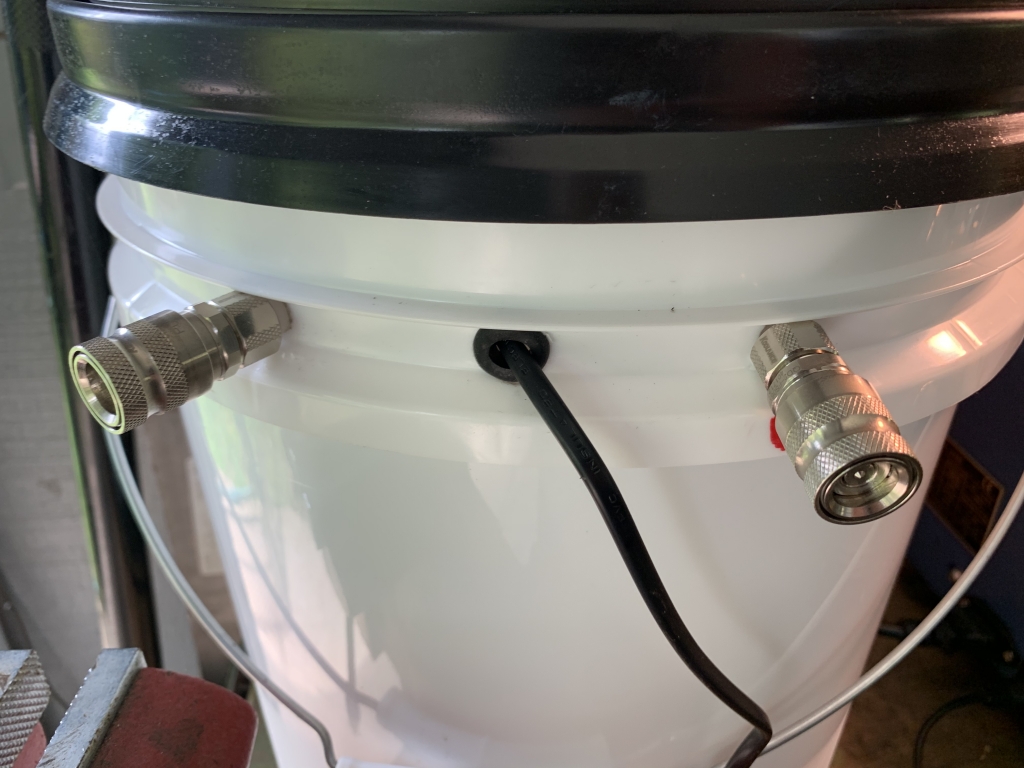

Ok guys quick update. Found the right fittings and it’s tits! Bucket stays outside in the carport while the compressor gets locked in the storeroom for safekeeping.
little pricey but worth it to me for a no mess quick disconnect.
Koolance QD2 Quick Disconnect No-Spill Coupling, Female Compression for 06mm x 10mm (1/4in x 3/8in) (QD2-FS06X10)
Koolance QD2 Quick Disconnect No-Spill Coupling, Male Compression for 06mm x 10mm (1/4in x 3/8in) (QD2-M06X10)
little pricey but worth it to me for a no mess quick disconnect.
Koolance QD2 Quick Disconnect No-Spill Coupling, Female Compression for 06mm x 10mm (1/4in x 3/8in) (QD2-FS06X10)
Koolance QD2 Quick Disconnect No-Spill Coupling, Male Compression for 06mm x 10mm (1/4in x 3/8in) (QD2-M06X10)
Upvote 0
