Homebrew FX Chrony display
- Thread starter DaystateRebel
- Start date
Got a link to that board?
No, I'm not going to mess with the phone app for reasons. I think I will add shot string storage but it will play them back over the serial port
Upvote 0

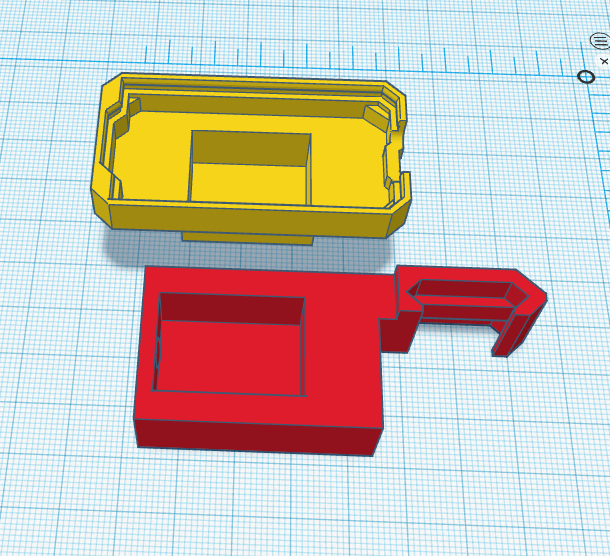

Here is a better picture of the 2 parts I remixed. the backplate area where the battery sticks out pressure fits inside the picatinny mount. As you can see, it will be easy for me to remix for someone. just message me with measurements from your battery.
Upvote 0
Something similar is available in my country - (probably this same board)
Would this other board work too?
Upvote 0
This is the one I ordered from Amazon. It is the same Heltec ESP32 as in the instructions. HiLetgo ESP32 OLED WiFi Kit ESP-32 0.96 Inch https://a.co/d/axjVqCo
Upvote 0
Yes, but will need a couple of tweaks to the code.
No, the display isn't supported. Maybe in the future.
Ideally get the one 3DAirgunWorks linked to (or equivalent)
Upvote 0
Here is the M5StickC Plus with DaystateRebel's code ported and profile selection menus working.
This is a quick run down on how it works on the M5StickC Plus (not be confused with the M5StickC) . Again, DaystateRebel did the heavy lifting, I just ported it and added some visuals.
Upvote 0
<Spoiler Alert>

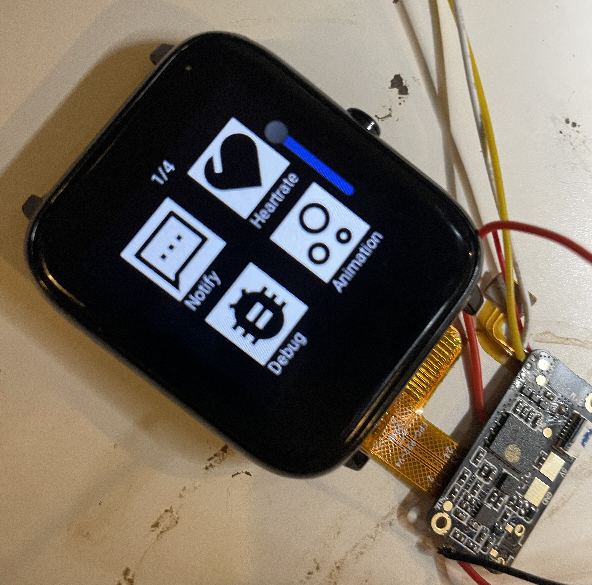

'My Little Chrony' is coming to crap Smart Watches - first target will be this abomination
Kalinco
Because it's cheap like me
View attachment 314007
Upvote 0

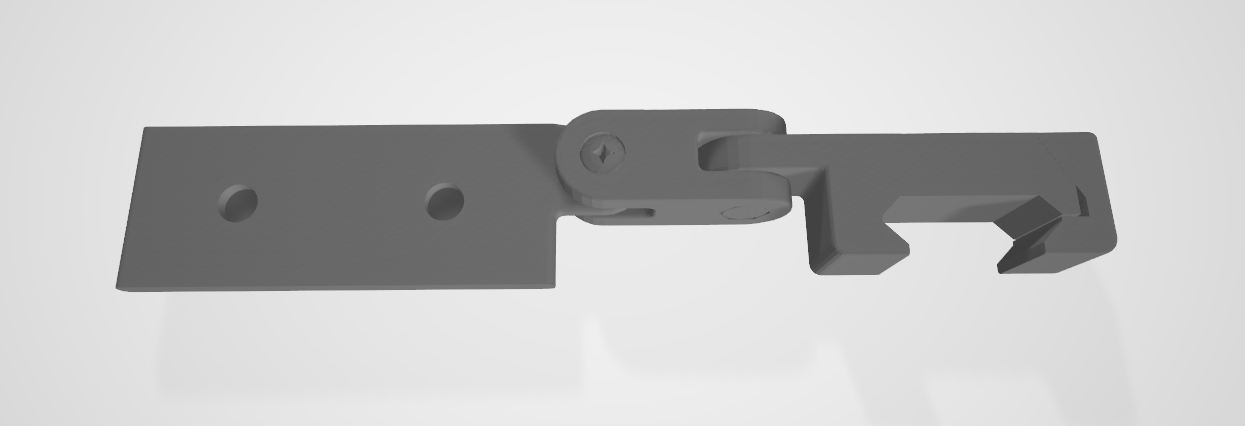

If anyone makes an enclosure, may want to consider some sort of a semi-permanent fold out mount with a couple of small neodymium magnets, because the M5Stick has two built-in magnets in the rear. So you can fold out the mount from the picatinny rail and snap the module on it. And when done, just snap it off and fold the mount back flush with the stock or under/near the scope rings.
Last edited:
Upvote 0
Also, the M5Stick Plus has power input pins on the side. So, if the internal battery gets weak, you can charge/run it externally, may be with a rear mounted additional battery snapped on the back of it, or on its mount.

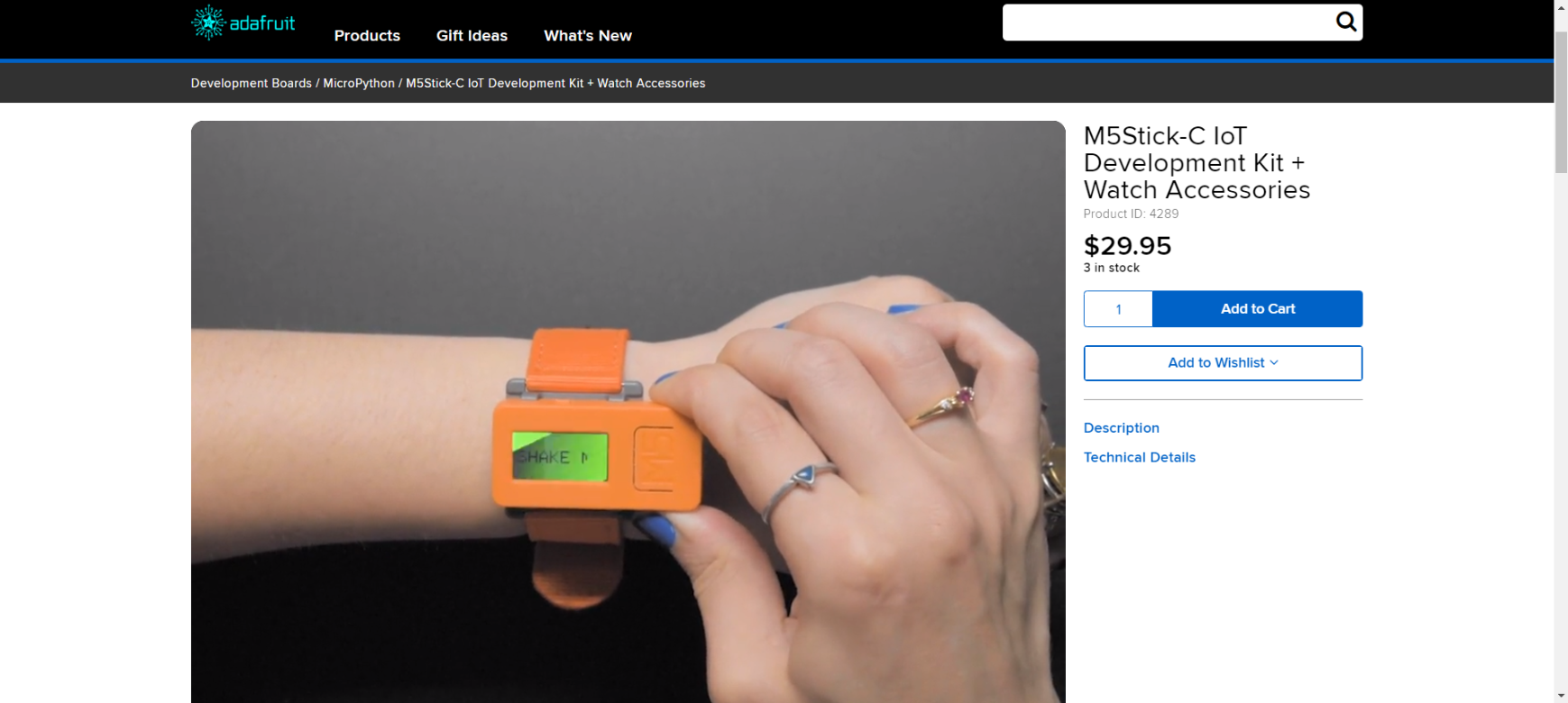

You can also buy a wrist band for it, designed specially for the module. I forgot that mine came with one. It's only $3 more with the wrist mount kit together, at DigiKey:
https://www.adafruit.com/product/42...jfi7-n9ouq1q3cBNyzEV7fw--hMDtHU8aAsN0EALw_wcB
shop.m5stack.com
You can also buy a wrist band for it, designed specially for the module. I forgot that mine came with one. It's only $3 more with the wrist mount kit together, at DigiKey:
https://www.adafruit.com/product/42...jfi7-n9ouq1q3cBNyzEV7fw--hMDtHU8aAsN0EALw_wcB
M5StickC PLUS with Watch Accessories
It's a portable, easy-to-use, open-source, IoT development board, supporting WiFi and LCD display, built-in ESP32-PICO-D4, 6-Axis IMU, infrared, RTC, Microphone, LED, IMU, Buttons, PMU, etc, compatible with UIFlow/MicroPython/Arduino. It can be a wearable IoT device, stem education product or...
shop.m5stack.com Last edited:
Upvote 0
Looks like a lot of 3D models are already made for this module:
www.yeggi.com
"m5stick" 3D Models to Print - yeggi
27 "m5stick" printable 3D Models. Every Day new 3D Models from all over the World. Click to find the best Results for m5stick Models for your 3D Printer.
www.yeggi.com Upvote 0
Add on a PIR sensor to keep your rifle under close watch
m5stack.hackster.io
M5 Stick-C PIR detection
Use M5 Stick with PIR hat to detect human and activate a Grove Relay or Grove Mosfet. By leket.
m5stack.hackster.io Upvote 0

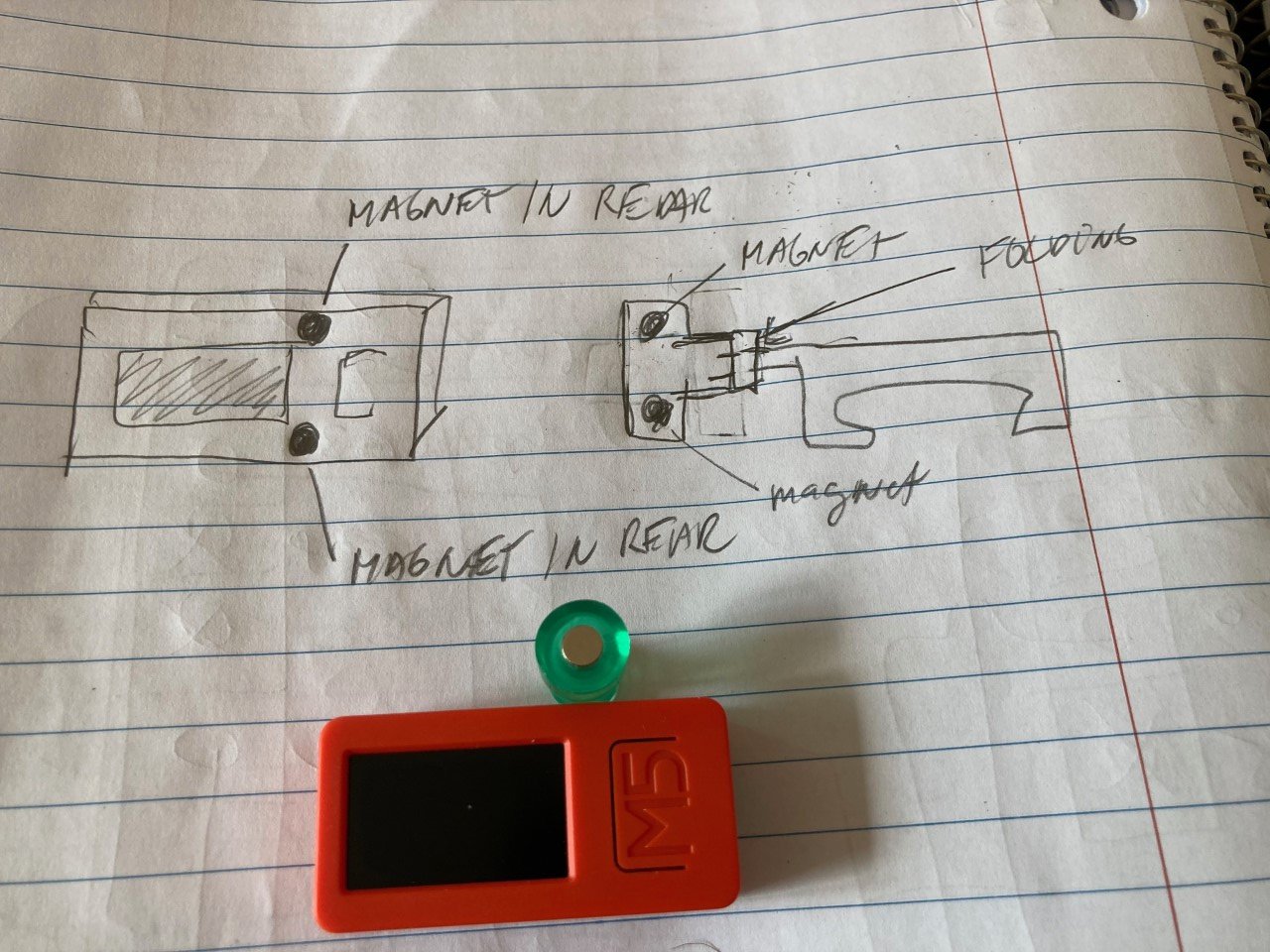

Yes, it can be as simple as this, with only one folding joint, a short arm of about 1 inch with two magnets spaced to mate up with the tw magnets in the rear case of the M5Stick Plus. The two magnets are located about where I placed that magnetic thumb tack.
