Recently a buddy of mine asked me if I would make him a stock for his Thomas HPX benchrest rifle. His only request was that he could fire it from his shoulder. I had been wanting to build myself a stock for my RAW TM 1000….but never having built a rifle stock before, I agreed, hoping to learn a thing or two before bui one for myself. This is what I came up with……
A quick drawing to have a place to start…

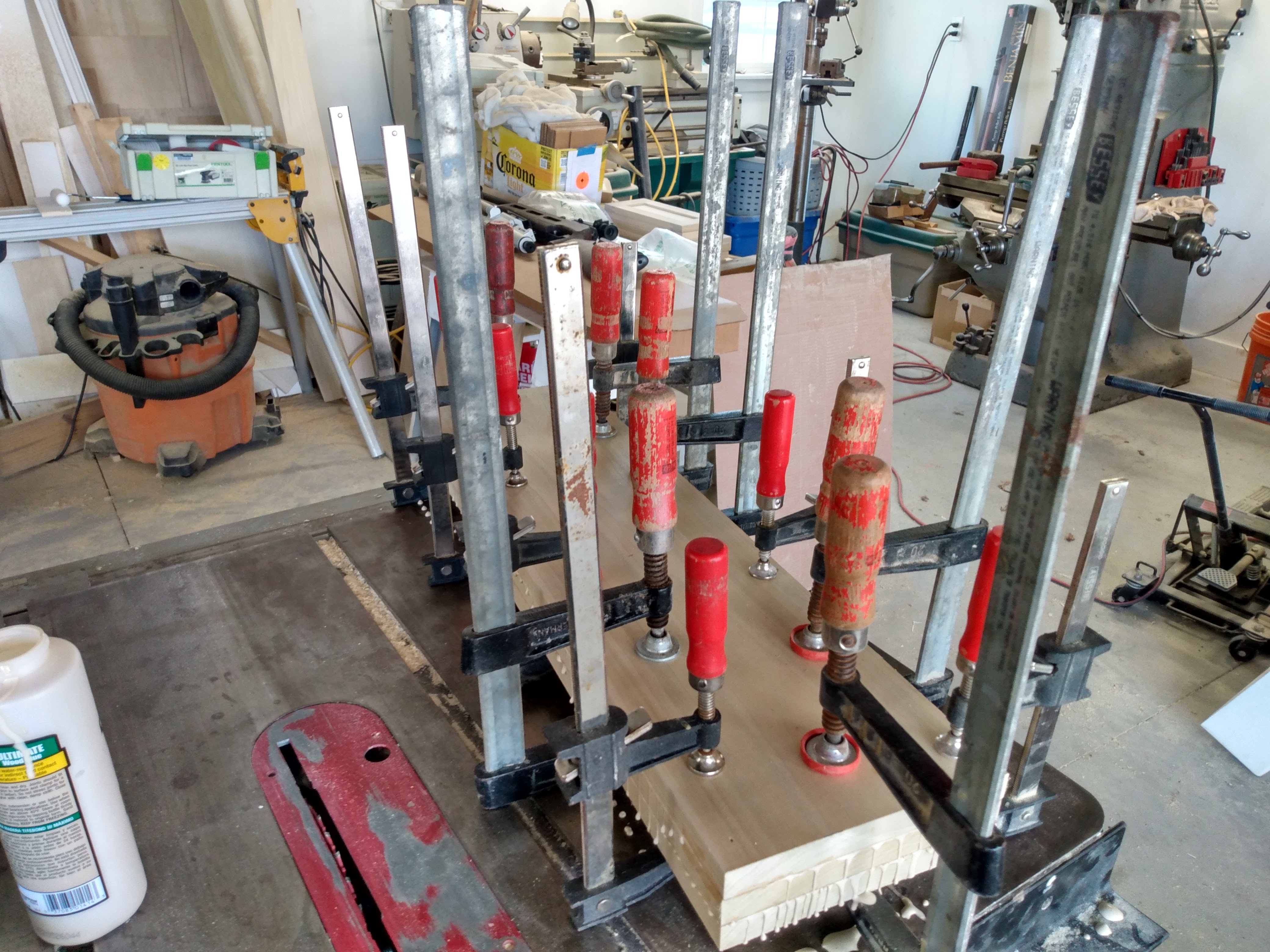

since the only sizable piece of lumber I had in the shop was a 1x8x7’ board…that was it…

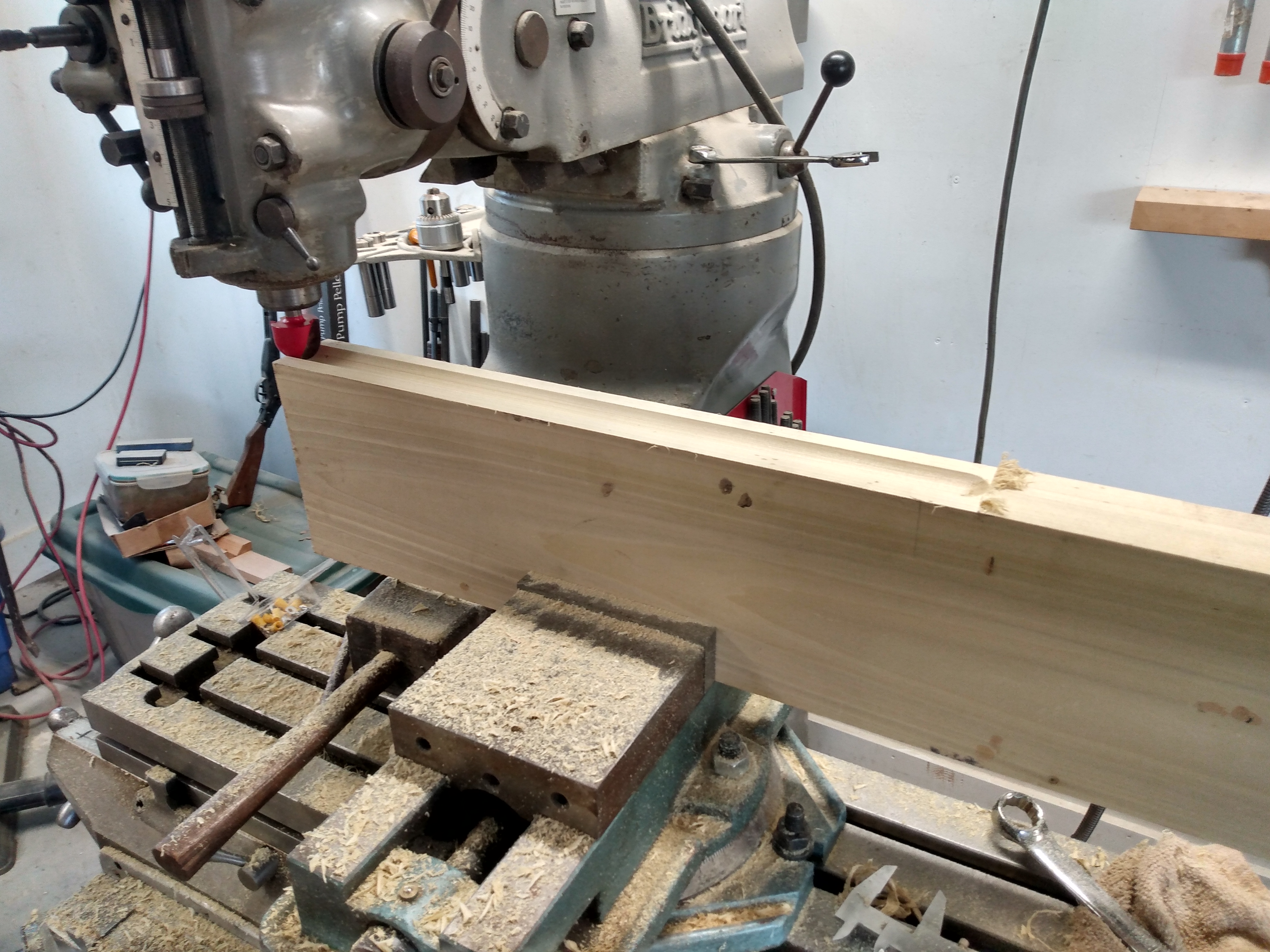

set up for inletting…

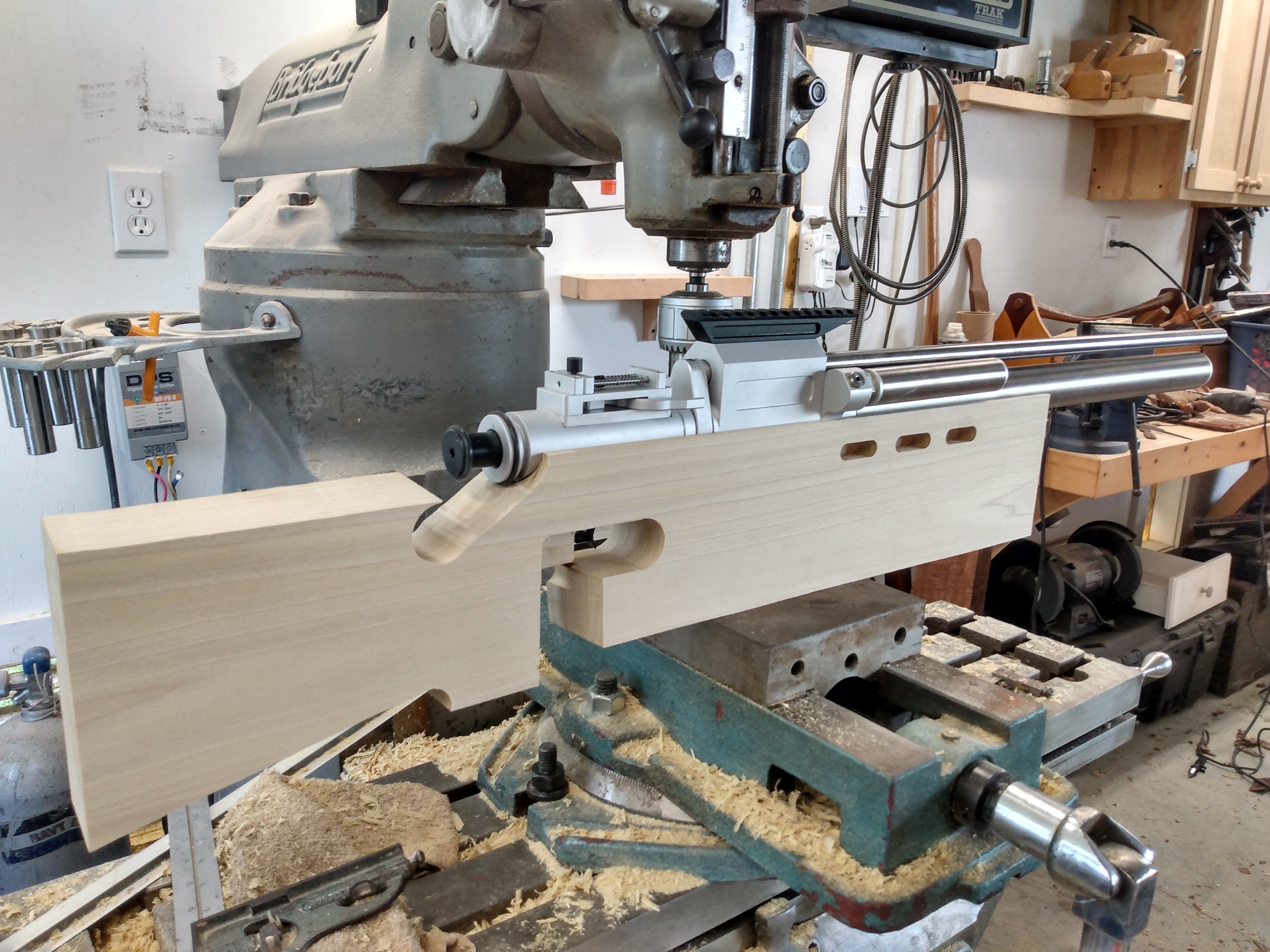

…..a few hrs later.…

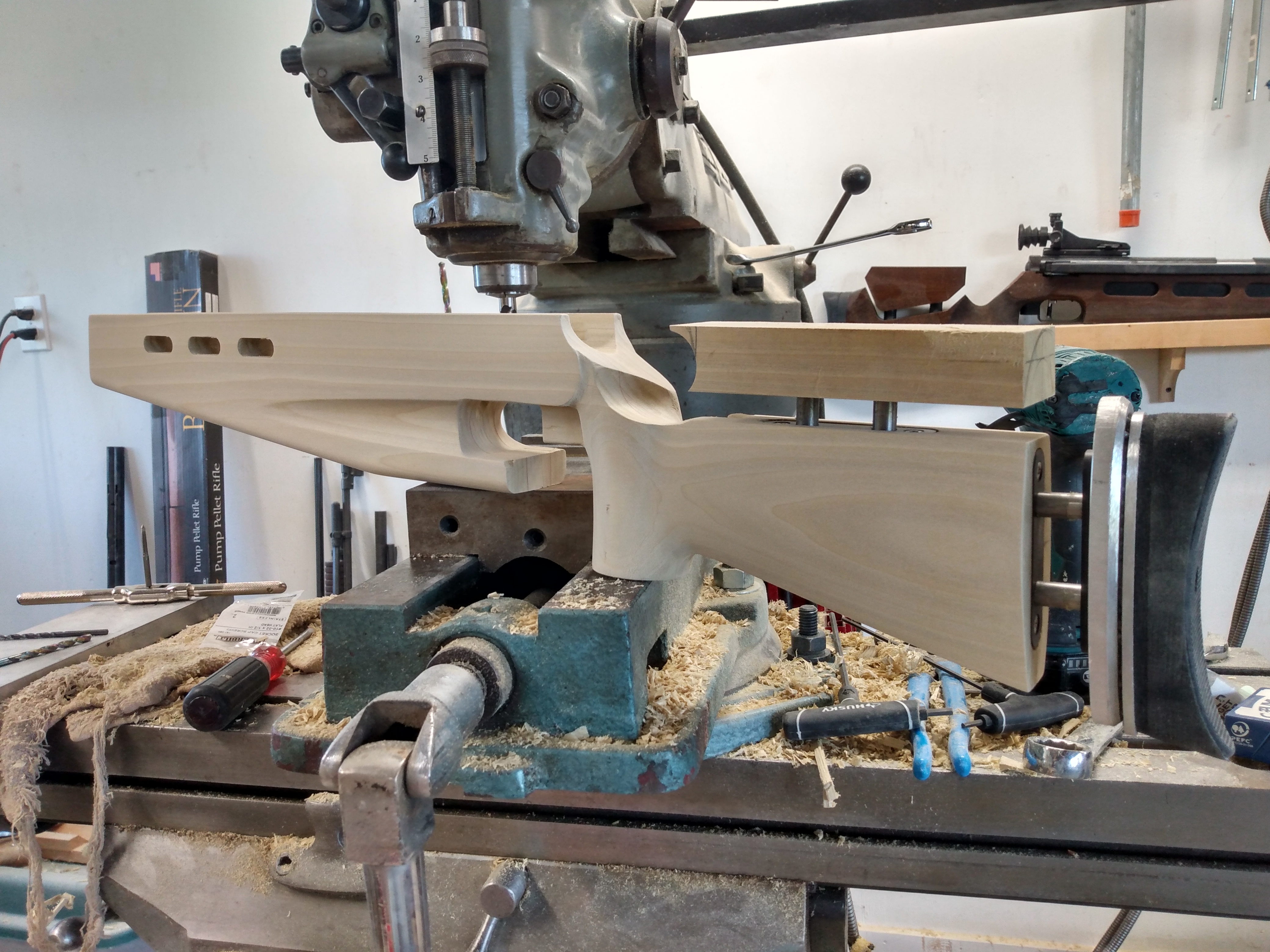

…..a little later…

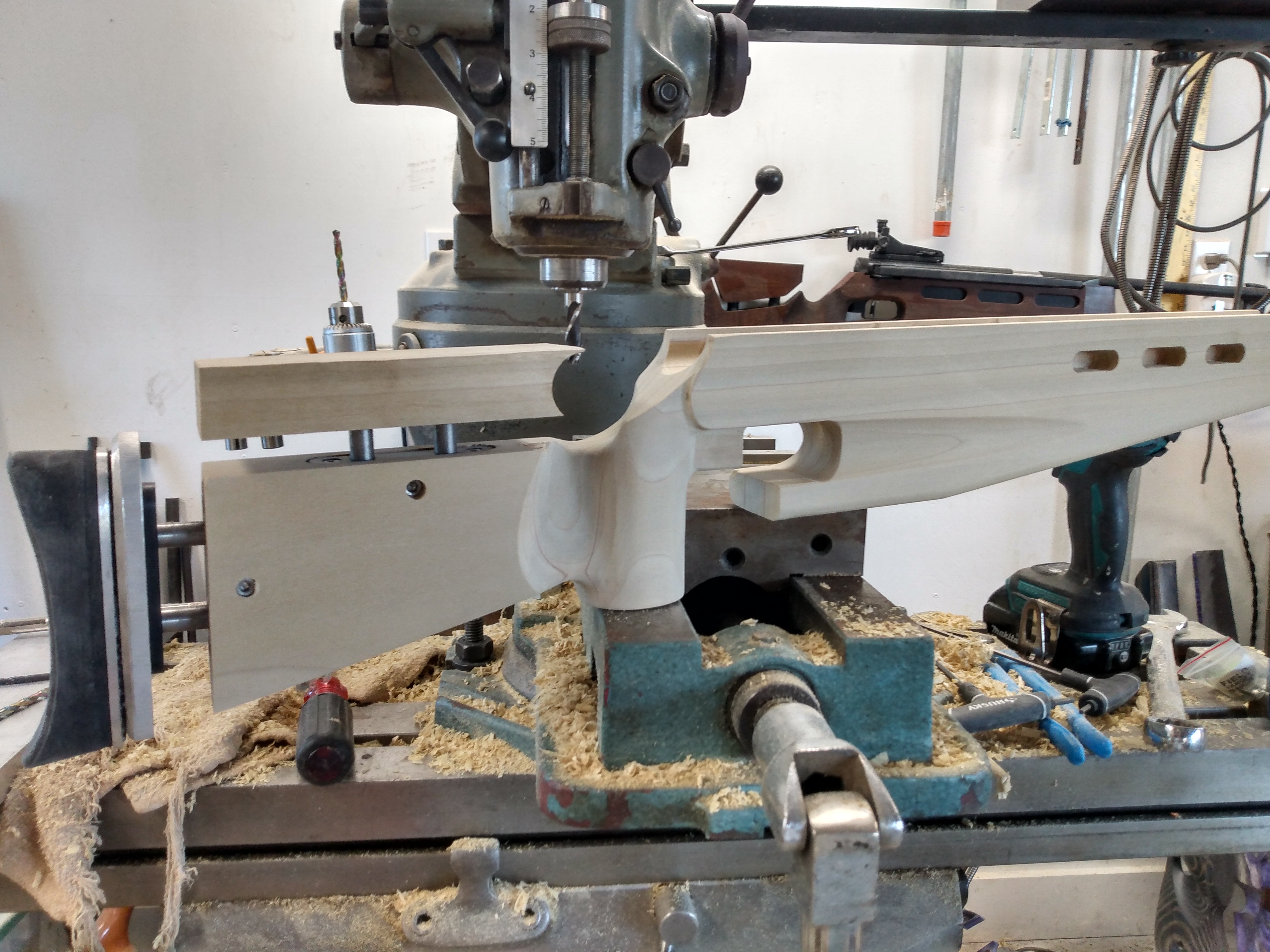

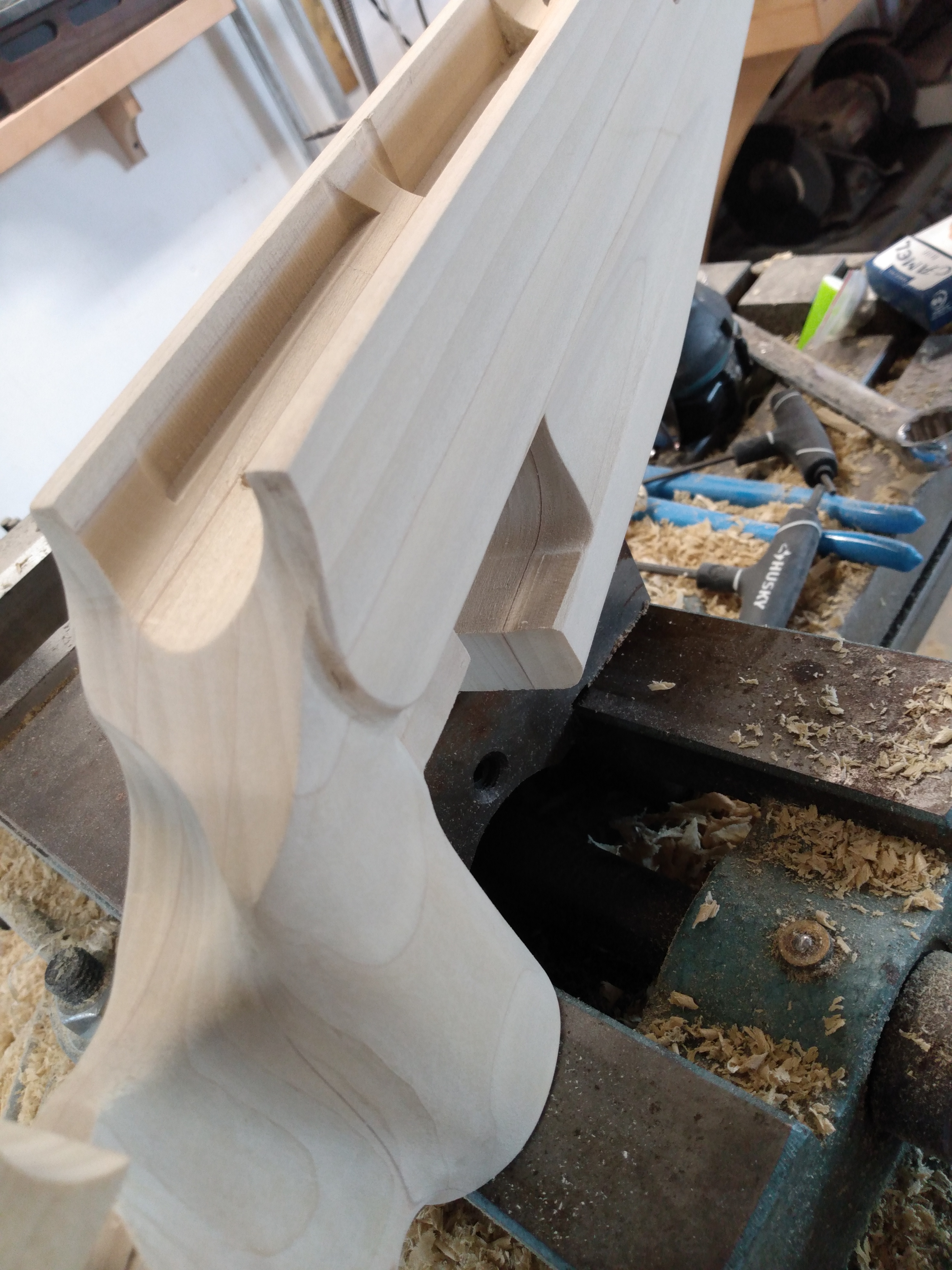

…..another angle.….…
……grip detail…

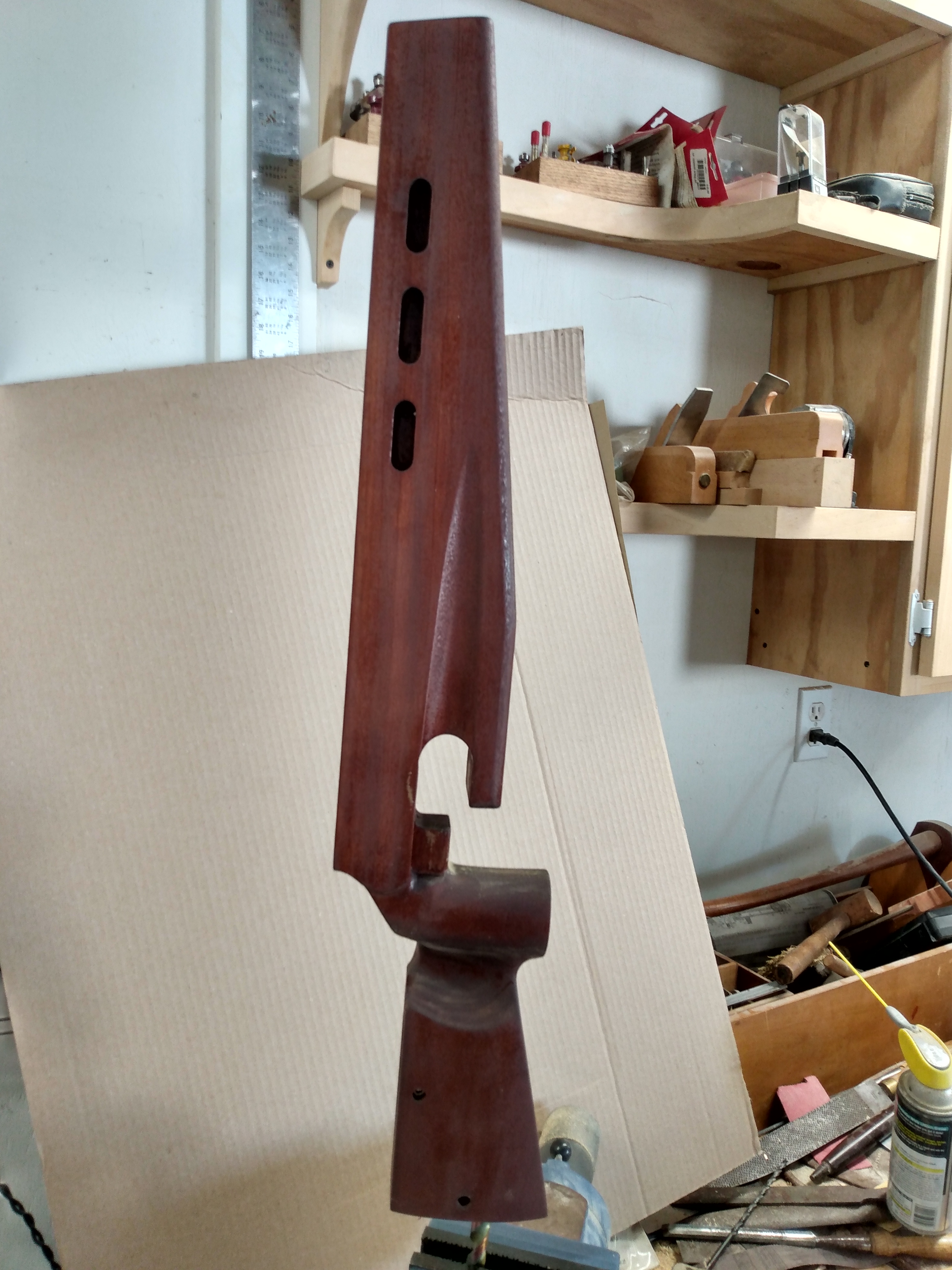

…..my experience staining Poplar is less than stellar..I used L’Oreal permanent hair dye…6RB…went on ok..a little fiddly to even out color.…

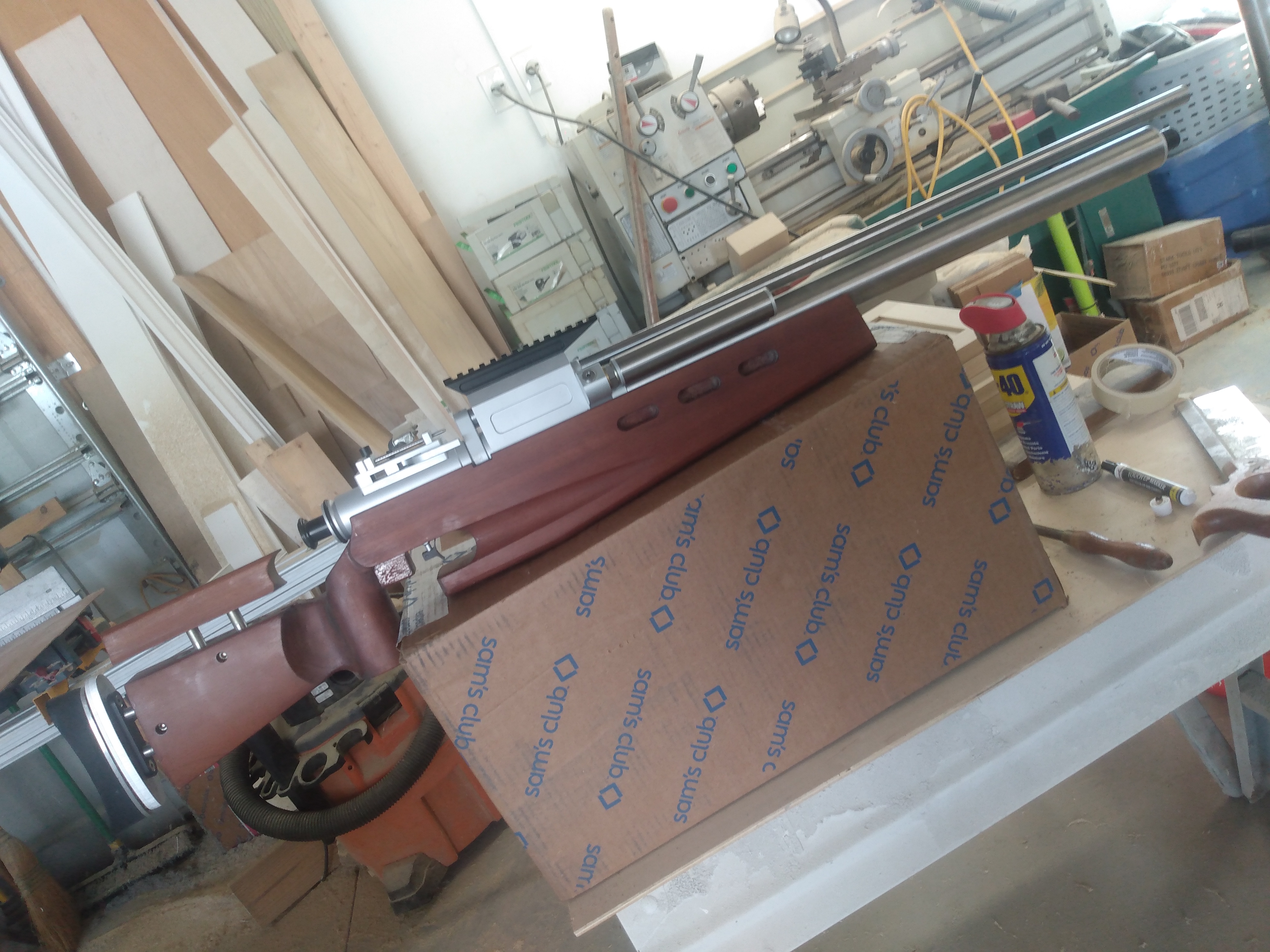

….final test fit so I could return the rifle…

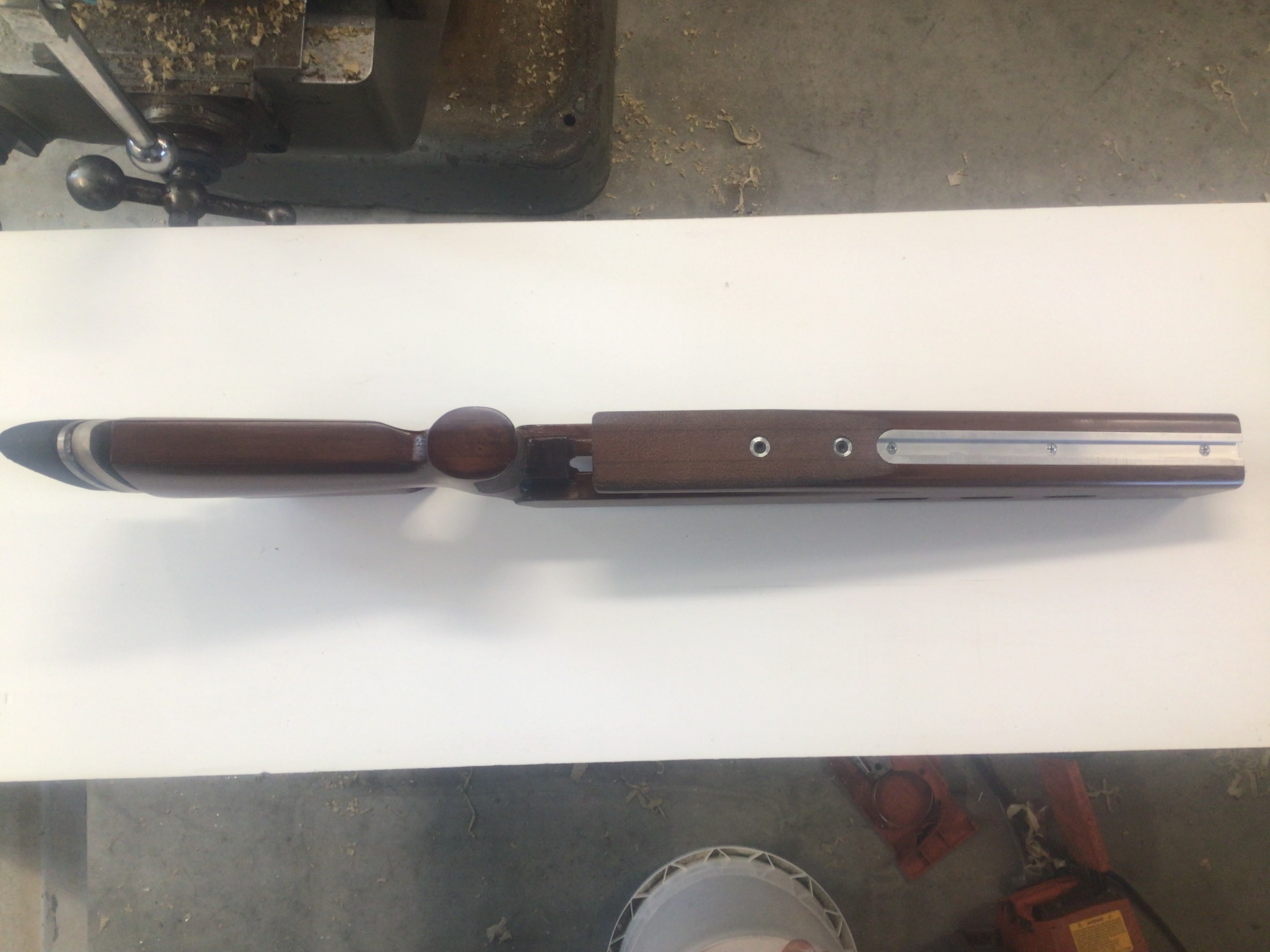

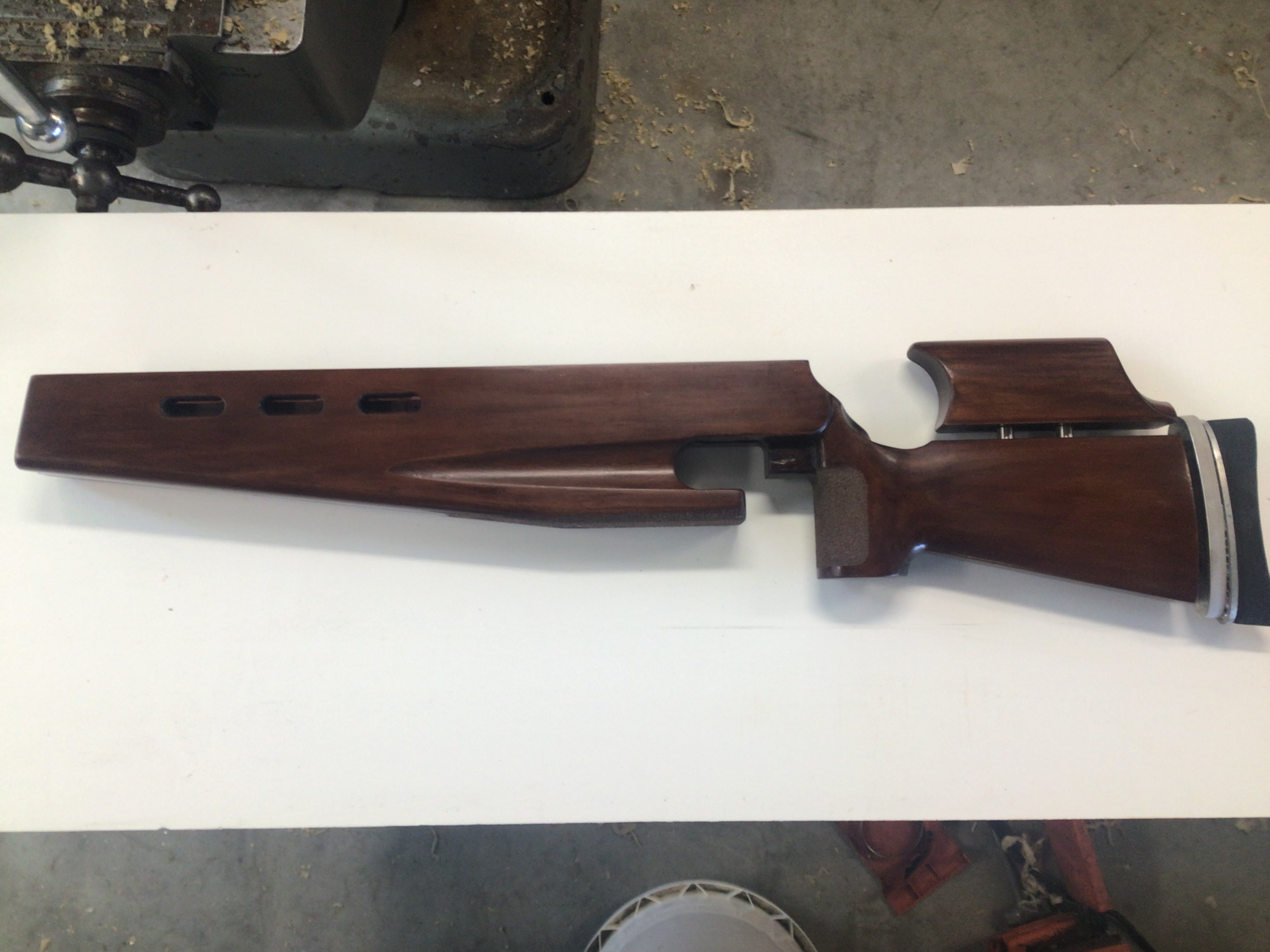

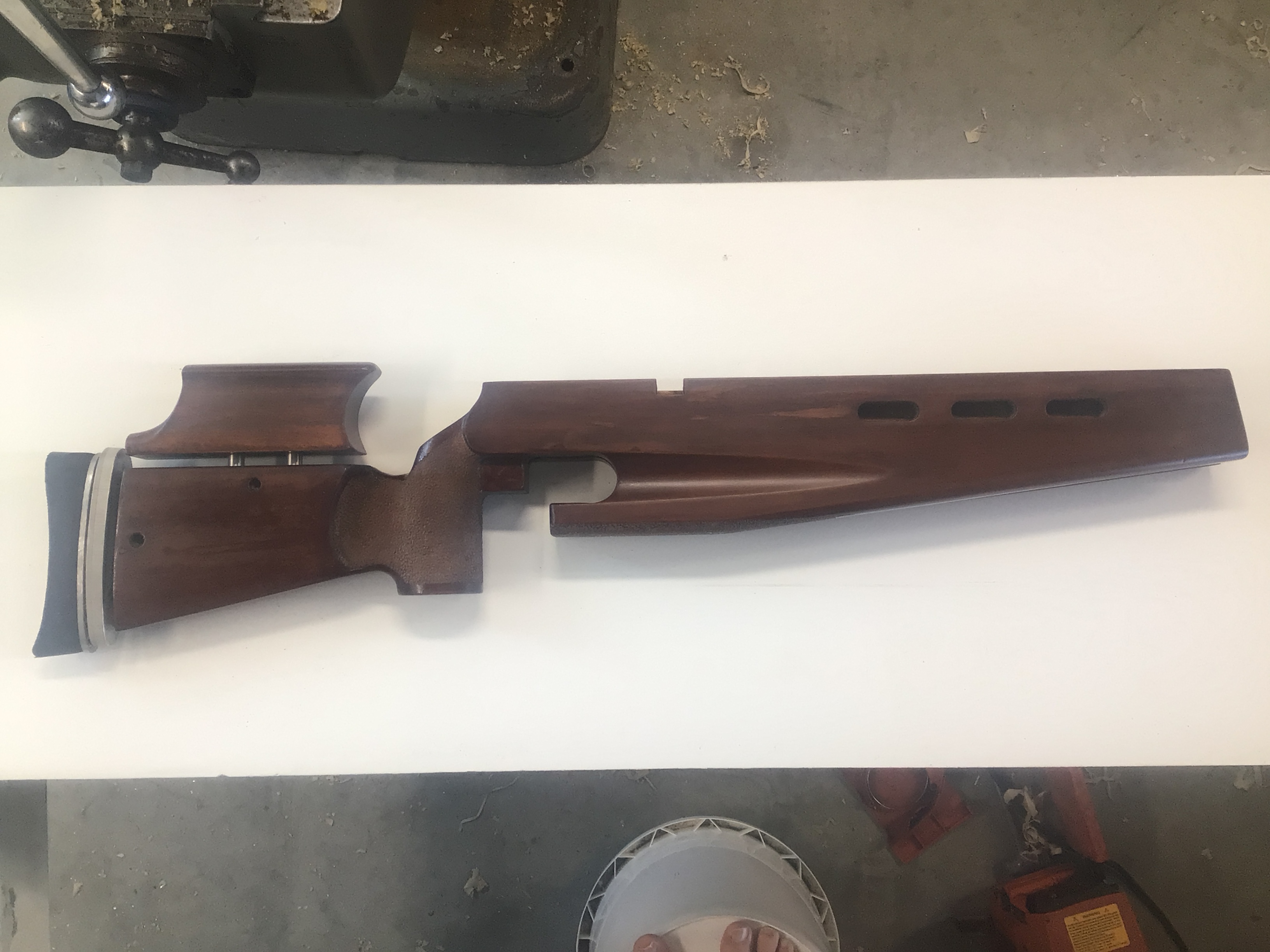

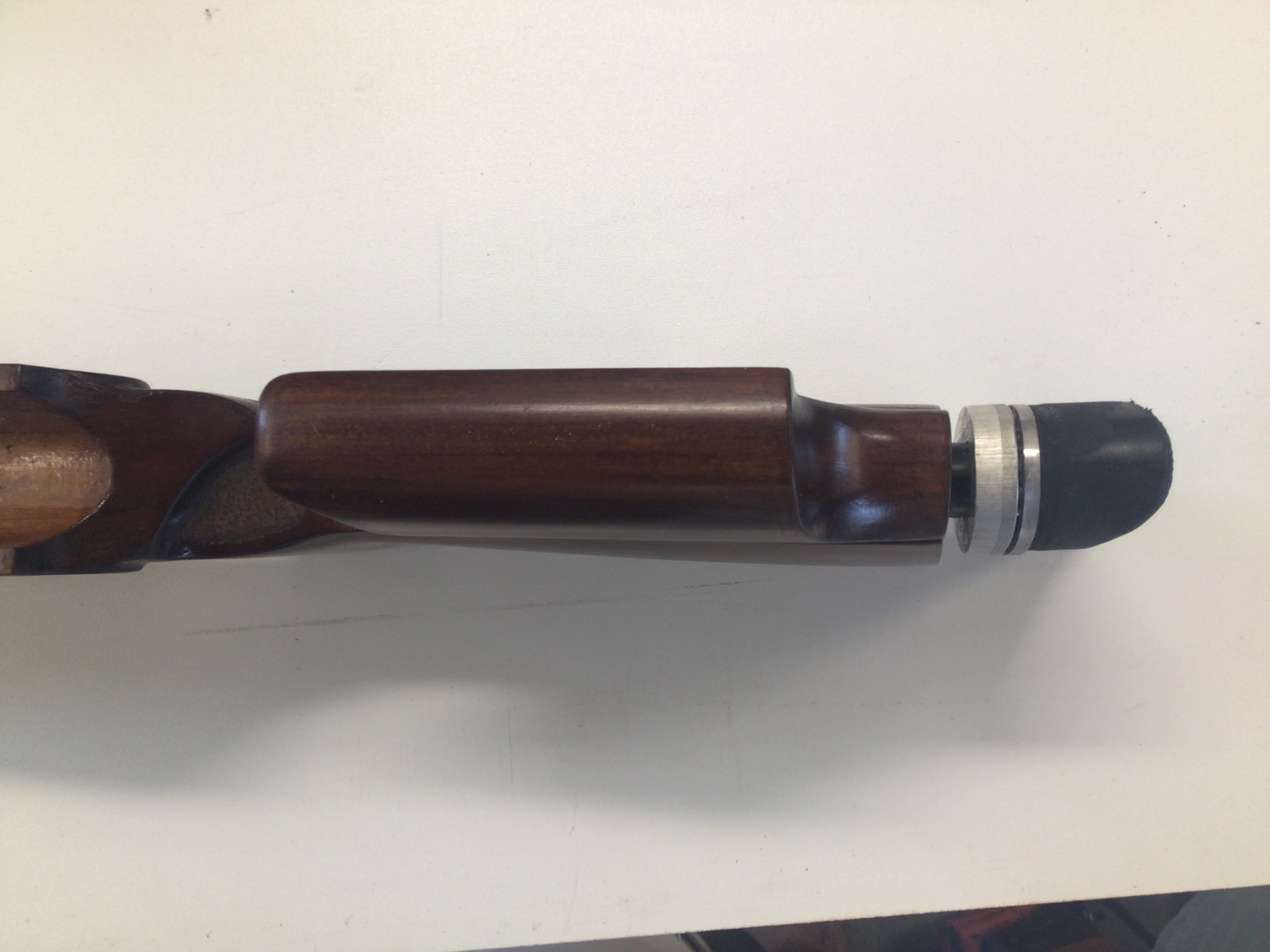

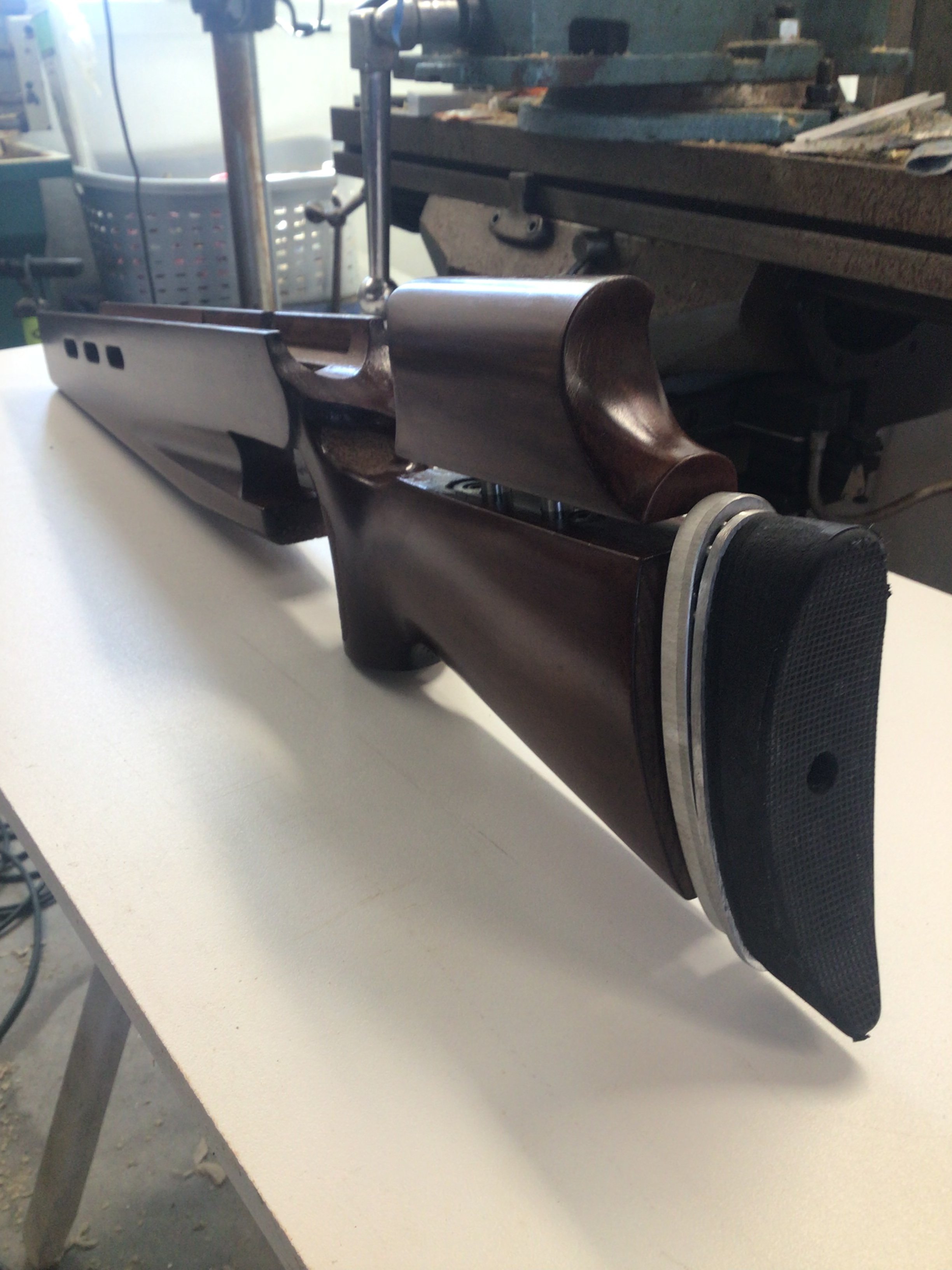

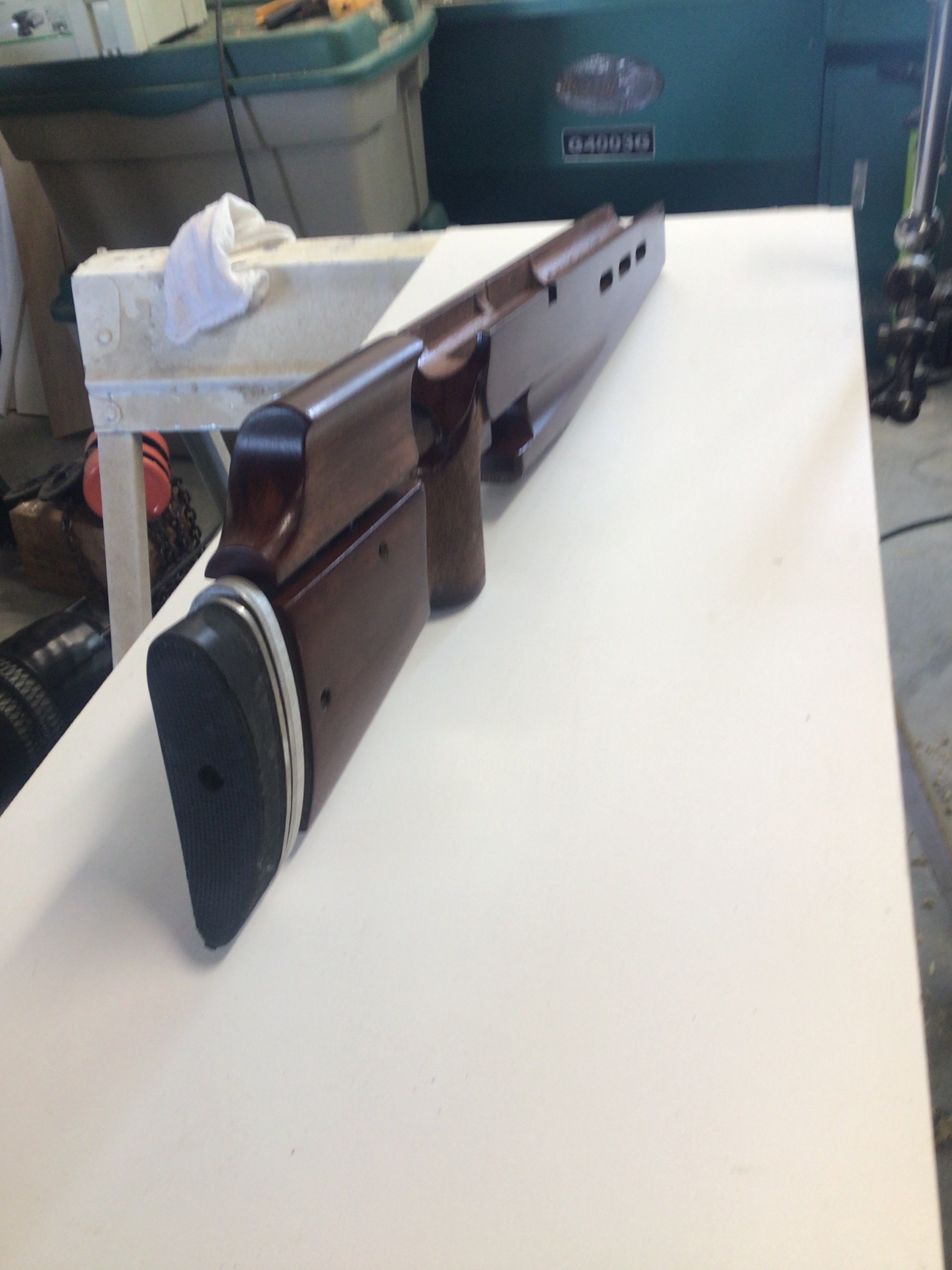

….finished stock..
…
…well that’s it…I learned a lot of what works, what doesn’t..the order of processes..choosing a more stock friendly material…finish over dye requires a sprayed sealer coat.. and finally, how to create a new post on AGN.

  • Like
  • Love
  • Wow
Reactions: cavedweller, fusion, whyzee and 37 others
JohnTaylor said:
Recently a buddy of mine asked me if I would make him a stock for his Thomas HPX benchrest rifle. His only request was that he could fire it from his shoulder. I had been wanting to build myself a stock for my RAW TM 1000….but never having built a rifle stock before, I agreed, hoping to learn a thing or two before bui one for myself. This is what I came up with……View attachment 334557A quick drawing to have a place to start…View attachment 334558since the only sizable piece of lumber I had in the shop was a 1x8x7’ board…that was it…View attachment 334559set up for inletting…View attachment 334561…..a few hrs later.…View attachment 334562…..a little later…View attachment 334563…..another angle.….…View attachment 334564……grip detail…View attachment 334565…..my experience staining Poplar is less than stellar..I used L’Oreal permanent hair dye…6RB…went on ok..a little fiddly to even out color.…View attachment 334566….final test fit so I could return the rifle…View attachment 334567….finished stock..View attachment 334571View attachment 334569View attachment 334572View attachment 334573…View attachment 334575…well that’s it…I learned a lot of what works, what doesn’t..the order of processes..choosing a more stock friendly material…finish over dye requires a sprayed sealer coat.. and finally, how to create a new post on AGN.
Click to expand...
Amazing work!!!

  • Love
Reactions: ThomasT
Upvote 0
JohnTaylor said:
Recently a buddy of mine asked me if I would make him a stock for his Thomas HPX benchrest rifle. His only request was that he could fire it from his shoulder. I had been wanting to build myself a stock for my RAW TM 1000….but never having built a rifle stock before, I agreed, hoping to learn a thing or two before bui one for myself. This is what I came up with……View attachment 334557A quick drawing to have a place to start…View attachment 334558since the only sizable piece of lumber I had in the shop was a 1x8x7’ board…that was it…View attachment 334559set up for inletting…View attachment 334561…..a few hrs later.…View attachment 334562…..a little later…View attachment 334563…..another angle.….…View attachment 334564……grip detail…View attachment 334565…..my experience staining Poplar is less than stellar..I used L’Oreal permanent hair dye…6RB…went on ok..a little fiddly to even out color.…View attachment 334566….final test fit so I could return the rifle…View attachment 334567….finished stock..View attachment 334571View attachment 334569View attachment 334572View attachment 334573…View attachment 334575…well that’s it…I learned a lot of what works, what doesn’t..the order of processes..choosing a more stock friendly material…finish over dye requires a sprayed sealer coat.. and finally, how to create a new post on AGN.
Click to expand...
Hello @JohnTaylor

That is absolutely beautiful to see all of the steps and then the finished piece, thank you for sharing :love: (y) (y) (y)
ThomasT

  • Like
Reactions: Sqwirl57
Upvote 0
UCChris said:
@JohnTaylor Are the three slots in the stock a design choice? The target stocks for QB78/79, while a far cry in craftsmanship from your work, have the same slots.
Click to expand...
I loosely patterned the stock after a rifle I’ve had forever…a Diana 75.. it has slots in the forestock and I thought they broke up that large expanse of flat nicely, so I went with them. Plus I think they look kinda neat..

  • Like
  • Love
Reactions: whyzee, UCChris, Sqwirl57 and 1 other person
Upvote 0
JohnTaylor said:
Recently a buddy of mine asked me if I would make him a stock for his Thomas HPX benchrest rifle. His only request was that he could fire it from his shoulder. I had been wanting to build myself a stock for my RAW TM 1000….but never having built a rifle stock before, I agreed, hoping to learn a thing or two before bui one for myself. This is what I came up with……View attachment 334557A quick drawing to have a place to start…View attachment 334558since the only sizable piece of lumber I had in the shop was a 1x8x7’ board…that was it…View attachment 334559set up for inletting…View attachment 334561…..a few hrs later.…View attachment 334562…..a little later…View attachment 334563…..another angle.….…View attachment 334564……grip detail…View attachment 334565…..my experience staining Poplar is less than stellar..I used L’Oreal permanent hair dye…6RB…went on ok..a little fiddly to even out color.…View attachment 334566….final test fit so I could return the rifle…View attachment 334567….finished stock..View attachment 334571View attachment 334569View attachment 334572View attachment 334573…View attachment 334575…well that’s it…I learned a lot of what works, what doesn’t..the order of processes..choosing a more stock friendly material…finish over dye requires a sprayed sealer coat.. and finally, how to create a new post on AGN.
Click to expand...
Wowza

Upvote 0
Gerry52 said:
Absolutely beautiful. I'm envious of your skill & tools! I want a wood stock for my Bobcat. Think you could make one? What would be the sturdiness yet lightest wood?
Click to expand...
Thank you…I’m flattered you would ask me to build you a stock. Unfortunately, as a retired shipwright in a Hurricane ravaged area, my wood working skills are pretty much spoken for in the foreseeable future.
If I were you, I’d stick to traditional stock woods…walnut, beech, maple…they are the choice of stock makers based on their unique characteristics. Short grain, for detail..density for durability, and grain for beauty. My choice of Poplar was purely circumstance..I generally have a pretty good supply of 16/4 and 20/4 beech, but had cut it up into blanks for custom hand planes. Than you again for your nice comments. John
