I just bought a can of the JSB Hades pellets in .22 and had to see for myself how expansion of this new pellet compared to that of the Crow Magnum with its massive forward cavity. From prior experience I knew water to be an excellent medium for initiating hydraulic expansion, so I filled a vinegar bottle full of water and closed off the open end with a piece of plastic bag sealed with a rubber band. The bottle was refilled and resealed for each shot. I then used my Streamline to shoot into the sealed end at 15 and 25 yards with these results.

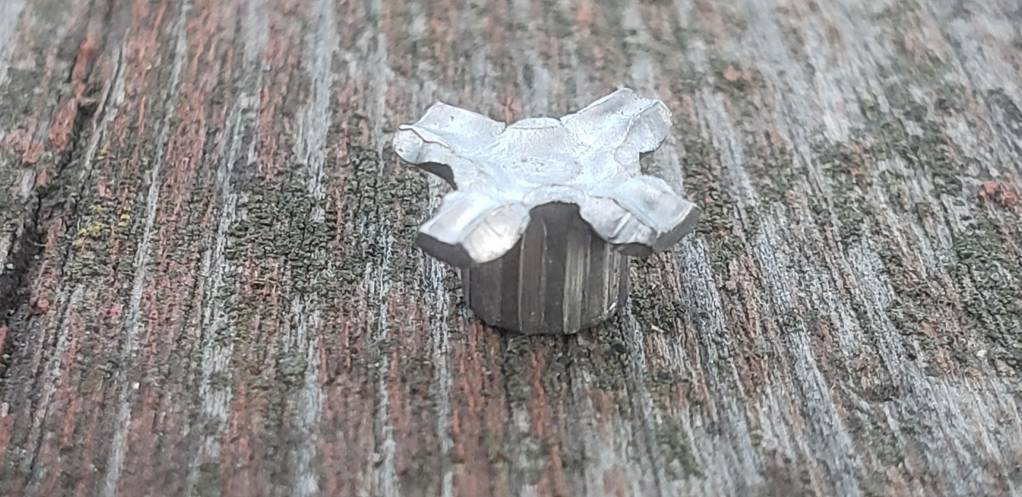

On the left you see the protruding head of the JSB 15.9 after passing through 11 1/4" of water and halfway through the back wall of the bottle. This was at 25 yards. To the right are the Crow Magnum and Hades pellets unfired, at 25 yards and then 15 yards. None of these made it to the back wall of the bottle. Head diameters were estimated using calipers for the unfired and Crow Magnum pellets, and a drill stand for the Hades pellets. For the expanded Hades, I choose the hole that best matched the diameter of the three lobes.
You can draw your own conclusions. For me the most interesting outcome was the impressive penetration of the standard JSB 15.9. Considering that our soft tissues are around 75% water, this penetration level shows the danger of even a moderately powerful "pellet gun". Also interesting are the differences in energy retention. With the traditional hollow point design like the Crow Magnum there appears to be a tradeoff between degree of expansion and B.C./energy retention. Newer designs like the Hades do a better job of providing good expansion while retaining ballistic efficiency.
Chuck
On the left you see the protruding head of the JSB 15.9 after passing through 11 1/4" of water and halfway through the back wall of the bottle. This was at 25 yards. To the right are the Crow Magnum and Hades pellets unfired, at 25 yards and then 15 yards. None of these made it to the back wall of the bottle. Head diameters were estimated using calipers for the unfired and Crow Magnum pellets, and a drill stand for the Hades pellets. For the expanded Hades, I choose the hole that best matched the diameter of the three lobes.
You can draw your own conclusions. For me the most interesting outcome was the impressive penetration of the standard JSB 15.9. Considering that our soft tissues are around 75% water, this penetration level shows the danger of even a moderately powerful "pellet gun". Also interesting are the differences in energy retention. With the traditional hollow point design like the Crow Magnum there appears to be a tradeoff between degree of expansion and B.C./energy retention. Newer designs like the Hades do a better job of providing good expansion while retaining ballistic efficiency.
Chuck
